| Technical Specifications (280Ah) | |
|---|---|
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (Ah) | 280Ah @0.5C discharge current 25±2ºC |
| Nominal Power (Wh) | 14.3KWh |

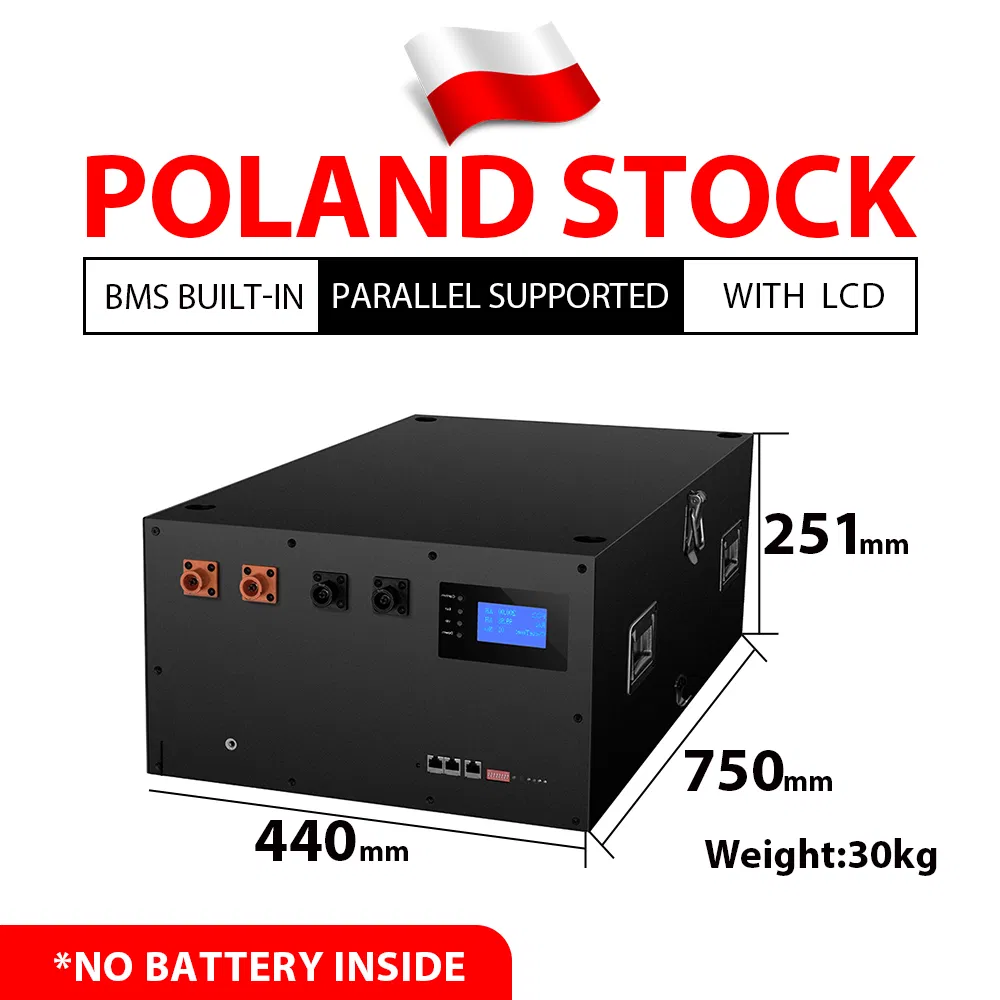

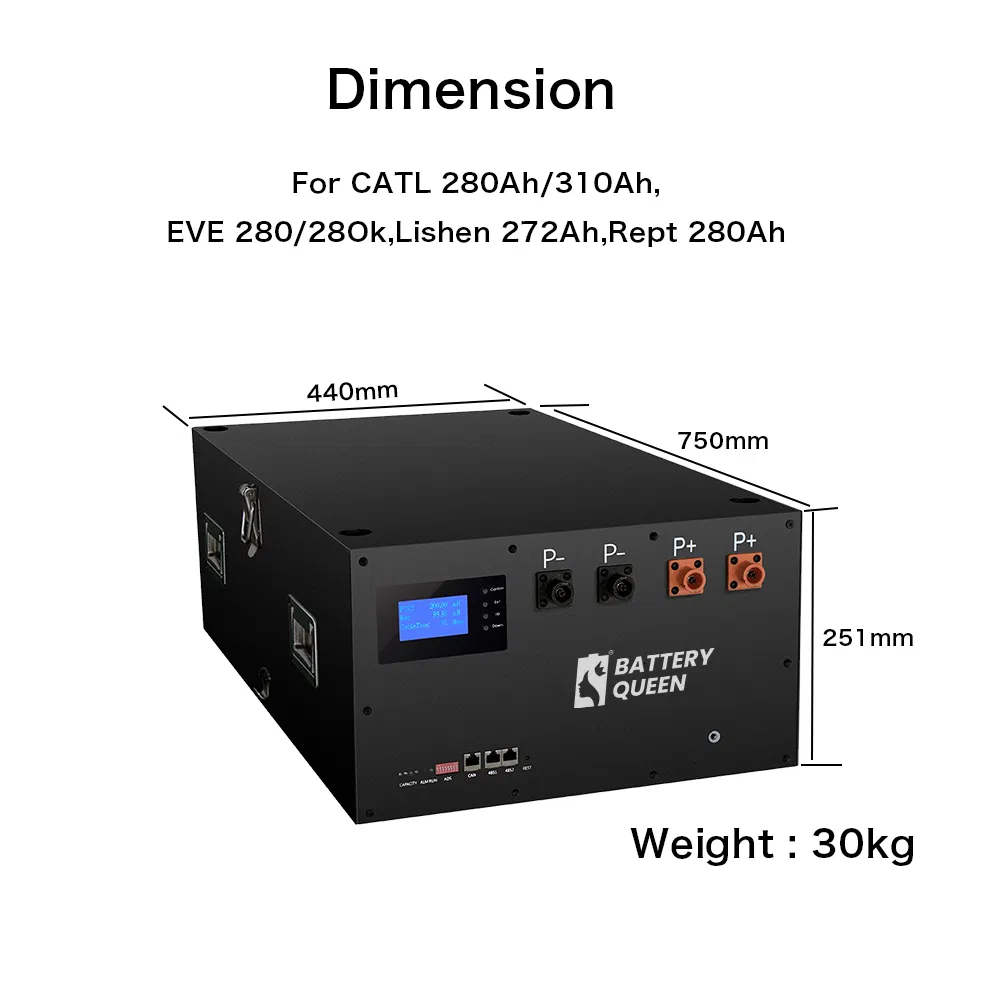

| Dimension (mm) | 750*440*251mm |
| Weight (Kg) | 112±5KG |
| Discharge Cut-off Voltage (v) | 41.6V |
| Charge Voltage (v) | 57.6V |
| Continuously Charge/Discharge Current(A) | 140A@25±2ºC(Recommended) |
| Max Standard Charge/Discharge Current (A) | 200A @25±2ºC |
| Working Temperature (Charge) | 0~50°C |
| Working Temperature (Discharge) | -10~50ºC |
| Working Temperature (Storage) | -20~55ºC |
| SOC Range / Recommended | 5%-100% / 15-95% |

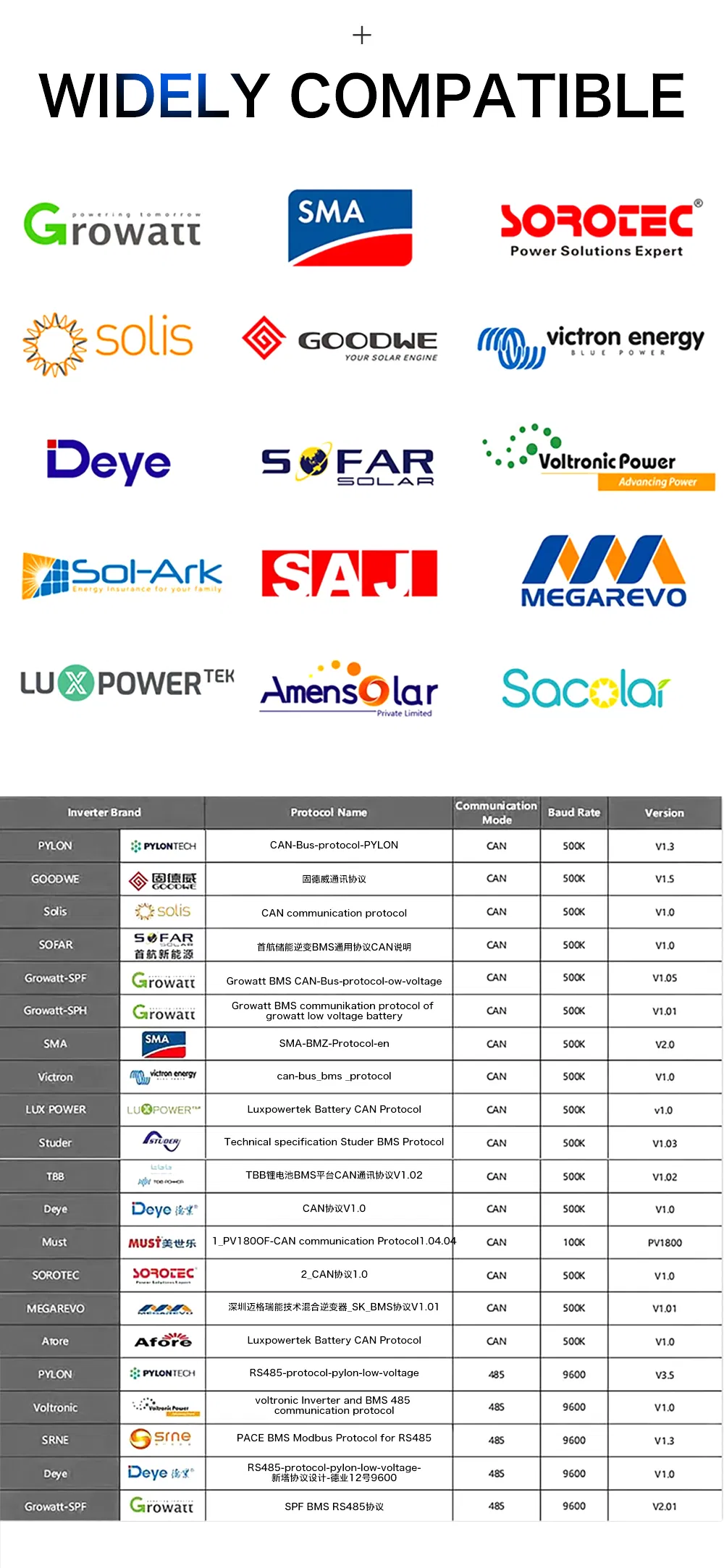

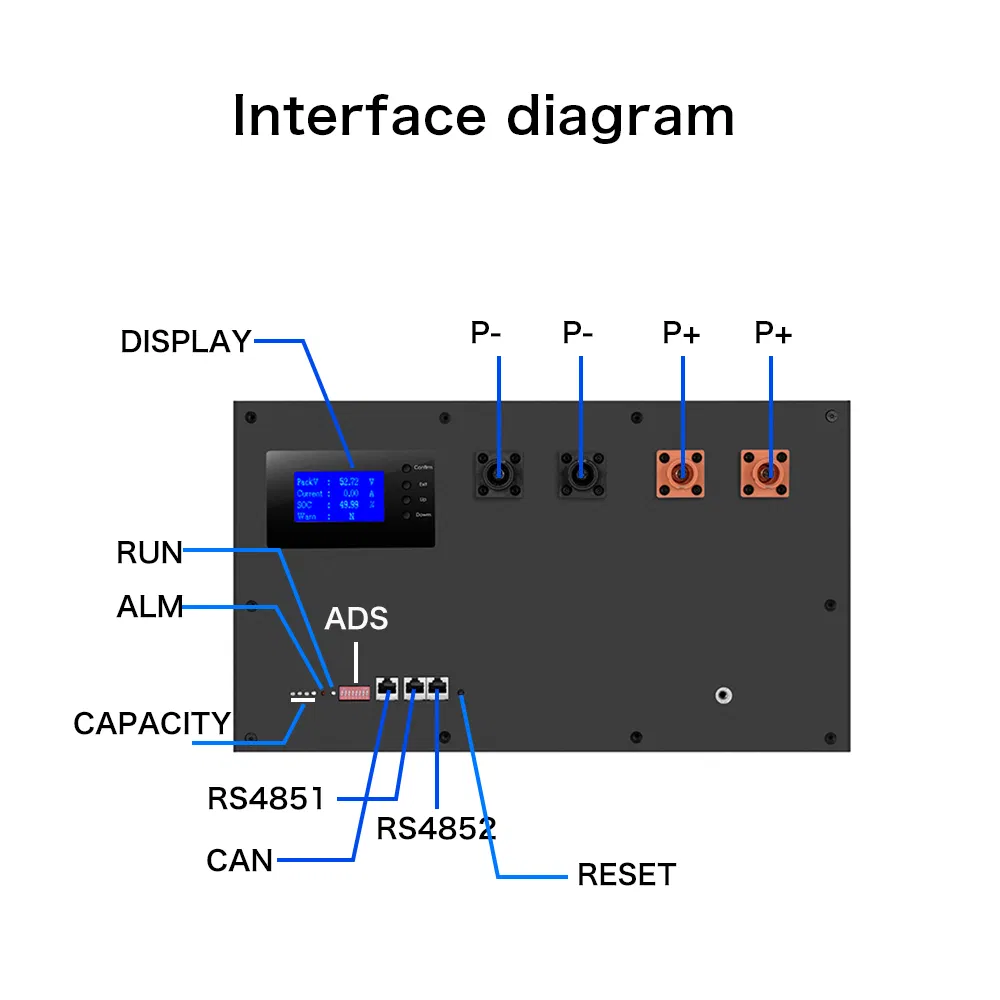

| Communication Interface | CAN (Default) or RS485 |
| Humidity / IP Level | 10%-85% / IP 20 |

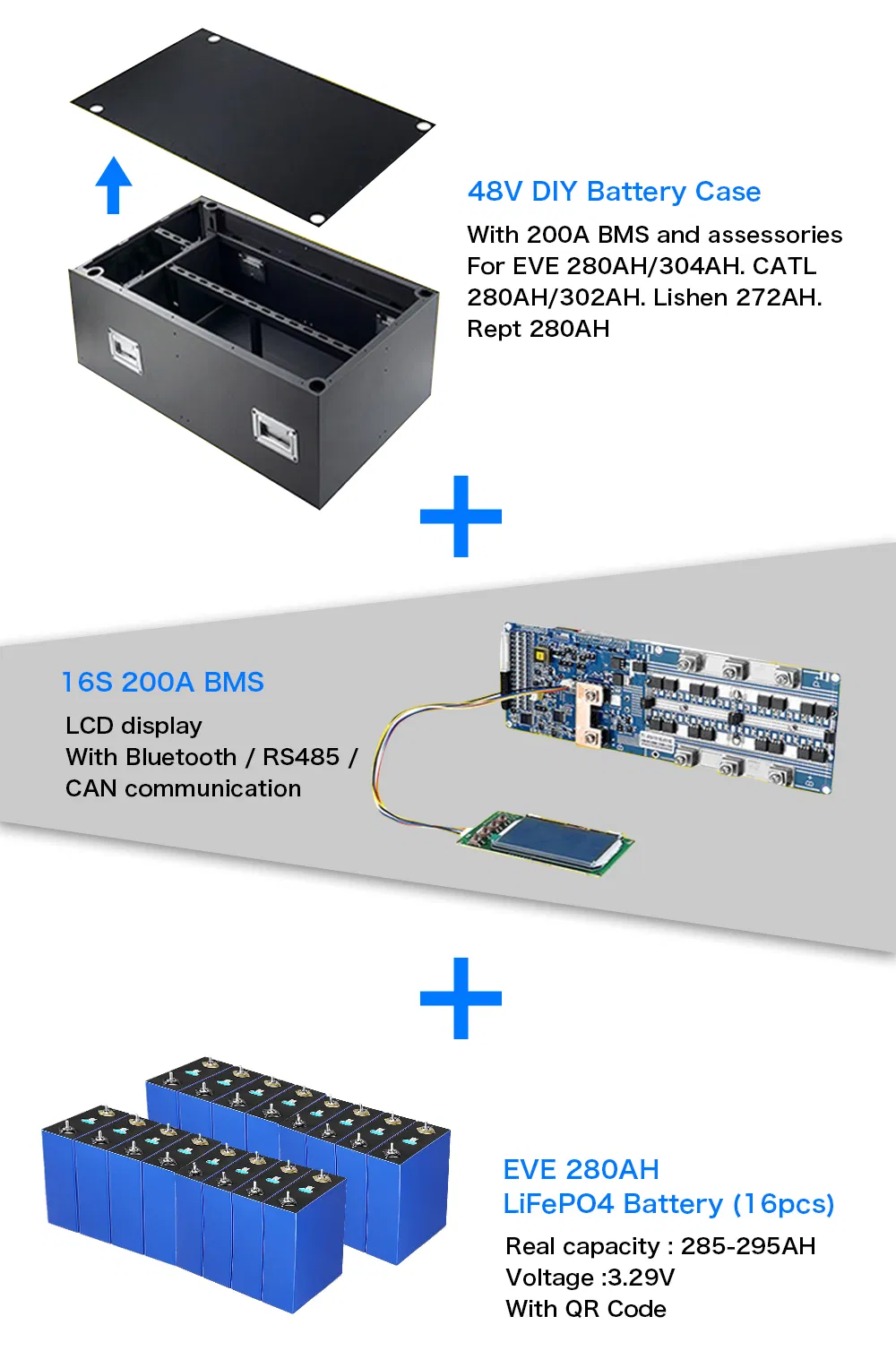

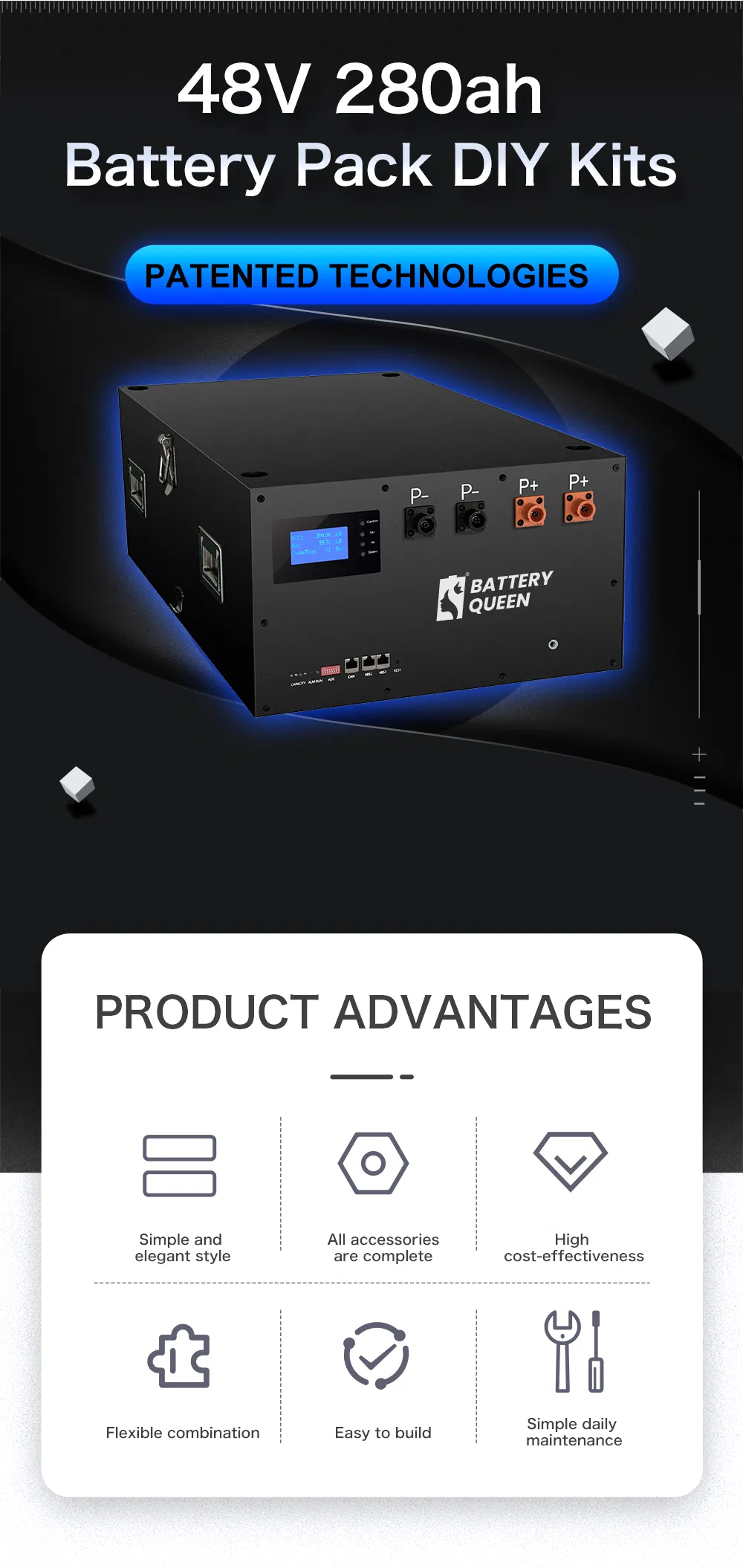

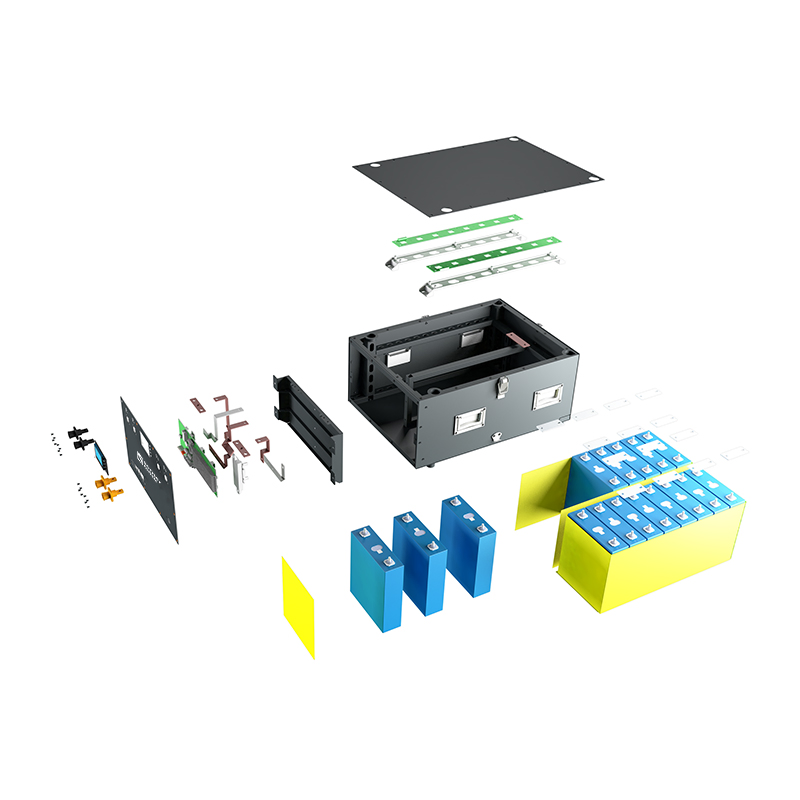

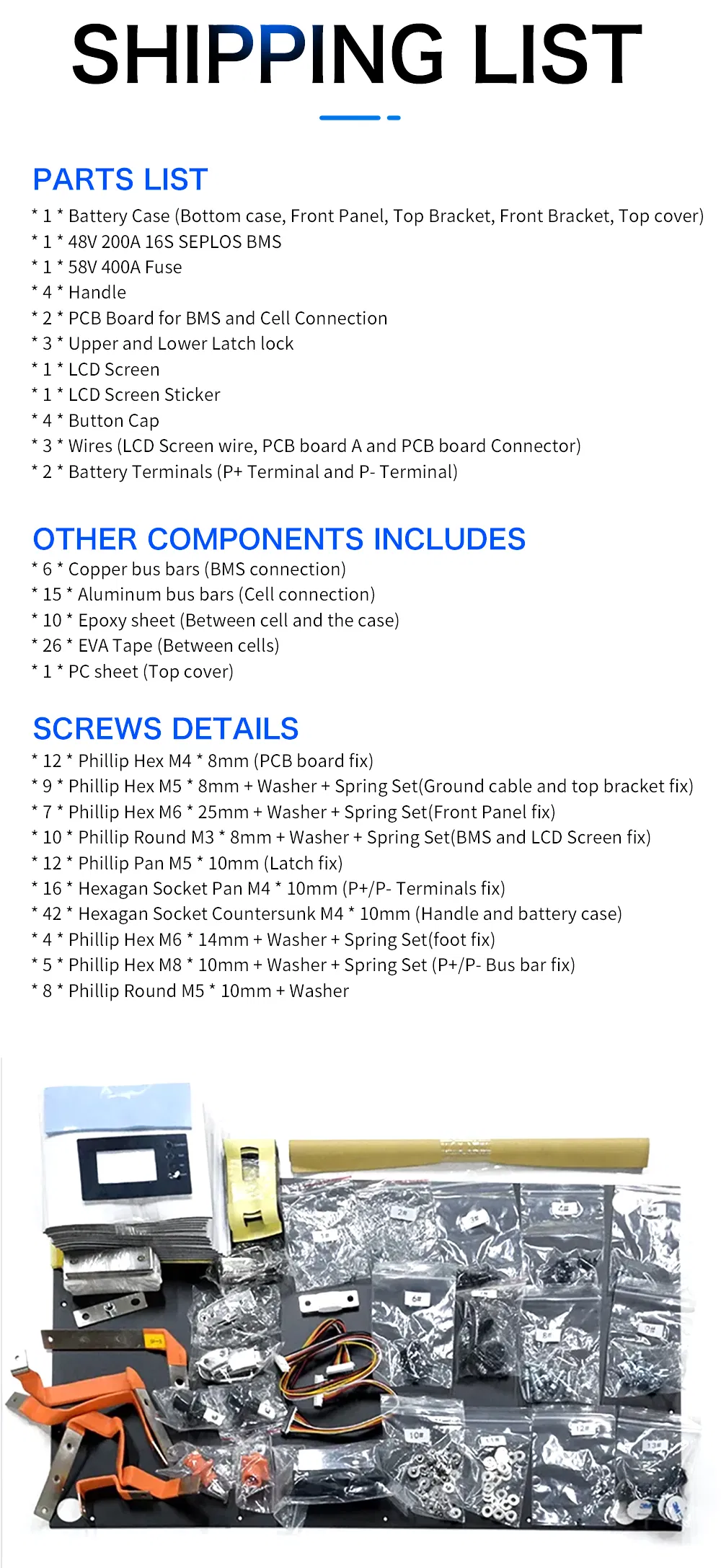

This newly launched 16S 48V 280AH/320AH DIY Battery kit includes a Smart BMS and supports communication with RS485 and CAN inverters. Professional users only need to add 16 battery cells to this kit for a complete, aesthetic storage solution.
