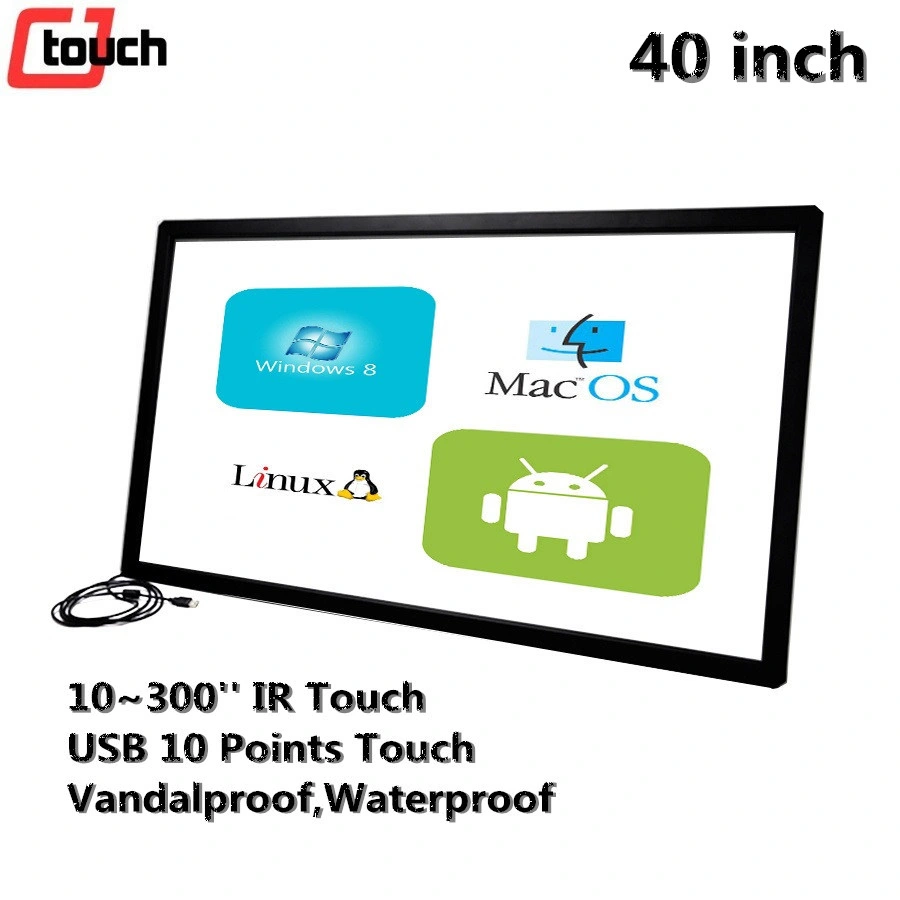

Advertising Education Smart TV 40 Inch IR Touch Screen Frame School Meeting Confenrence Whiteboard LCD Monitor Overlay Kit

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
CIP400AP-K1-DNA2
Application
Public Information Inquiry System
Screen Type
Infrared (IR)
Size Range
10 inch to 300 inch
Touch Points
1/2/4/6/10/16 Points Touch
Interface
USB, RS232, Elo/3m Compatible
Warranty
3 Years
OS Support
Windows, Android, Linux, iMac, Raspberry Pi
Certifications
CE, FCC, RoHS, ISO9001, ISO14001
Production
40,000 pieces/Month
Product Description

High-quality IR Infrared Touch Screen Frame Overlay Kit designed for various display sizes from 10 to 300 inches. This versatile touch solution features:

  • Multi-Touch Support: Options for 1, 2, 4, 6, 10, or 16 simultaneous touch points.
  • Durable Construction: 3/4/6mm IP65 Vandalproof Tempered Glass for industrial-grade protection.
  • High Resolution: 4096 x 4096 FHD resolution with >95% light transparency.
  • Rugged Performance: Waterproof, Dustproof, Vandalproof, and Anti-Glare touch panels.
  • Plug and Play: Free-drive operation, compatible with Elo/3M interfaces.
  • Precision: High position accuracy with no drift and no blind spots.

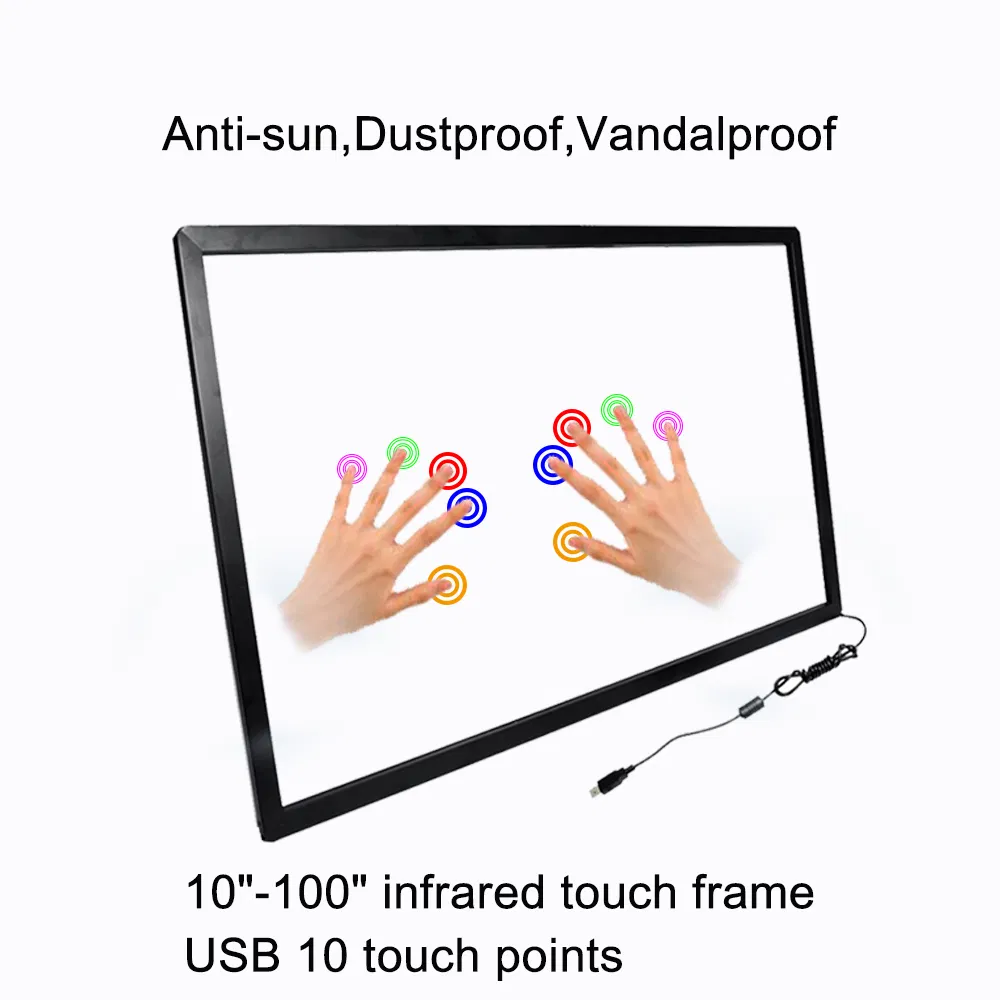

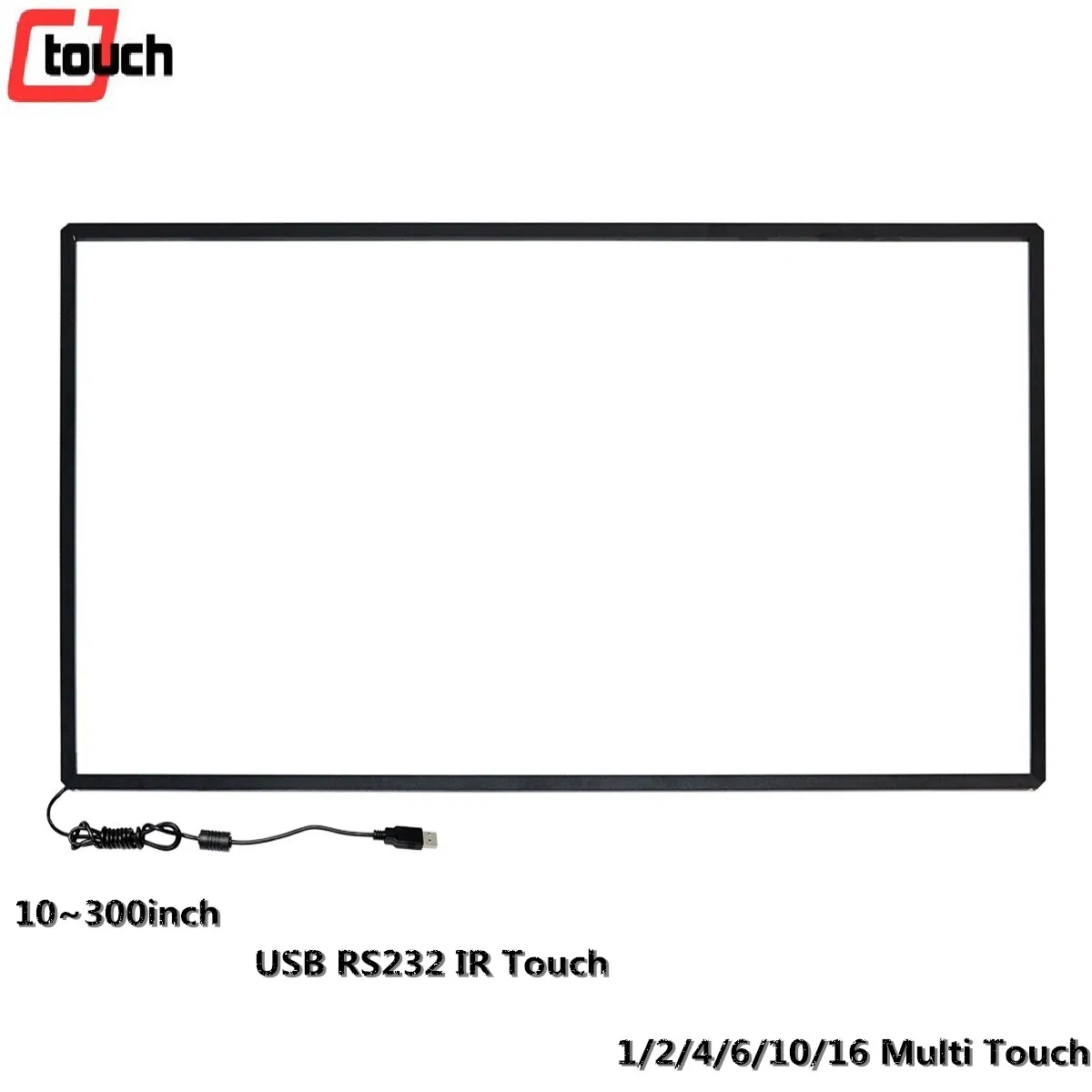

IR Touch Screen Frame
Technical Characteristics
Mechanical & Touch Parameters
HousingAluminum Frame
Touch Panel Size926*536mm
Active Area891*501mm
Input MethodFinger or Touch Pen
Position Accuracy2mm
Response Time8ms
Touch Intensity> 60,000,000 Single Touches
VoltageDC 4.5V ~ DC 5.5V
Power1.0W (100mA at DC 5V)
Operating Temp-10 °C ~ 50 °C
Humidity20% ~ 85% (Operating)

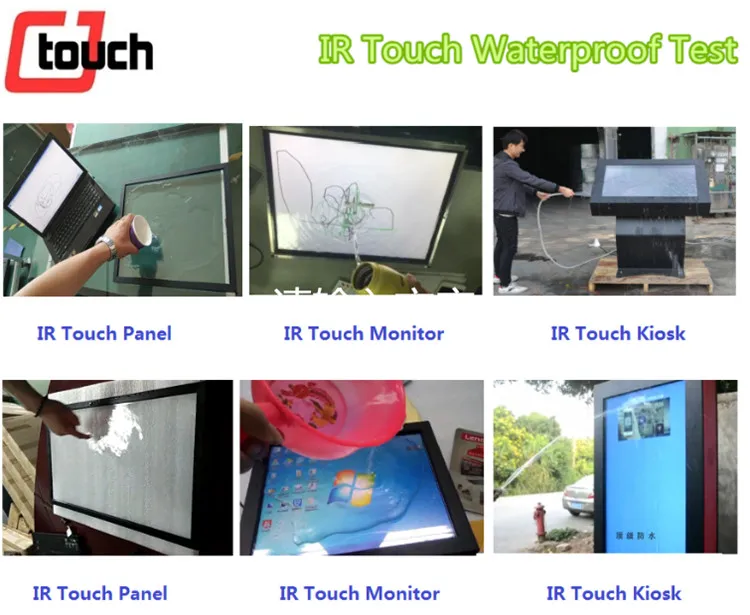

Technical Specs
Dimensional Drawing & Application Fields

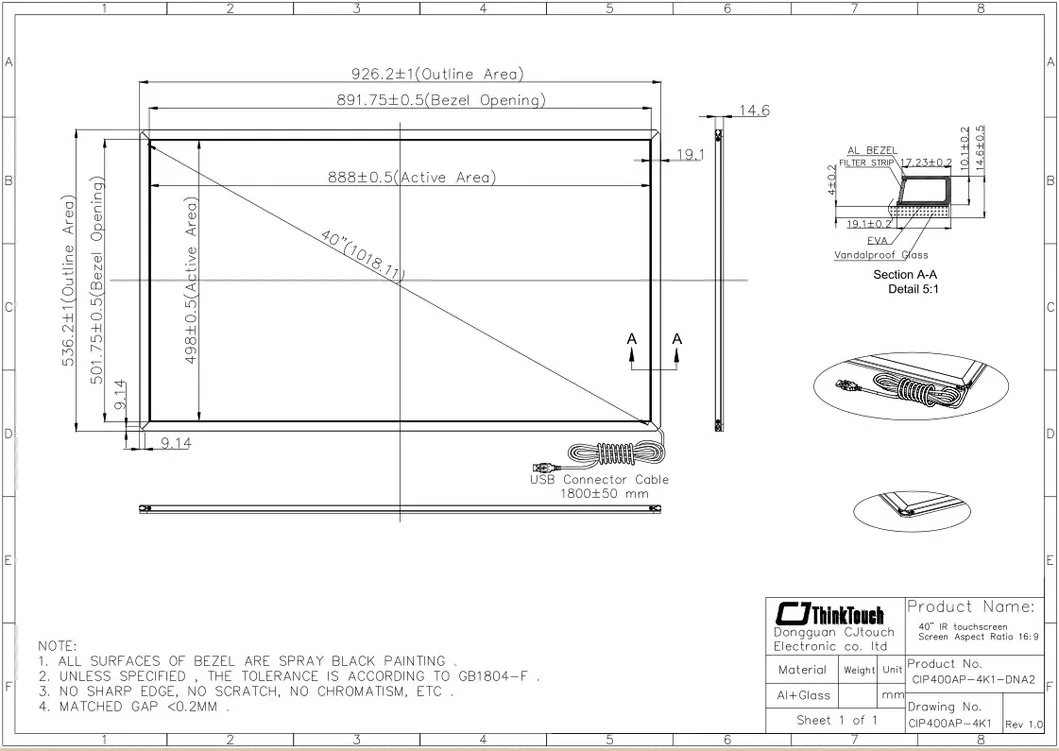

Drawing
Applications
Packaging & Delivery

Standard Packaging:

  • Sample Box (Under 19"): 56*41*8cm
  • Sample Box (19"-23.6"): 63*41*8cm
  • Bulk Order (15-19"): 57*49*36cm (10 Pcs)

Estimated Lead Time:

  • Sample Order: 1-4 Days (depending on glass type)
  • 100 Pcs: 7 Days
  • 500 Pcs: 20 Days

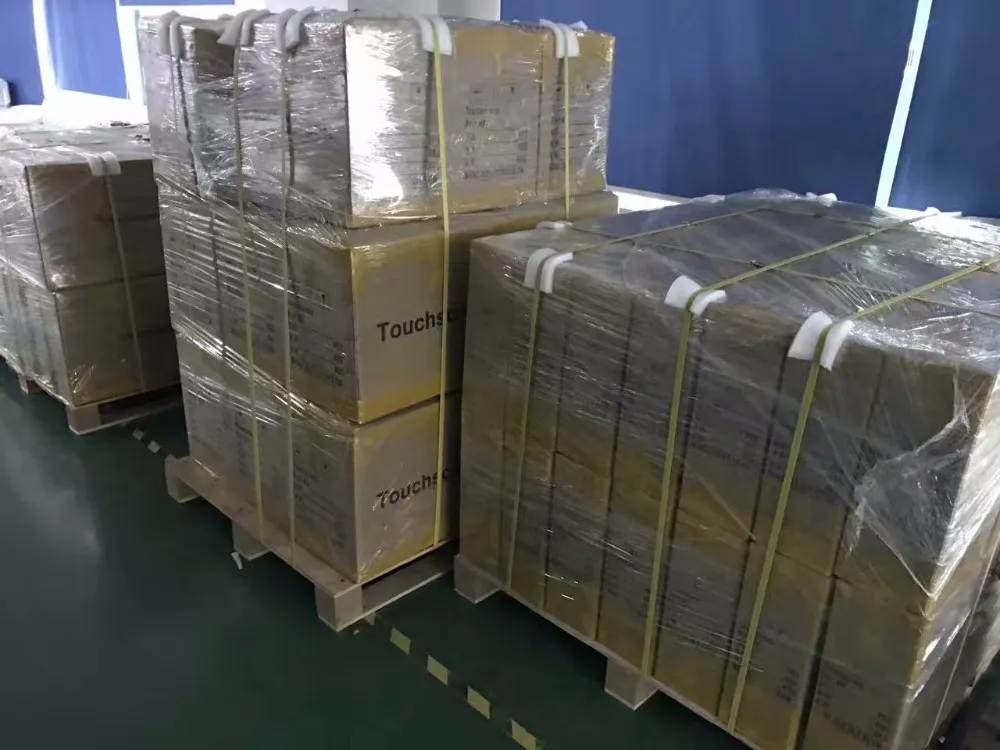

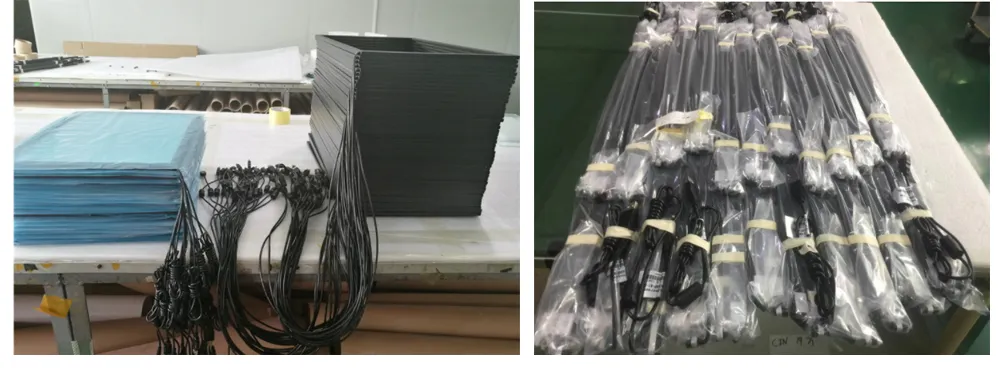

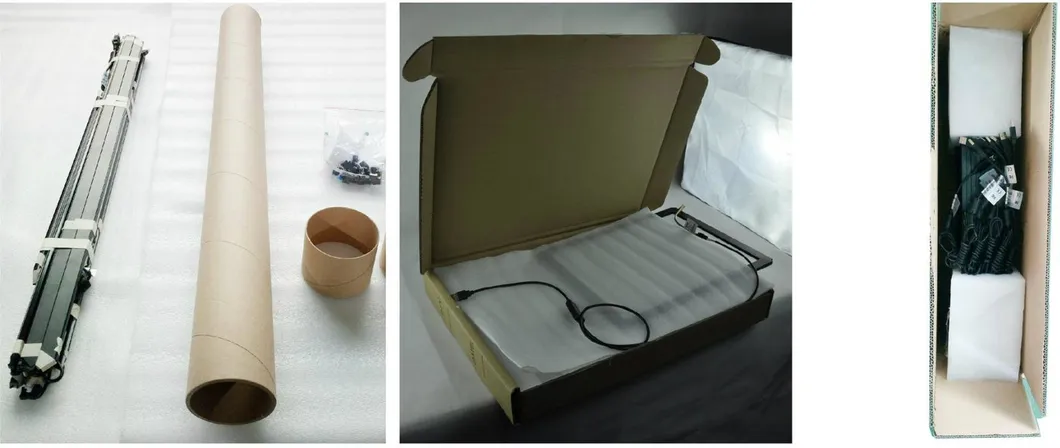

Package 1 Package 2 Package 3
Manufacturing Excellence

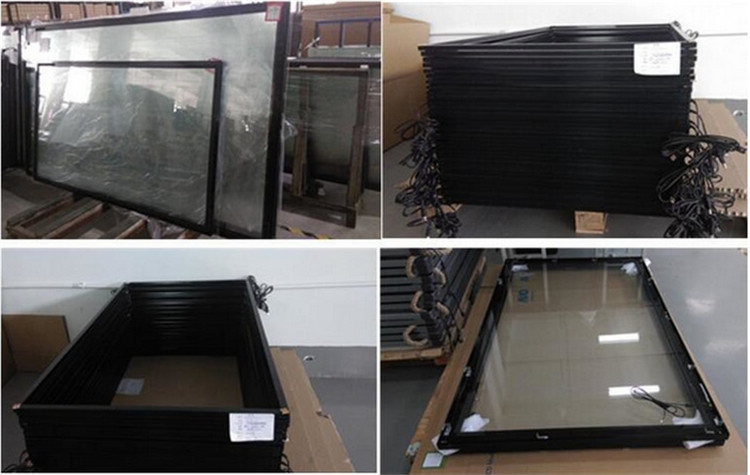

Factory 1 Factory 2
Frequently Asked Questions
What sizes are available for the IR touch frame?
We offer standard and customized sizes ranging from 10 inches up to 300 inches to fit various display requirements.
How many touch points does the system support?
The infrared touch screen supports multi-touch functionality with options for 1, 2, 4, 6, 10, or 16 points of simultaneous touch.
Is this touch frame compatible with Mac and Linux?
Yes, it is fully compatible with Windows (XP/7/8/10), Android, Linux, iMac, and Raspberry Pi operating systems.
Does the touch screen require special drivers?
No, it is a Plug and Play device (Free-Drive) and is also compatible with ELO and 3M touch standards.
What is the warranty period for this product?
We provide a comprehensive 3-year warranty on our IR touch frames and screens.
Can it be used in outdoor or high-traffic areas?
Absolutely. The panels can be configured with Vandalproof, Waterproof (IP65), and Anti-Glare glass, making them ideal for kiosks and public displays.
