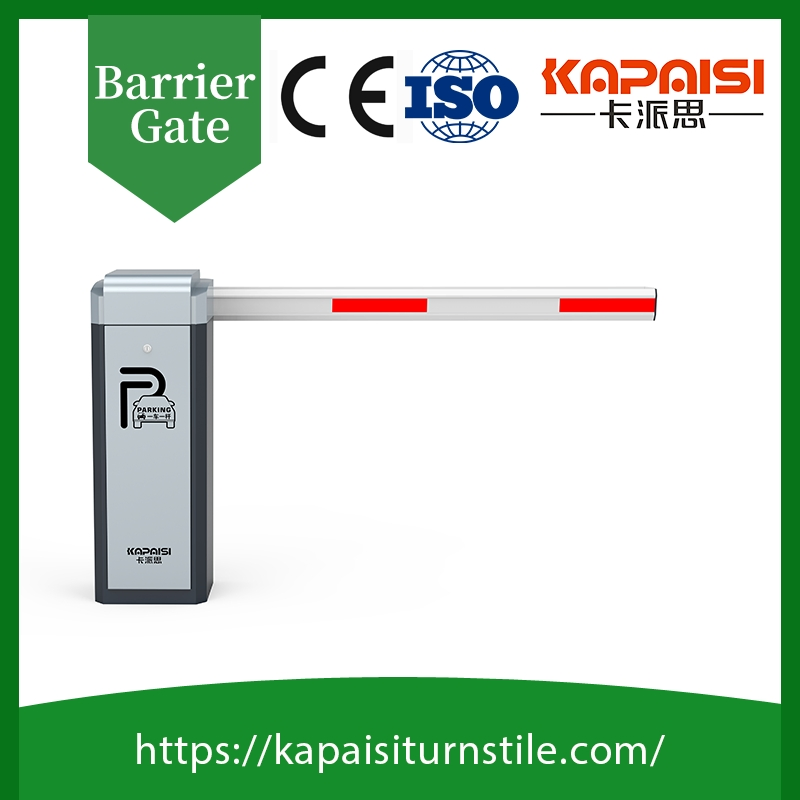

Smart Parking Access Control System Automatic Barrier Gate Automatic Retractable Security Barrier

Still deciding? Get samples of $ !
Order Sample

Product Description

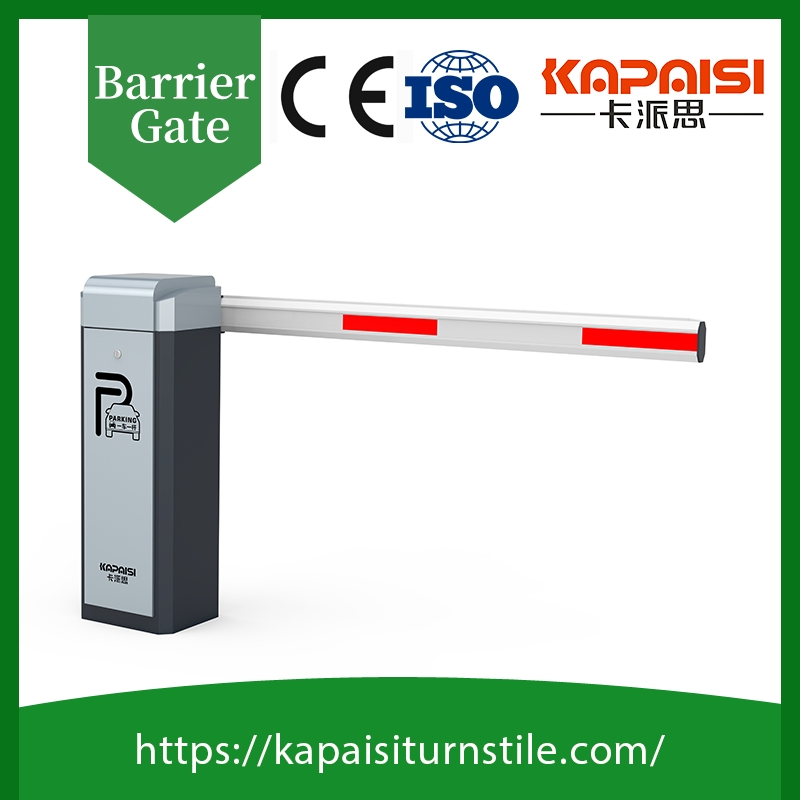

Smart Parking Access Control System
Product Description

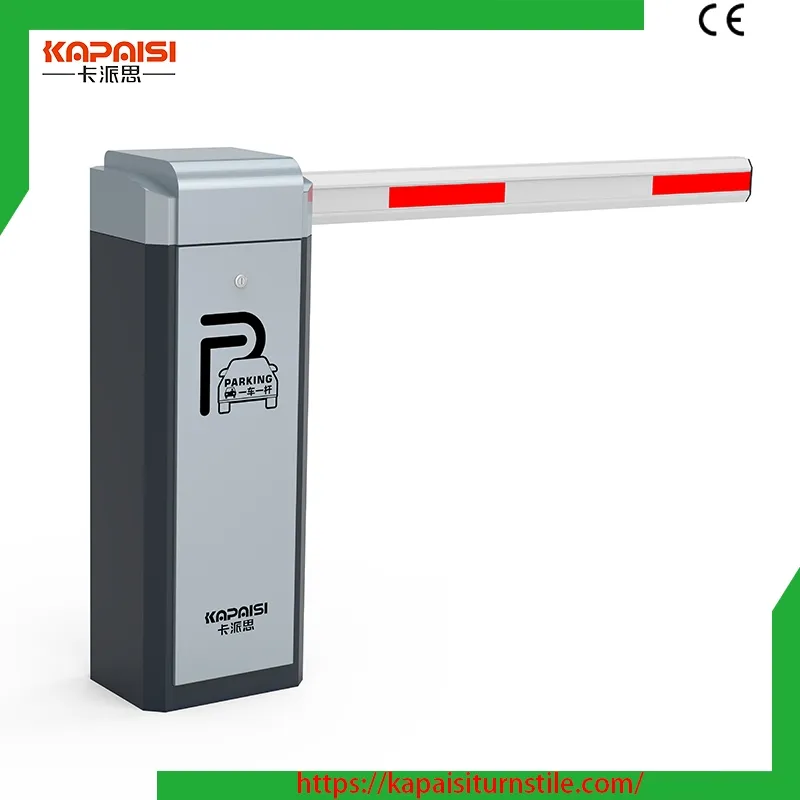

Product Overview
Product Overview
1) The movement is installed by side fixation, featuring a compact structure.
2) The main body of the movement is made of aluminum alloy through die-casting process, with an integrated structure that is small in size, reliable in mechanical strength, and fast in heat dissipation.
3) The movement adopts helical gear reduction transmission, which is highly efficient, stable in performance, and causes little power output loss.
4) It is a DC brushless movement with low heat generation, stable transmission, and large output torque.
General Technical Conditions
  • Normal Insulation Resistance: ≥ 100MΩ.
  • Electrical Strength: Withstand 700V/S without breakdown.
  • Motor Temperature Rise: ≤75K.
  • Motor Noise: ≤55dB.
  • Working Temperature: -35℃ to 80℃.

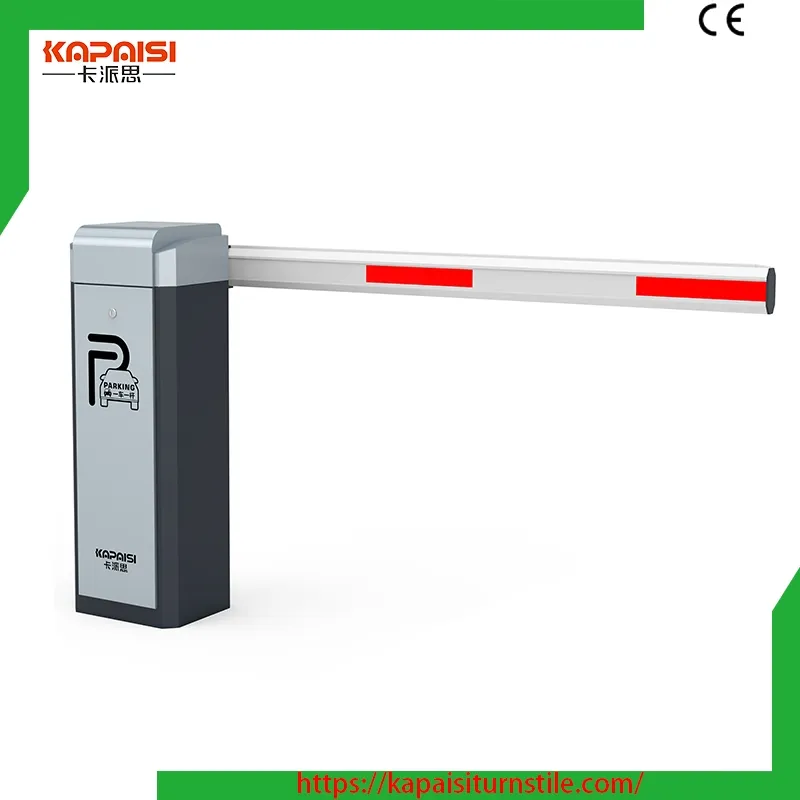

Technical Specs
Technical Specifications
Parameter Specification
Model NO.KPS-DZ-8017
AuthenticationBiometric, Proximity Detection, CE
Working Power SupplyAC220V ± 10% 50Hz
Motor Power24V DC 100W brushless DC motor
Lifting Time1.5S - 6S adjustable
Protection GradeIP44
Remote Control Distance≤ 30 meters
Working Frequency433HZ
Compatible Rod Types
Rod Type 1

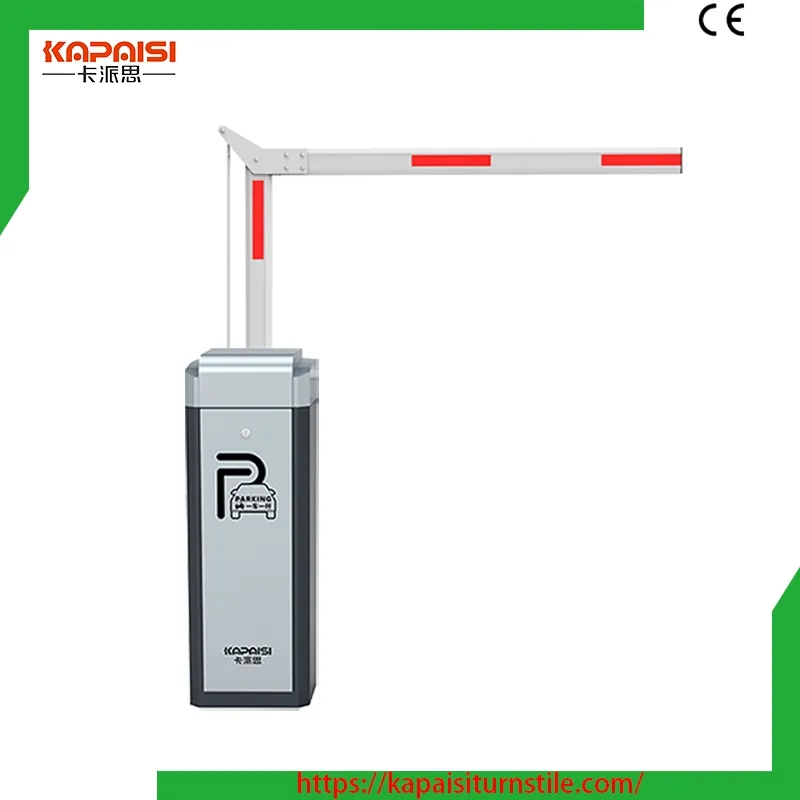

Rod Type 2

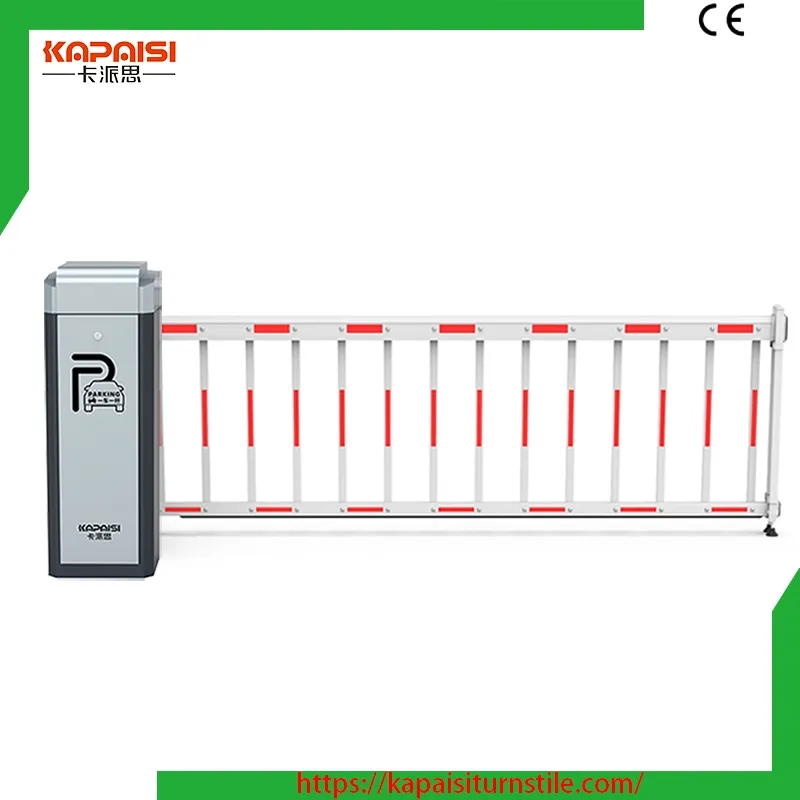

Rod Type 3

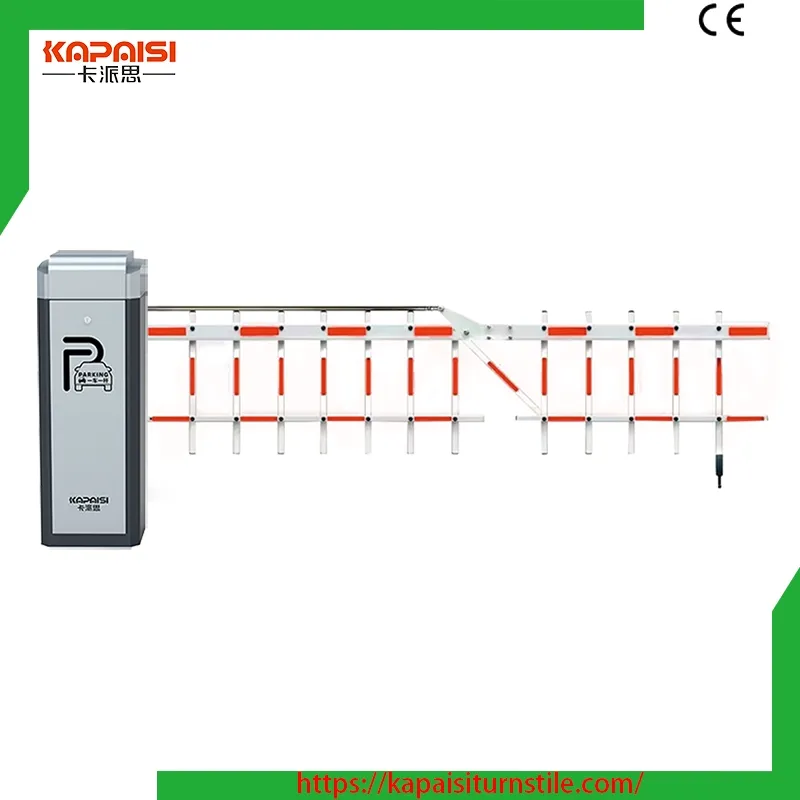

Rod Type 4
Motor Parameters

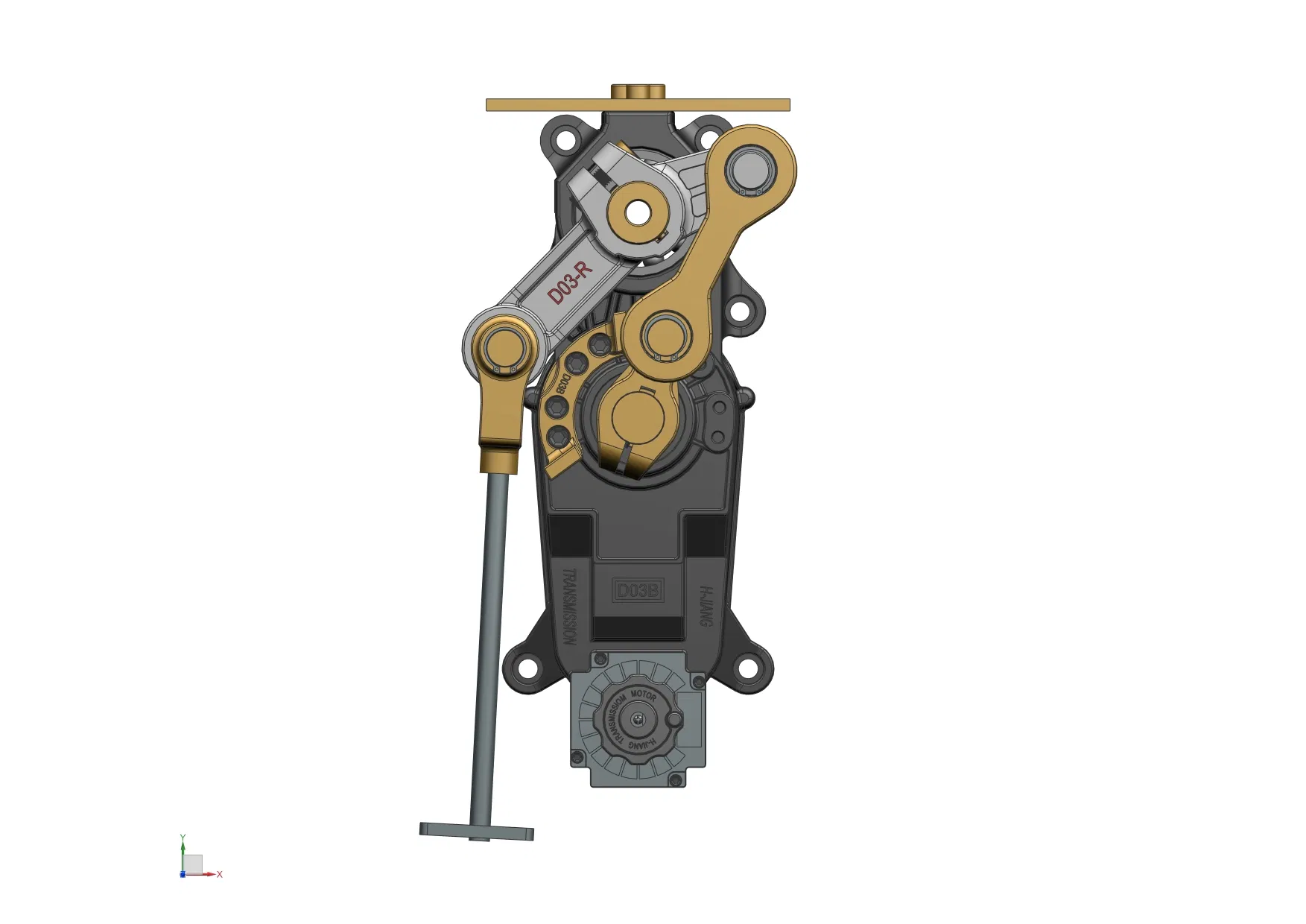

Motor Details
Model Output Power Voltage Rated Speed Output Torque Insulation Grade
D03B-3.0S120WDC24V1500r/min36.4N·mB
D03B-5.0S120WDC24V1500r/min64.8N·mB
D03B-7.0S120WDC24V1500r/min456.2N·mB
Core Advantages
The manufacturing facility integrates R&D, production, sales, and service, following the ISO9001:2015 quality management system. Products are widely used in government agencies, airports, residential communities, shopping malls, hotels, and parking lots.
Company Advantage
Certifications
Packaging & Shipping
Packaging
Frequently Asked Questions
1. In which scenarios are these barrier gates suitable?
They are ideal for residential and commercial entrances, parking lot systems, toll stations, logistics parks, schools, and any location requiring vehicle flow control.
2. What triggering methods are supported by the barrier gate?
Our systems support multiple modes: Remote control, License plate recognition linkage, Ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
3. Can it operate normally under extreme weather conditions?
Yes. It features IP44/IP54 protection, works from -35℃ to +80℃, and includes built-in overcurrent, overheat, and lightning protection.
4. What types of barrier poles can I choose from?

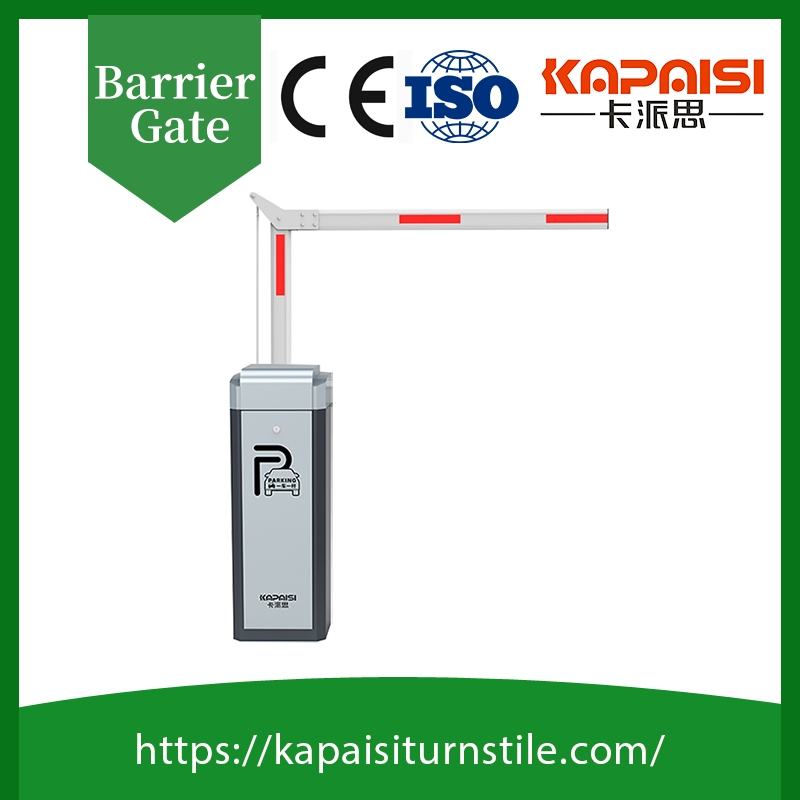

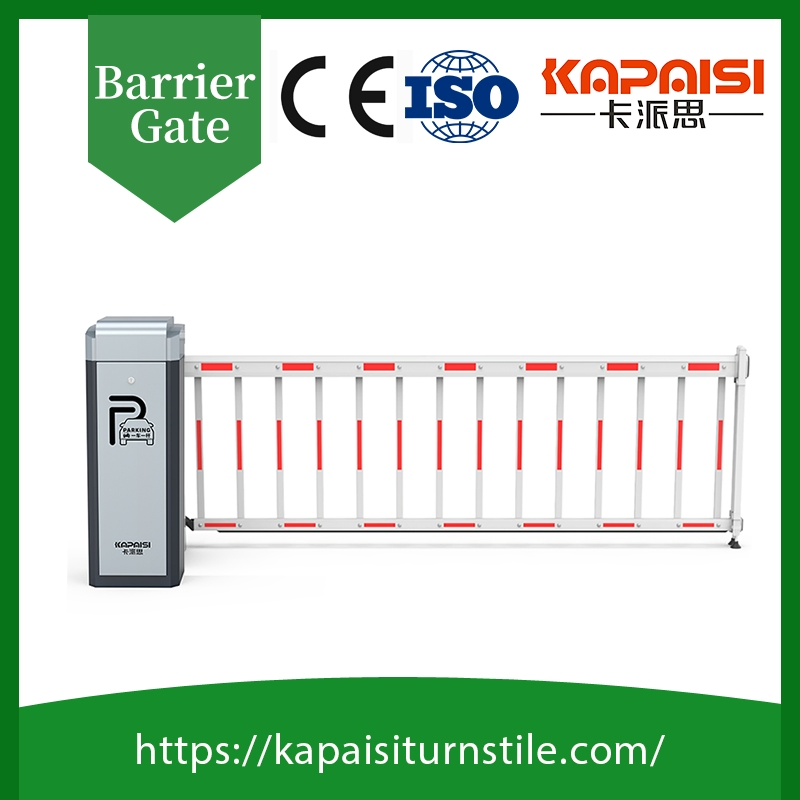

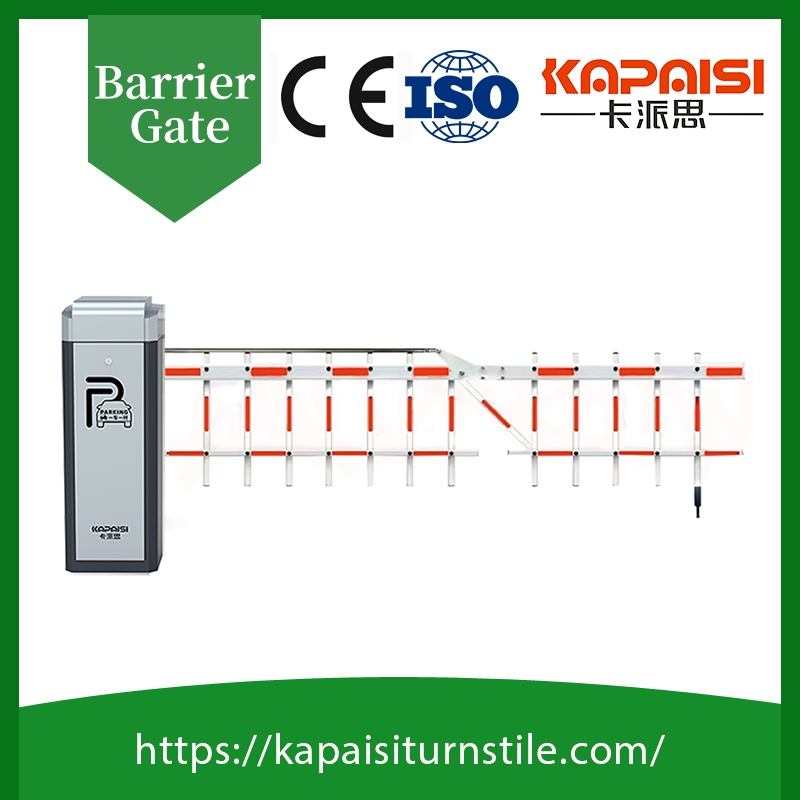

We offer six major types: standard straight rods (2-6m), curved rods for low spaces, fence poles (anti-climbing), advertising poles with LED, folding rods for ultra-wide channels, and anti-collision rods.
5. What is the power safety and efficiency of the motor?
The system utilizes a 24V DC brushless motor, which provides low heat generation, stable transmission, and high torque while being much safer than traditional AC motors.
6. Is the lifting speed adjustable?
Yes, the lifting and lowering time is adjustable between 1.5 seconds and 6 seconds depending on the specific model and site requirements.
