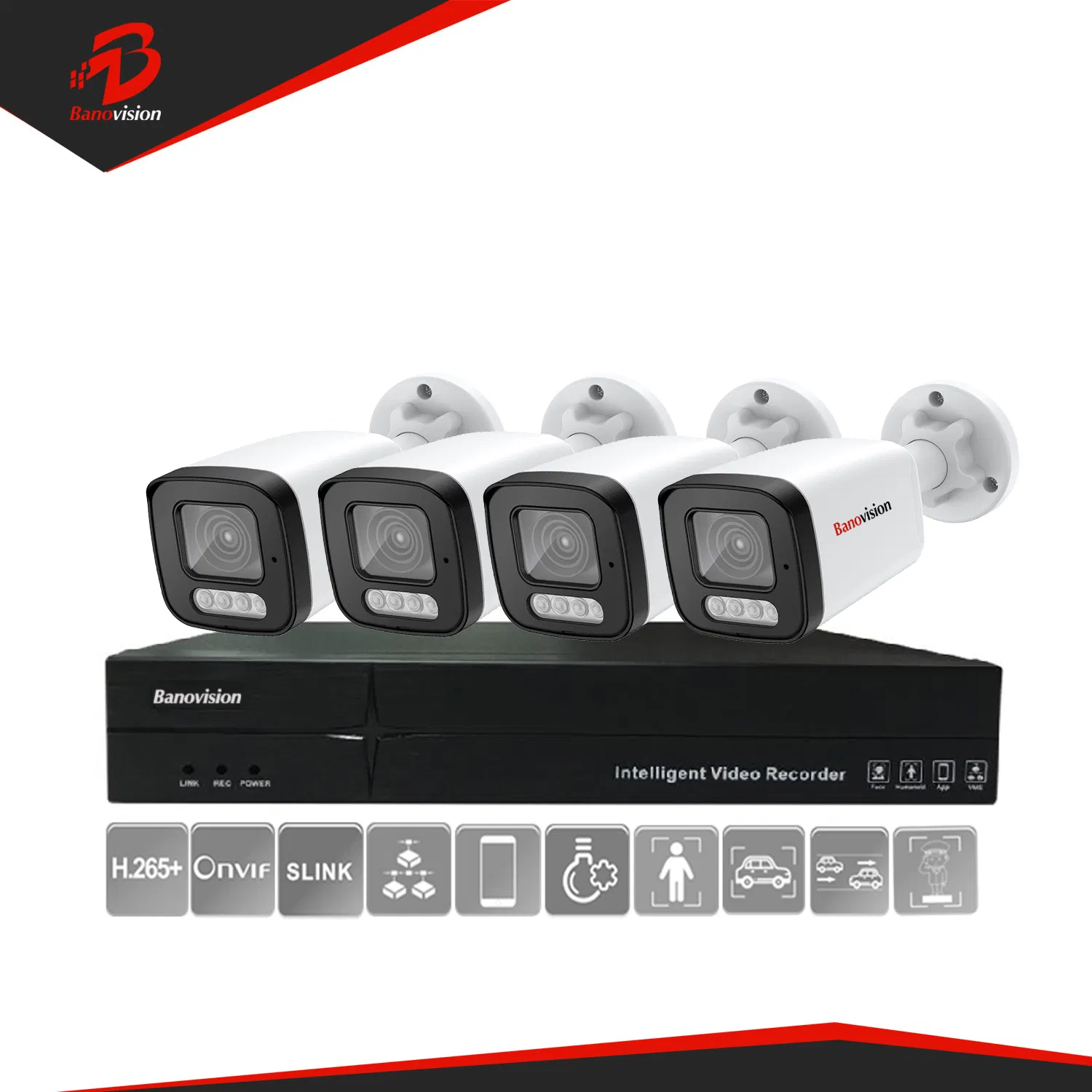

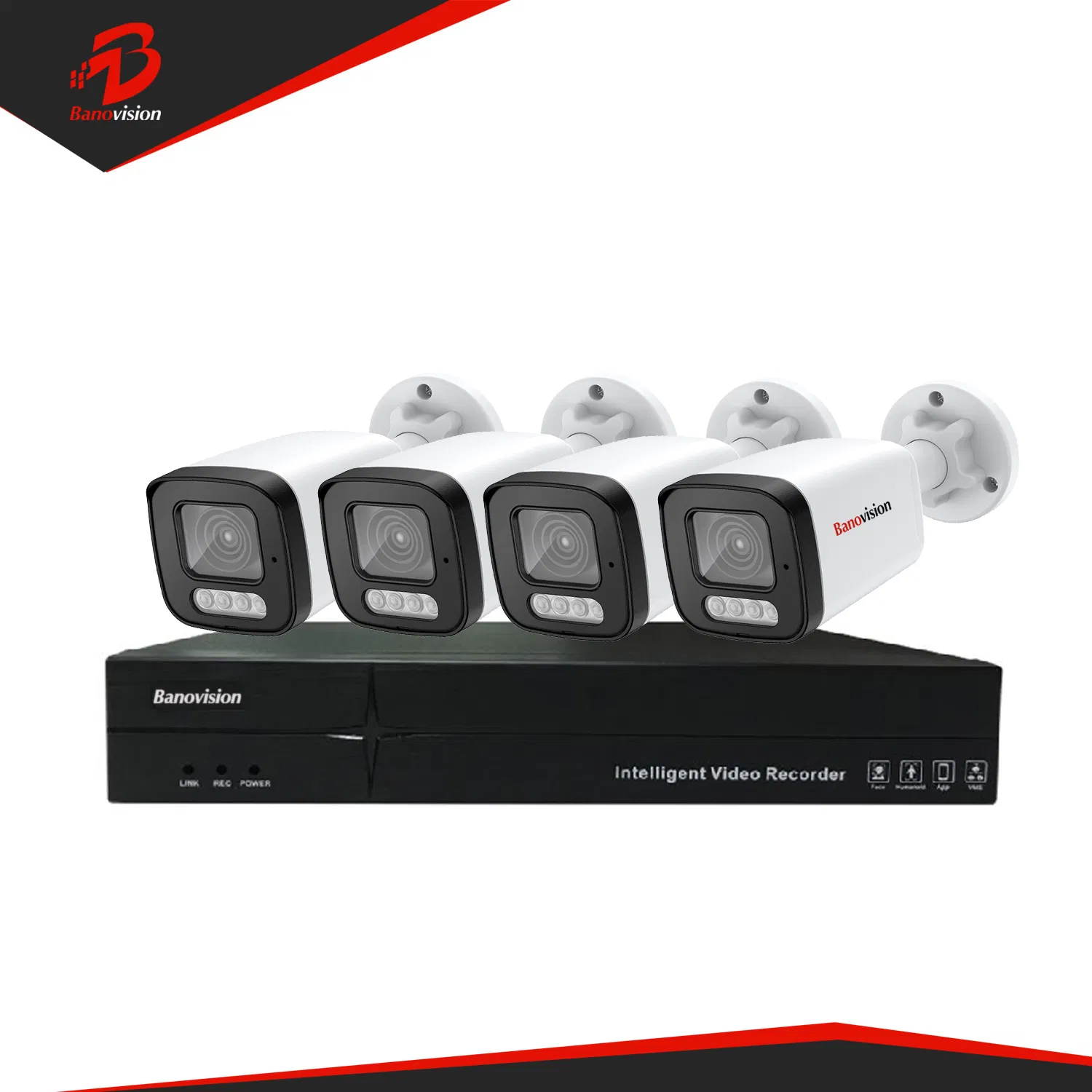

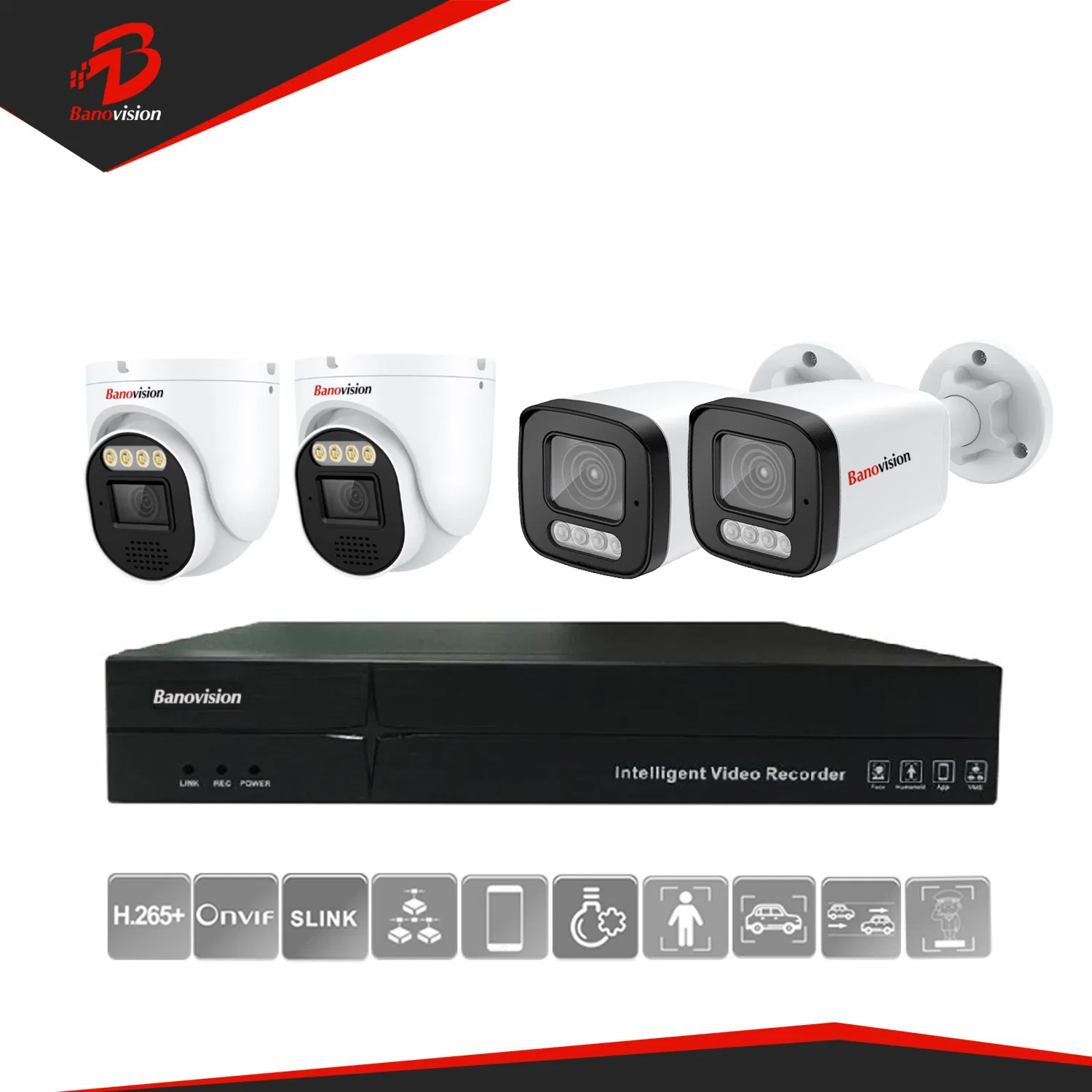

Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
1 / 5
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera
Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera

Smart 8MP 4K Poe NVR CCTV Home Kit with Waterproof Video Camera

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Banner
Overview
Model NO.
BA-2N6004P2-NK
Type
IP Camera
Sensor
CMOS (1/2.8'')
Resolution
8MP (3840*2160)
Lens
Manual Focus Lens
Certification
CE, FCC, RoHS, ISO9001
Features
Waterproof, High Definition, Vandal-proof
Distance
≧30m
Audio
Built-in Mic
Kit Type
Colorvu PoE NVR Kit
Detection
Line-Cross Supported
Capacity
50,000 Per Month
Features
🛡️ NVR Highlights
  • H.264/H.265 4CH 4K POE Audio NVR KIT
  • Support 4CH 8MP/5MP/4MP/1080P IP input
  • Intuitive Windows-style Mouse Operation
  • Multi-mode: Manual / Timer / Motion / Sensor
  • 4CH Simultaneous Playback & Smart Search
  • Flexible Backup via USB & Network
  • Remote Access via iOS and Android
  • 4 PoE Ports for Direct IPC Connection
📷 Camera Capabilities
  • 1/2.8" Low-light CMOS Sensor
  • Day/Night (ICR), AWB, AGC, D-WDR
  • Motion Detection & Privacy Masking
  • Ultra Low Bitrate High Quality Image

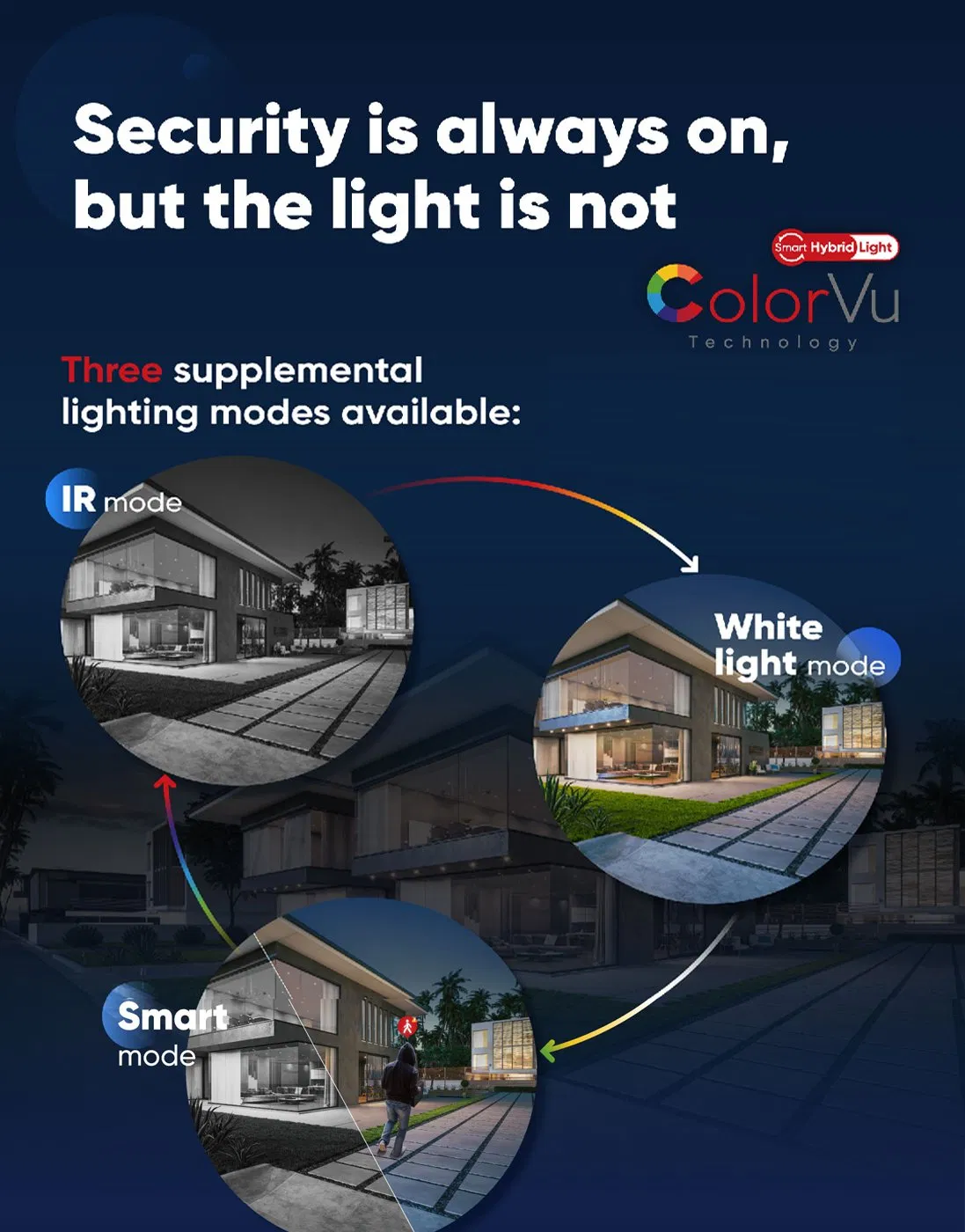

  • Warm Supplemental Light (25-30M)
  • Fixed 3.6mm Lens, IP66 Waterproof

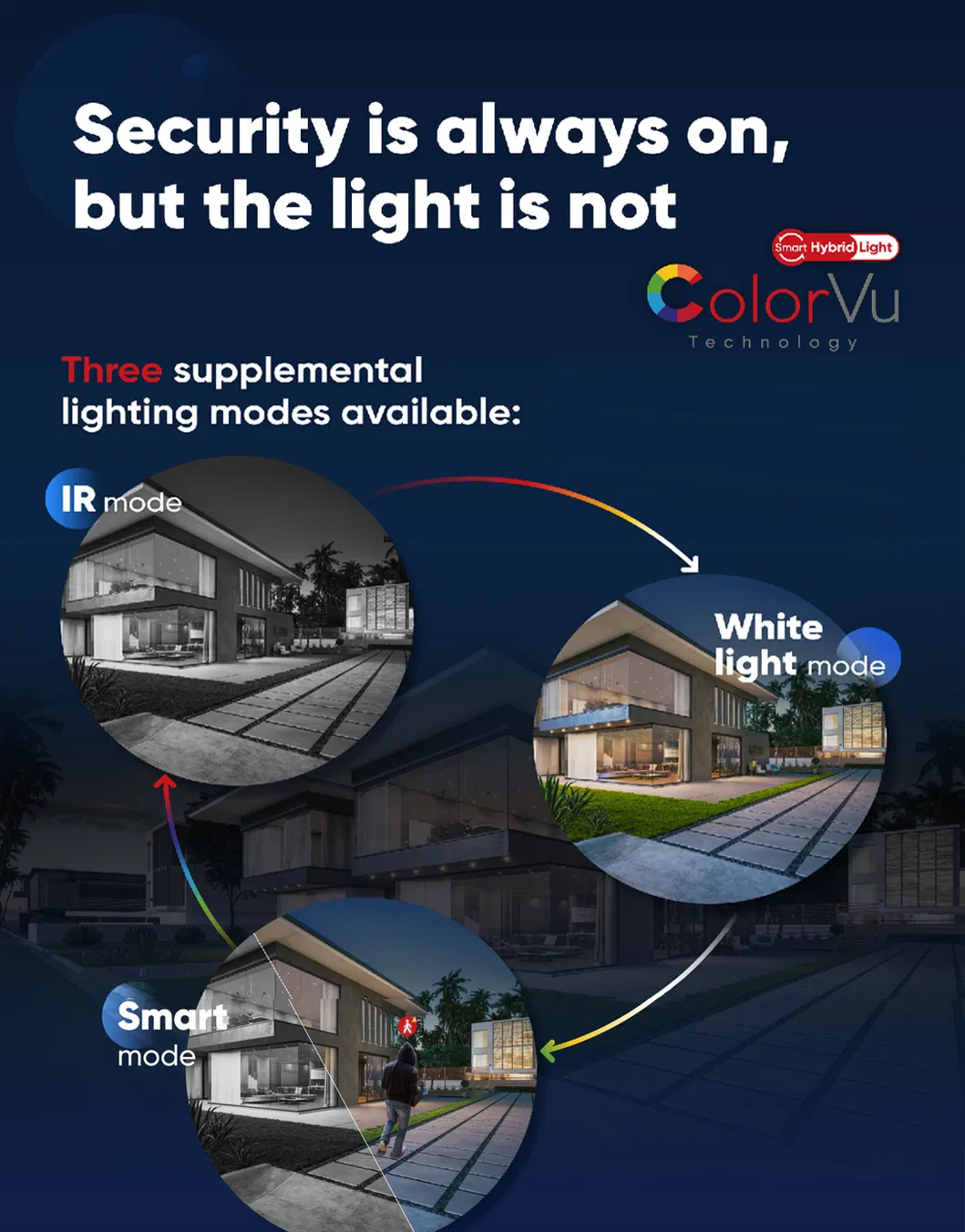

Product Display 1 Product Display 2
Product Description

Smart Analysis Functions: Target counting, E-fence, Line crossing, Absent alarm, Retrograde motion detection, Human body detection.

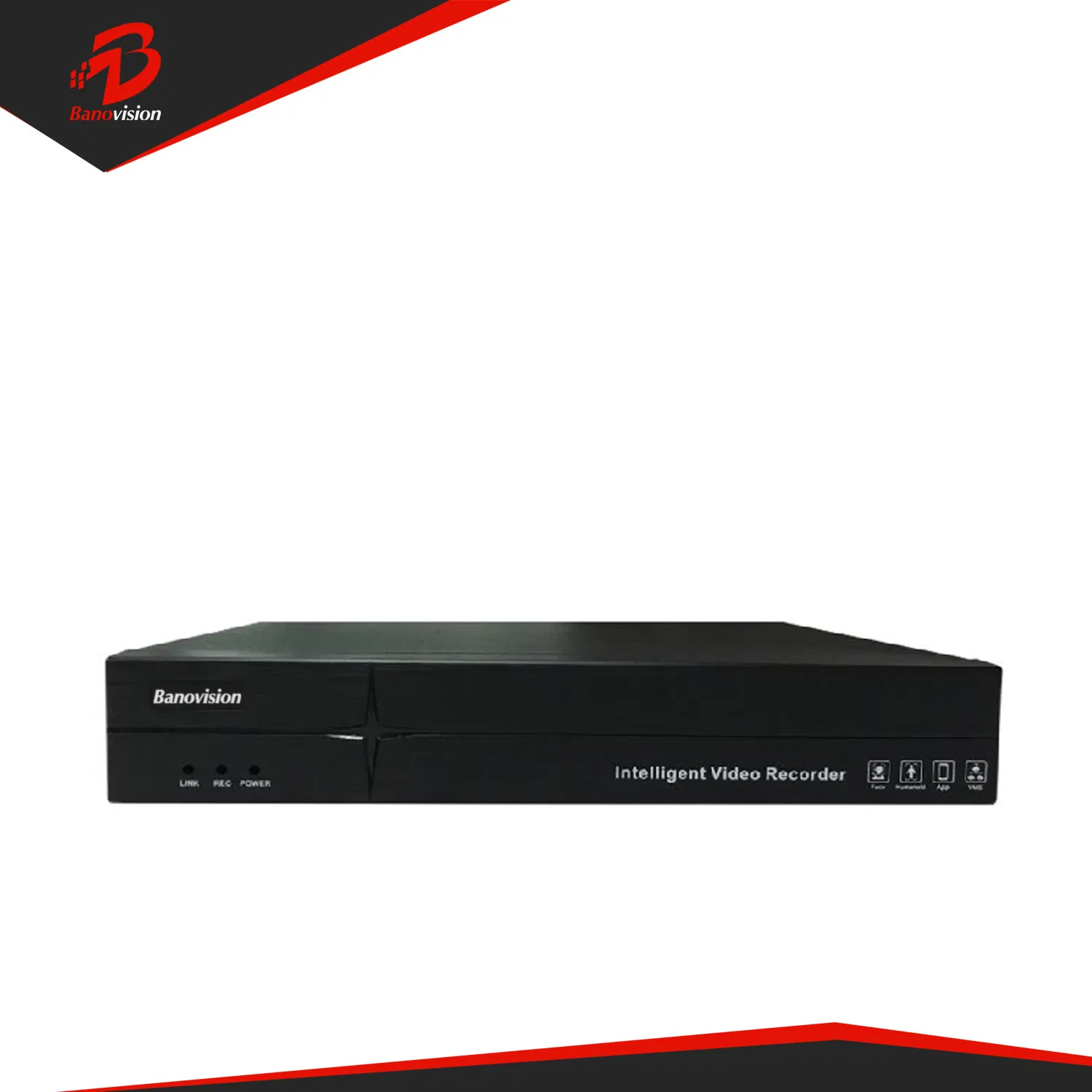

NVR SpecificationsBA-2N6004P
SystemCompression / OSH.265 / Embedded Linux
VideoNetwork Input / Bandwidth4 CH IPC / 64Mbps
Video OutputHDMI / VGA1920 × 1080 Supported
RecordResolution8MP / 5MP / 4MP / 3MP / 1080P
StorageHDD InterfaceSATA × 1, max 10T
NetworkPoE PortsRJ45 × 4
OthersPower SupplyDC48V
Camera SpecificationsBA-SW04A80
Image SensorSensor / Pixels1/2.8" CMOS / 3840(H)*2160(V)
Night VisionIR LED / Distance2PCS Warm Light / 20-30m
LensFocal Length3.6mm
EncodeMain Stream25fps @ 8MP / 6MP / 5MP
NetworkProtocolsRTSP/DHCP/NTP/FTP/SMTP/ONVIF
ProtectionOperating Temp-30ºC to +60ºC, IP66
📦 Package Contents
  • 1 x NVR Power Supply (DC12V/2A)
  • 4 x 8MP Bullet Cameras
  • 1 x Remote Control & USB Mouse
  • 4 x 18m (59ft) Lan Cables
  • 1 x User Manual & Screw Packs
Company Profile

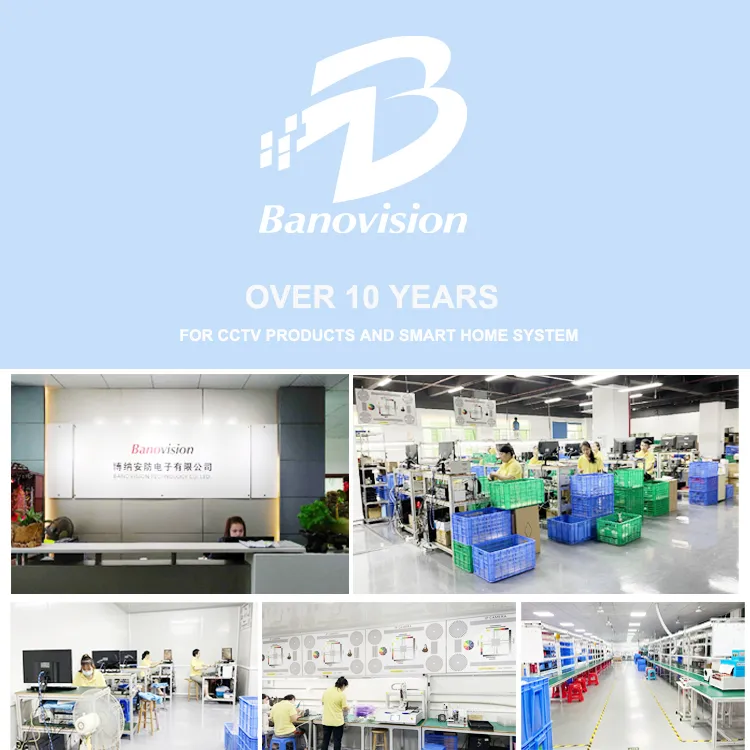

Facility 1 Facility 2 Facility 3 Facility 4
Frequently Asked Questions
What is the advantage of an 8MP 4K resolution?
8MP (4K) resolution provides four times the detail of standard 1080P, allowing for clearer facial recognition and license plate identification even when zooming into recorded footage.
How does the PoE (Power over Ethernet) system simplify installation?
PoE allows a single network cable to provide both data connection and electric power to the cameras. This eliminates the need for extra power outlets near each camera location.
Is the system compatible with mobile devices?
Yes, the system supports remote access via a dedicated app for both iOS and Android, allowing you to view live feeds and playback recordings from anywhere.
Does the camera support night vision?
The cameras feature Soft & Warm Supplemental Light technology, providing clear color video or high-quality black and white images in low-light conditions up to 30 meters.
Can the system detect specific human movements?
Yes, the kit supports smart functions including human body detection and line-crossing alerts to reduce false alarms triggered by animals or wind.
What is the maximum storage capacity?
The NVR includes one SATA interface that supports a Hard Disk Drive (HDD) with a capacity of up to 10TB for long-term video storage.
