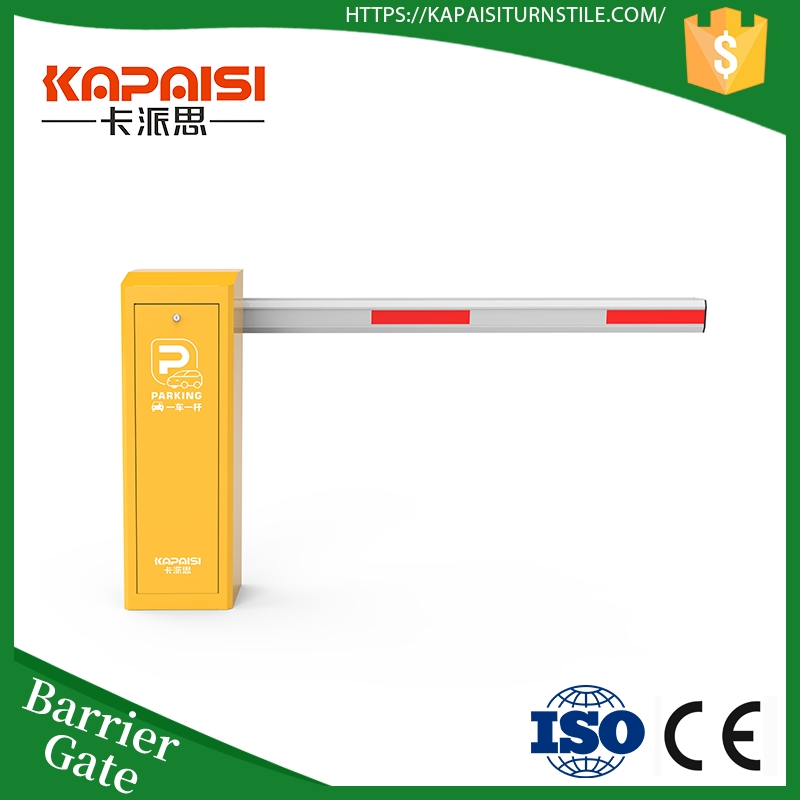

Smart Parking Barrier Gate for Enhanced Security Solutions in B2B Market

Basic Specifications

Model NO.KPS-DZ-8013

AuthenticationBiometric, CE

InstallationPole Mount

MaterialAluminum Alloy

Power SupplyAC220V±10% 50Hz

Motor TypeBrushless DC Motor

Protection GradeIP44

Output Power120W

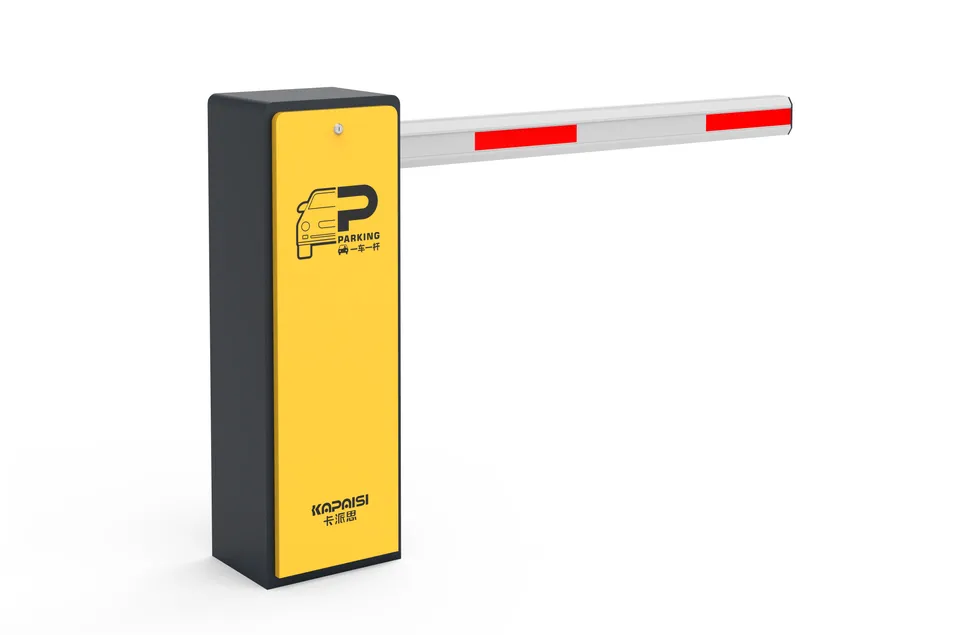

Product Features & Performance

Compact Construction: Side fixation movement with integrated aluminum alloy die-casting for high mechanical strength and rapid heat dissipation.
High Efficiency Transmission: Helical gear reduction provides stable performance, shock resistance, and minimal power loss.
Advanced DC Brushless Technology: Features low heat generation, high torque, and adjustable speed regulation for smooth lifting/lowering.
Safety First: Utilizes 24V DC safe voltage, significantly reducing electrical risks compared to traditional AC motors.
Durability: Carburizing heat treatment on gears ensures a long service life and high precision grinding performance.

Technical Parameters

Parameter	Specification
Working Power Supply	AC220V ± 10% 50Hz
Working Temperature	-40°C to +85°C
Remote Control Distance	≤ 30 Meters
Motor Power	24V DC 120W Brushless
Lifting Time	1.5S - 6S (Adjustable)
Chassis Thickness	1.5mm
Noise Level	≤ 55dB

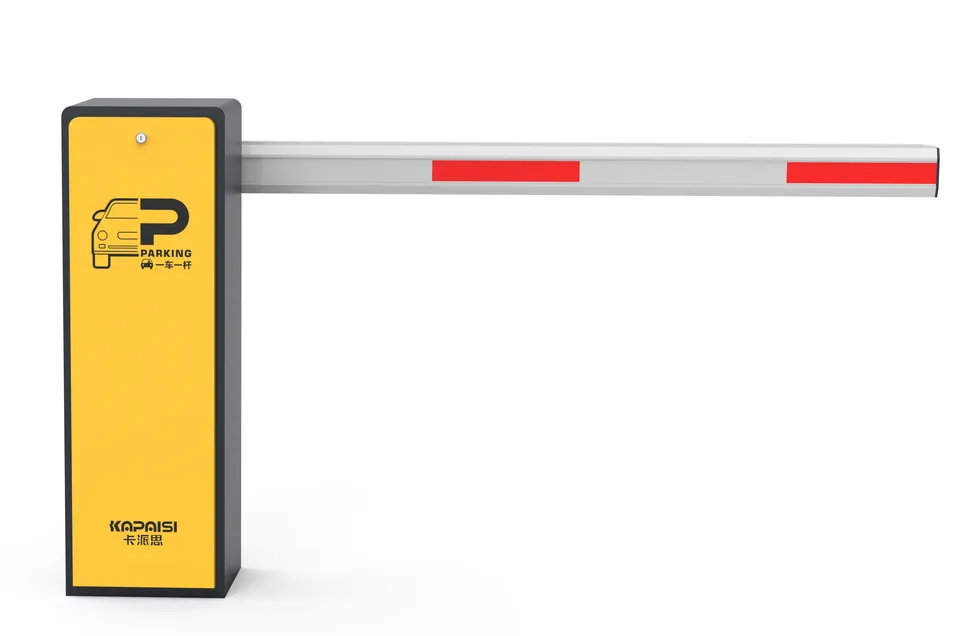

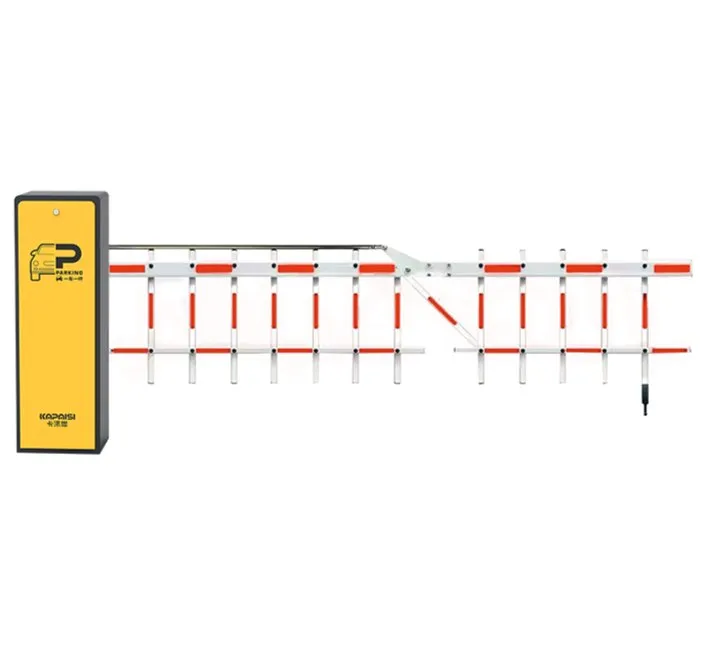

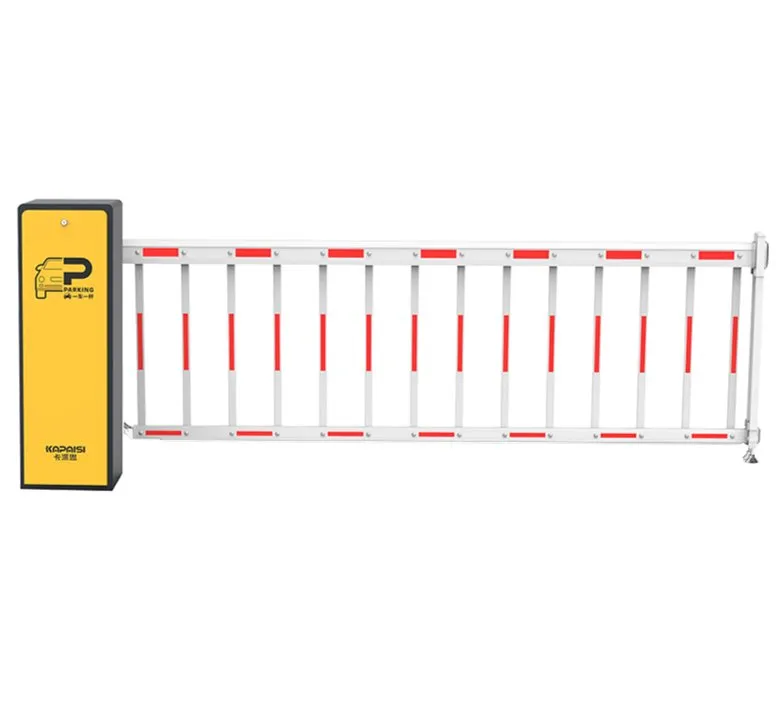

Compatible Rod Types

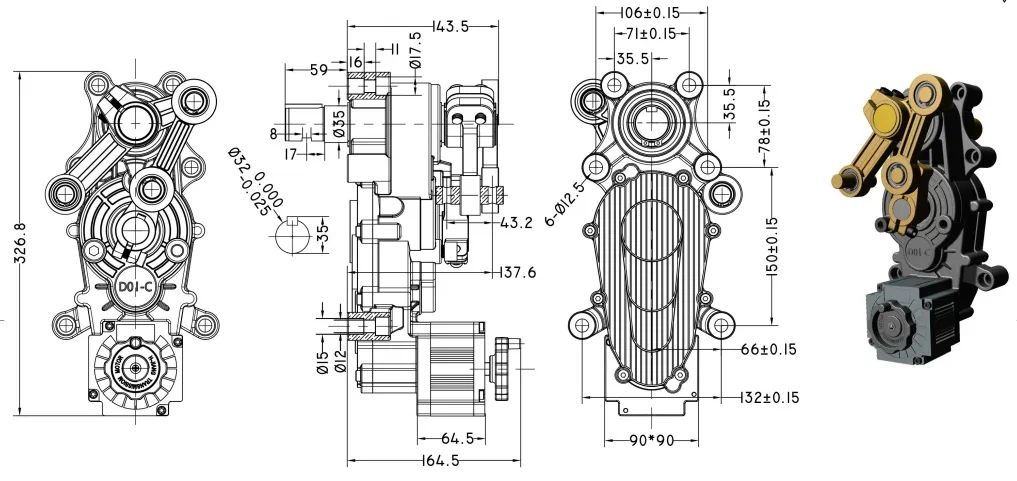

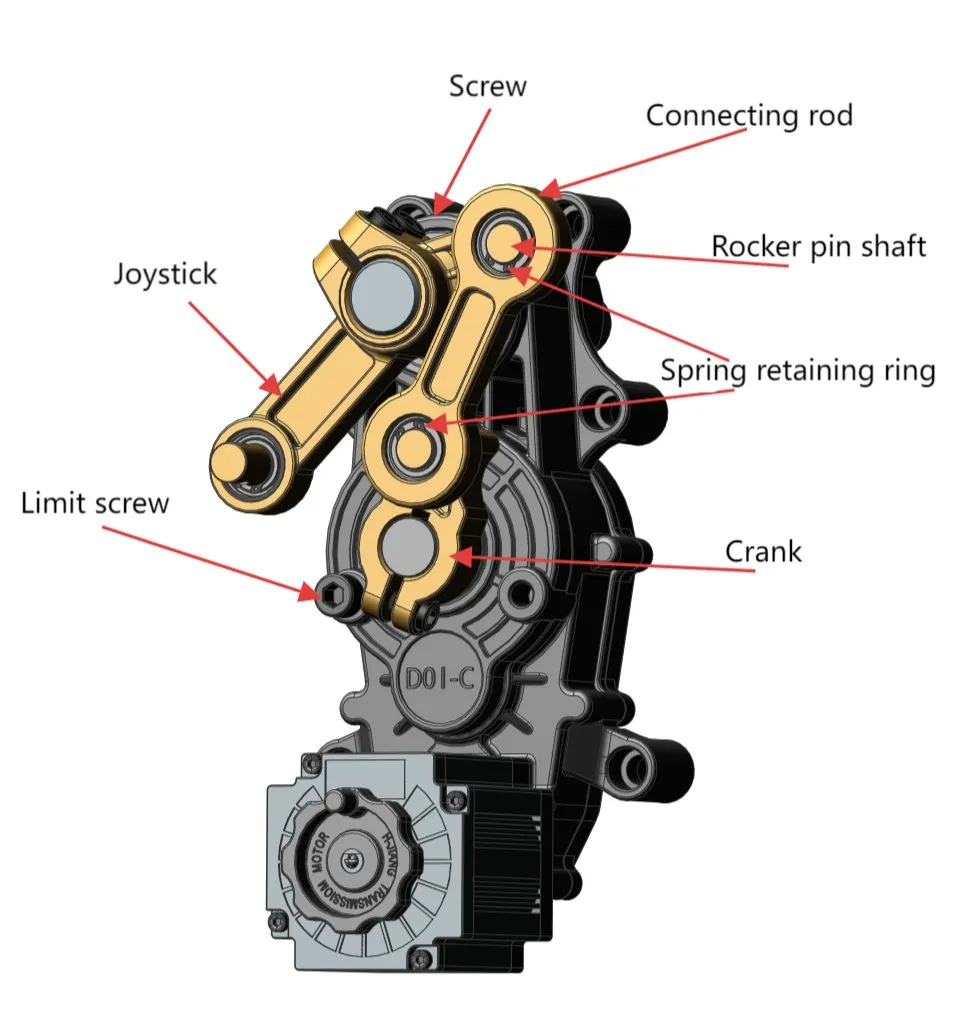

Motor Detailed Parameters

Model	Output Power	Rated Torque	Rated Speed	Insulation Class
D01C-0.8S	120W	36.4N·m	1500r/min	B
D01C-1.5S	120W	64.8N·m	1500r/min	B
D01C-3.0S	120W	129.9N·m	1500r/min	B

Manufacturing Excellence

Frequently Asked Questions

Q1: In which scenarios are these barrier gates suitable? Our barrier gates are ideal for residential/commercial entrances, parking lot charging systems, expressway toll stations, logistics parks, and public institutions like schools or hospitals.

Q2: What triggering methods are supported? The system supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.

Q3: Can it operate in extreme weather conditions? Yes, it features IP44/IP54 protection, an operating temperature range of -40℃ to +80℃, and built-in overcurrent/lightning protection modules.

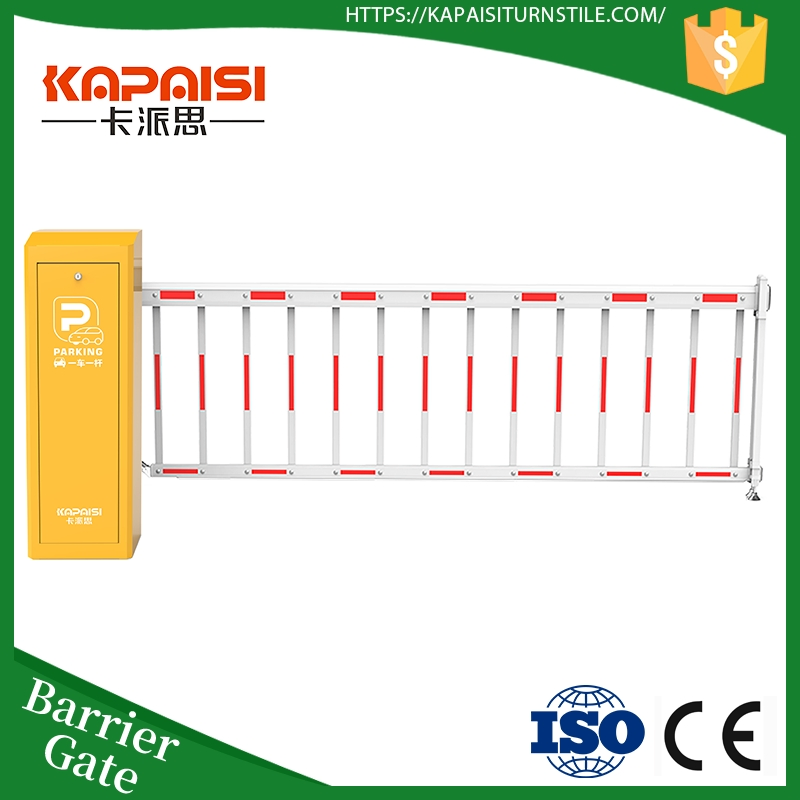

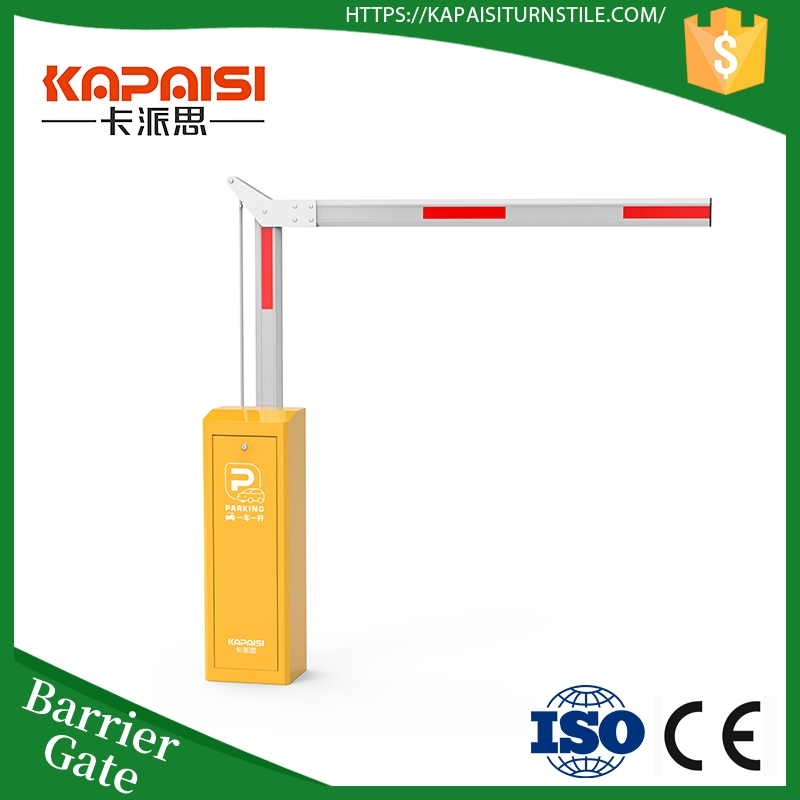

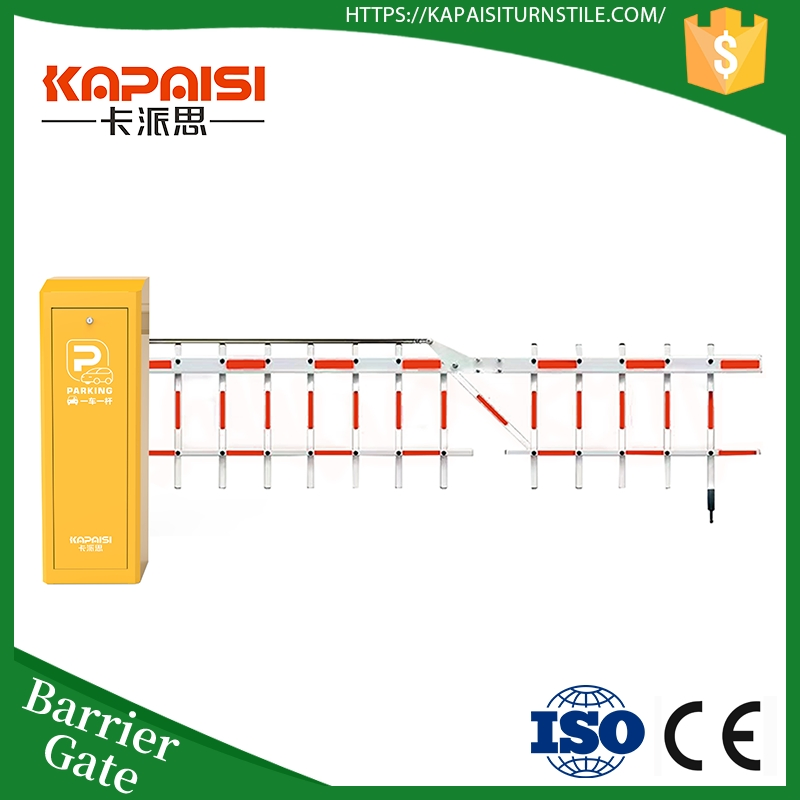

Q4: What types of barrier poles can I choose from? Options include straight rods (2-6m), curved rods for low-ceiling spaces, fence poles (anti-climbing), LED advertising poles, and folding rods for ultra-wide channels.

Q5: Why is a DC brushless motor better than a traditional AC motor? DC brushless motors generate less heat, offer more precise speed control (buffer deceleration), and operate on a safer 24V voltage with a longer service life.

Q6: Is the lifting speed adjustable? Yes, the lifting time is fully adjustable between 1.5 seconds and 6 seconds to match the specific needs of your traffic flow and rod length.
