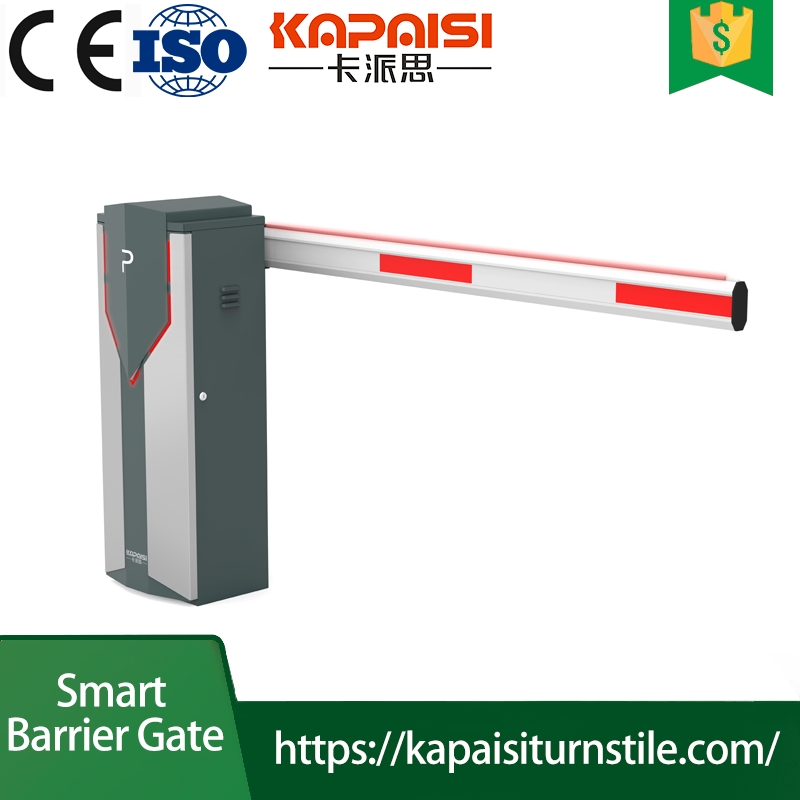

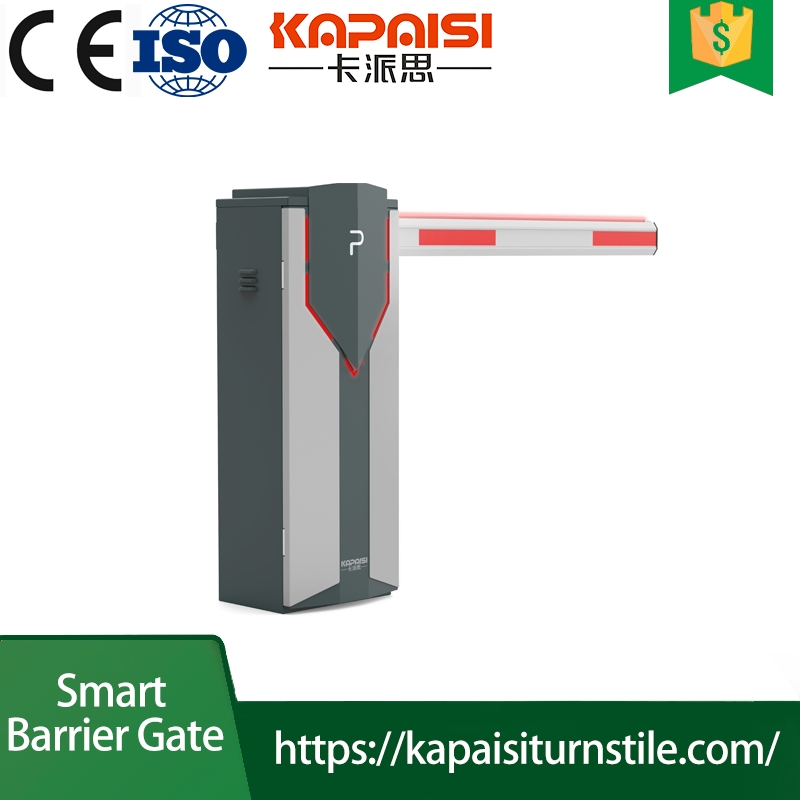

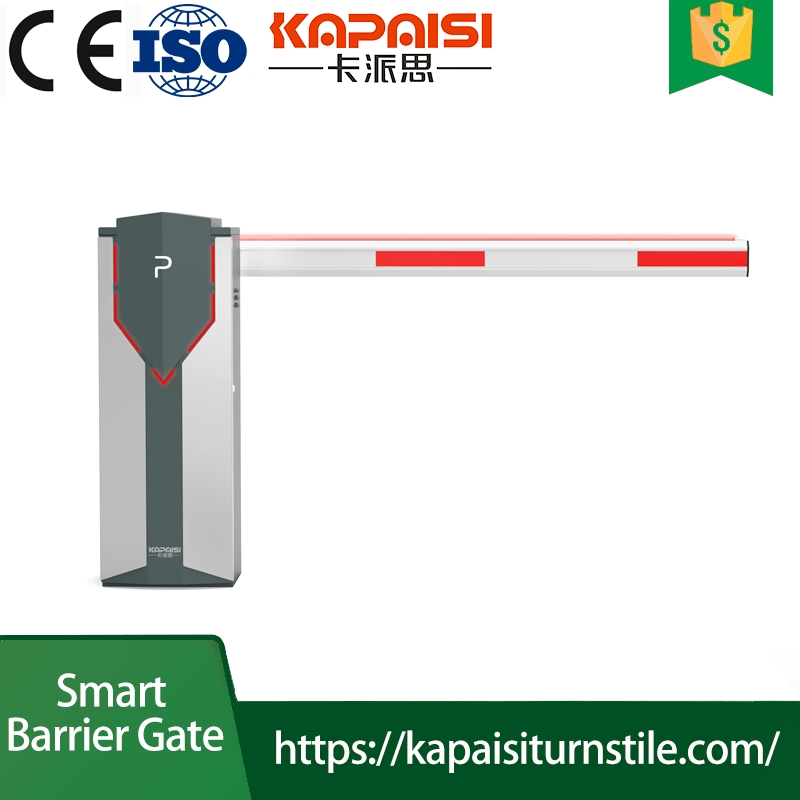

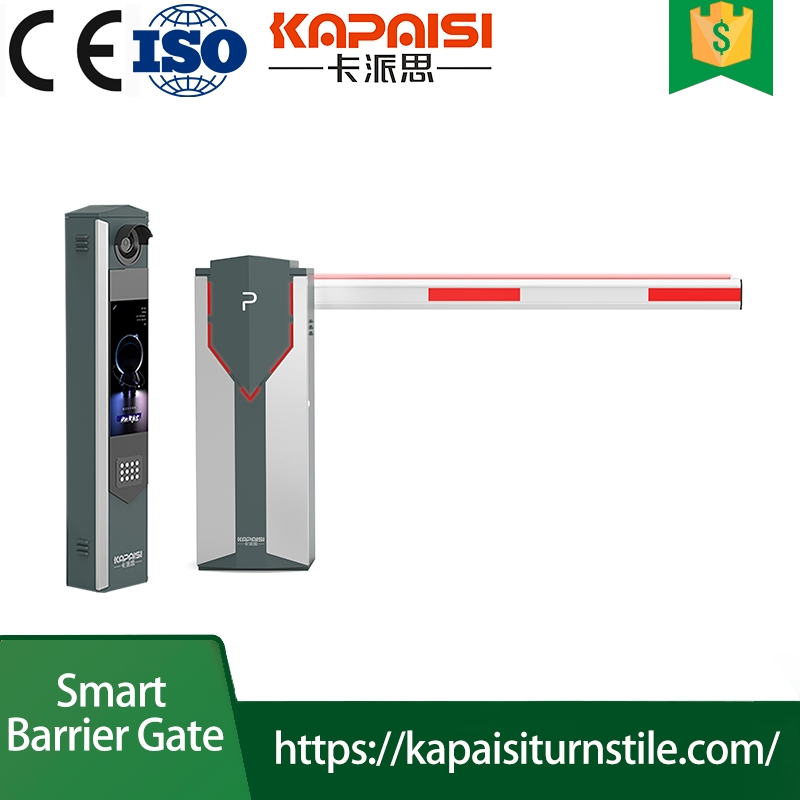

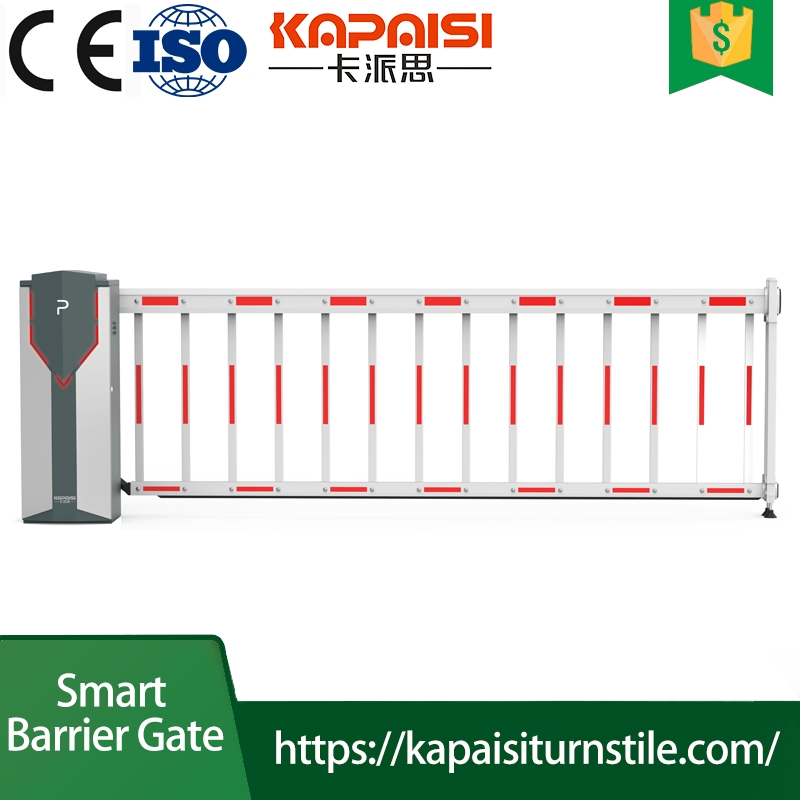

Intelligent High - Security Number Plate Recognition Barrier Gate for Government Facilities

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
KPS-DZ-8002
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
Power Supply
AC220V±10% 50Hz
Technology
License Plate Recognition
Output Power
120W / 150W
Protection Grade
IP44
📦 Packaging & Delivery
Package Size
100.00cm * 45.00cm * 32.50cm
Gross Weight
45.000kg
🛡️ Product Overview
Security Barrier Gate
  • Side fixation movement with a compact, aluminum alloy die-cast structure for rapid heat dissipation.
  • Helical gear reduction transmission for high efficiency, stability, and shock resistance.
  • DC brushless motor ensuring low heat generation and large output torque.
  • Safe 24V DC voltage operation, significantly safer than traditional AC motors.
  • Adjustable speed regulation with buffer deceleration for smooth barrier lifting/lowering.
Barrier Mechanism
Barrier Control Unit
⚙️ Technical Specifications
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Remote Control Distance≤ 30 meters
Motor Power24V DC 150W brushless
Lifting Time1.5S - 6S (Adjustable)
Motor Noise≤ 55dB
Insulation Resistance≥ 100MΩ
🔌 Electric Machine Parameters
Motor Details

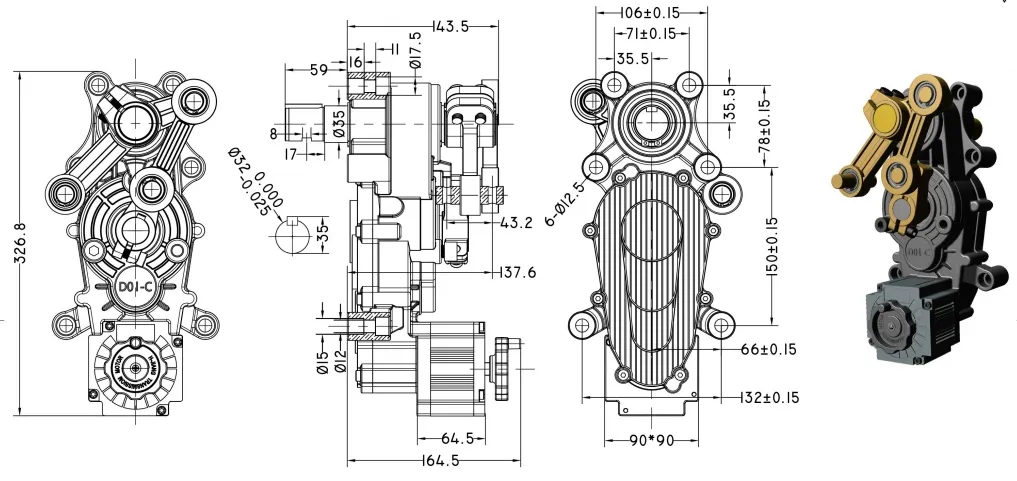

Motor Components
Model Output Power Rated Current Rated Motor Speed Lifting Time Output Torque
D01C-0.8S120W8A1500r/min0.8s-1.5s36.4N·m
D01C-1.5S120W8A1500r/min1.5s-3.0s64.8N·m
D01C-3.0S120W8A1500r/min3.1s-7.0s129.9N·m
🚧 Compatible Rod Types

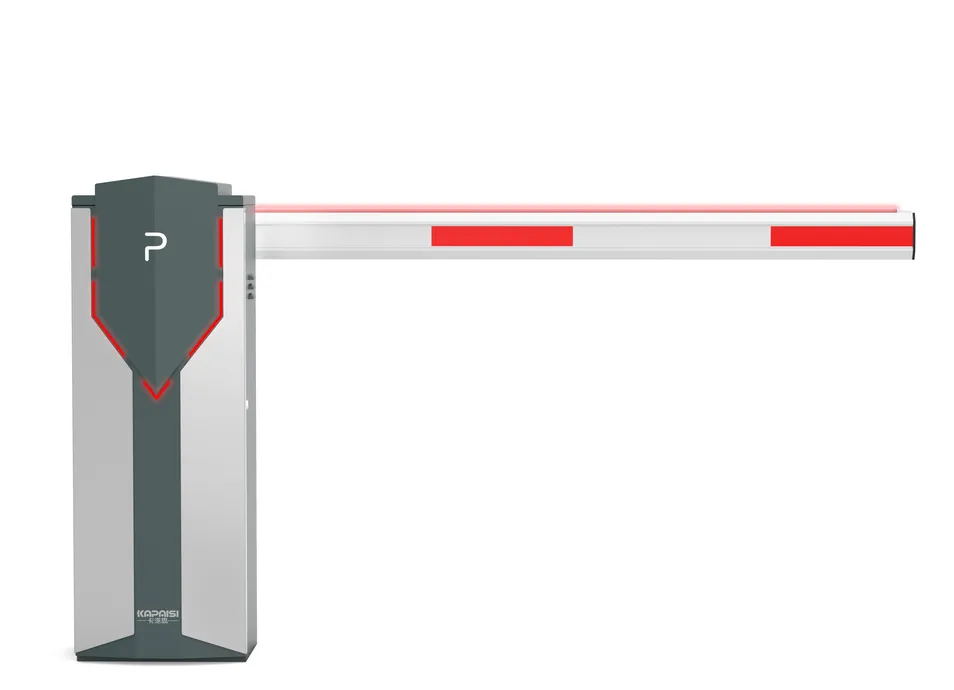

Straight Pole

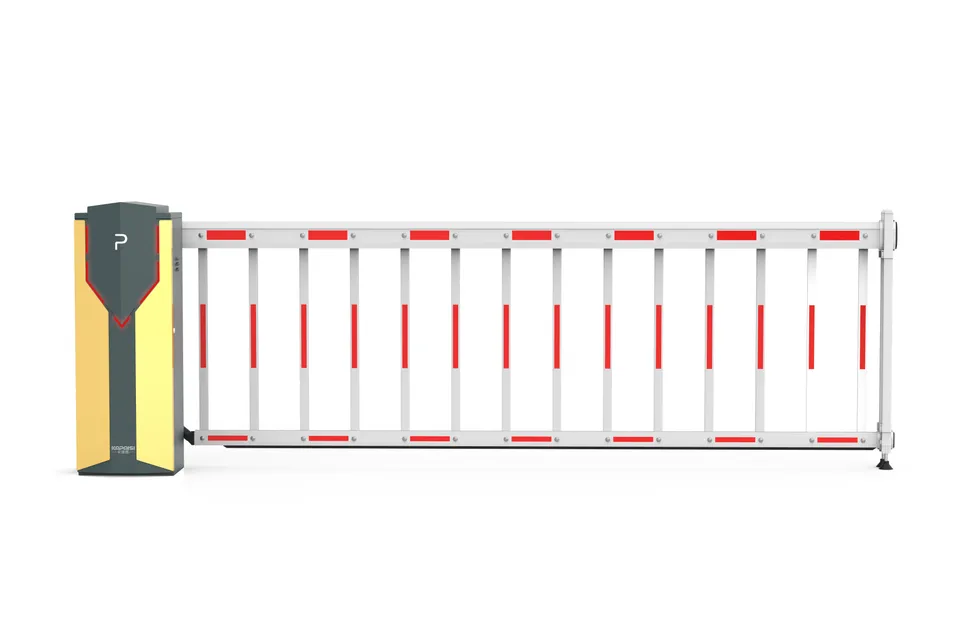

Fence Pole

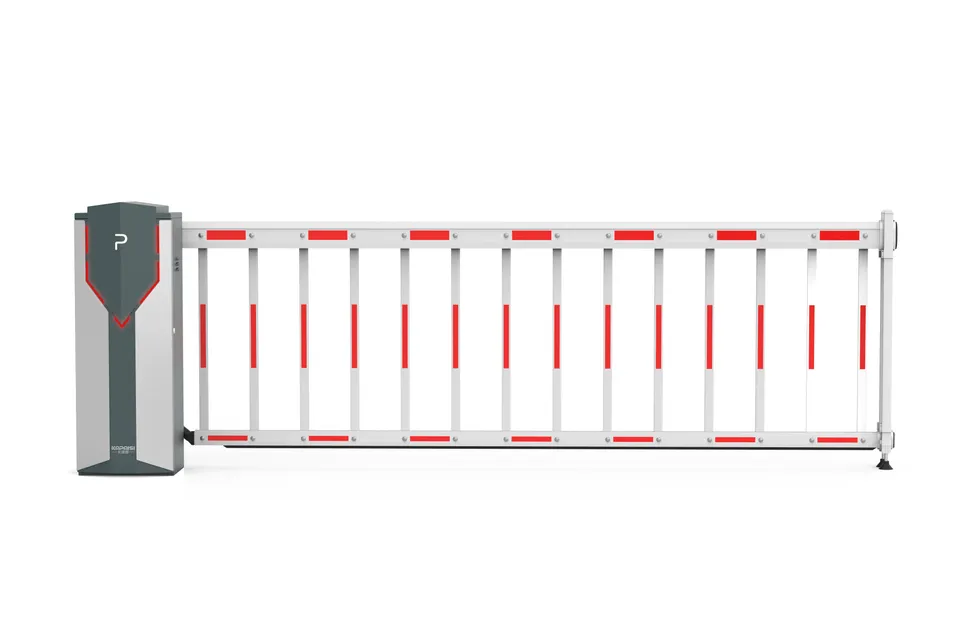

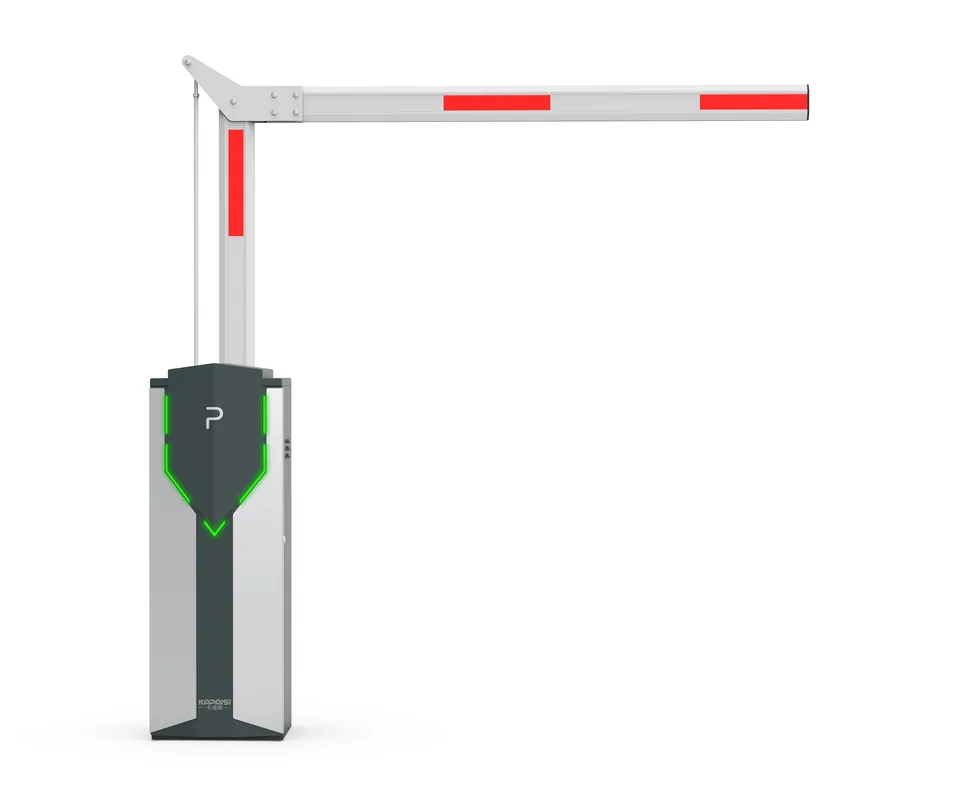

Curved Pole
📜 Quality Assurance & Logistics
Certification
Packaging
Frequently Asked Questions
Q1: In which scenarios are these barrier gates suitable?
Our barrier gates are ideal for residential/commercial communities, parking lot charging systems, expressway toll stations, logistics parks, and public institutions like schools or government facilities.
Q2: What triggering methods are supported?
The system supports remote control, license plate recognition (LPR) linkage, ground induction loop detection, Bluetooth/WIFI mobile control, and integration with smart parking platforms.
Q3: Can it operate in extreme weather?
Yes, it features IP44/IP54 protection (customizable to IP68) and operates reliably between -40℃ and +80℃ with built-in lightning and overheat protection.
Q4: What types of barrier poles can I choose from?
We offer six major types: standard straight rods (2-6m), curved rods for low clearance, fence poles for anti-climbing, advertising poles with LED space, folding rods for ultra-wide channels, and anti-collision rods.
Q5: Is the motor safe for public areas?
Absolutely. The motor uses a 24V DC safety voltage, which poses significantly less risk than traditional AC motors, and features rebound-on-obstacle technology to prevent accidents.
Q6: What is the benefit of the brushless DC movement?
The DC brushless movement ensures low heat generation, stable transmission, and high torque output, which results in a longer service life and lower maintenance costs compared to brushed motors.
