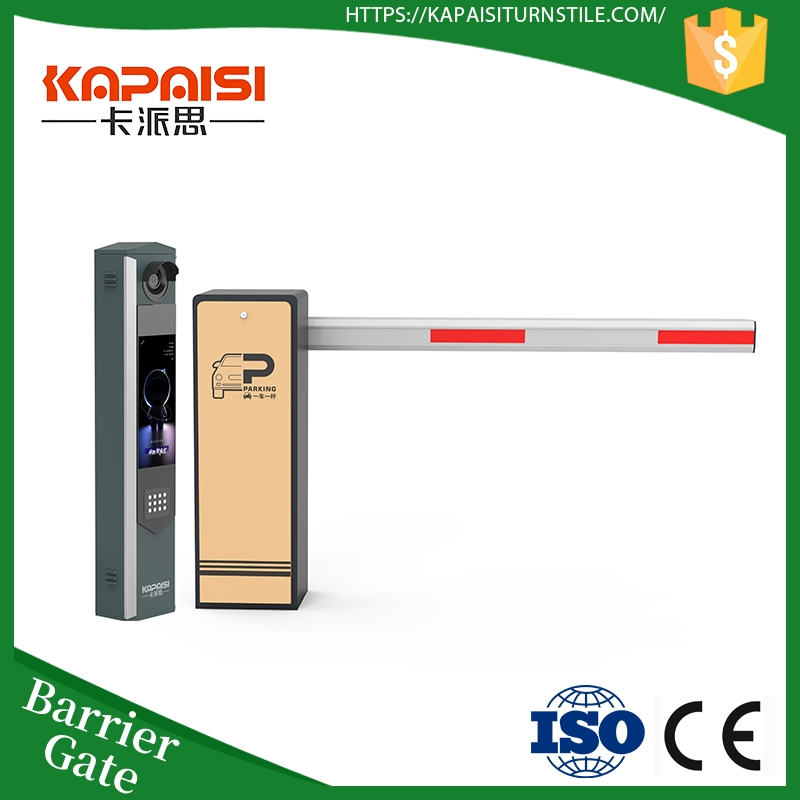

Intelligent Charge Management Parking Lot Recognition Security Barrier Gate

Still deciding? Get samples of $ !
Order Sample

Product Description

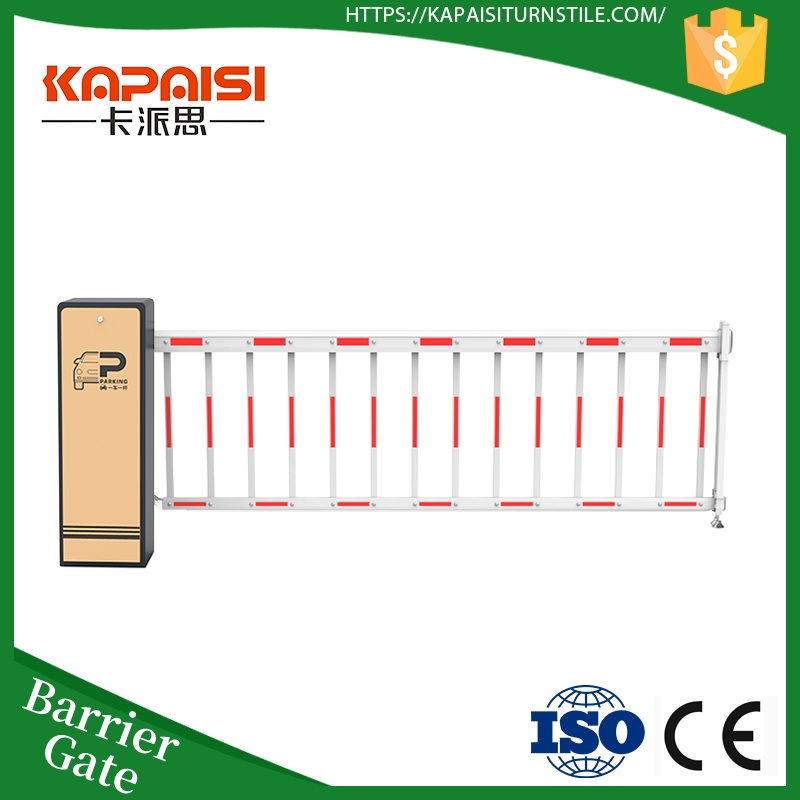

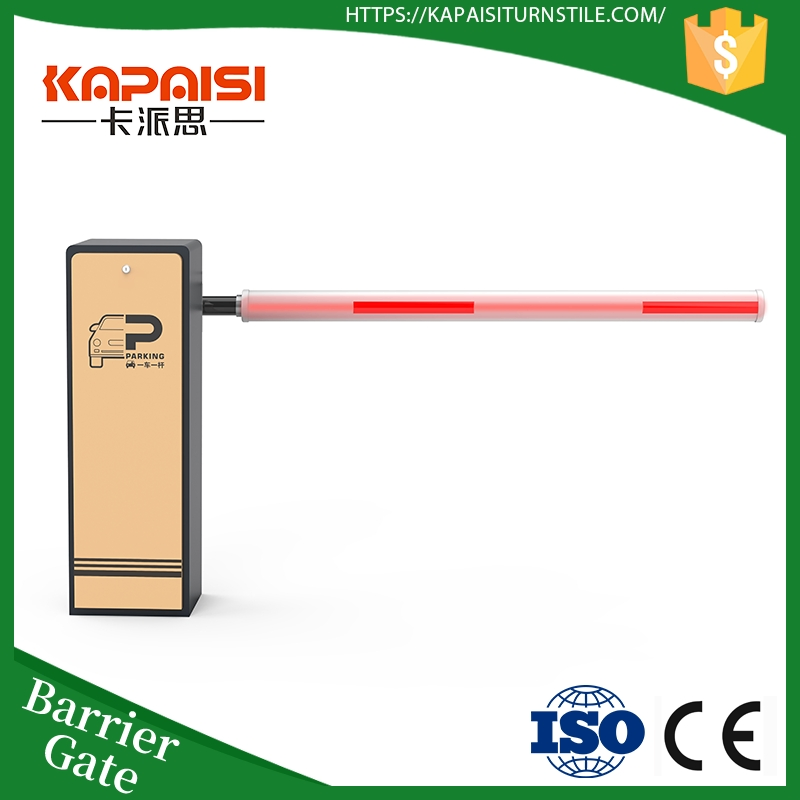

Security Barrier Gate
➤ Basic Information
Model NO.
KPS-DZ-8012
Authentication
Biometric, Proximity Detection, CE
Material
Aluminum Alloy
Power Supply
AC220V±10%50Hz
Technology
License Plate Recognition
Protection Grade
IP44
Rated Power
100W
Operating System
Android / iOS
➤ Product Description
Product Overview

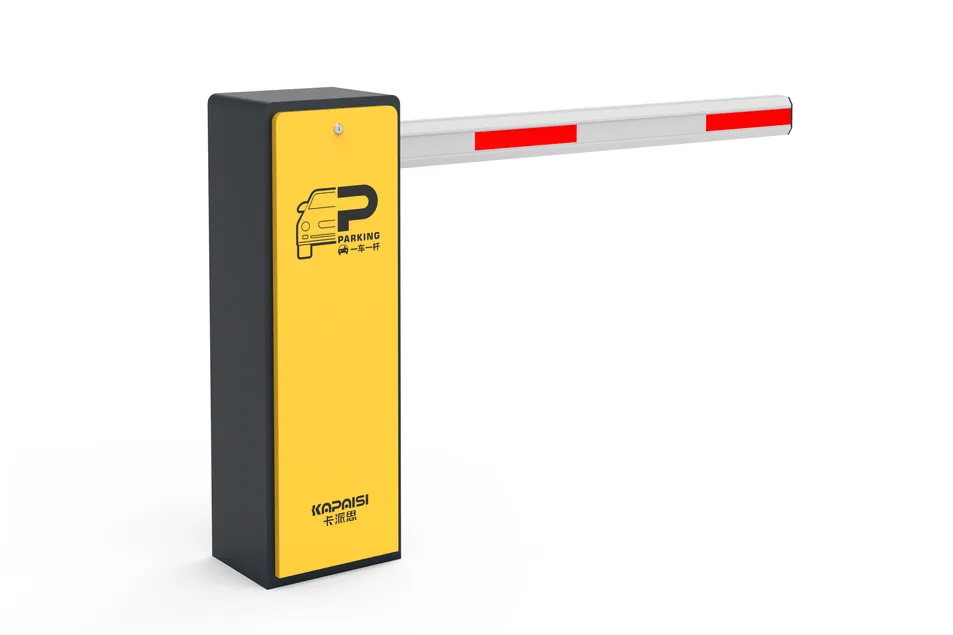

Technical Detail
Key Features:
  • Side fixation movement with compact structure.
  • Aluminum alloy die-casting body for fast heat dissipation and high mechanical strength.
  • Helical gear reduction transmission for stable performance and long life.
  • DC brushless movement (24V) with low heat and large output torque.
  • Adjustable speed regulation and buffer deceleration for smooth barrier operation.
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Motor Power24V DC 100W Brushless
Lifting Time1.5S - 6S (Adjustable)
Chassis Thickness1.5MM
Remote Distance≤ 30 meters
Noise Level≤ 55dB
➤ Compatible Rod Types

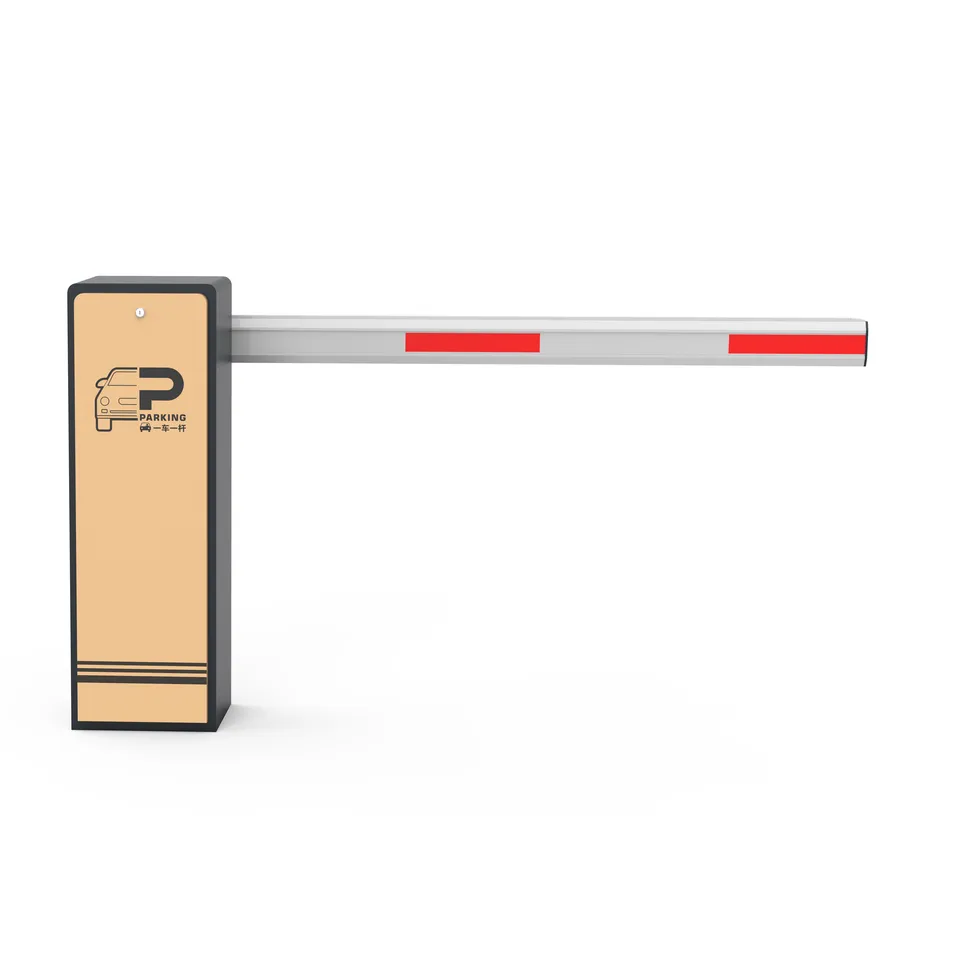

Rod Type 1

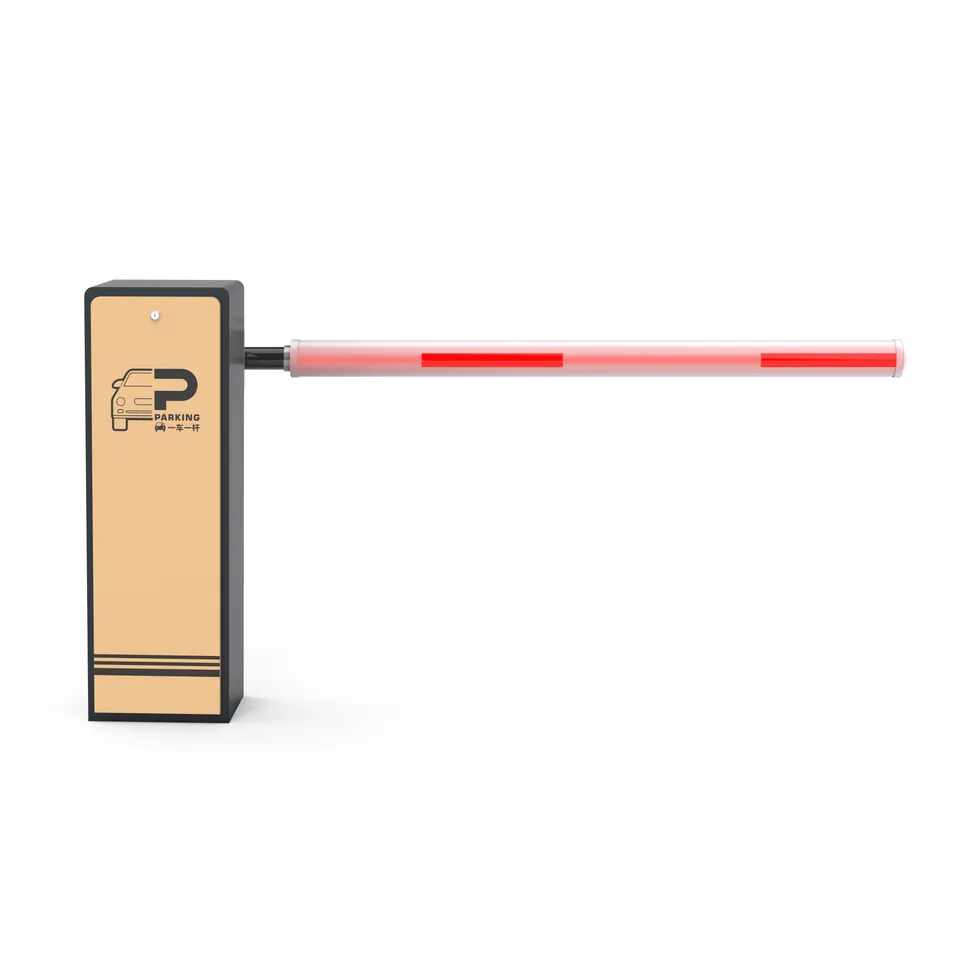

Rod Type 2

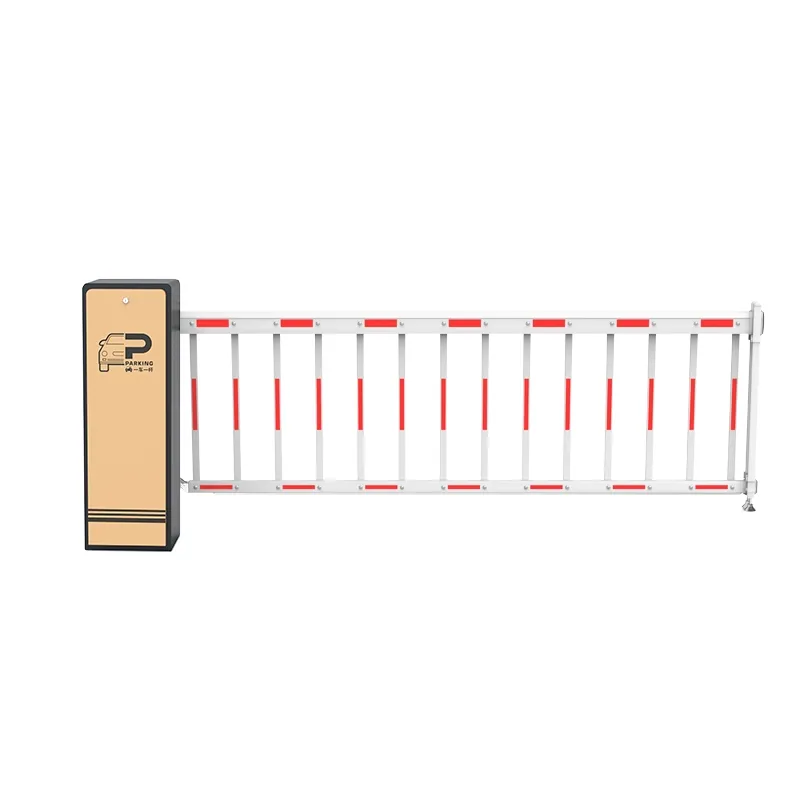

Rod Type 3
➤ Motor & Technical Parameters

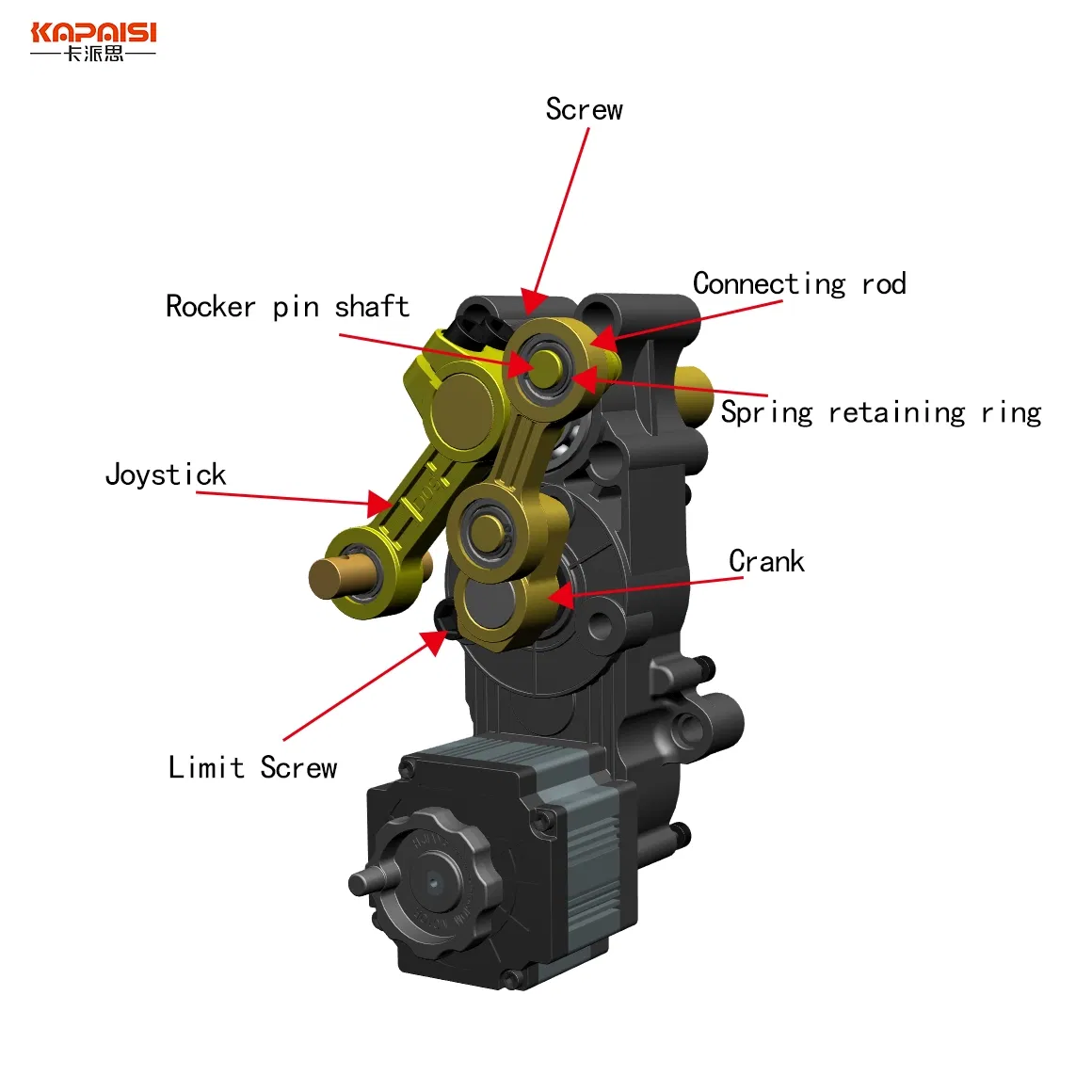

Motor Structure
Model Output Power Rated Speed Output Torque Protection
D01C-0.8S100W1500r/min36.4N·mIP44
D01C-1.5S100W1500r/min64.8N·mIP44
D01C-3.0S100W1500r/min129.9N·mIP44
➤ Packaging & Shipping
Packaging
➤ Frequently Asked Questions
In which scenarios are your barrier gates suitable?
Our barrier gates are widely used in residential and commercial entrances, parking lot charging systems, expressway toll stations, and logistics parks for efficient vehicle control.
What triggering methods are supported?
The system supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
Can it operate under extreme weather conditions?
Yes, it features an IP44 protection grade (customizable higher), works between -40°C to +85°C, and includes built-in lightning and overheat protection.
What types of barrier poles can I choose from?

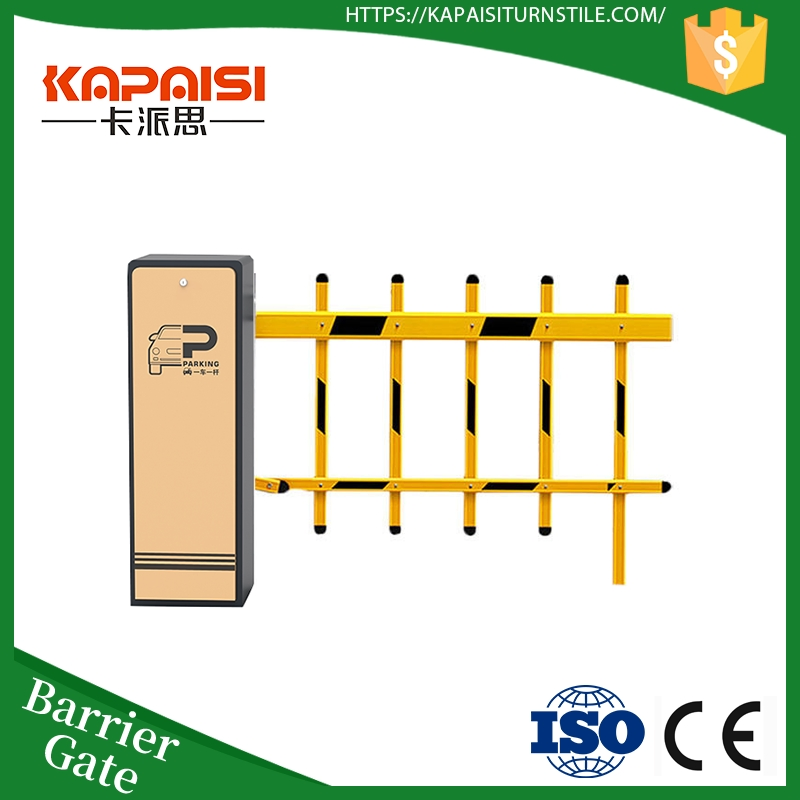

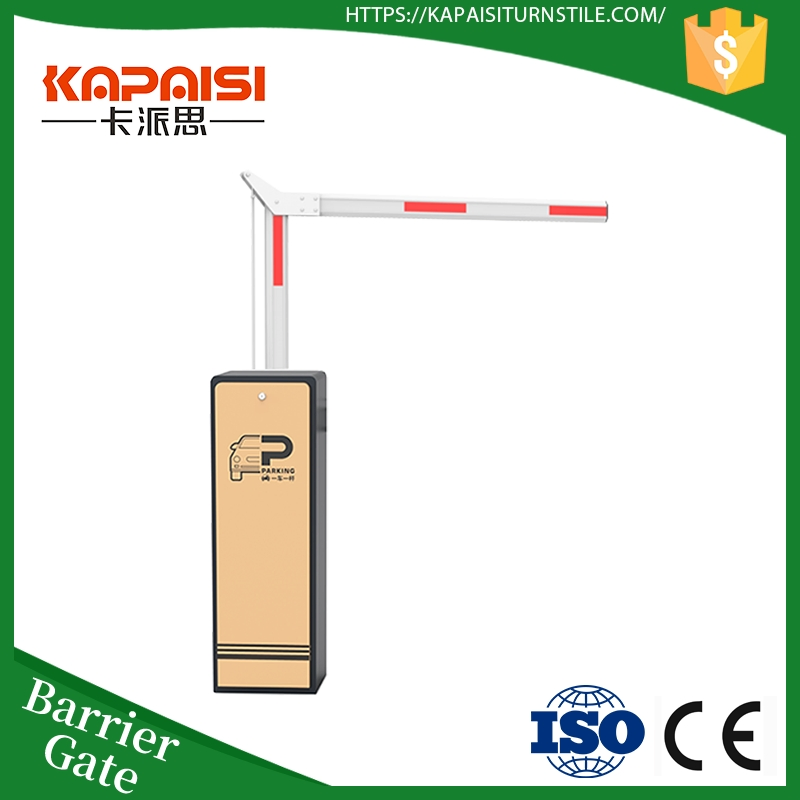

Available options include straight rods (2-6m), curved rods for low-clearance spaces, fence rods for anti-climbing, and folding rods for ultra-wide channels.
Is the motor speed adjustable?
Yes, the DC brushless motor driver allows for speed regulation and adjustable lifting times ranging from 1.5s to 6.0s depending on the model and rod type.
What is the power requirement for the barrier gate?
The standard working power supply is AC220V ± 10% 50Hz, while the internal motor operates on a safe 24V DC voltage.
