Product Description

📘 Basic Info.
Model NO.
KPS-DZ-8012
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
Power Supply
AC220V±10%50Hz
Technology
License Plate Recognition
Output Power
100W
Motor Speed
1500r/Min
Protection
IP44
Specification
350*280*1020mm
Security Barrier Gate Overview
⚙️ Product Description
Product Overview
Core Features:
  • Side-fixation movement with compact structure.
  • Integrated die-casting aluminum alloy body for fast heat dissipation.
  • High-efficiency helical gear reduction transmission.
  • DC brushless movement for low heat and stable torque.
  • Safe 24V DC motor voltage.
📊 General Technical Conditions

Insulation Resistance: ≥ 100MΩ

Electrical Strength: 700V/S without breakdown

Temperature Rise: ≤ 75K

Noise Level: ≤ 55dB

Working Environment: -35℃ to 80℃, Humidity ≤ 90%

Technical Specs
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C - +85°C
Motor Power24V DC 100W brushless DC motor
Lifting Time1.5S - 6S adjustable
Remote Distance≤ 30 meters
Chassis Thickness1.5MM
Optional Pole Types1 - 6 meters (Straight, Barrier, Curved, Oval)
📏 Compatible Rod Types
Rod Type 1
Rod Type 2
Rod Type 3
⚡ Motor Parameters
Motor Details

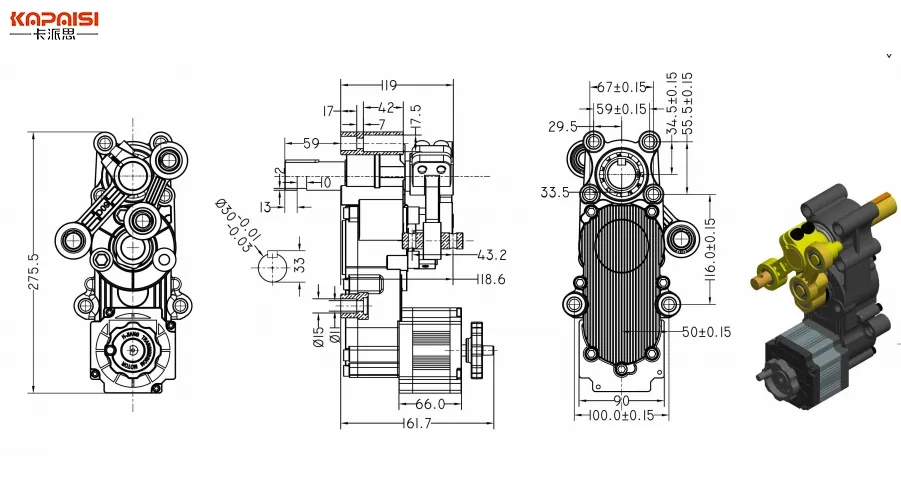

Motor Structure
Model Rated Torque Rated Speed Noise Protection Class
D01-C/3.0S129.9 N·m10 r/min ±10%<50 dB(A)IP44
🏭 Manufacturer Overview

We are a comprehensive hardware manufacturer for channel entrances, integrating R&D, production, sales, and service. The company has passed ISO9001:2015 quality management system certification. Our factory covers approximately 10,000 square meters and is equipped with professional management systems and senior engineers.

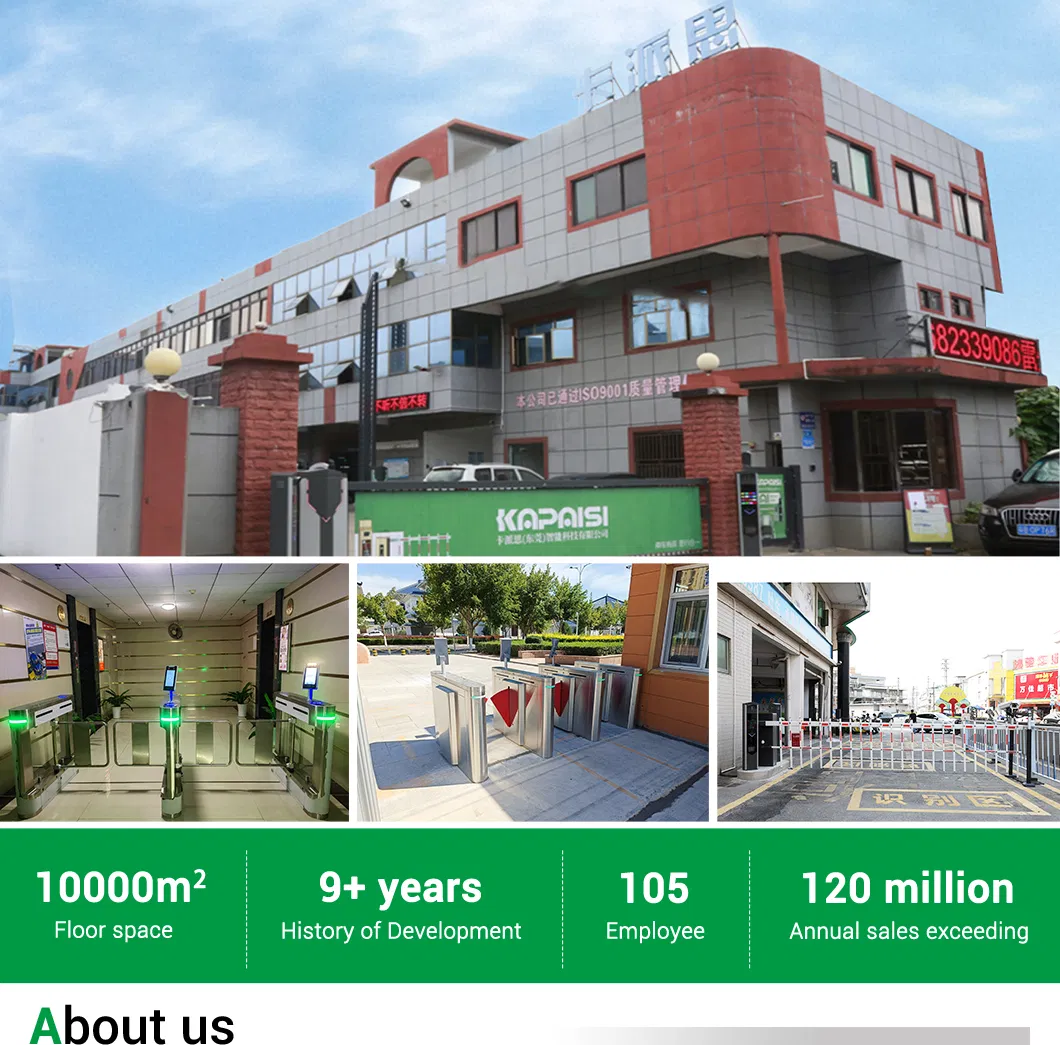

Factory Overview

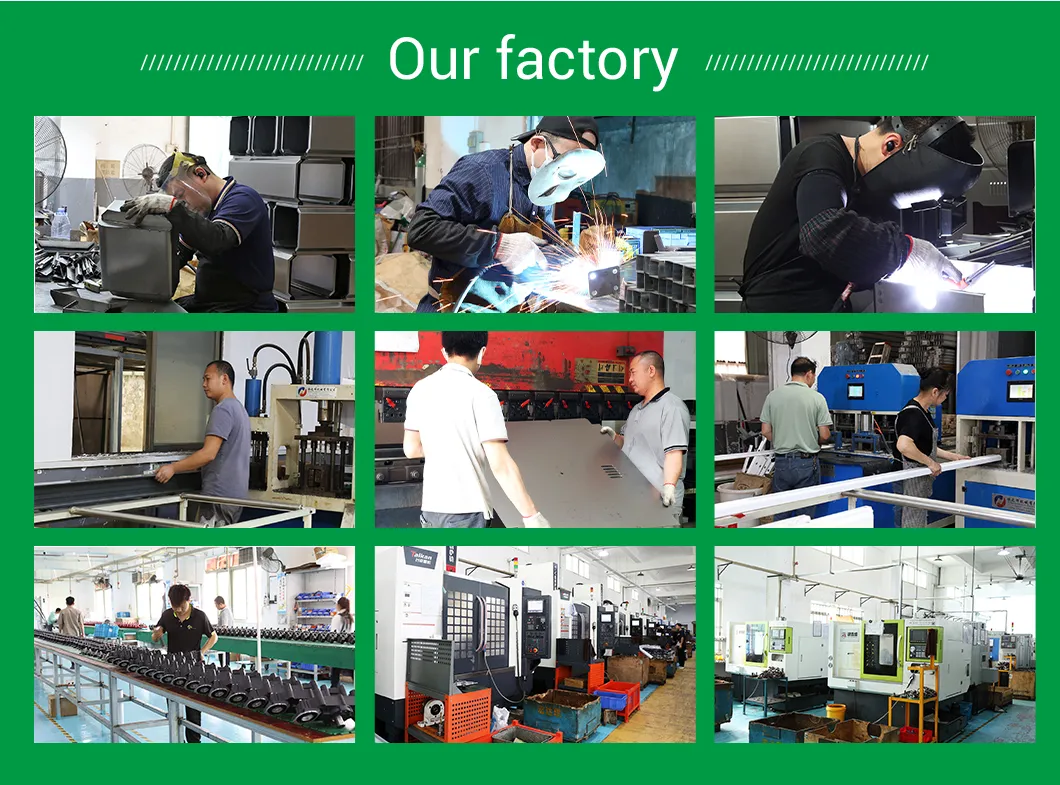

Production Line
🏆 Company Advantage & Certifications
Advantages
Certifications
📦 Packaging & Shipping
Packaging Details
❓ Frequently Asked Questions
Q1: In which scenarios are these barrier gates suitable?
A: Our barrier gates are ideal for residential and commercial community entrances, parking lot systems, toll stations, and logistics parks.
Q2: What triggering methods are supported?
A: The system supports remote control, license plate recognition (LPR), ground induction loops, and mobile App control (Bluetooth/WIFI).
Q3: Can the barrier operate in extreme weather?
A: Yes, it features IP44/IP54 protection and operates efficiently in temperatures ranging from -40°C to +85°C.
Q4: What types of barrier rods are available?
A: We offer straight rods (2-6m), curved rods for low spaces, fence poles for anti-climbing, and LED advertising rods.
Q5: Is the lifting speed adjustable?
A: Yes, the lifting time is adjustable between 1.5 seconds and 6 seconds to suit different traffic flow requirements.
Q6: What is the benefit of the DC brushless motor?
A: DC brushless motors offer lower heat generation, stable transmission, larger torque, and a longer service life compared to traditional motors.
