Product Description

Basic Info & Overview
Model NO.
KPS-DZ-8013
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
Power Supply
AC220V±10% 50Hz
Protection
IP44
Motor Power
120W / 24V DC
Rated Speed
1500r/Min
Product Description

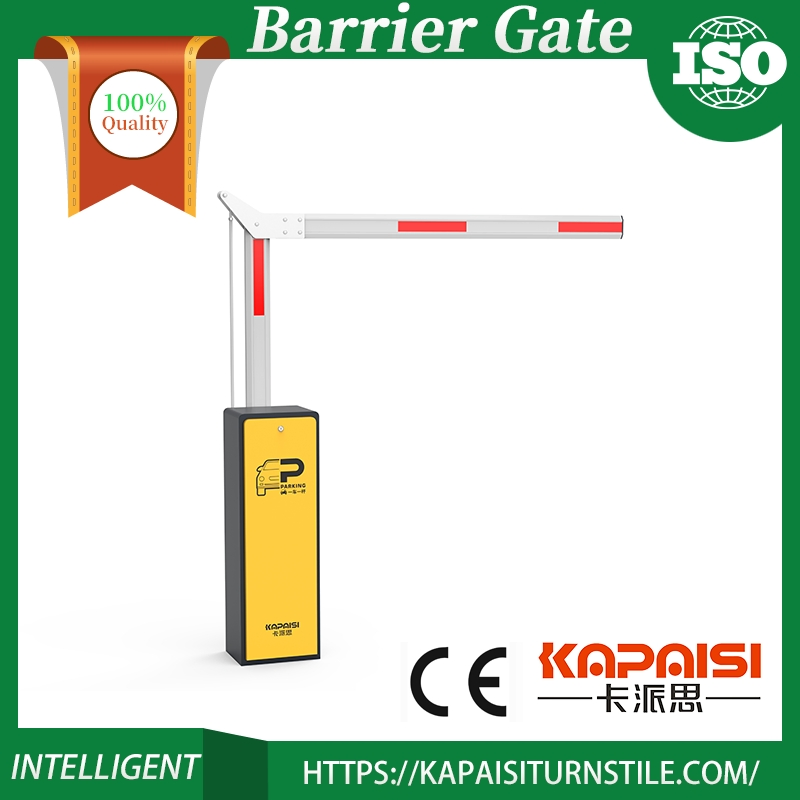

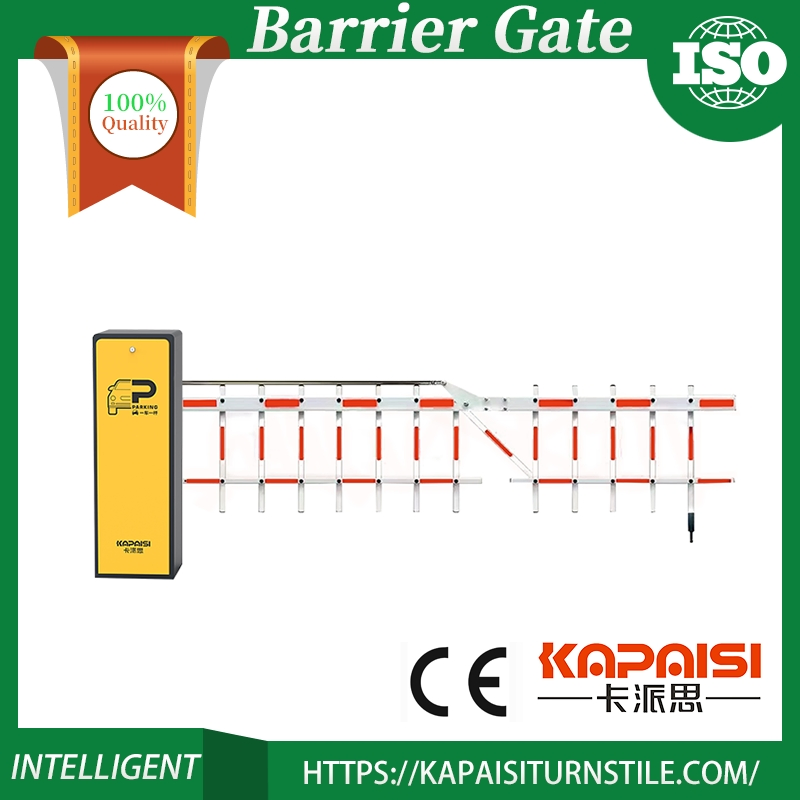

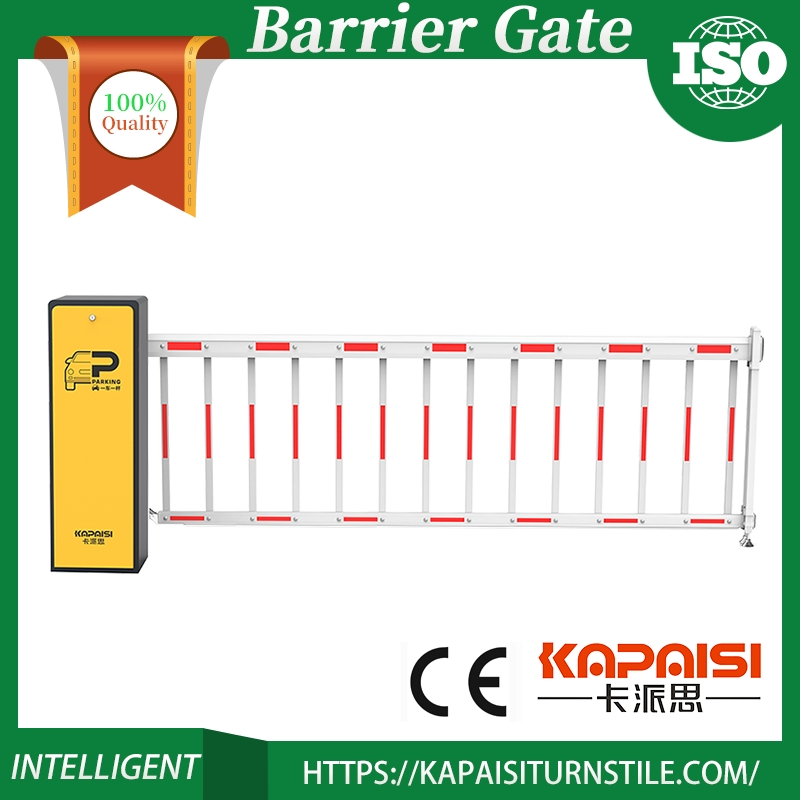

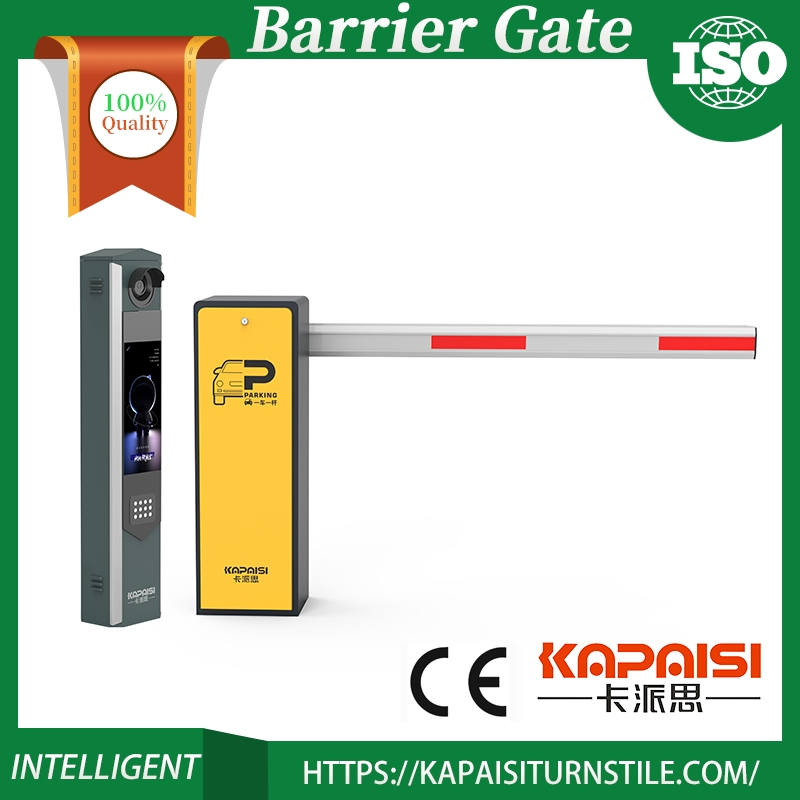

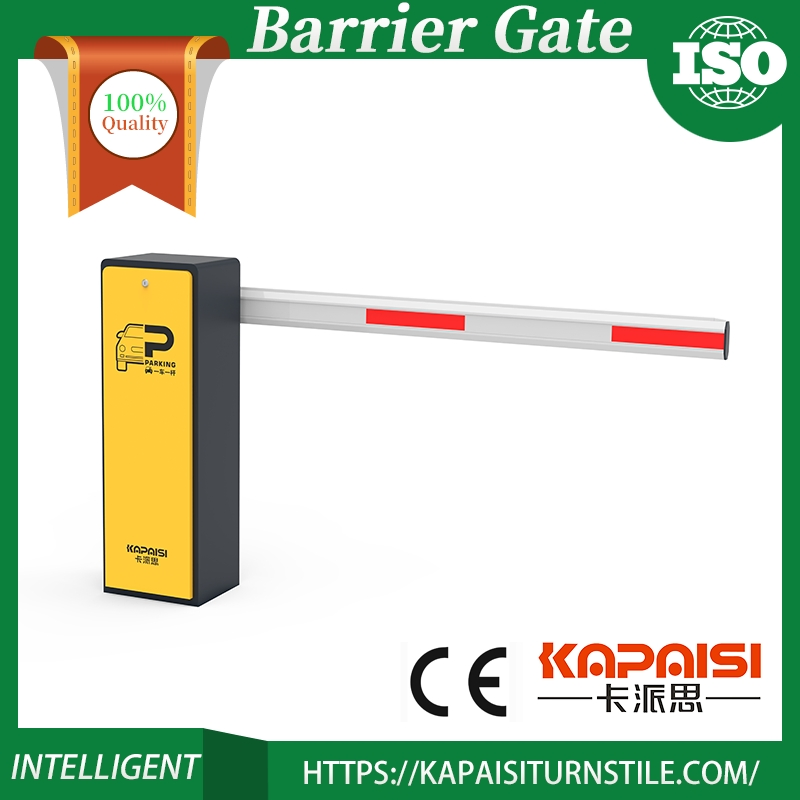

Highway Toll Gate System Access Control Security Boom Barrier
✦ Key Highlights
1) Movement installed by side fixation with a compact structure.
2) Die-cast aluminum alloy body for high mechanical strength and fast heat dissipation.
3) Helical gear reduction transmission for high efficiency and shock resistance.
4) DC brushless motor ensures low heat generation and stable large torque output.
5) Safe 24V DC operating voltage.
✦ Technical Conditions
• Insulation Resistance: ≥ 100MΩ
• Electrical Strength: 700V/S without breakdown
• Motor Temperature Rise: ≤75K
• Noise Level: ≤55dB
• Working Temp: -35℃ to 80℃ (Humidity ≤90%)
Technical Specifications
ParameterSpecification
Working Power SupplyAC220V ± 10% 50Hz
Working Frequency433HZ
Remote Control Distance≤ 30 meters
Lifting Time1.5S - 6S (Adjustable)
Pole Height830MM
Chassis Thickness1.5MM
Optional Pole Types1 - 6 meters (Straight, Curved, Fence, Oval)
Compatible Rod Types

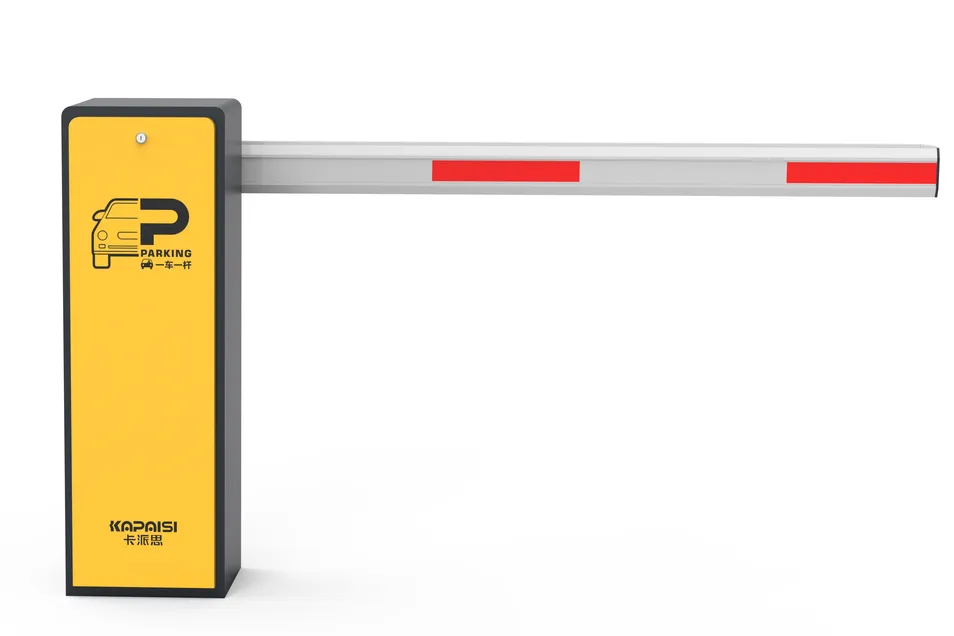

Rod Compatibility 1

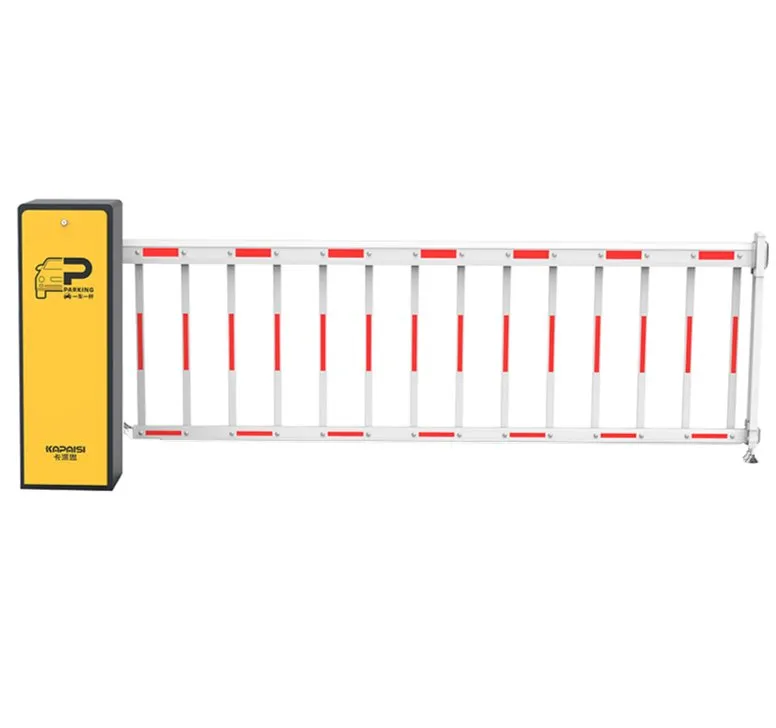

Rod Compatibility 2

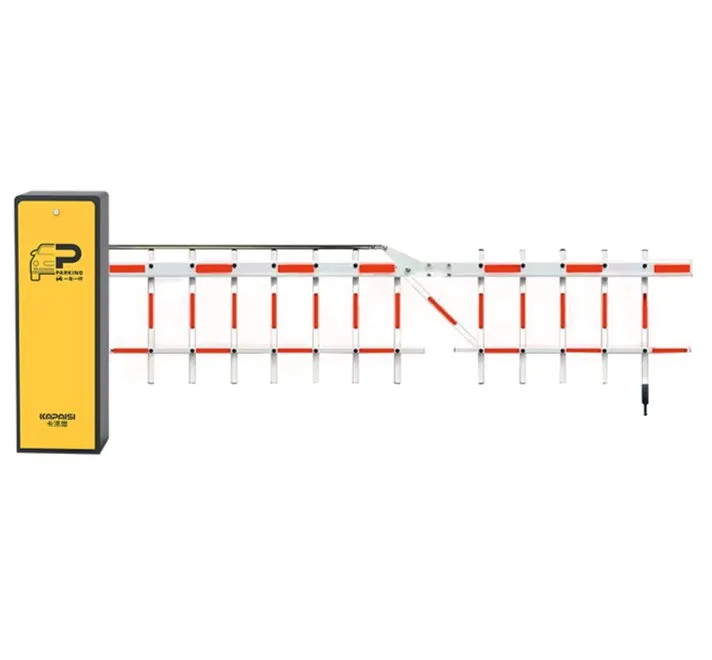

Rod Compatibility 3

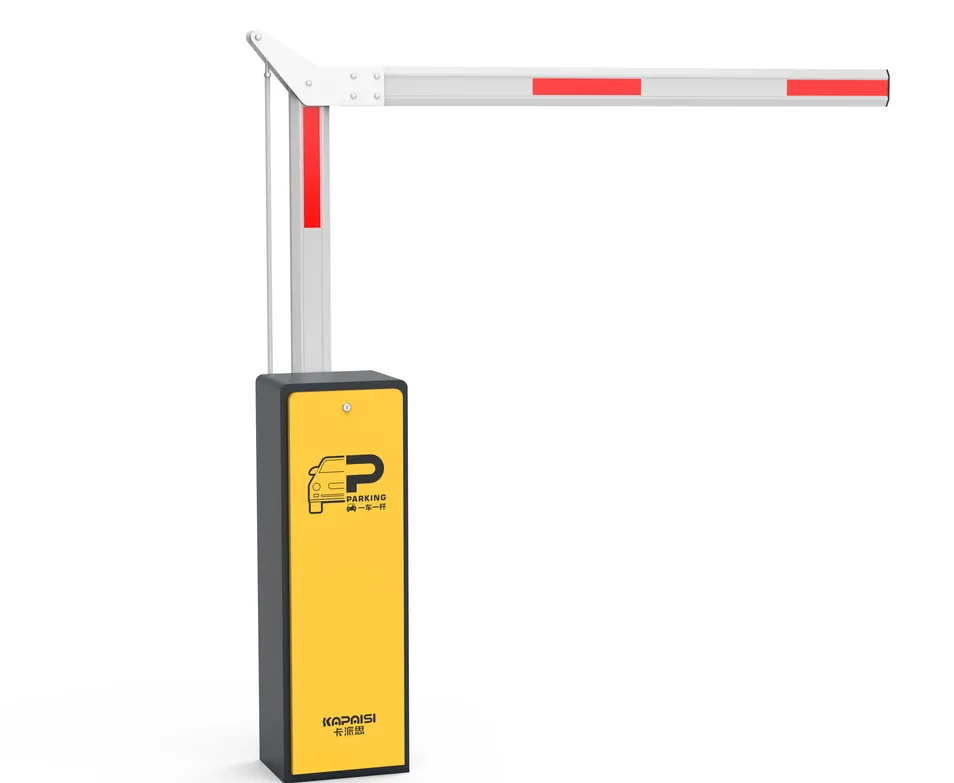

Rod Compatibility 4
Motor Parameters & Performance

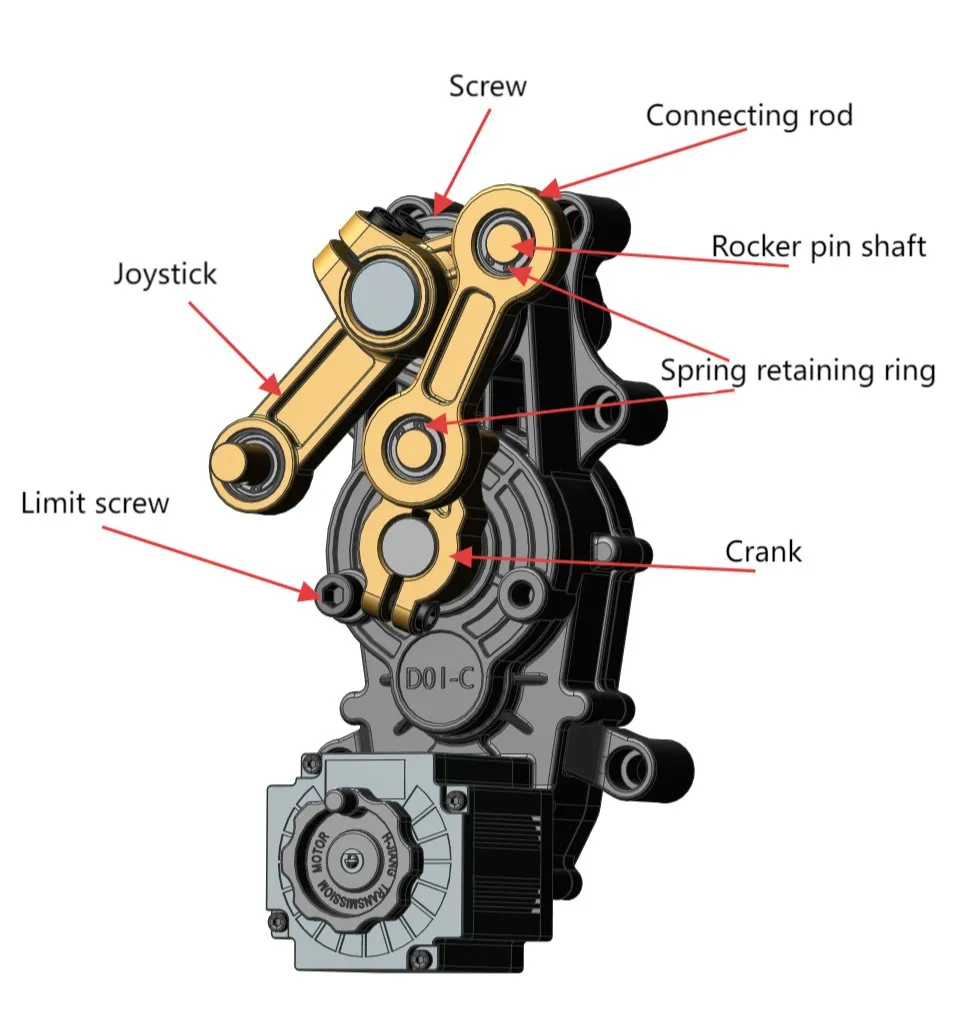

Motor Details
Model Output Power Rated Current Rated Speed Lifting Time Torque
D01C-0.8S120W8A1500r/min0.8s-1.5s36.4N·m
D01C-1.5S120W8A1500r/min1.5s-3.0s64.8N·m
D01C-3.0S120W8A1500r/min3.1s-7.0s129.9N·m
Packaging & Delivery
Package Size
104.00cm * 30.00cm * 40.00cm
Gross Weight
38.000kg
Packing Type
Standard Carton Box
Packaging Showcase
Frequently Asked Questions
In which scenarios are these barrier gates suitable?
Our barrier gates are ideal for residential and commercial entrances, parking lot management systems, enterprise access control, expressway toll stations, and logistics parks.
What triggering methods are supported by the system?
The series supports multiple modes: remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
Can it operate normally under extreme weather conditions?
Yes, with IP54 (customizable IP68) water resistance and an operating temperature range of -40℃ to +80℃, including built-in lightning and overheat protection.
What types of barrier poles can I choose from?
We offer six major types: standard straight rods (2-6m), curved rods for low spaces, fence poles for anti-climbing, LED advertising poles, folding rods for wide channels, and anti-collision rods.
Is the motor safe and energy-efficient?
Absolutely. The system uses a 24V DC brushless motor which is much safer than traditional AC motors, produces low heat, and offers highly efficient power output.
How many remote controls can be used with one gate?
The system supports remote learning and copying of 6 different codes, with no upper limit for duplicate code remotes.
