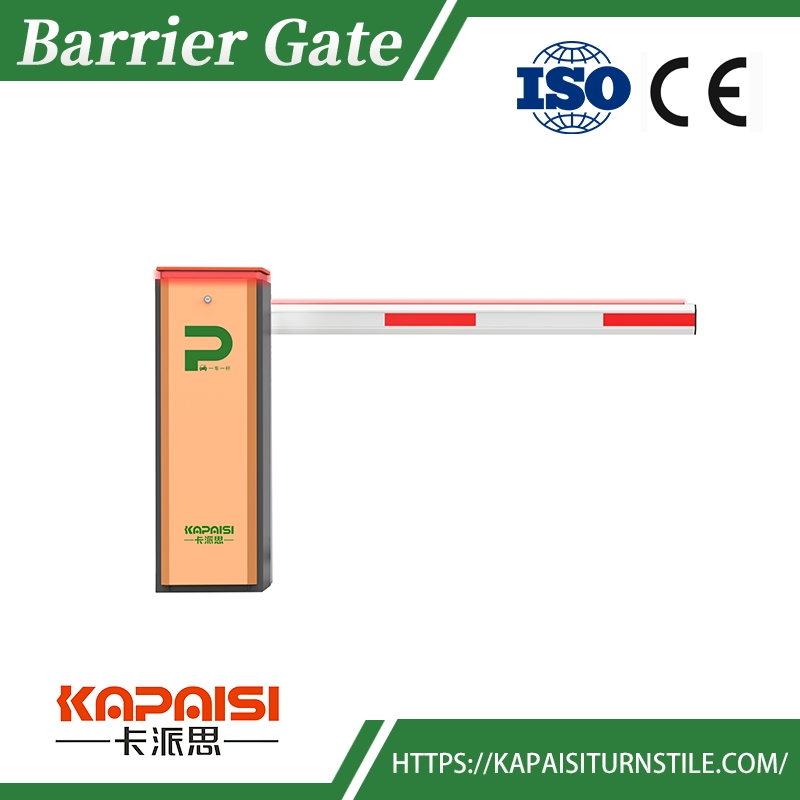

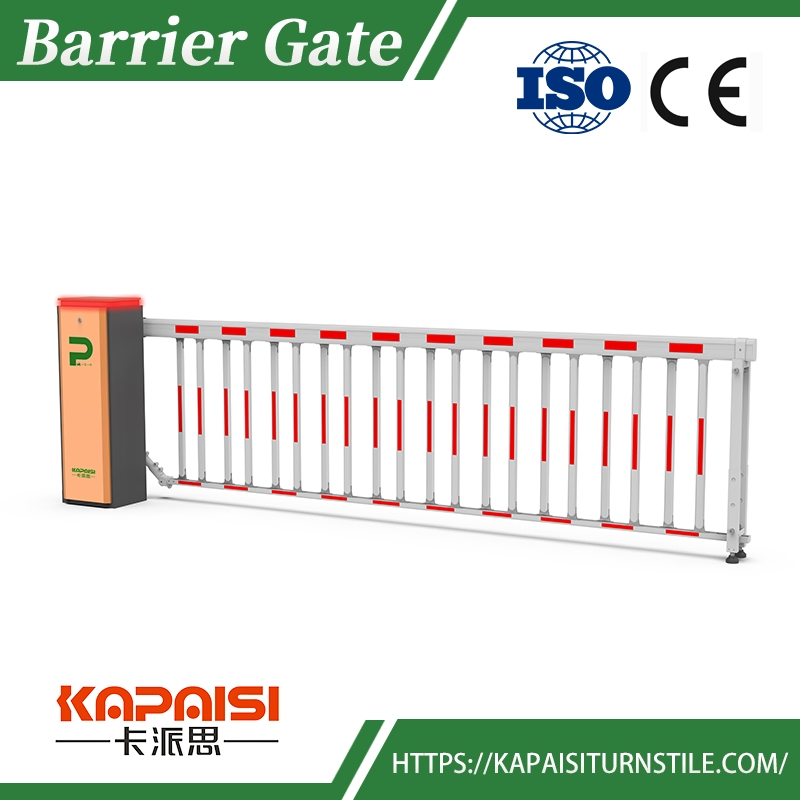

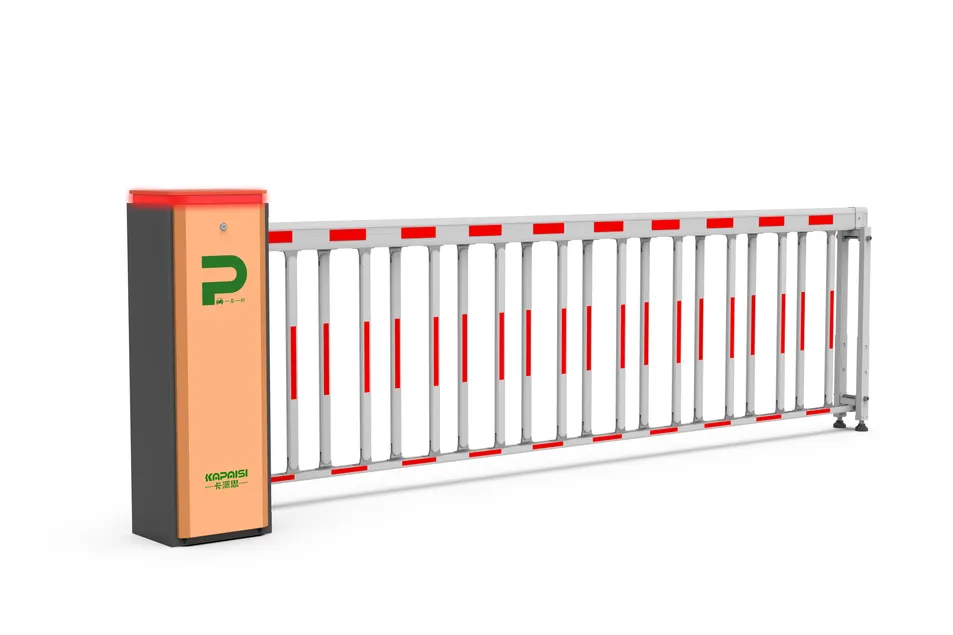

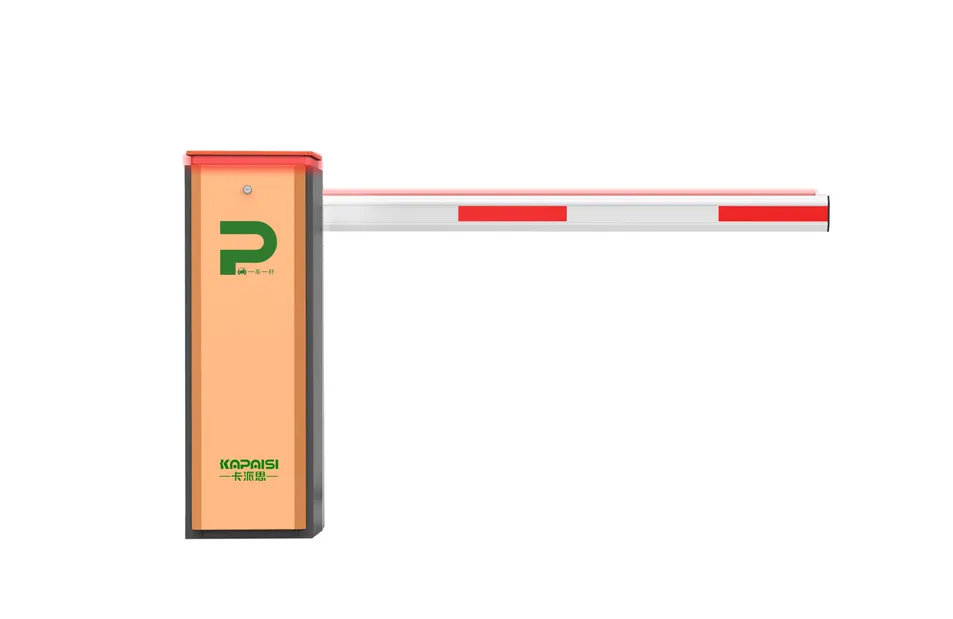

Vero Door
Vero Door

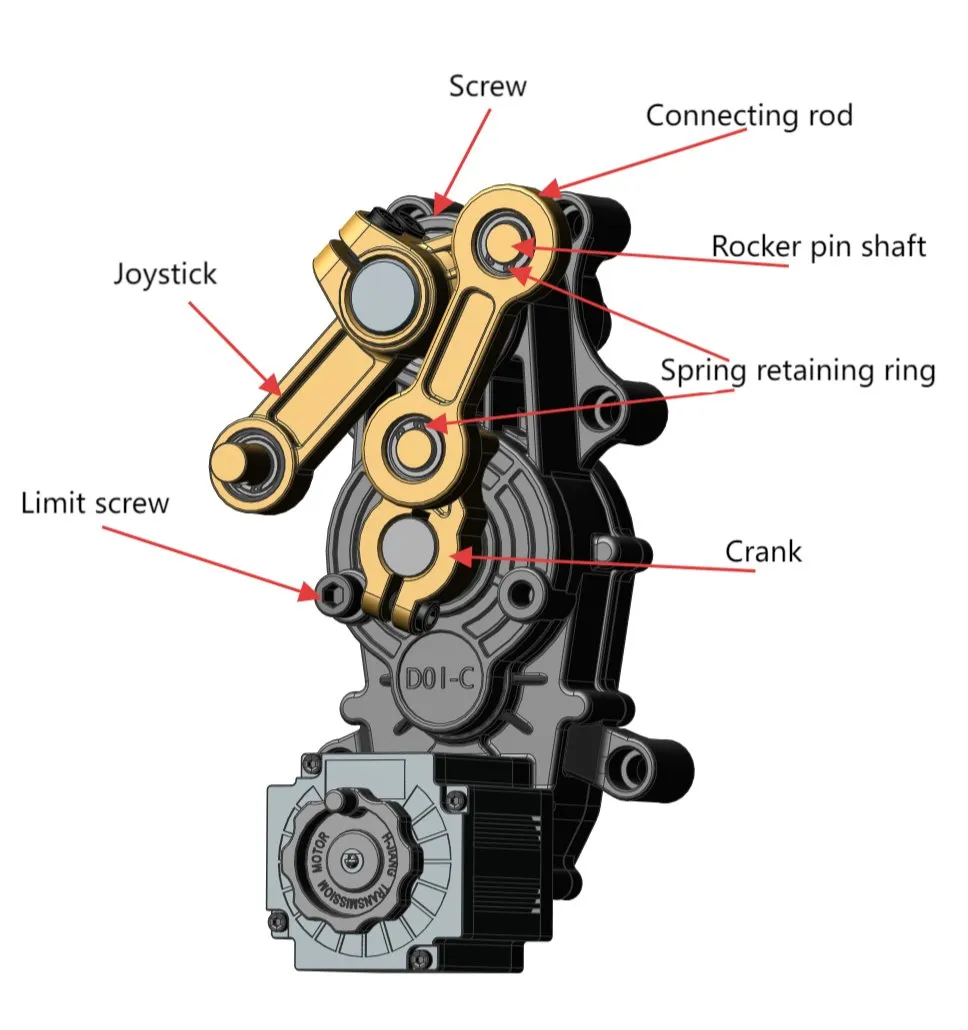

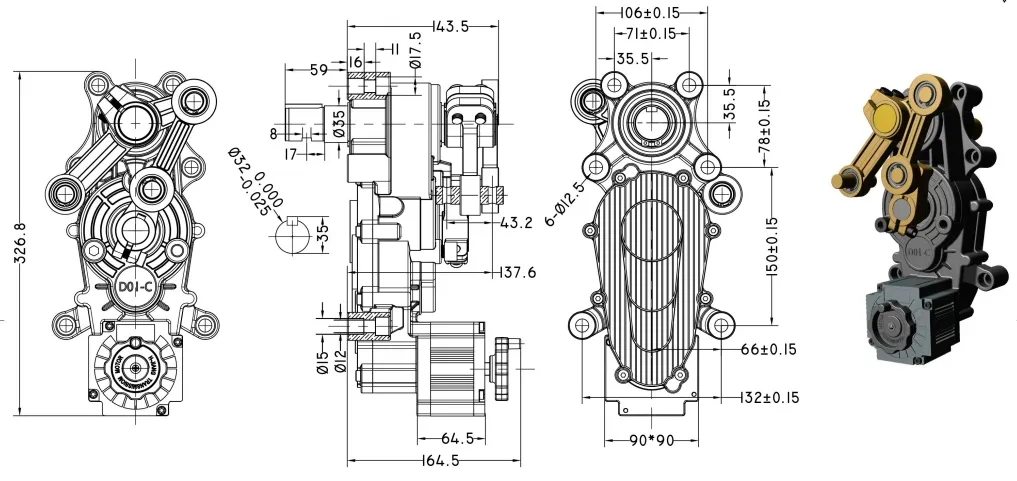

1) The movement is installed by side fixation, featuring a compact structure.
2) The main body of the movement is made of aluminum alloy through die-casting process, with an integrated structure that is reliable in mechanical strength and fast in heat dissipation.
3) Adopts helical gear reduction transmission, which is highly efficient and shock-resistant, ensuring a long service life.
4) DC brushless movement with low heat generation, stable transmission, and large output torque for smooth lifting and lowering operations.
5) Uses a safe 24V DC voltage motor, providing enhanced safety compared to traditional AC motors.
| Parameter | Specification |
|---|---|
| Working Frequency | 433HZ |
| Remote Distance | ≤ 30 meters |
| Lifting Time | 1.5S - 6S (Adjustable) |
| Pole Height | 830MM |
| Chassis Thickness | 1.5MM |
| Motor Noise | ≤ 55dB |
| Insulation Resistance | ≥ 100MΩ |
| Model | Output Power | Rated Current | Lifting Time | Main Torque |
|---|---|---|---|---|
| D01C-0.8S | 120W | 8A | 0.8s-1.5s | 36.4N·m |
| D01C-1.5S | 120W | 8A | 1.5s-3.0s | 64.8N·m |
| D01C-3.0S | 120W | 8A | 3.1s-7.0s | 129.9N·m |

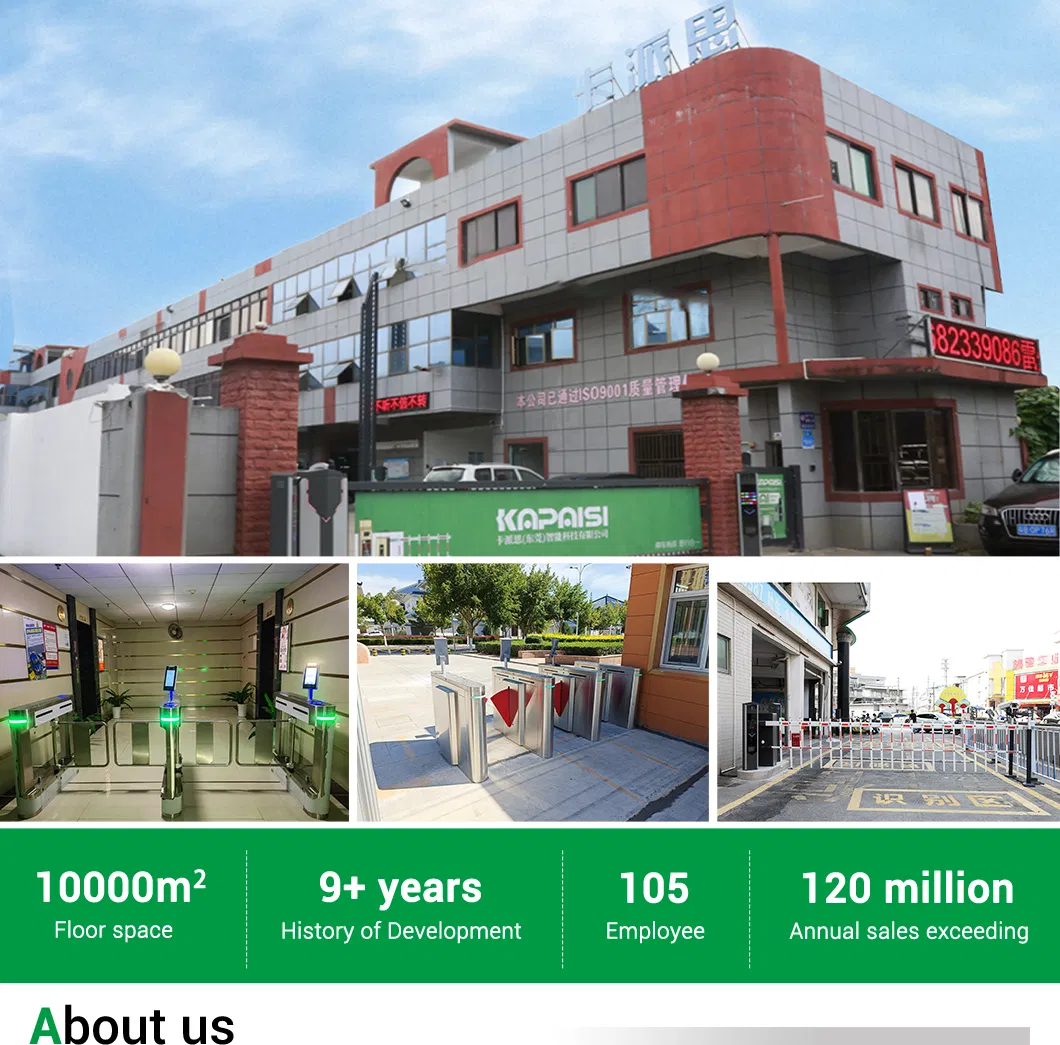

Our manufacturer is a comprehensive hardware provider for channel entrances integrating R&D, production, and service. With ISO9001:2015 certification, the facility covers approximately 10,000 square meters. Equipped with advanced production facilities and a group of senior engineers, we ensure high-quality and standardized products.
The product network has spread globally, reaching over 80 countries including the UK, Russia, Canada, Germany, and Southeast Asia. We adhere to the philosophy of "Technology is the core" to create high-end intelligent channel products.
