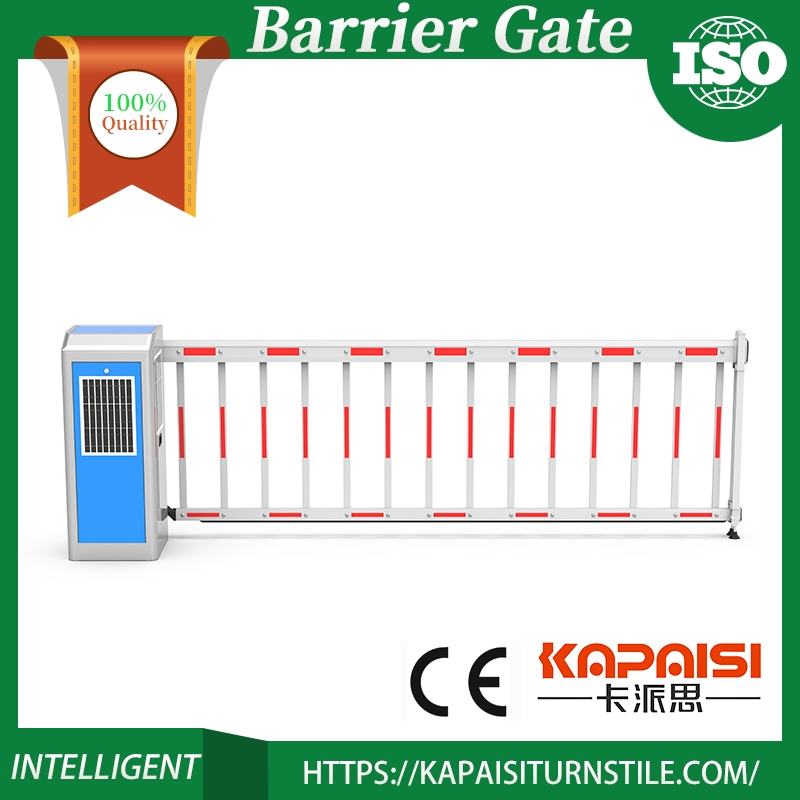

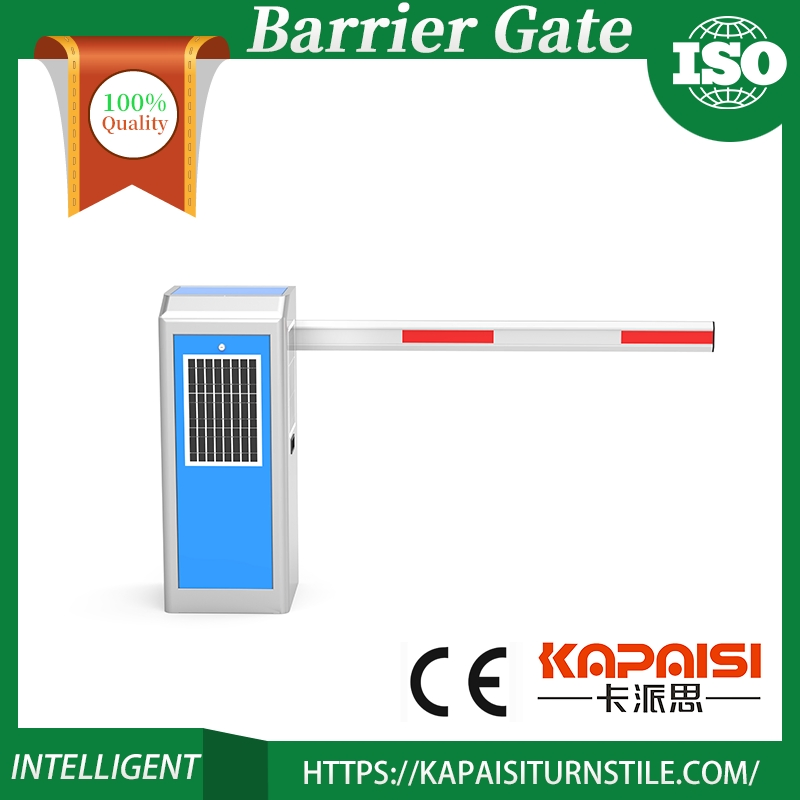

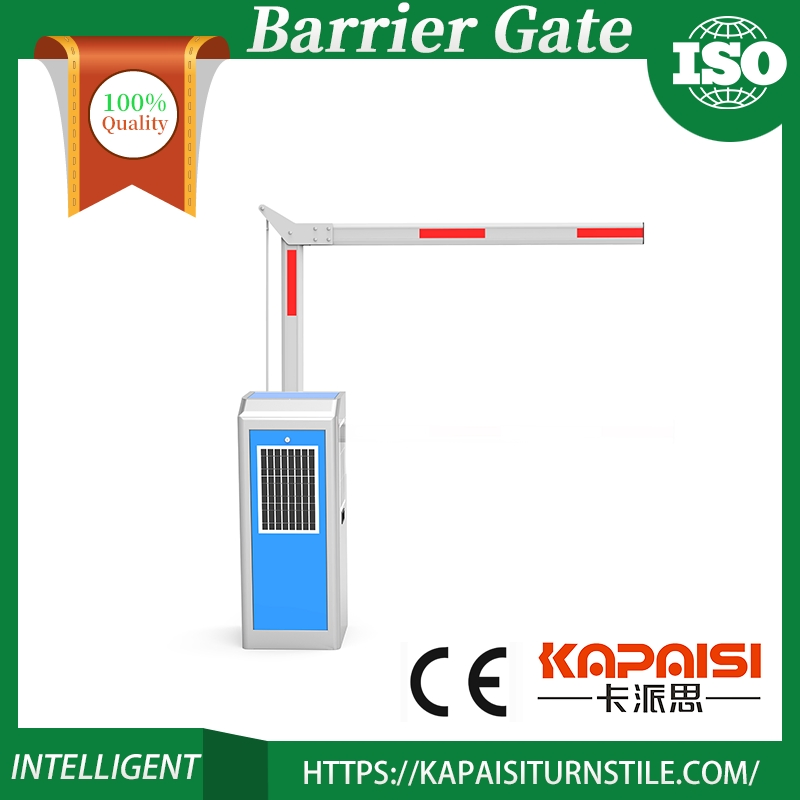

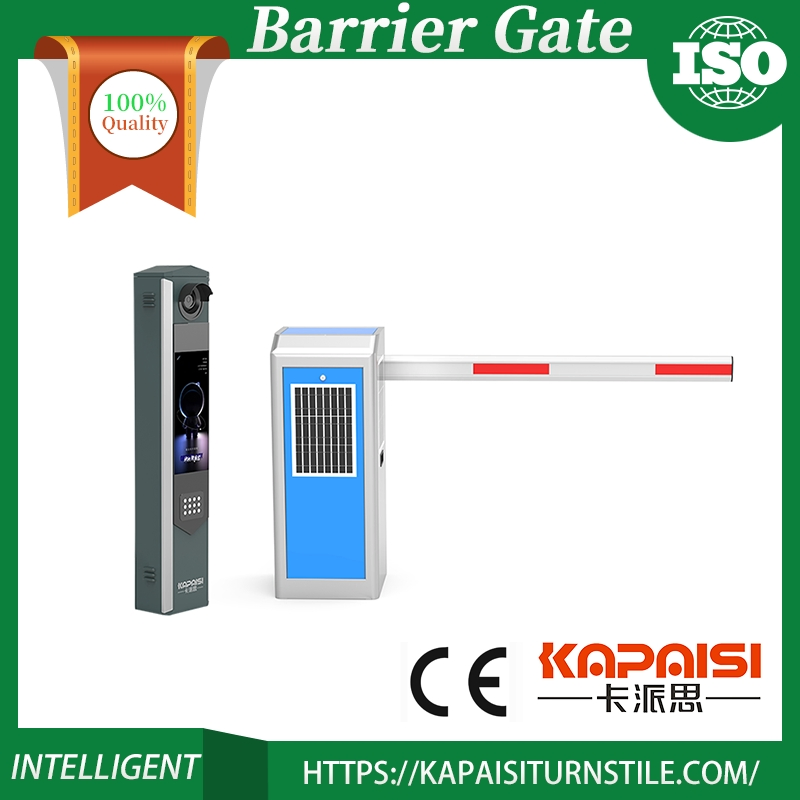

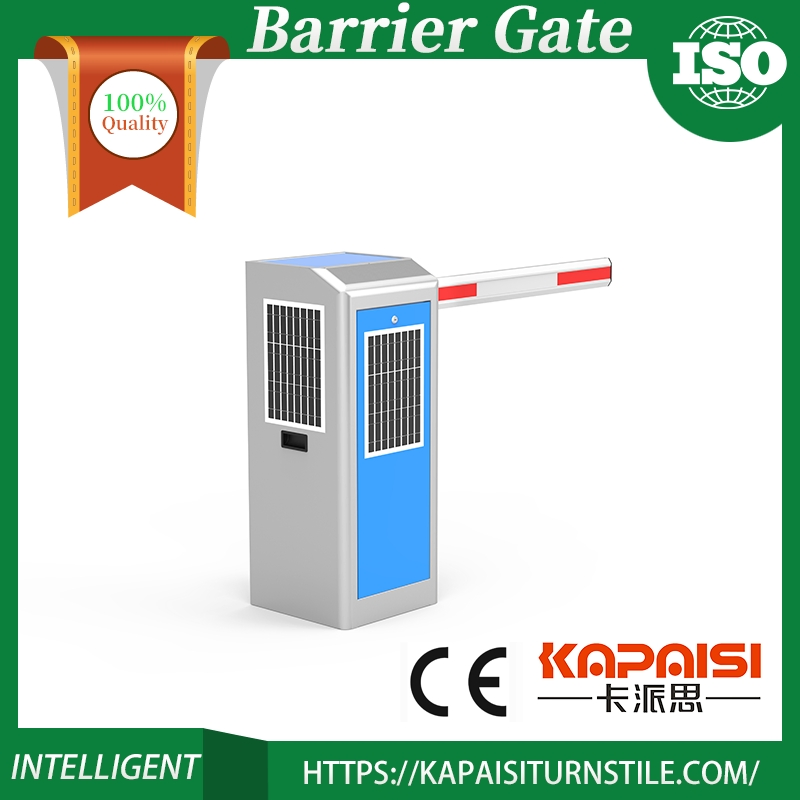

High Security Solar Panel Gate Barrier for Industrial Zones

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Specifications
Model NO.
KPS-DZ-8001
Authentication
Biometric, Proximity Detection, CE
Installation Method
Pole Mount
Material
Aluminum Alloy
Operating System
Android / Ios
Power Supply
AC220V±10% 50Hz
Protection Grade
IP44
Output Power
120W
Insulation Grade
B
Package Size
104.00cm * 30.00cm * 40.00cm
High Security Solar Panel Gate Barrier
⚙️ Product Description
  • Efficient Movement: Installed by side fixation with a compact aluminum alloy die-casting structure for fast heat dissipation.
  • Advanced Transmission: Adopts helical gear reduction transmission, carburizing heat treatment, and gear grinding for shock resistance and long life.
  • DC Brushless Motor: Low heat generation, stable transmission, and large output torque with adjustable buffer deceleration.
  • Safety First: Uses a safe 24V DC voltage system, significantly safer than traditional AC motors.
  • Durability: Highly efficient gear design ensures minimal power loss and reliable mechanical strength.

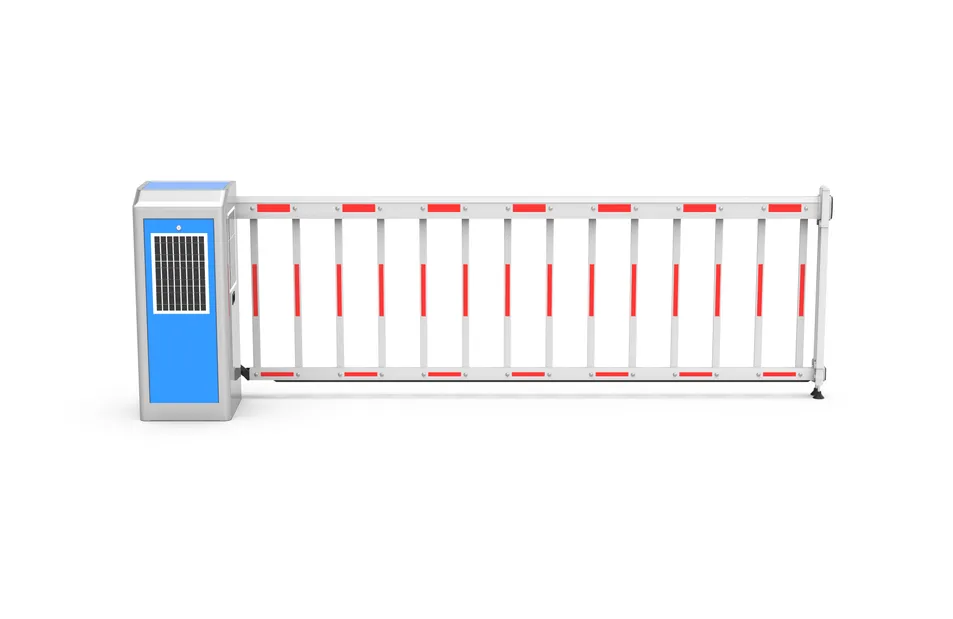

Product Overview

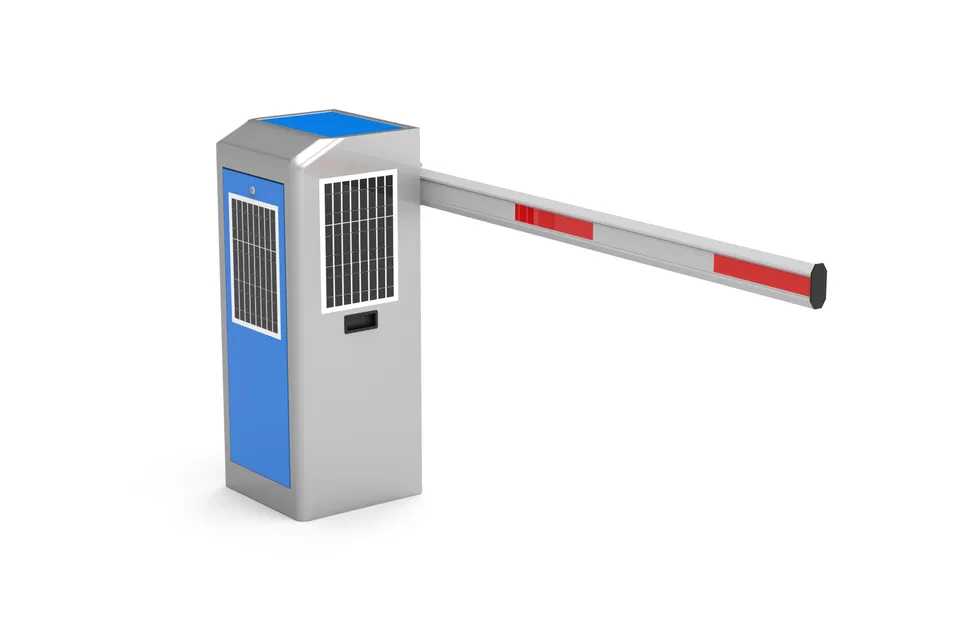

General Technical Conditions
📊 General Technical Parameters
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Remote Control Distance≤ 30 meters
Motor Power24V DC 150W Brushless
Lifting Time1.5S - 6S (Adjustable)
Case Thickness1.5MM
Motor Noise≤ 55dB
🚧 Compatible Rod Types

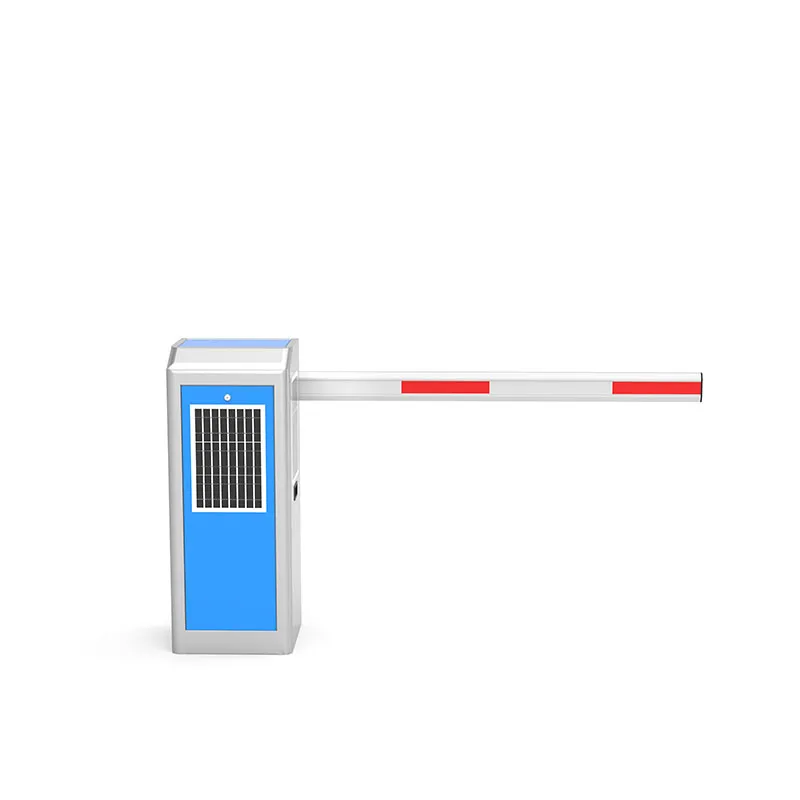

Rod Type 1

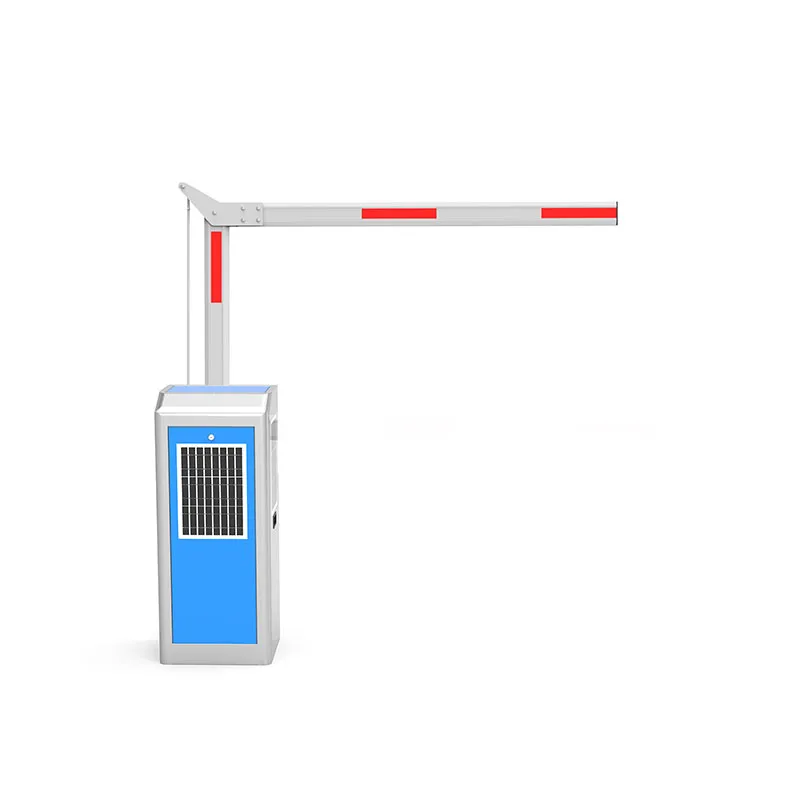

Rod Type 2

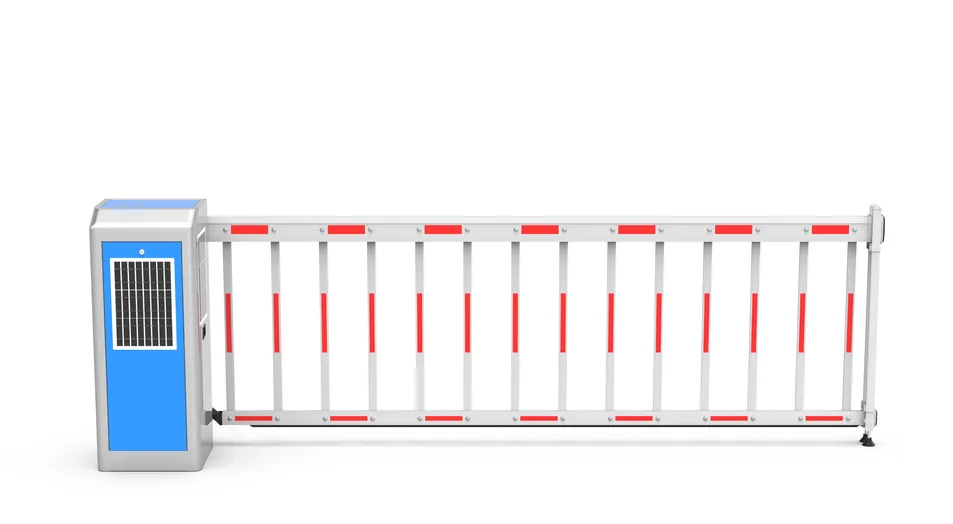

Rod Type 3

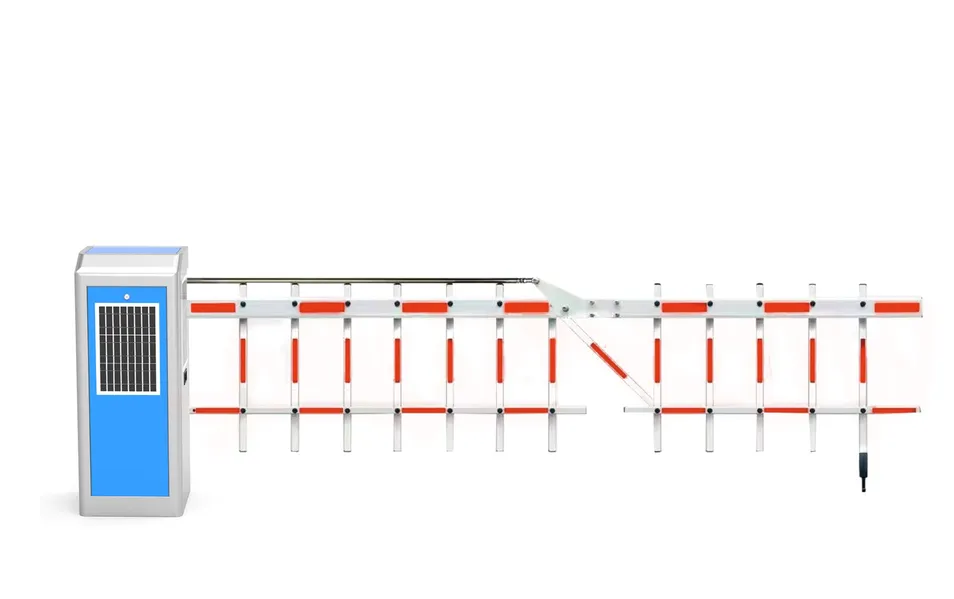

Rod Type 4
Motor Performance Data

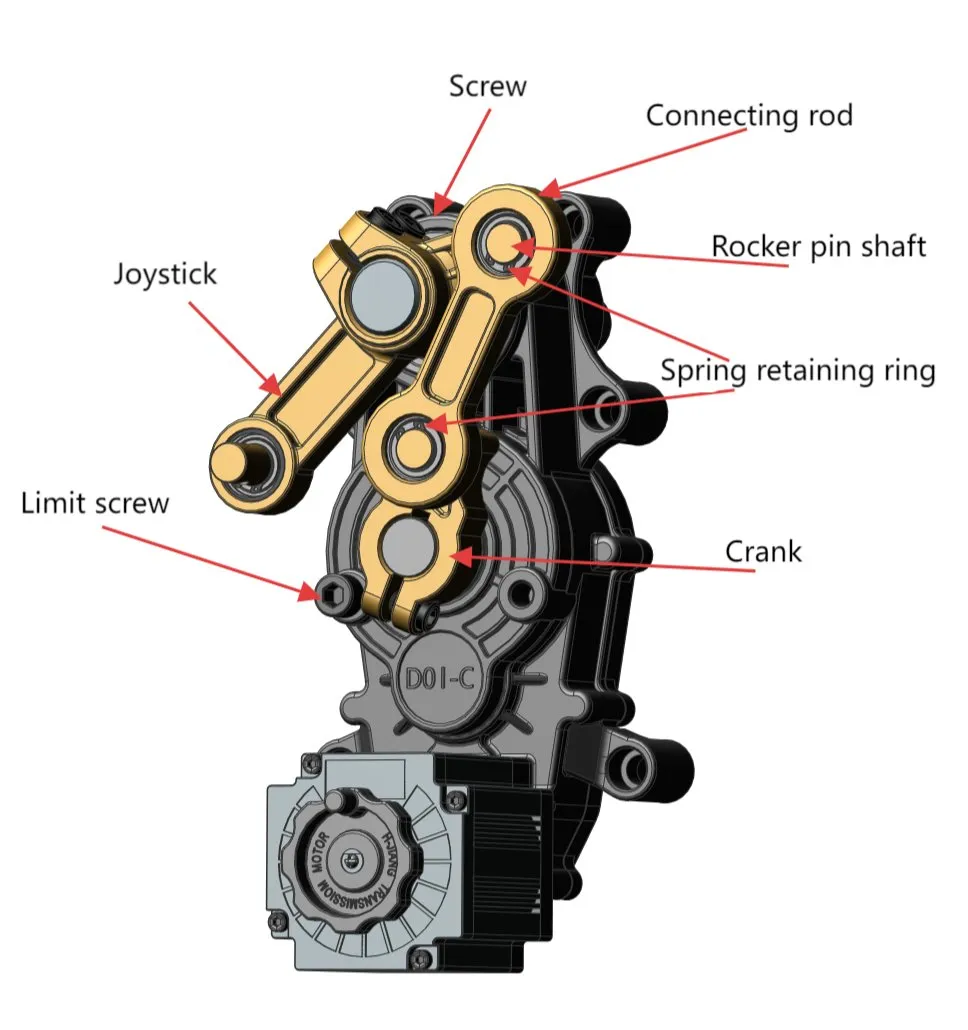

Motor Details 1

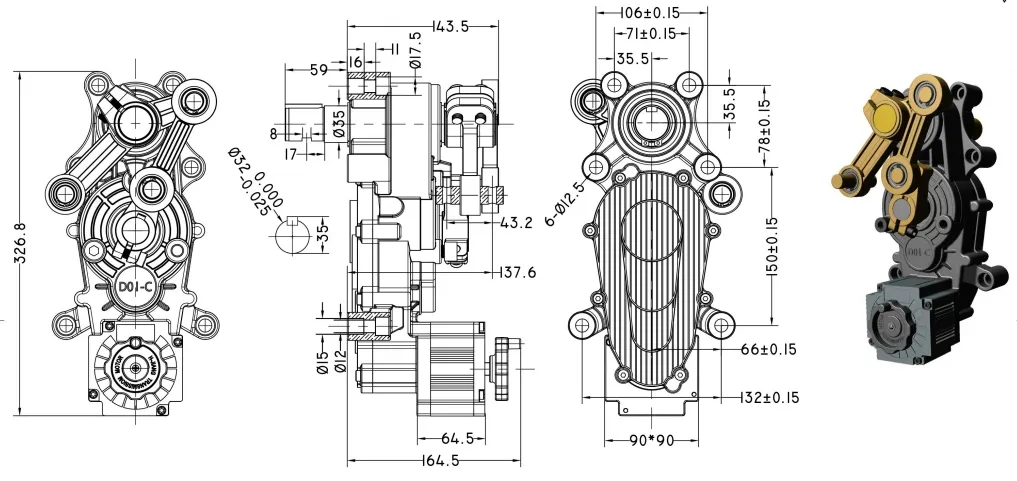

Motor Details 2
Model Output Power Voltage Rated Current Lifting/Lowering Time Torque
D01C-0.8S120WDC24V8A0.8s-1.5s36.4N·m
D01C-1.5S120WDC24V8A1.5s-3.0s64.8N·m
D01C-3.0S120WDC24V8A3.1s-7.0s129.9N·m
📦 Certifications & Logistics
Certifications
Packaging
Frequently Asked Questions
In which scenarios are your barrier gates suitable?
Our barrier gates are widely used in residential and commercial entrances, parking lot charging systems, expressway toll stations, logistics parks, schools, and tourist attractions.
What triggering methods are supported?
The series supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and manual pedestrian buttons.
Can it operate in extreme weather conditions?
Yes. It features IP44 protection (customizable to IP68), an operating temperature range of -40℃ to +80℃, and built-in lightning and overheat protection.
What pole types can I choose from?
We offer straight rods (2-6m), curved rods for low ceilings, fence poles for security, LED advertising poles, folding rods, and anti-collision rods.
Is the motor system safe for long-term use?
Absolutely. The system uses a 24V DC brushless motor which generates less heat and is safer than traditional AC motors. The gear system is carburized and ground for high precision and durability.
What kind of technical support is provided?
We provide comprehensive online technical support to assist with installation, speed adjustment (1.5s-6s), and system integration.
