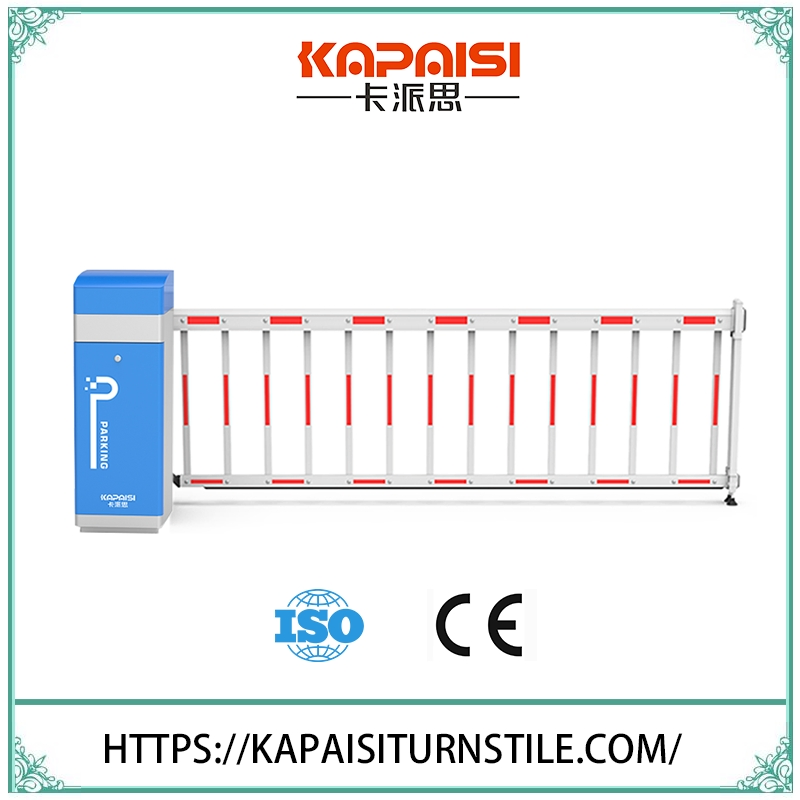

High Security Solar panel Barrier Gate for Government Restricted Zones

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
KPS-DZ-8001
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
OS Support
Android / iOS
Power Supply
AC220V±10% 50Hz
Technology
License Plate Recognition
Protection
IP44
Motor Speed
1500r/Min
Warranty
Online Technical Support
⚙️ Product Description
Barrier Gate Overview
  • Compact Structure: Side-fixation movement installation for space efficiency.
  • Aluminum Alloy Body: Die-casting process ensures mechanical strength and rapid heat dissipation.
  • Helical Gear Transmission: High efficiency, stable performance, and shock resistance for long service life.
  • DC Brushless Movement: Low heat generation, stable transmission, and large output torque.
  • Safety First: Utilizes 24V DC voltage, providing a safer operation environment than traditional AC motors.

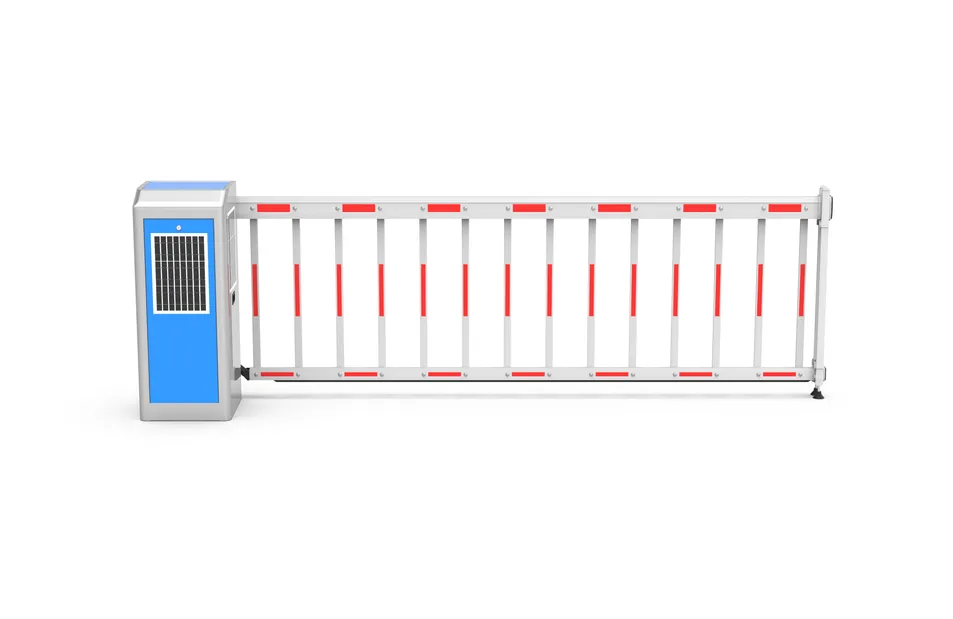

Product Detail

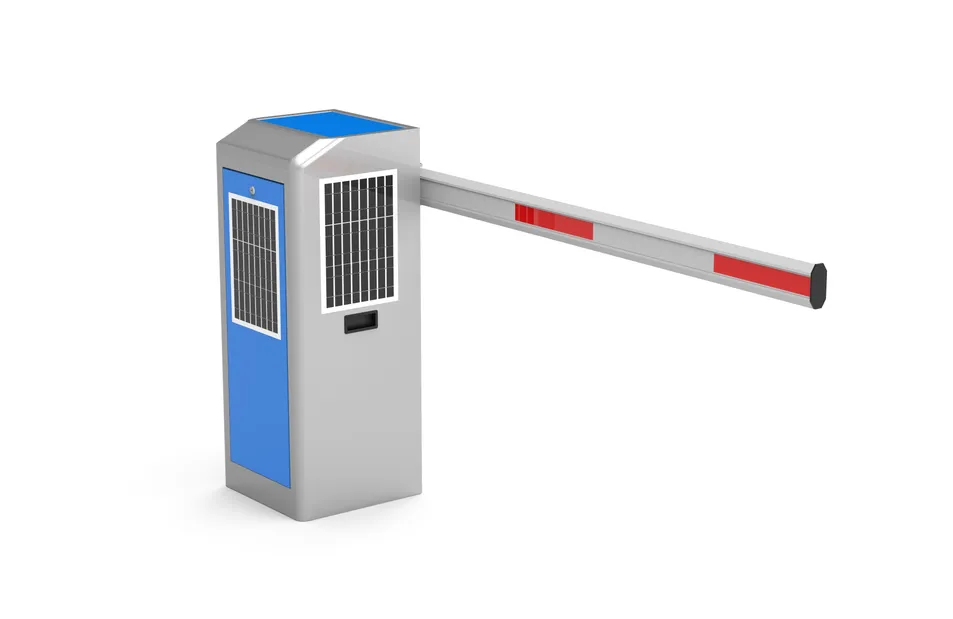

Technical Layout
📋 Technical Specifications
ParameterSpecification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Working Frequency433HZ
Remote Control Distance≤ 30 meters
Motor Power24V DC 150W Brushless
Lifting Time1.5S - 6S (Adjustable)
Pole Height830MM
Chassis Thickness1.5MM
Optional Pole Types1-6m (Straight / Barrier / Curved / Oval / Water cut)
🚧 Compatible Rod Types

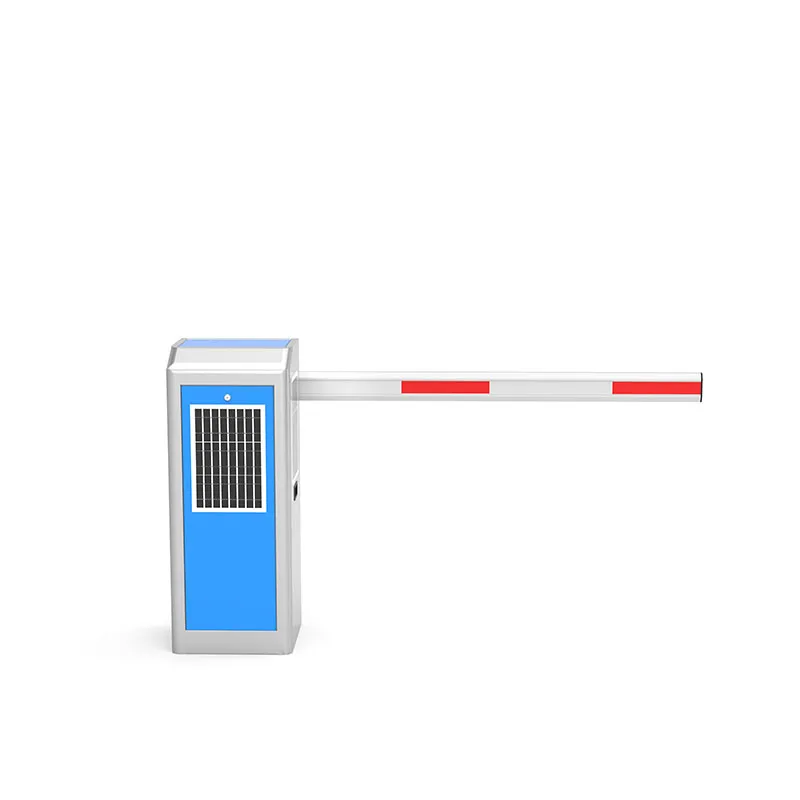

Rod Type 1

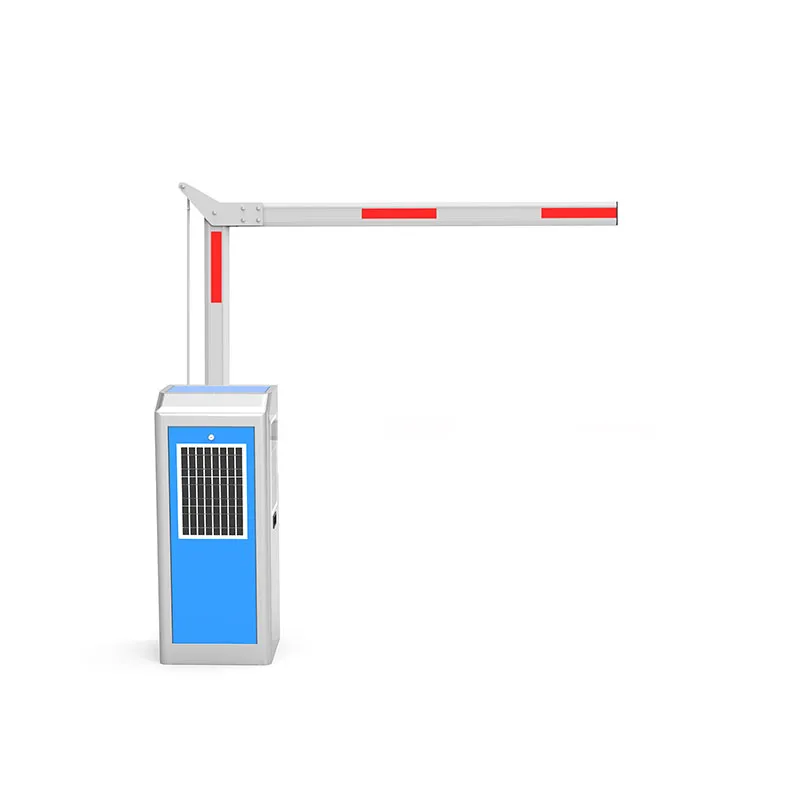

Rod Type 2

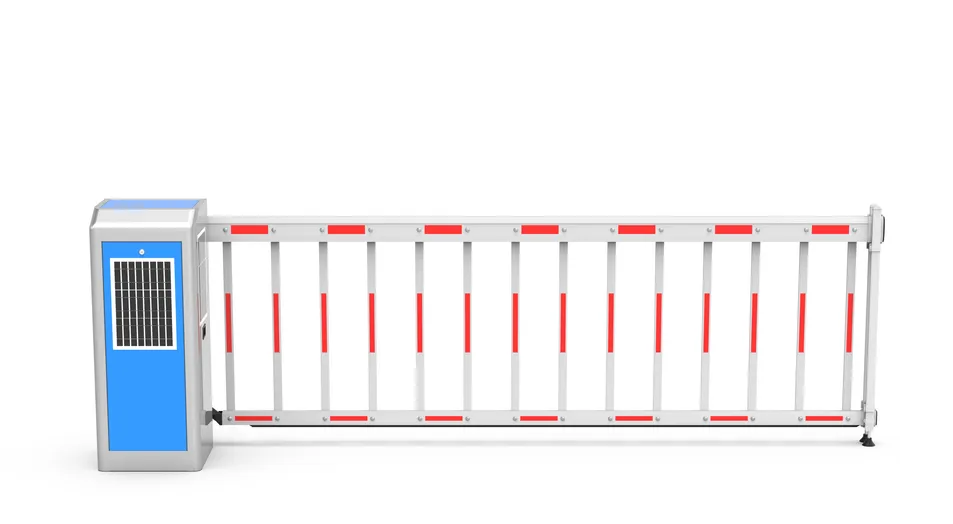

Rod Type 3
🔋 Motor Parameters

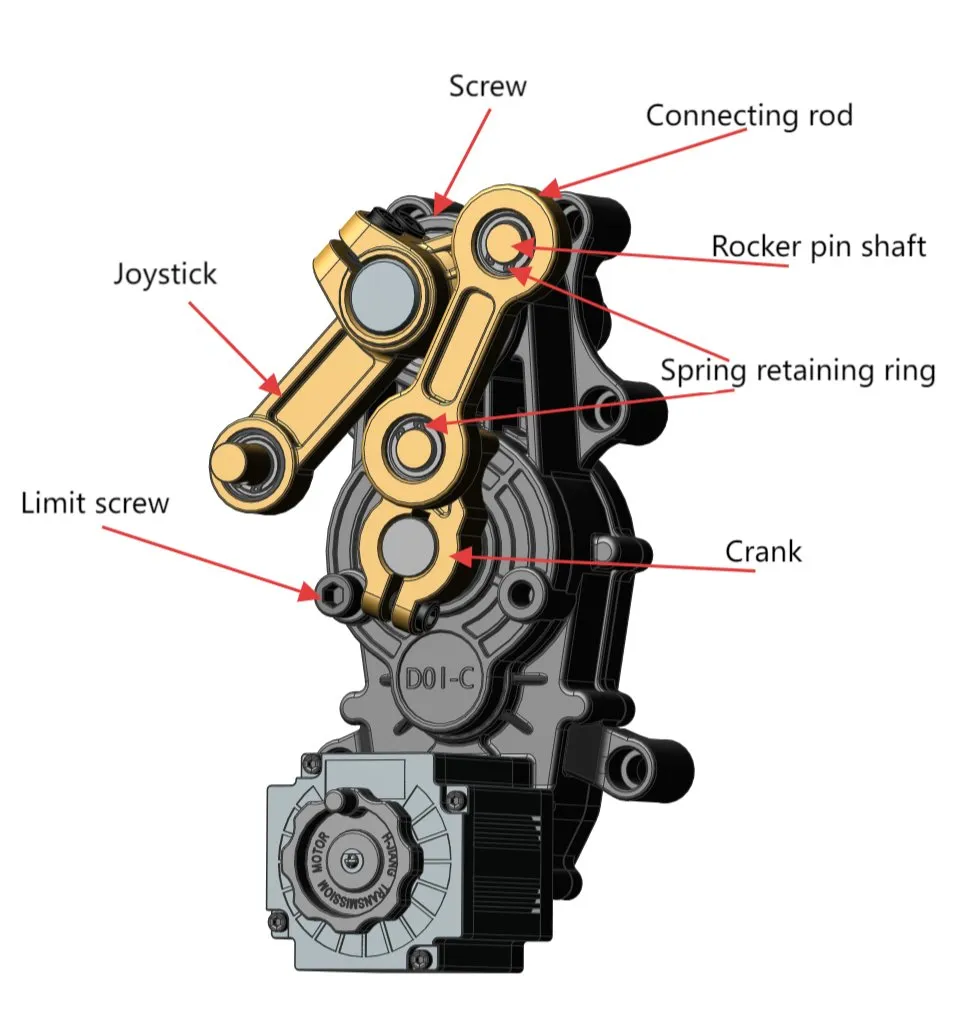

Motor Structure

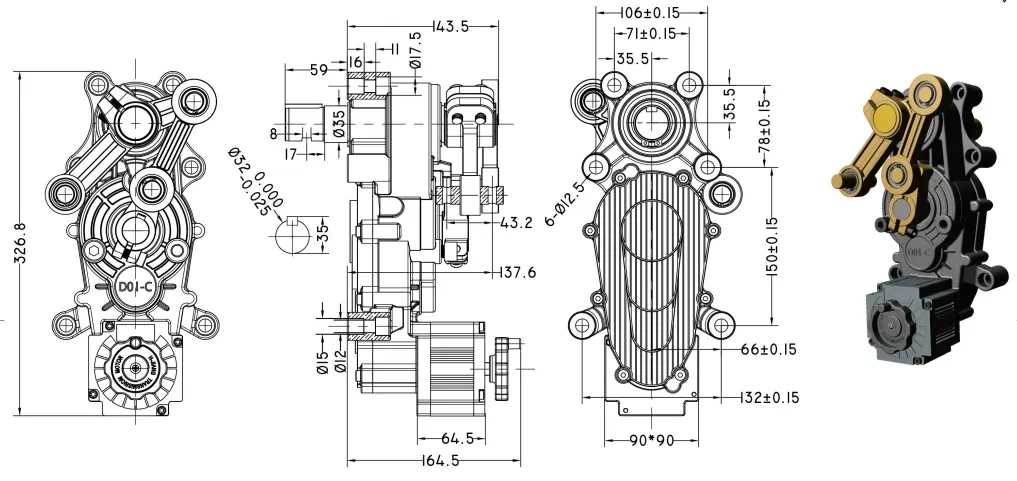

Motor Curve
Model Output Power Rated Current Rated Speed Lifting Time Output Torque
D01C-0.8S120W8A1500r/min0.8s-1.5s36.4N·m
D01C-1.5S120W8A1500r/min1.5s-3.0s64.8N·m
D01C-3.0S120W8A1500r/min3.1s-7.0s129.9N·m
🏢 Industrial Strength & Production
Our facility is a comprehensive hardware manufacturer for channel entrances integrating R&D, production, sales and service. The company has passed ISO9001:2015 quality management system certification. The main products include heavy-duty airborne barrier gates, advertising barrier gates, intelligent barrier gates, pedestrian passage doors, and speed gates.

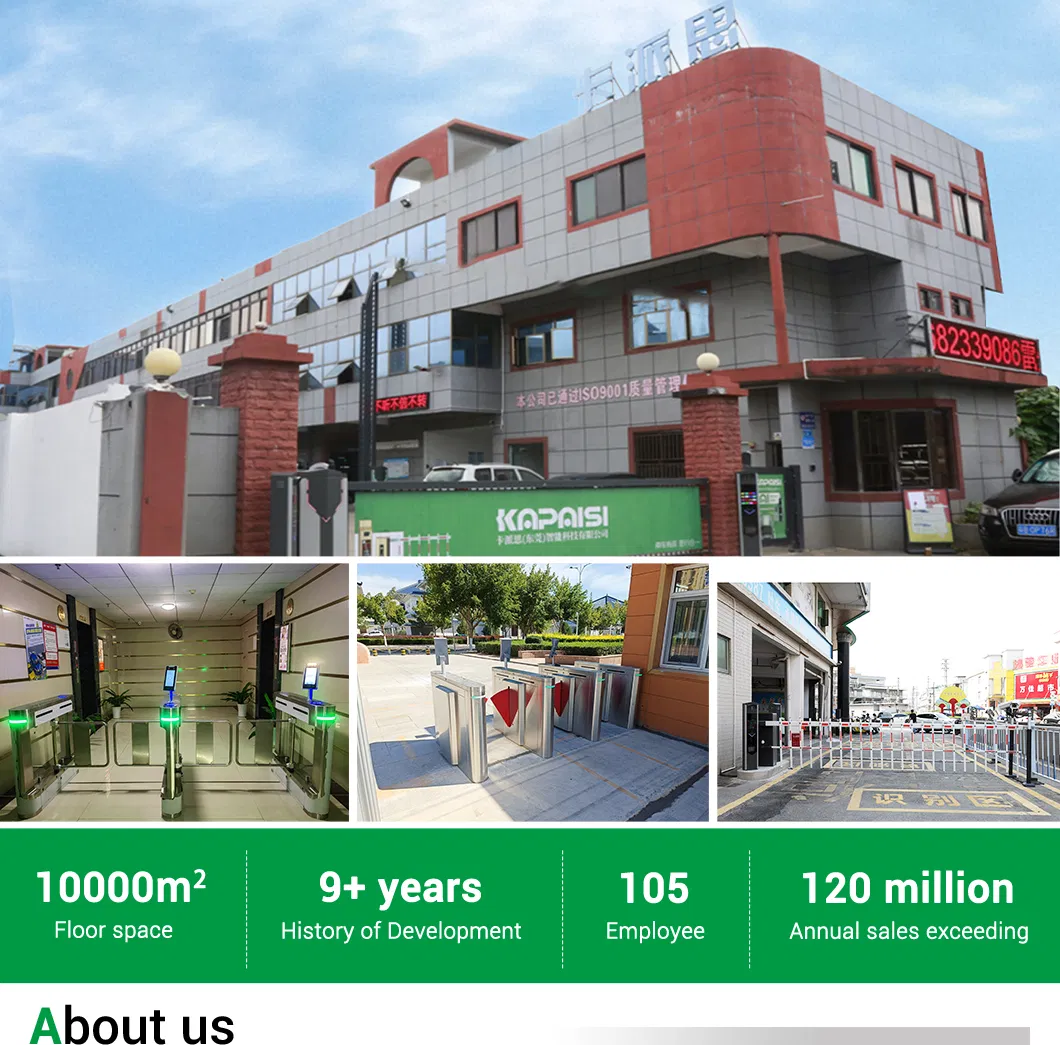

Factory Overview

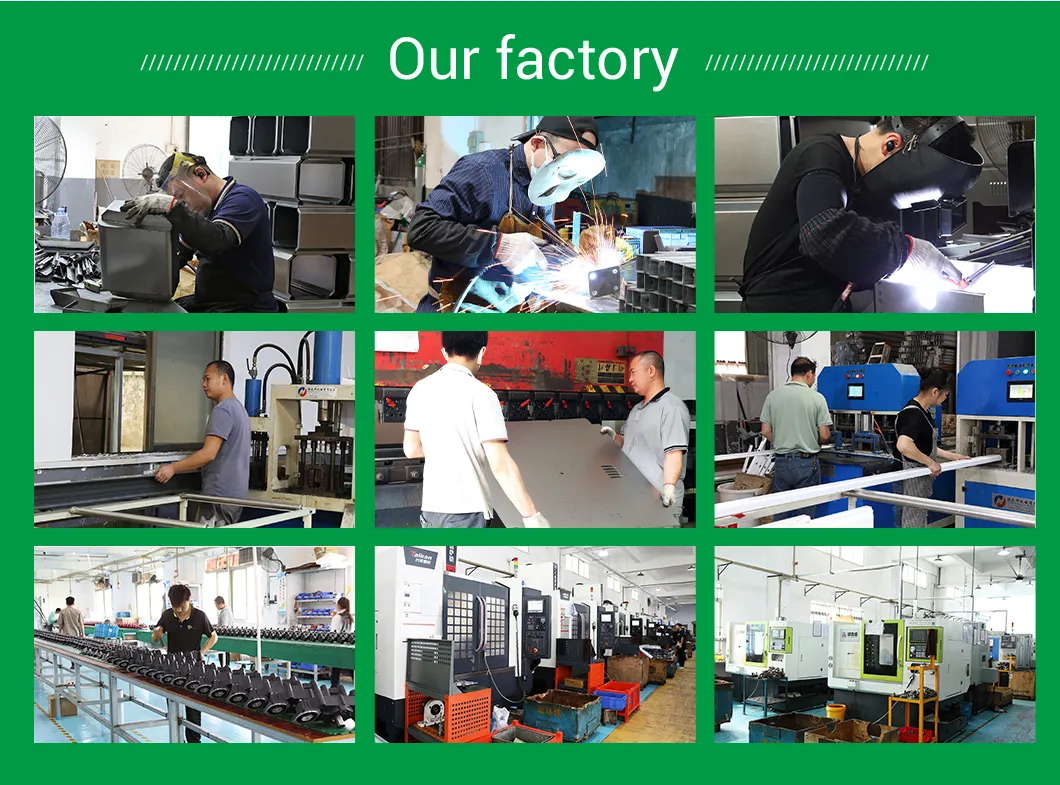

Production Line
🌟 Advantages
Core Advantages
📦 Packaging & Shipping
Packaging
Frequently Asked Questions
Q1: In which scenarios are these barrier gates suitable?
A: They are ideal for residential and commercial community entrances, parking lot systems, expressway toll stations, logistics parks, and schools.
Q2: What triggering methods are supported?
A: Our gates support remote control, license plate recognition linkage, ground induction loop detection, Bluetooth/WIFI control, and pedestrian button triggers.
Q3: Can the gate operate in extreme weather?
A: Yes, it is designed for operating temperatures from -40℃ to +80℃, with IP44/IP54 water resistance and built-in lightning protection.
Q4: What pole types can I choose?
A: We offer straight rods (2-6m), curved rods for low ceilings, fence poles for anti-climbing, advertising poles with LED, and folding rods for wide channels.
Q5: Is the motor safe and durable?
A: The system uses a 24V DC brushless motor which generates low heat, offers stable transmission, and provides large torque with a longer service life compared to AC motors.
Q6: What is the power requirement?
A: It operates on a standard AC220V ± 10% 50Hz power supply, converted internally to safe 24V DC for the motor.
