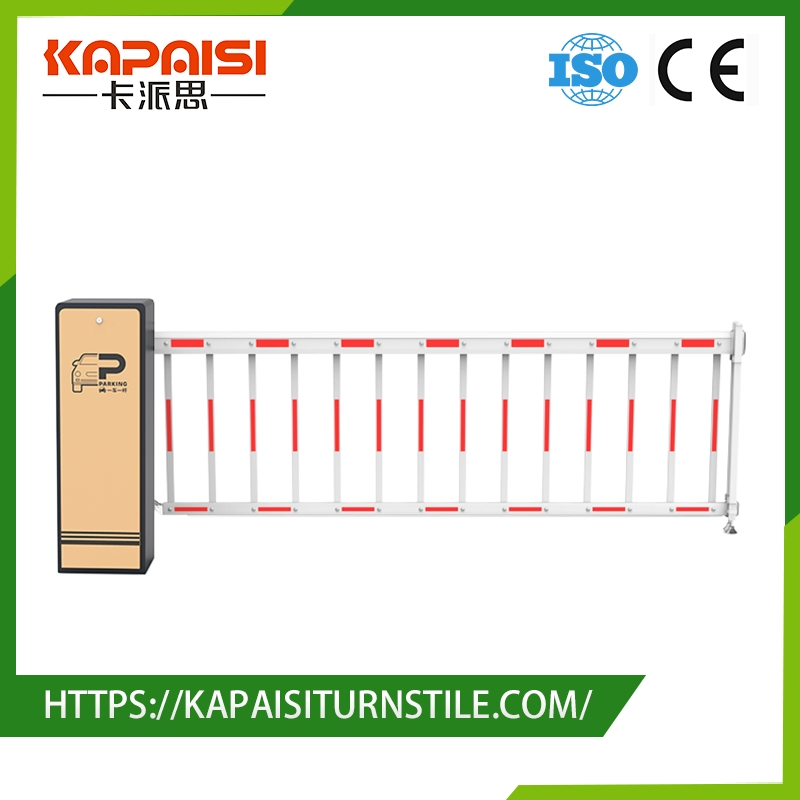

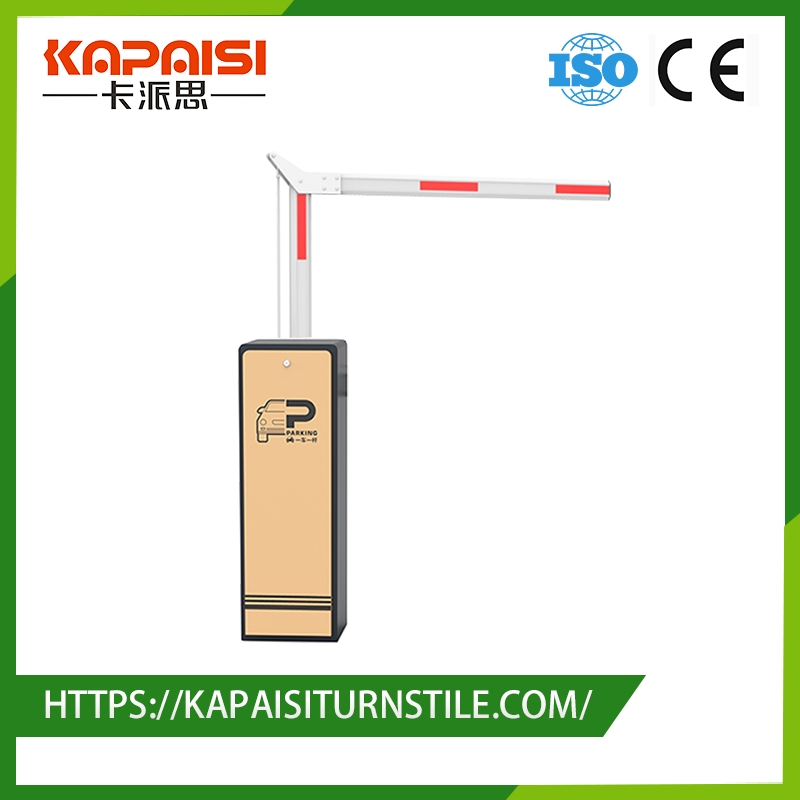

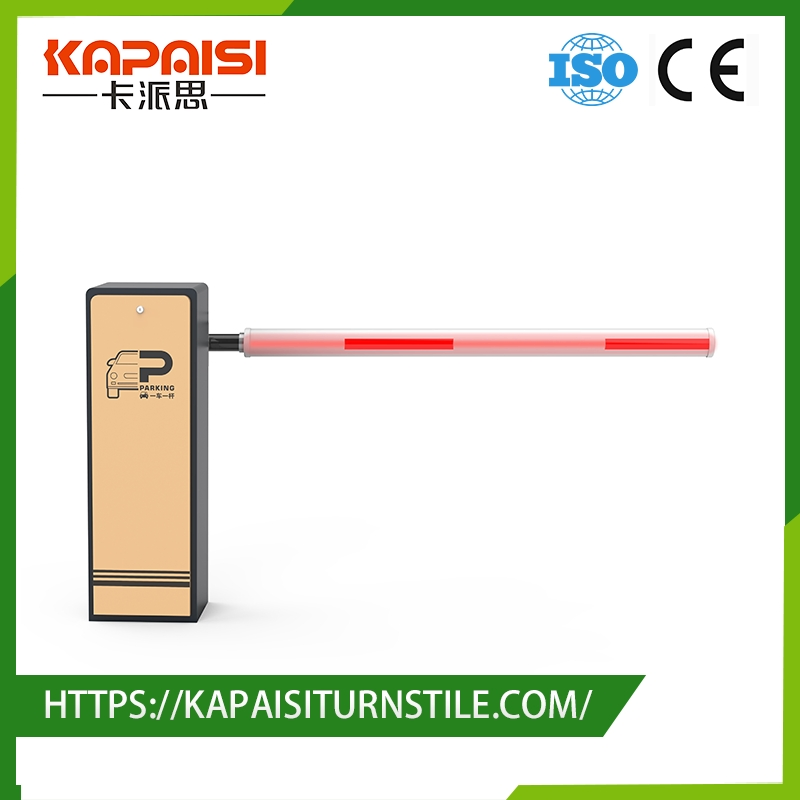

DC Brushless Security Automatic 90 Degreen Folding Barrier Gate

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Info.
Model NO.
KPS-DZ-8012
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Integration
Parking Management System
Material
Aluminum Alloy
Operating System
Android/Ios
Power Supply
AC220V±10%50Hz
Technology
License Plate Recognition
Warranty
Online Technical Support
Protection Grade
IP44
Automatic Folding Barrier Gate
🛡️ Product Description

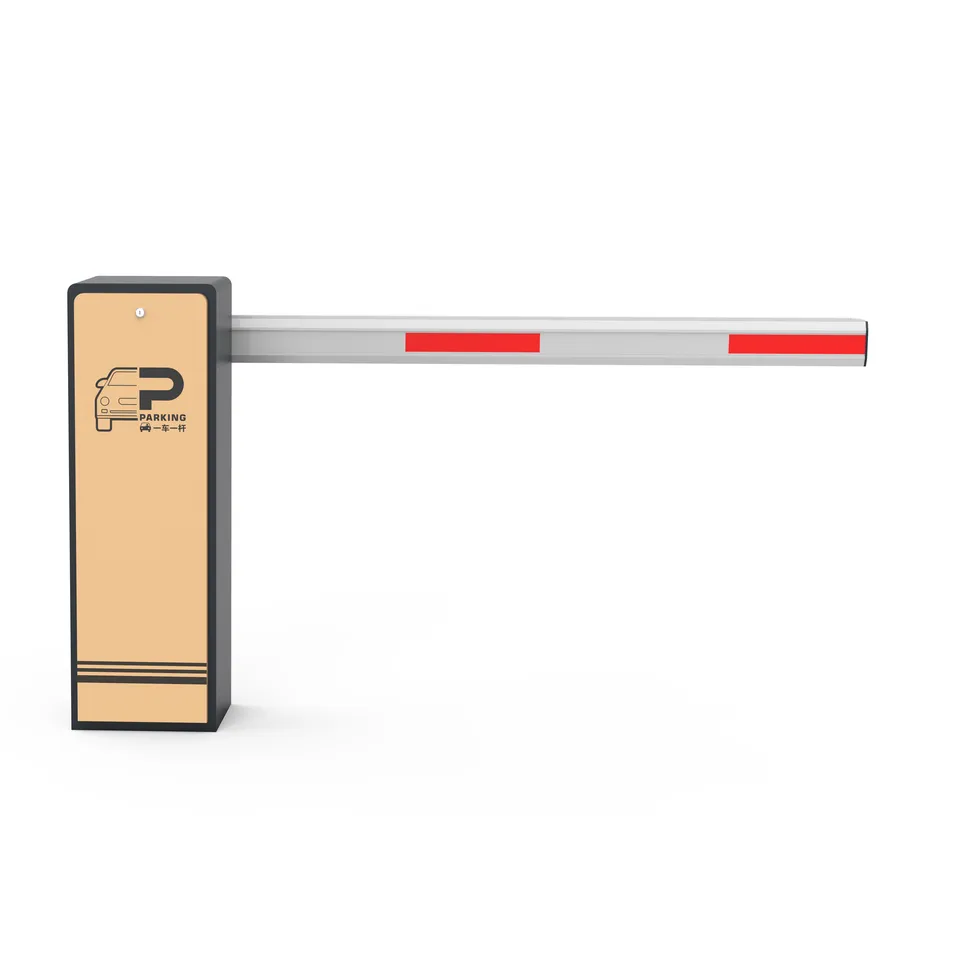

Product Overview
Product Overview:
1) Compact structure movement installed by side fixation.
2) Aluminum alloy die-casting body: integrated structure, small size, reliable strength, and fast heat dissipation.
3) Helical gear reduction transmission: high efficiency, stable performance, and low power loss. Heat-treated gears ensure shock resistance and long life.
4) DC brushless movement: low heat generation, stable transmission, and large torque. Features speed regulation and buffer deceleration for smooth operation.
5) Safe 24V DC motor voltage for enhanced safety.
⚙️ General Technical Conditions
Technical Specs
  • 🔹 Insulation Resistance: ≥ 100MΩ
  • 🔹 Electrical Strength: 700V/S without breakdown
  • 🔹 Motor Temperature Rise: ≤ 75K
  • 🔹 Motor Noise: ≤ 55dB
  • 🔹 Operating Temp: -35℃ to 80℃
  • 🔹 Operating Humidity: ≤ 90% (no condensation)
📋 Technical Parameters
Working Power SupplyAC220V ± 10% 50Hz
Motor Power24V DC 100W brushless DC motor
Lifting Time1.5S - 6S adjustable
Remote Control Distance≤ 30 meters
Working Frequency433HZ
Pole Height830MM
Chassis Thickness1.5MM
Optional Pole TypesStraight / Barrier / Curved / Oval / Water cut
🦯 Compatible Rod Types

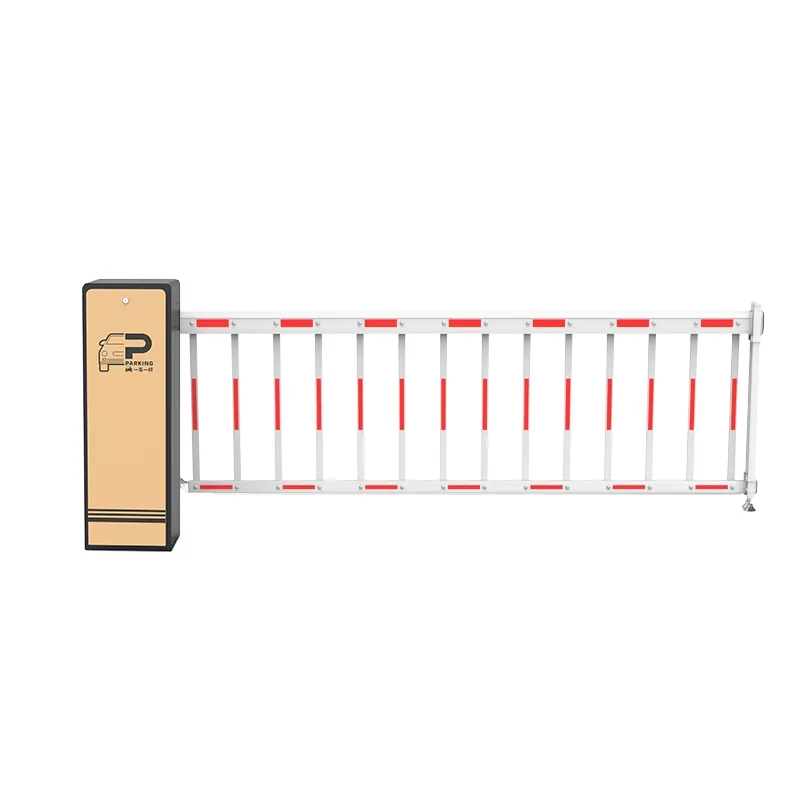

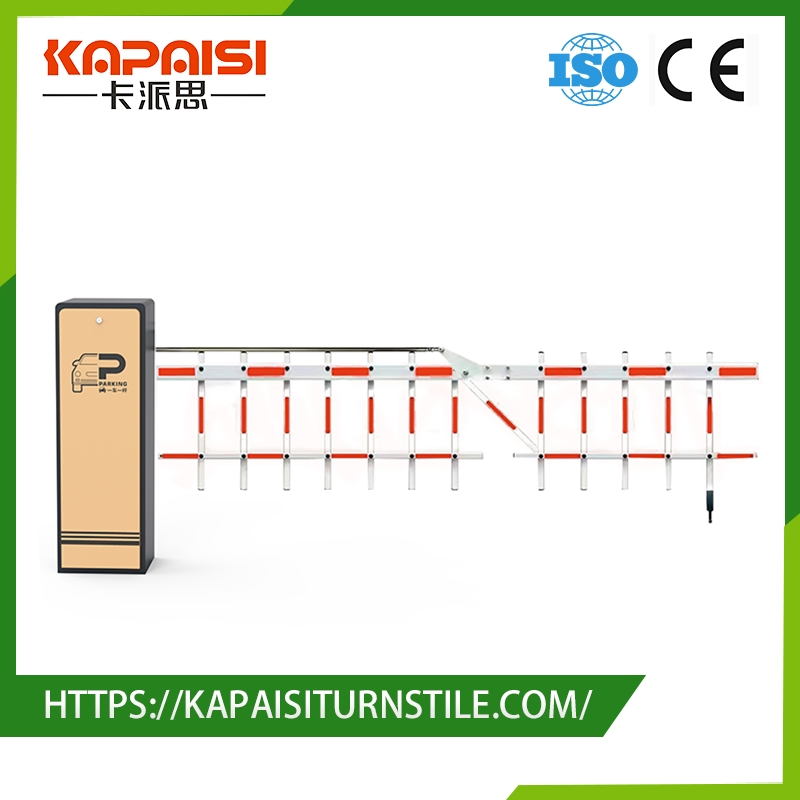

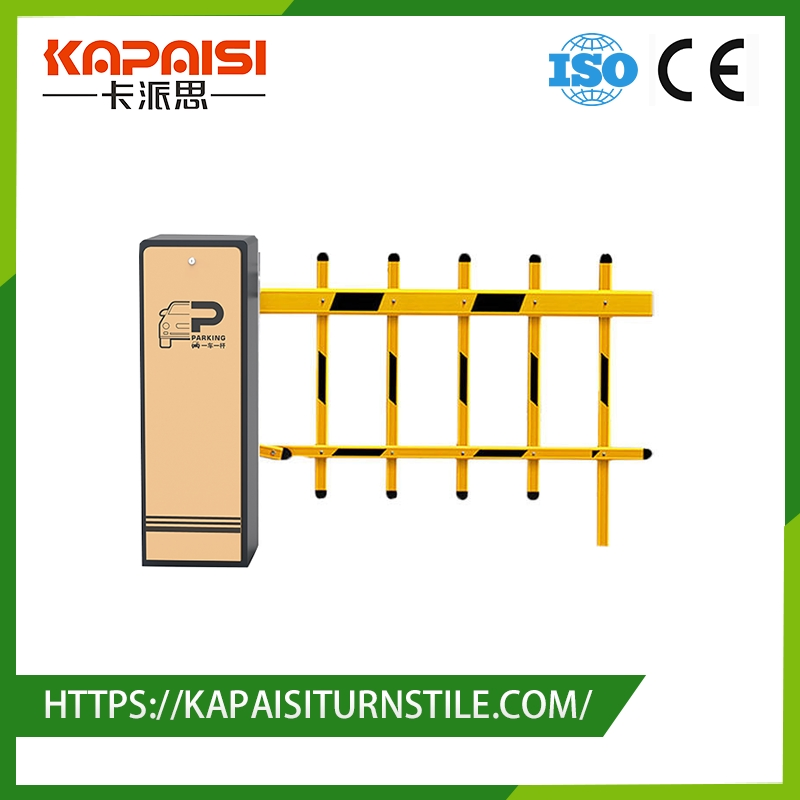

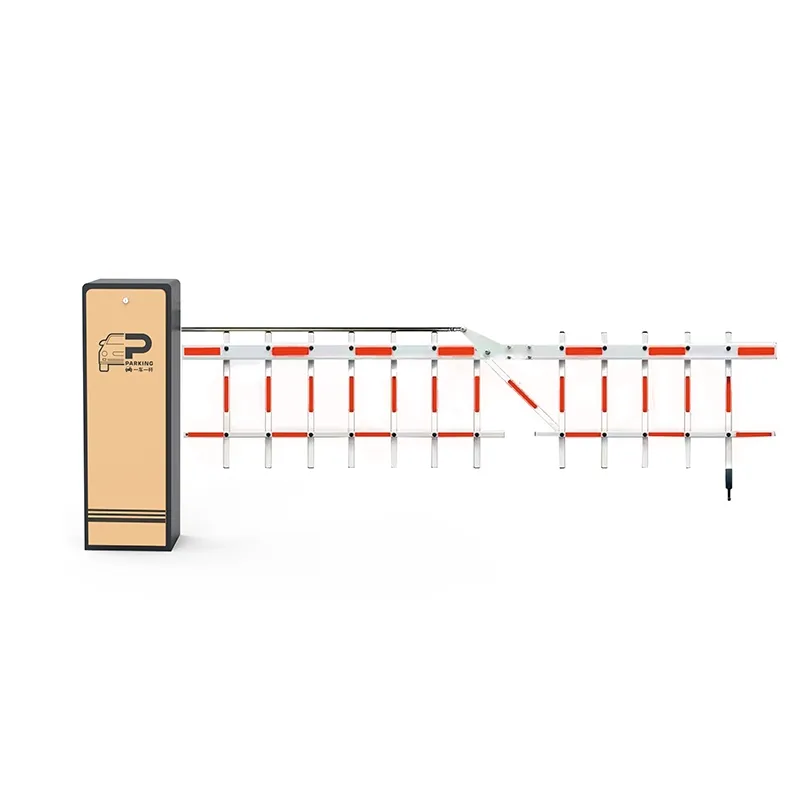

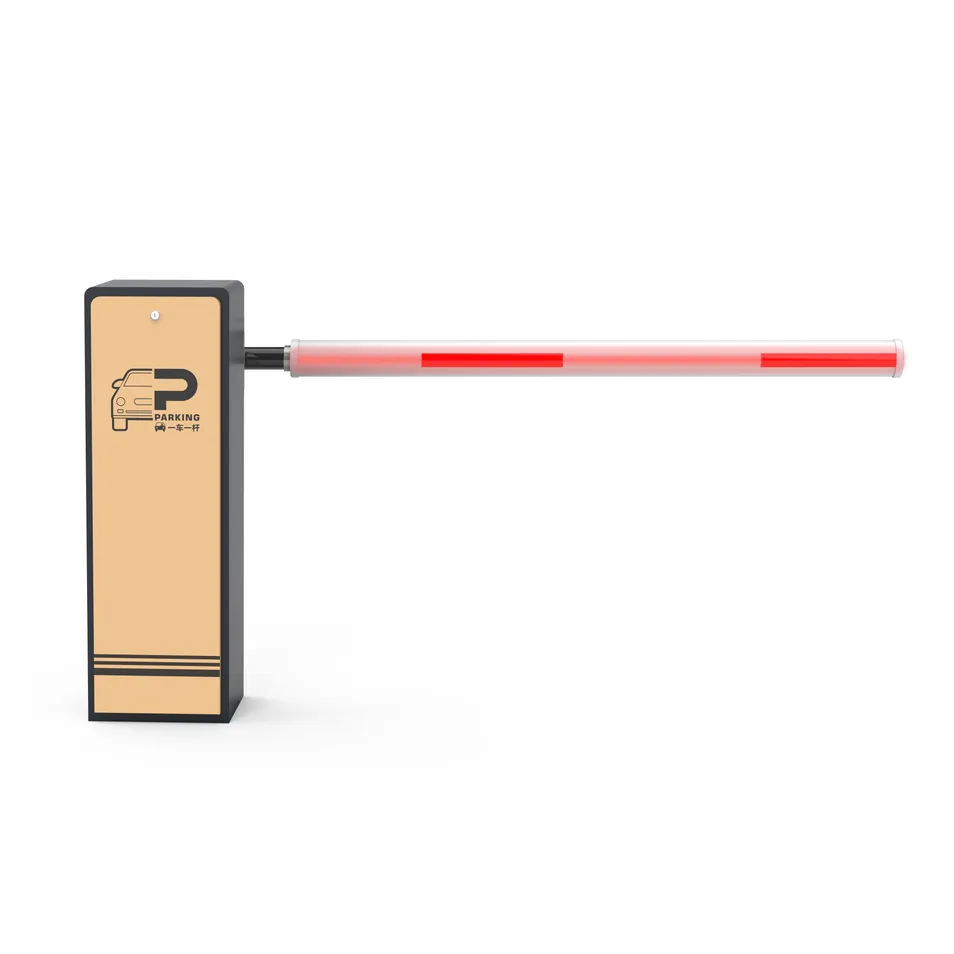

Rod Type 1 Rod Type 2 Rod Type 3 Rod Type 4
🔄 Motor Parameters

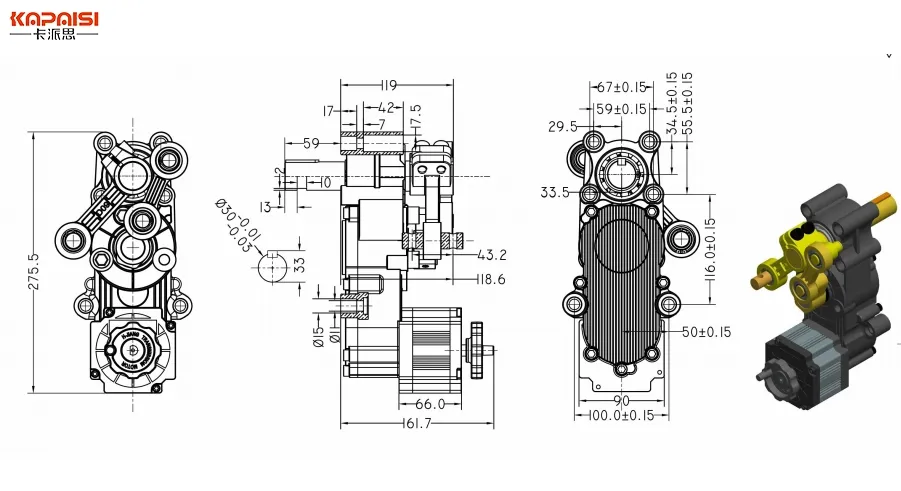

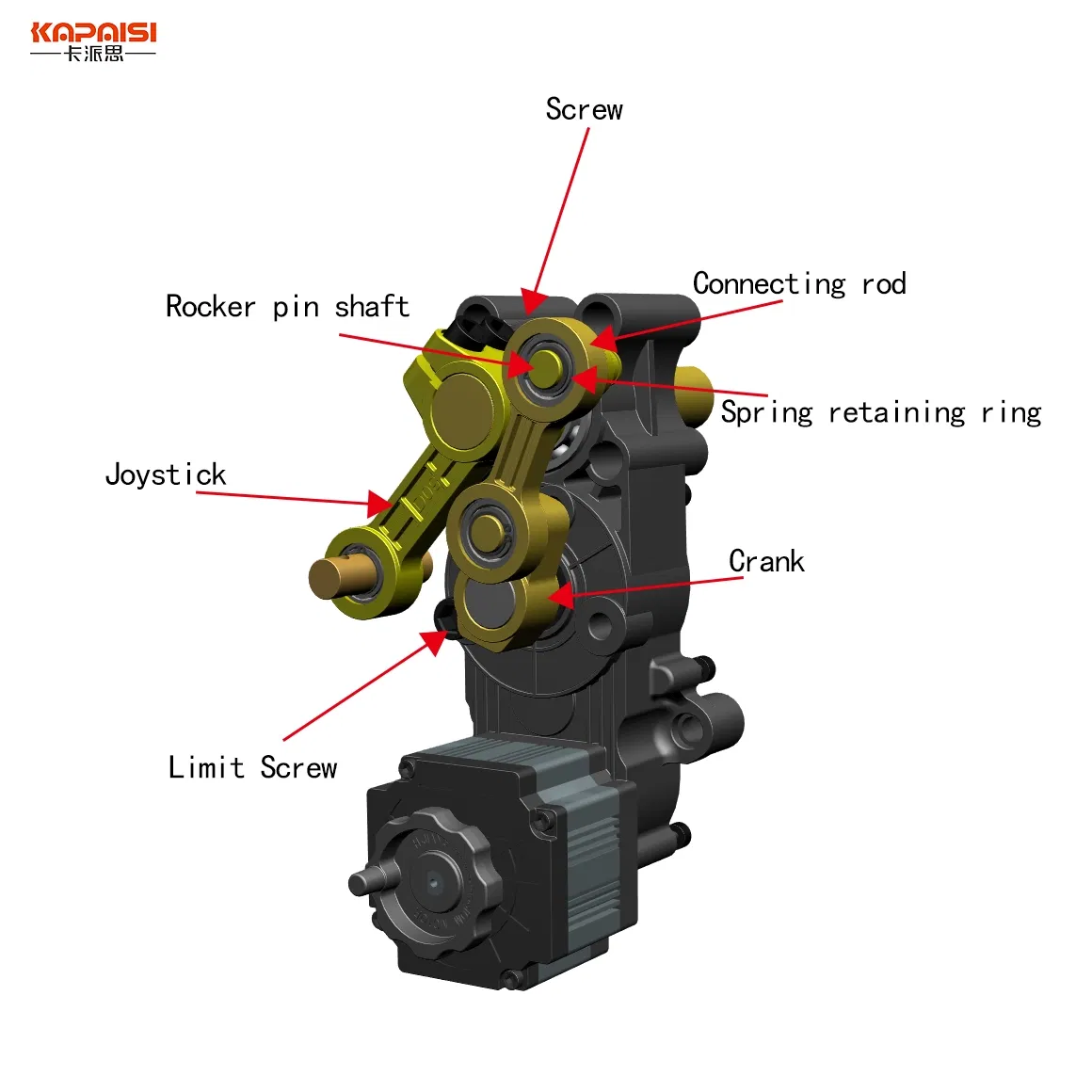

Motor Structure Motor Dimension
ModelRated TorqueRated SpeedNoiseInsulationGrade
D01-C/3.OS129.9 N·m10 r/min ±10%<50 dBBIP44
🏢 Manufacturing Excellence

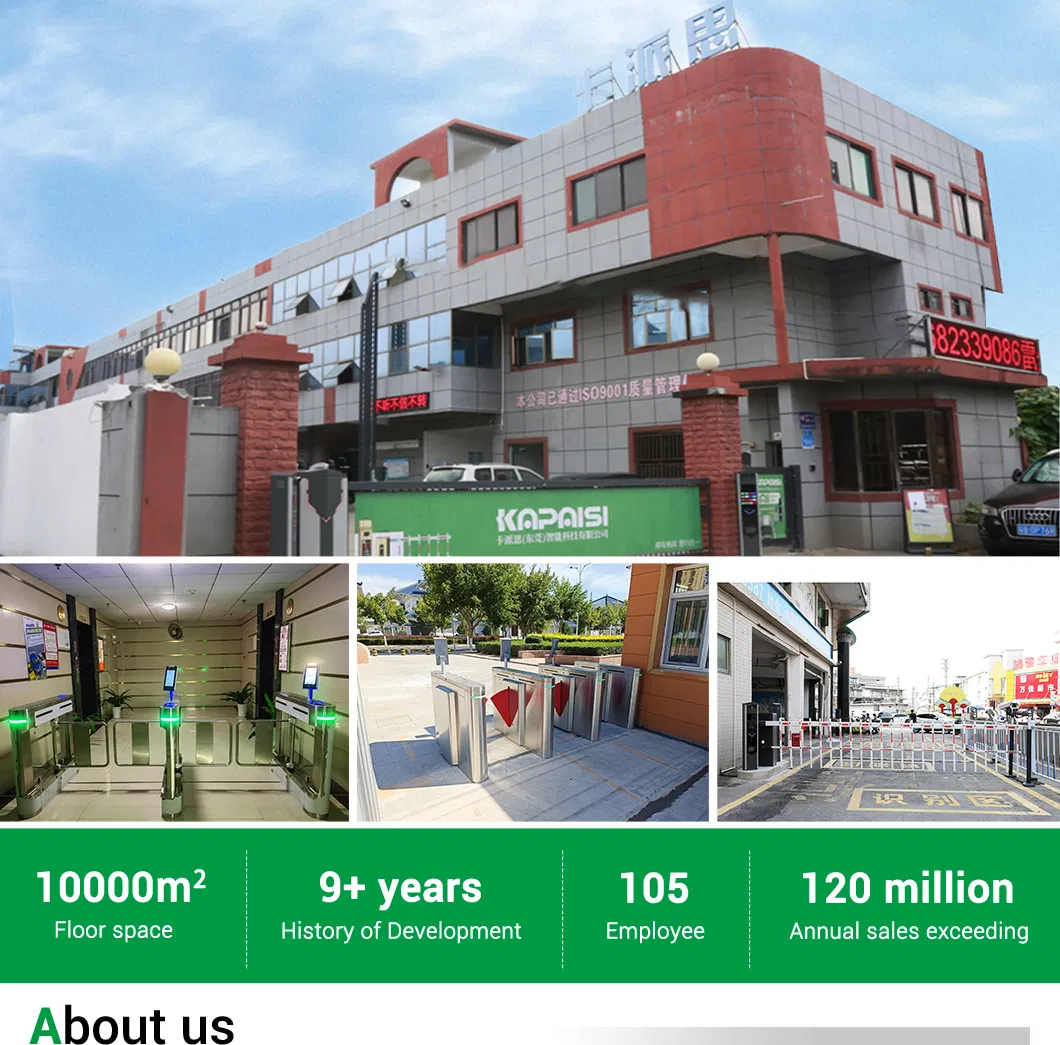

Production Facility
We are a comprehensive hardware manufacturer for channel entrances integrating R&D, production, sales and service. Certified with ISO9001:2015, our facility covers approximately 10,000 square meters. We specialize in high-end intelligent channel products including heavy-duty barrier gates, pedestrian passage doors, speed gates, and hydraulic bollards. Our products are exported to over 80 countries including Germany, UK, Russia, Canada, and the UAE.

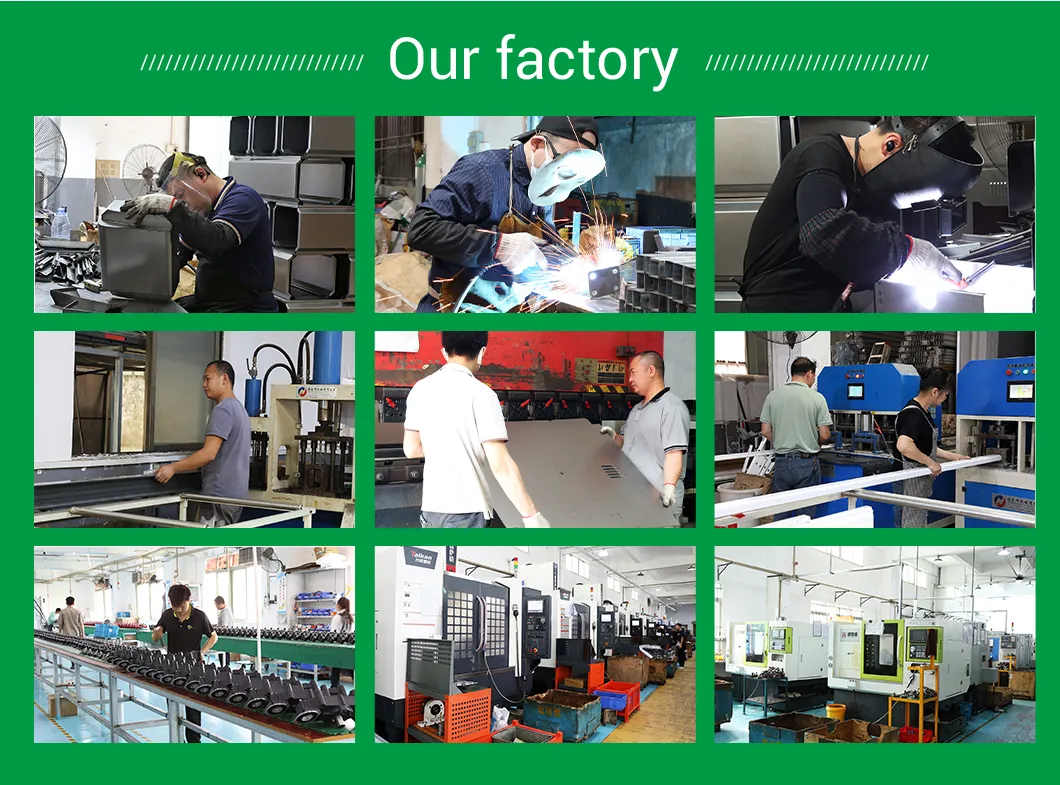

Workshop
📜 Certifications & Logistics
Company Advantage Certificates
Packaging
Frequently Asked Questions
In which scenarios are your barrier gates suitable?
Our barrier gates are ideal for residential and commercial entrances, parking lot systems, expressway toll stations, logistics parks, and schools where flow control is necessary.
What triggering methods are supported by the system?
The system supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and manual button triggers.
Can the barrier operate under extreme weather conditions?
Yes, it features IP44/IP54 protection, works from -35℃ to +80℃, and includes built-in lightning and overheat protection. Wind-resistant aluminum poles are also available.
What types of barrier poles can I choose from?
Options include straight rods (2-6m), curved rods for low-clearance areas, fence poles for anti-climbing, LED advertising poles, and folding rods for ultra-wide channels.
Is the motor voltage safe for public installation?
Yes, we use a 24V DC brushless motor. This low voltage is much safer for public areas compared to traditional AC motors and reduces the risk of electrical accidents.
Does the system support automatic obstacle detection?
Yes, the entire series can be equipped with anti-collision rods that feature rebound functionality upon encountering obstacles to prevent vehicle or pedestrian damage.
