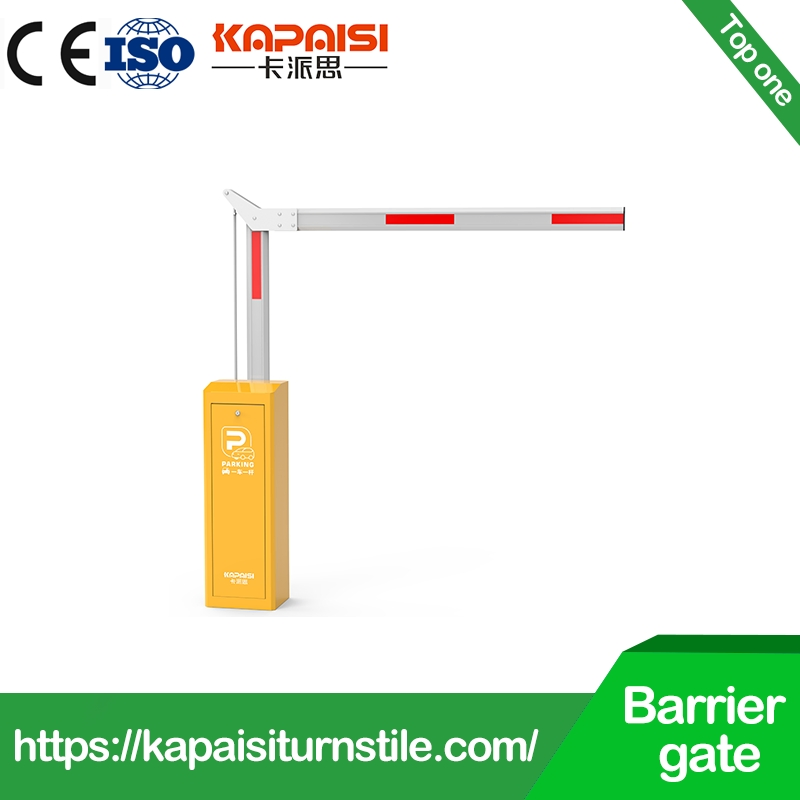

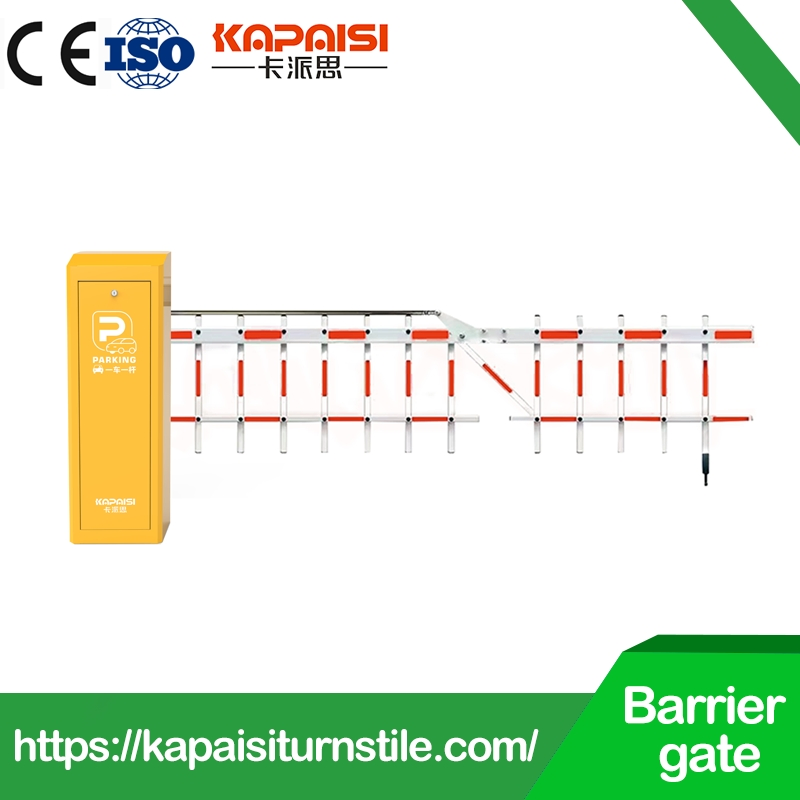

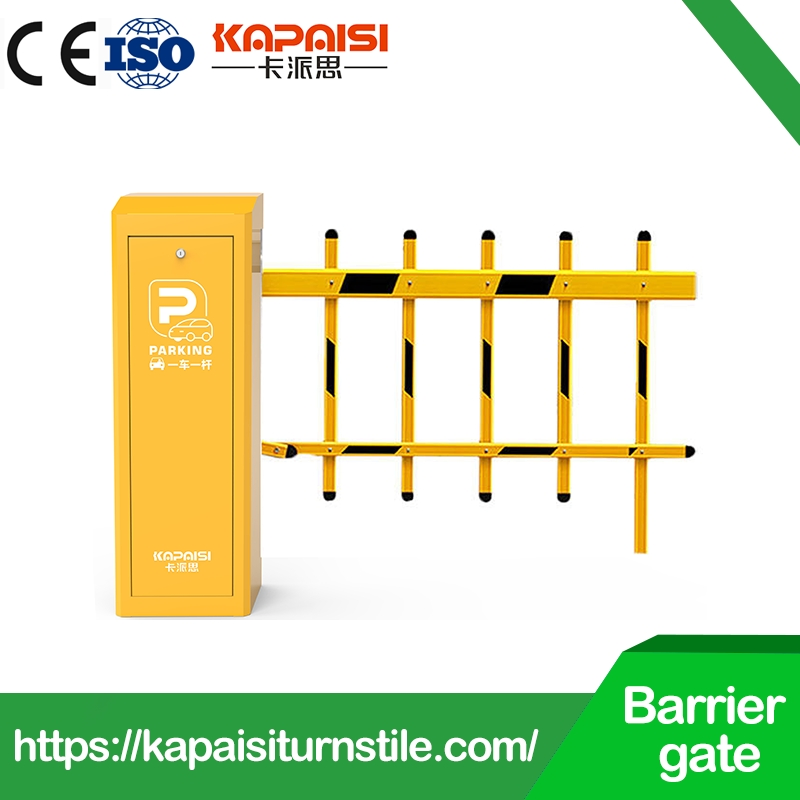

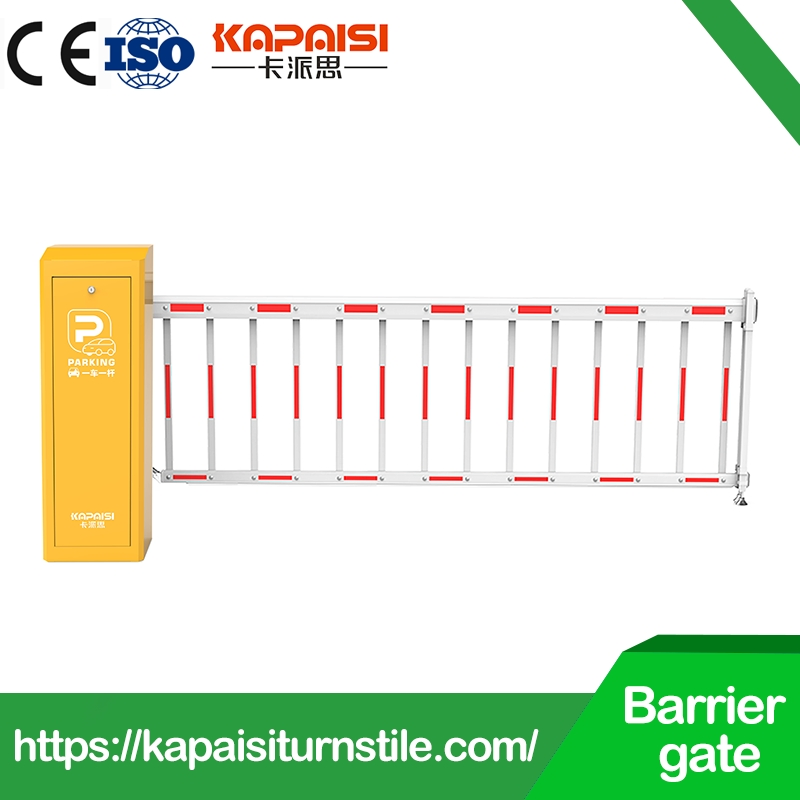

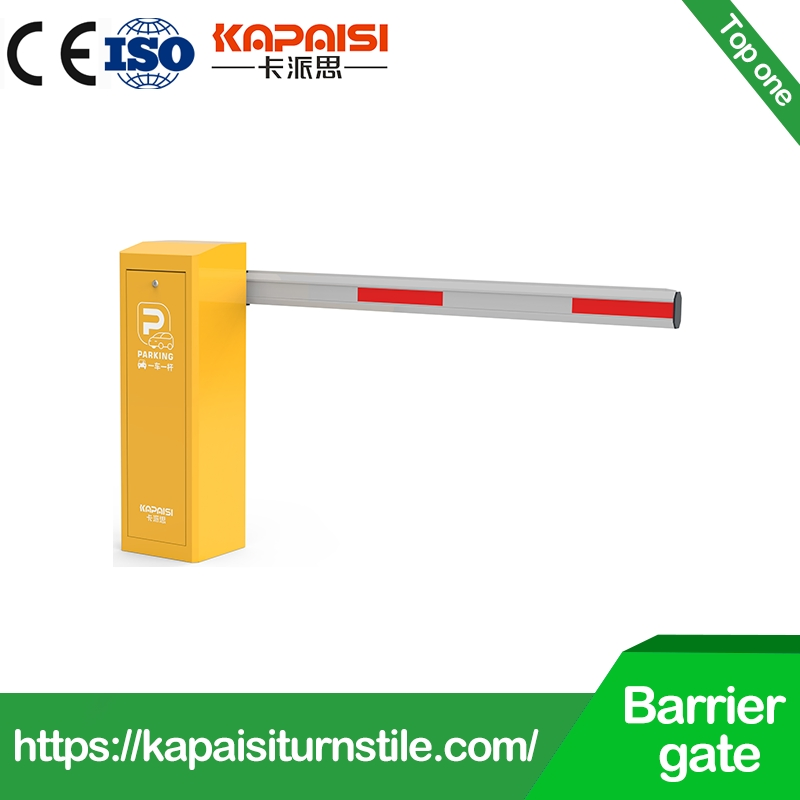

CE Approval 5 Million Times Automatic Security Car Parking Boom Barrier Gate

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
KPS-DZ-8014
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
Power Supply
AC220V±10% 50Hz
Output Power
100W
Rated Current
8A
Protection Grade
IP44
Package Weight
38.000kg
Specification
350*280*1020mm
Security Car Parking Boom Barrier Gate
🚀 Product Features

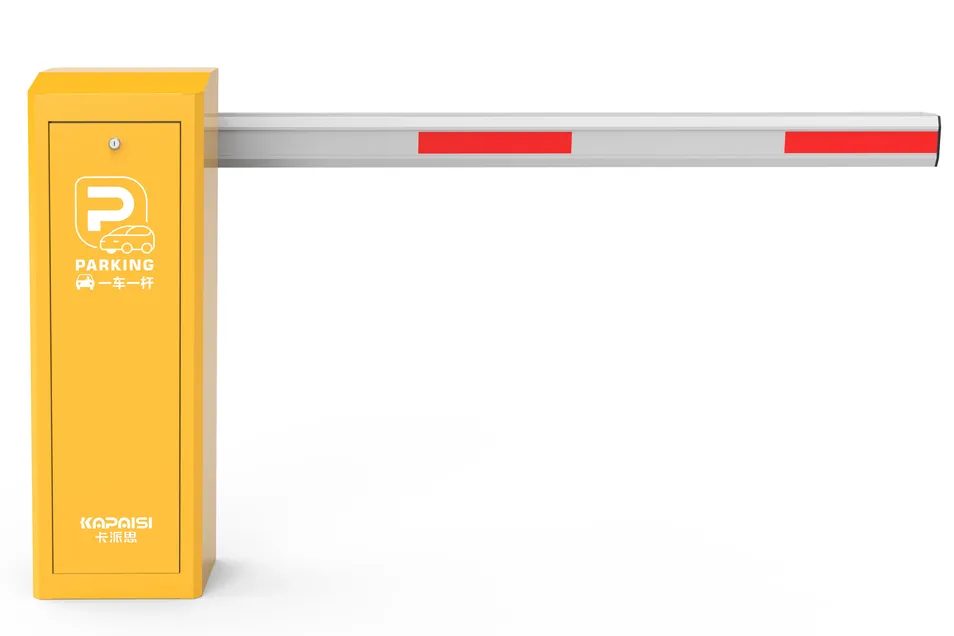

Product Overview

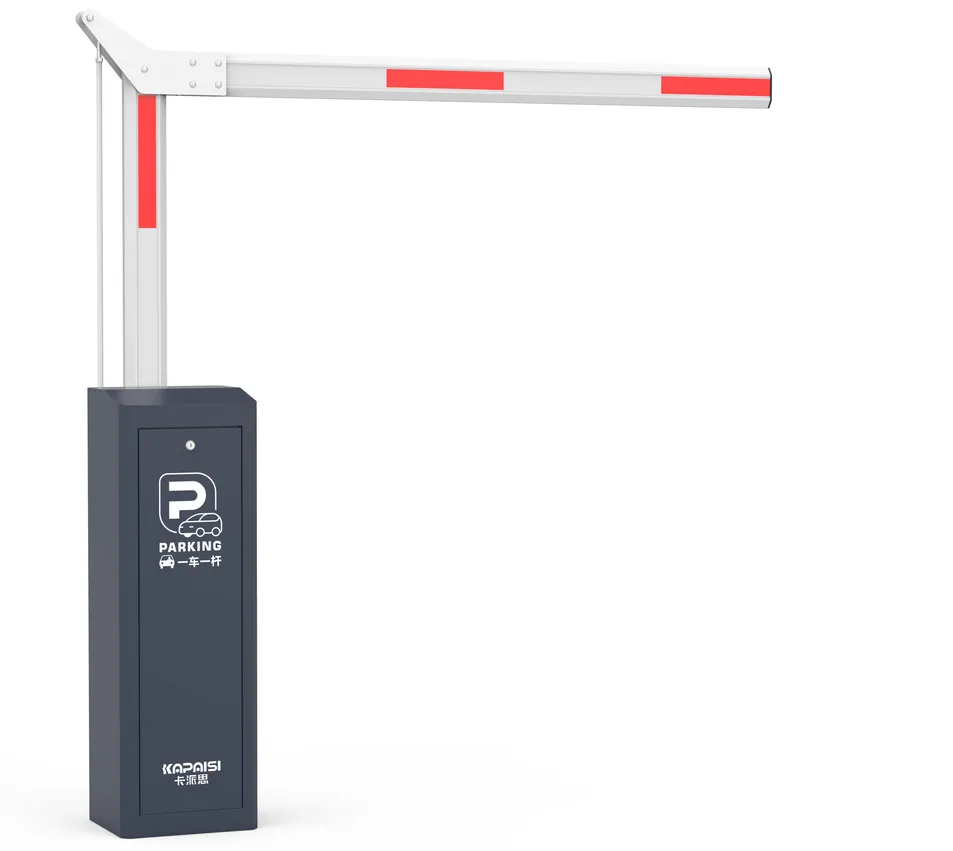

General Technical Conditions
Aluminum Alloy Construction: The movement body is made via die-casting process, providing mechanical strength and rapid heat dissipation.
High Efficiency Transmission: Adopts helical gear reduction with carburizing heat treatment for shock resistance and long service life.
DC Brushless Technology: Low heat generation, stable transmission, and large output torque with adjustable speed and buffer deceleration.
Safety First: Uses 24V DC safe voltage, significantly reducing electrical risks compared to traditional AC motors.
⚙ Technical Specifications
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Motor Power24V DC 100W brushless motor
Lifting Time1.5S - 6S (Adjustable)
Pole Height830MM
Remote Control Distance≤ 30 meters
Insulation GradeB
Noise Level≤ 55dB
🚪 Compatible Rod Types

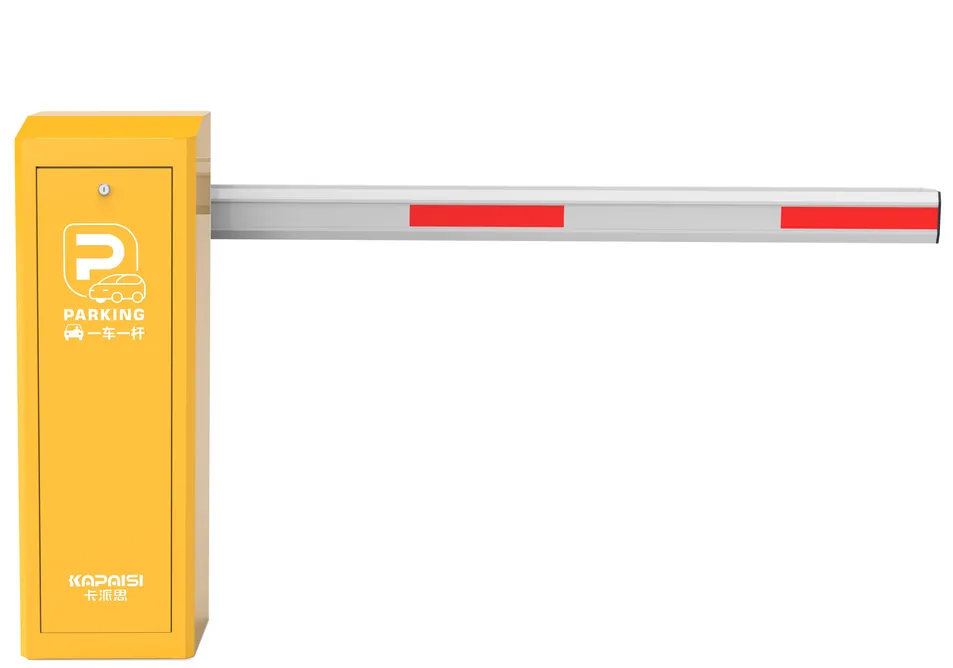

Rod Type 1

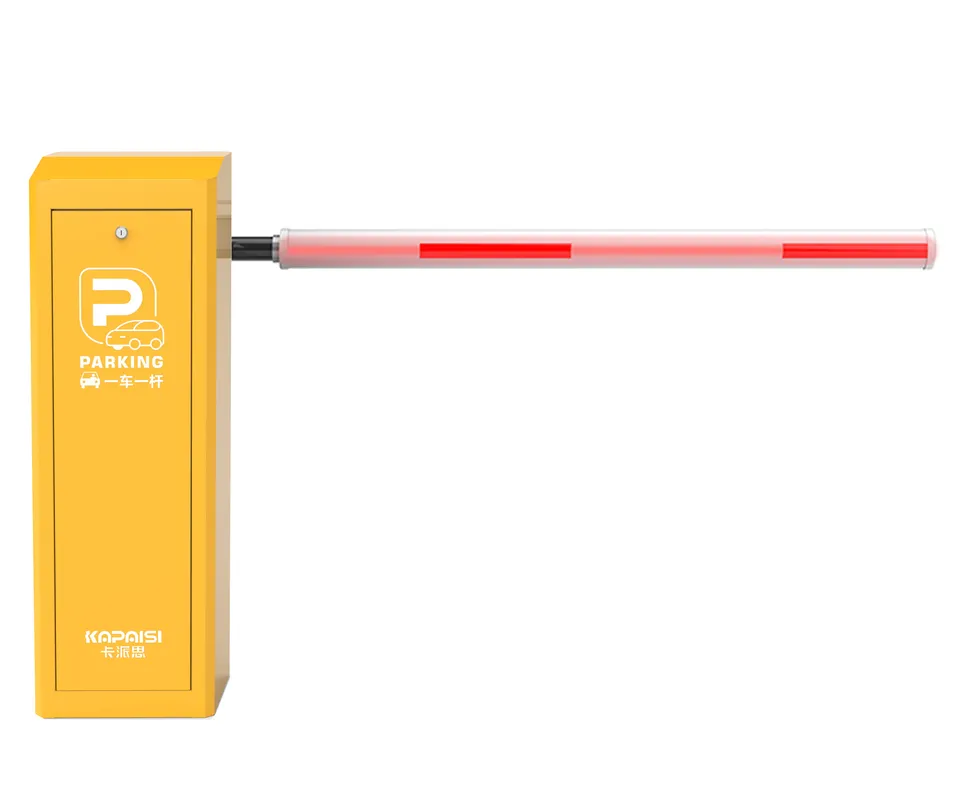

Rod Type 2

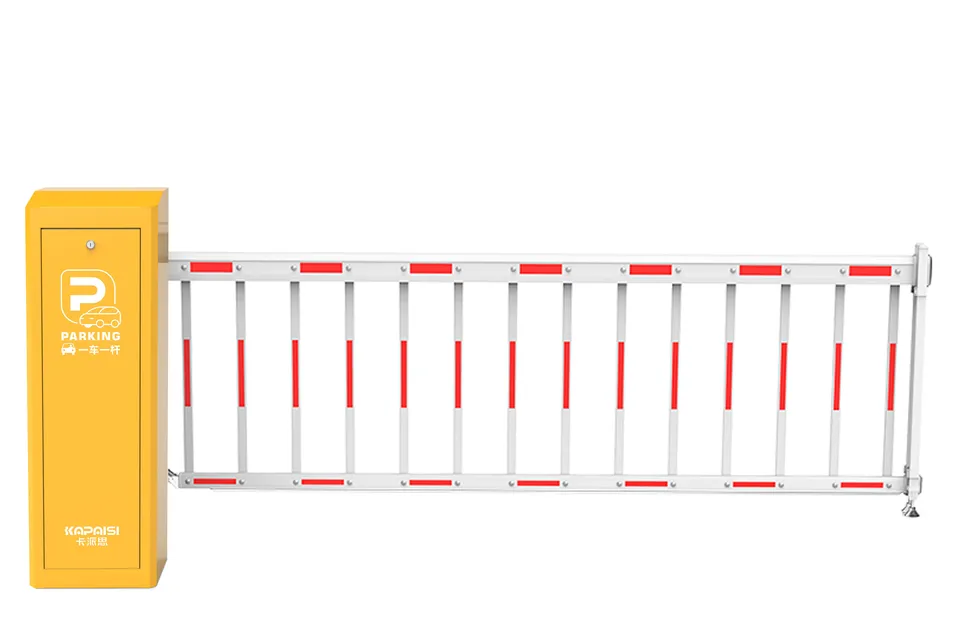

Rod Type 3
🔌 Motor Parameters

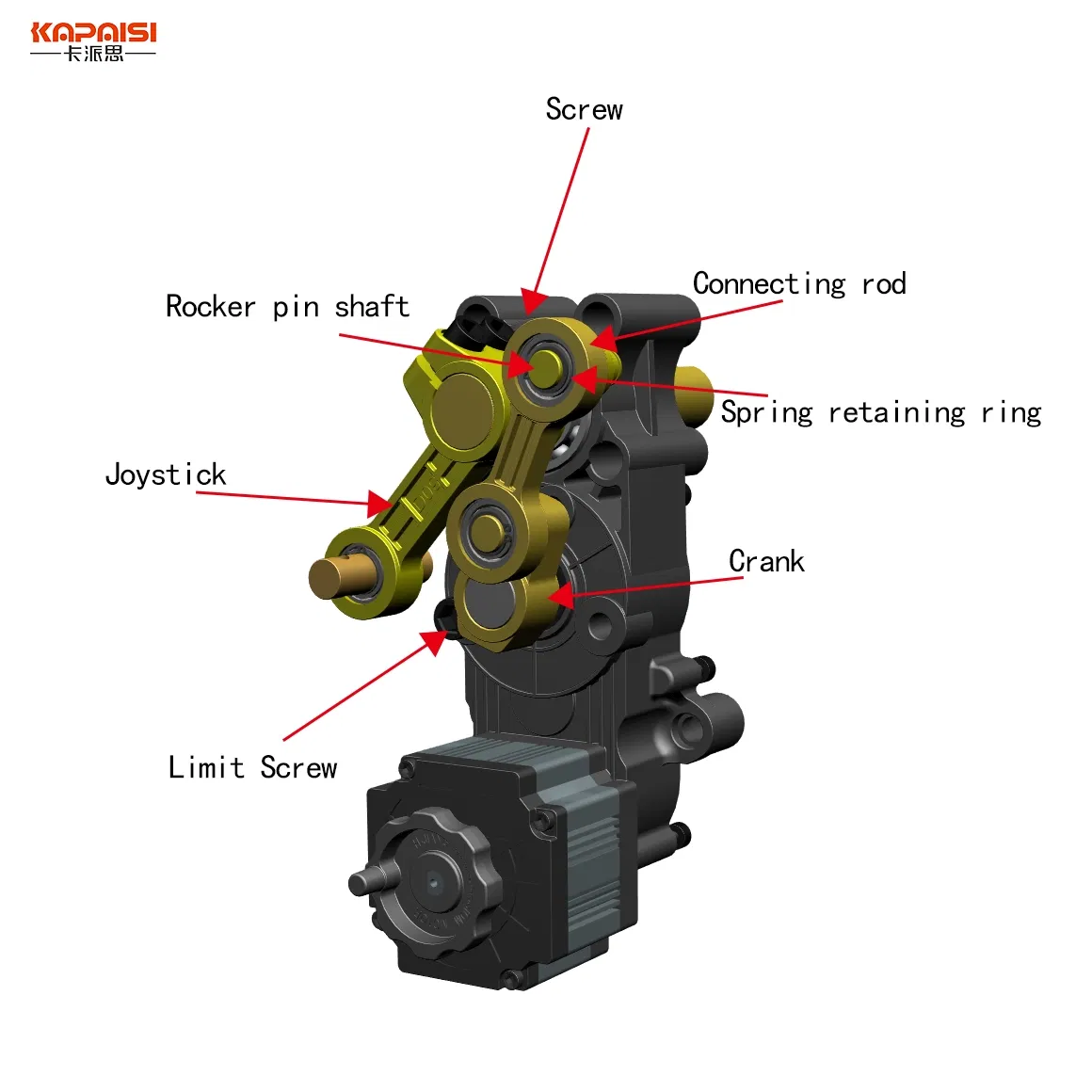

Motor Details 1

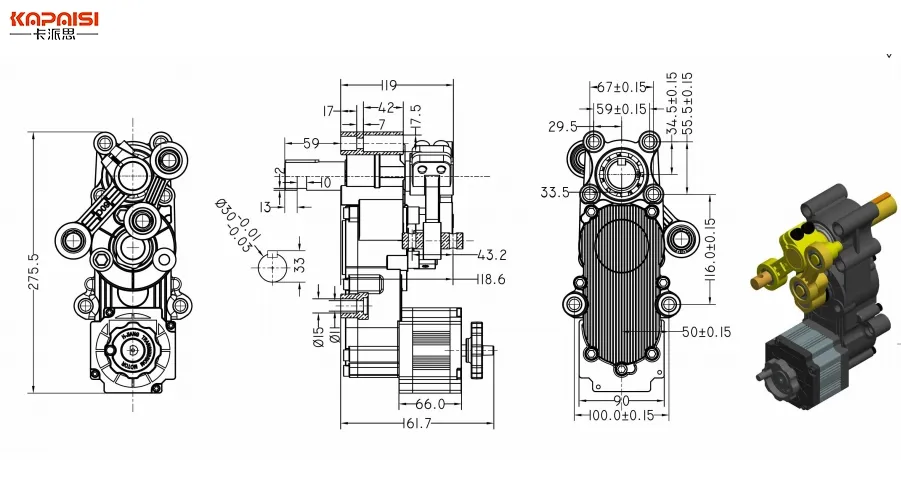

Motor Details 2
Model Output Power Voltage Rated Torque Rated Speed
D01C-1.5S100WDC24V64.8N·m1500r/min
D01C-3.0S100WDC24V129.9N·m1500r/min
📷 Application & Quality

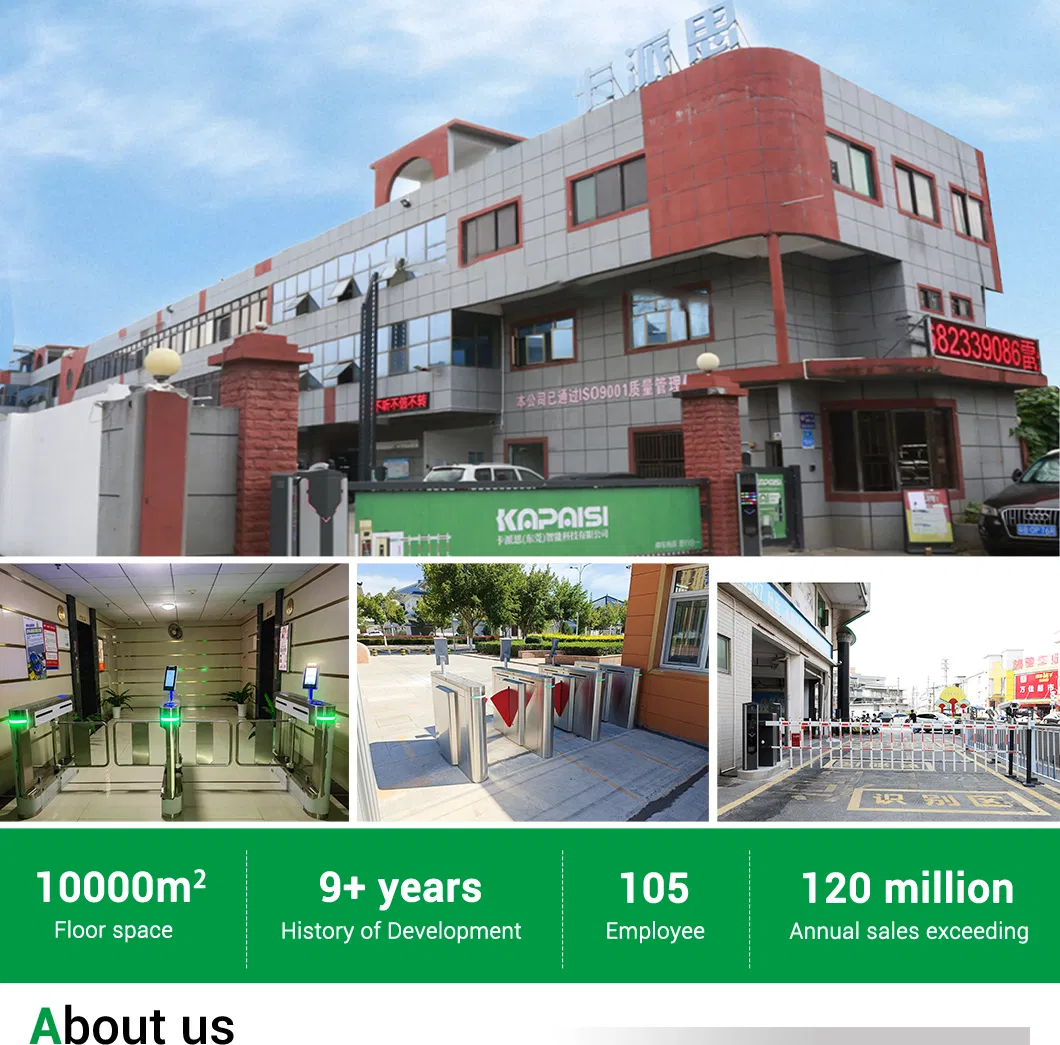

Factory View

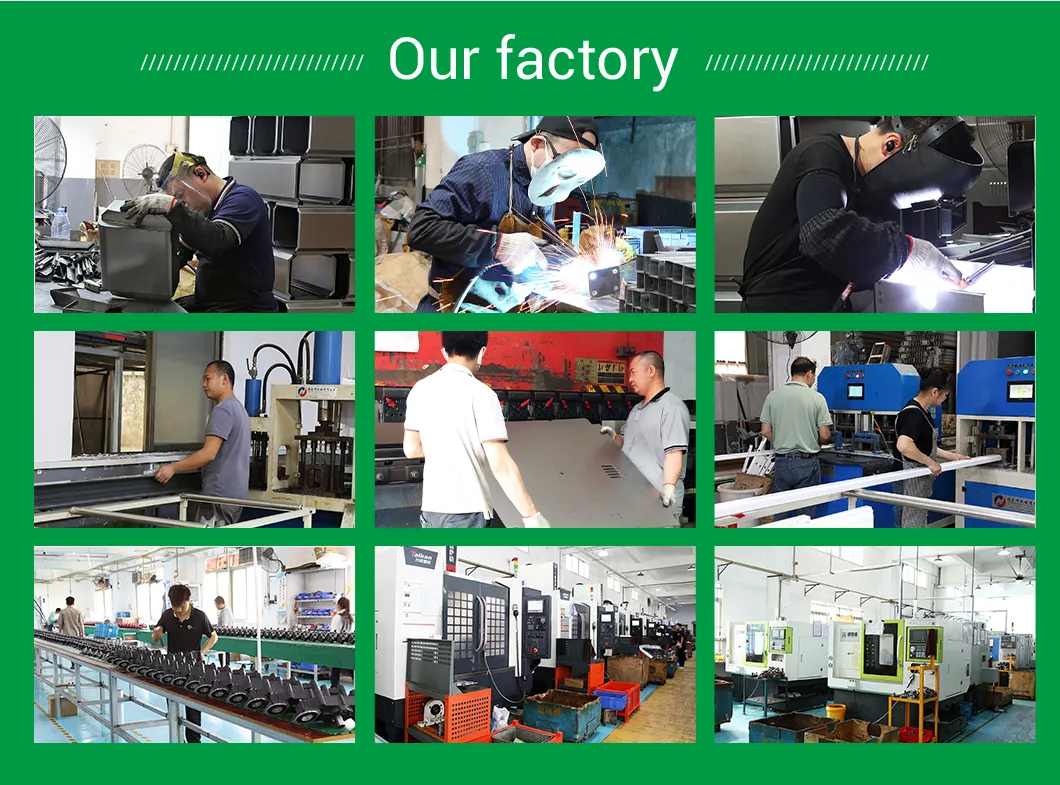

Production Line
Advantages
Certification
Packaging
❓ Frequently Asked Questions
1. In which scenarios are these barrier gates suitable?
They are ideal for residential/commercial entrances, parking lot systems, expressway toll stations, logistics parks, and access control for public institutions or schools.
2. What triggering methods are supported?
The system supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
3. Can it operate under extreme weather conditions?
Yes. With an IP44-IP54 protection grade, it operates reliably between -40℃ and +85℃. It includes built-in overcurrent and lightning protection modules.
4. What types of barrier poles are available?
Options include straight rods (2-6m), curved rods for low-clearance spaces, fence poles for anti-climbing, LED advertising poles, and folding rods for ultra-wide channels.
5. Is the lifting speed adjustable?
Yes, the lifting time is adjustable between 1.5S and 6S depending on the model and rod length, ensuring smooth operation via the DC brushless controller.
6. How durable is the motor system?
The system is designed for high-frequency use, featuring gears with carburizing heat treatment and high-precision grinding, tested for up to 5 million operations.
