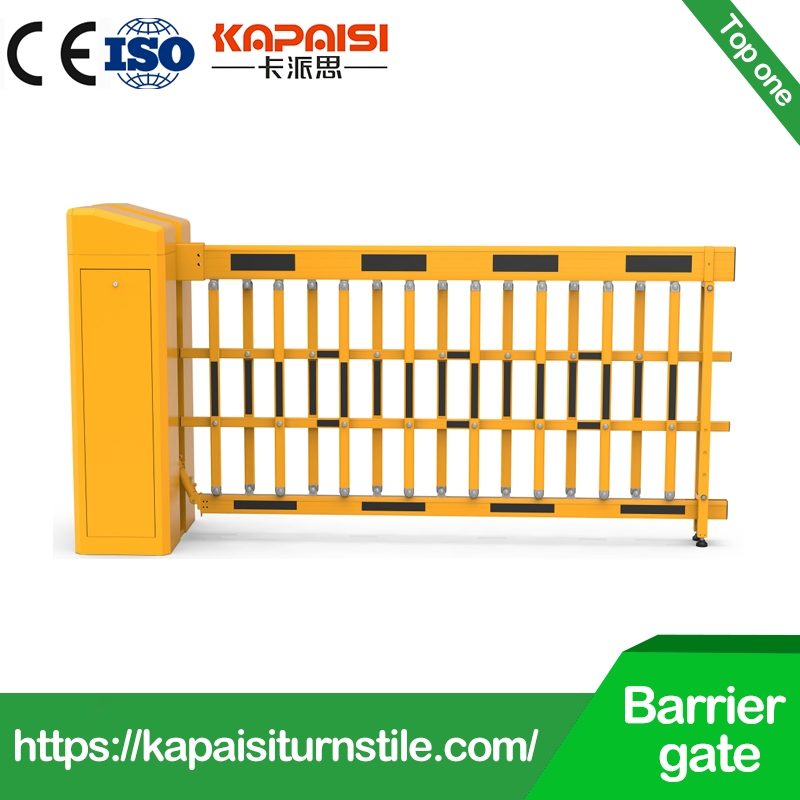

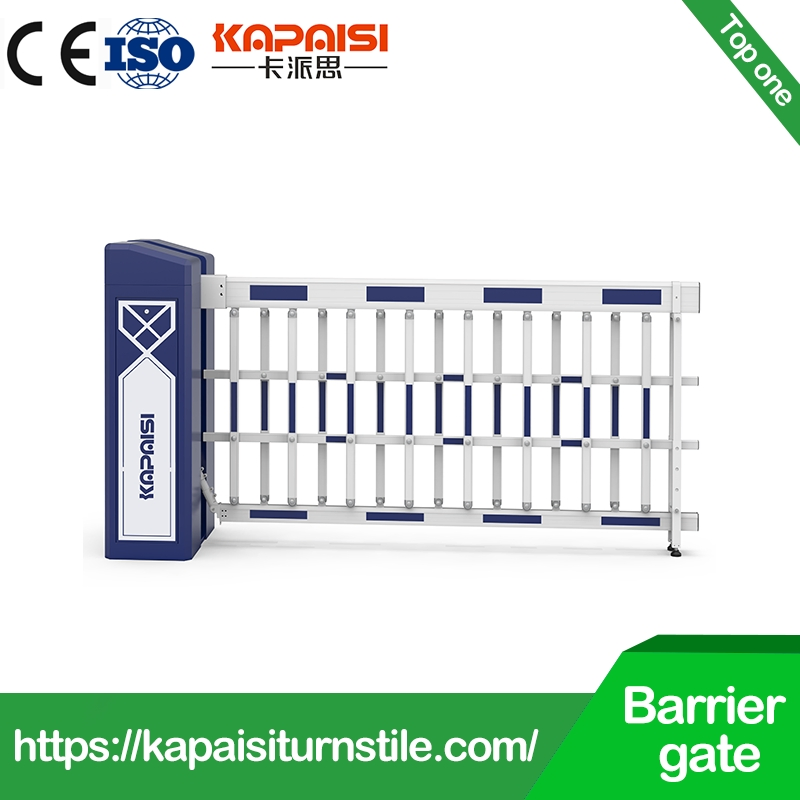

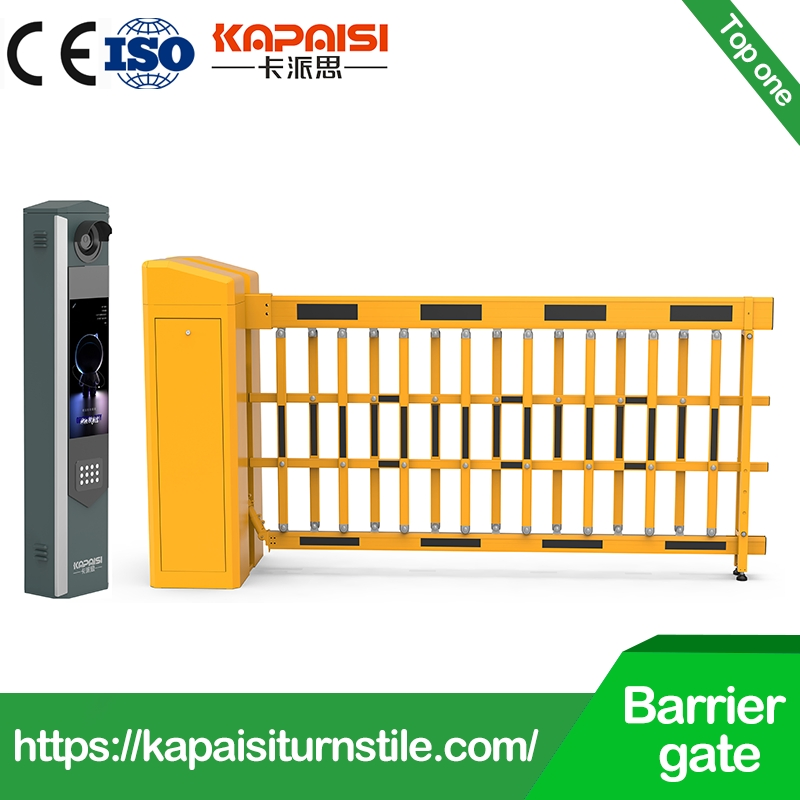

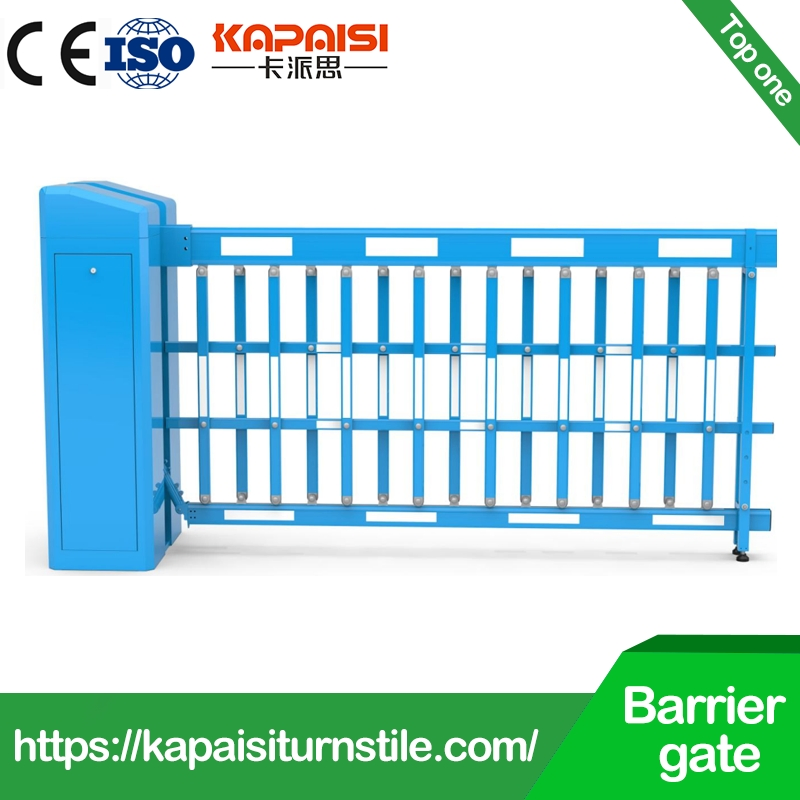

CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
1 / 5
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate
CE Approval Anti-Crash Function Security Parking Boom Barrier Gate

CE Approval Anti-Crash Function Security Parking Boom Barrier Gate

Customization: Available
Access Method: Card Swipe, Mobile Phone, QR Code, Remote Control
Alert System: Audible Alarms, Visual Alerts
Send Inquiry

Product Description

Basic Information
Model NO.KPS-KJ-9002
AuthenticationBiometric, Proximity Detection, CE
InstallationPole Mount
IntegrationParking Management System
MaterialAluminum Alloy
Power SupplyAC220V±10%50Hz
TechnologyLicense Plate Recognition
Motor TypeDC Brushless 120W
ProtectionIP44
OriginChina
Security Parking Boom Barrier Gate
Product Description

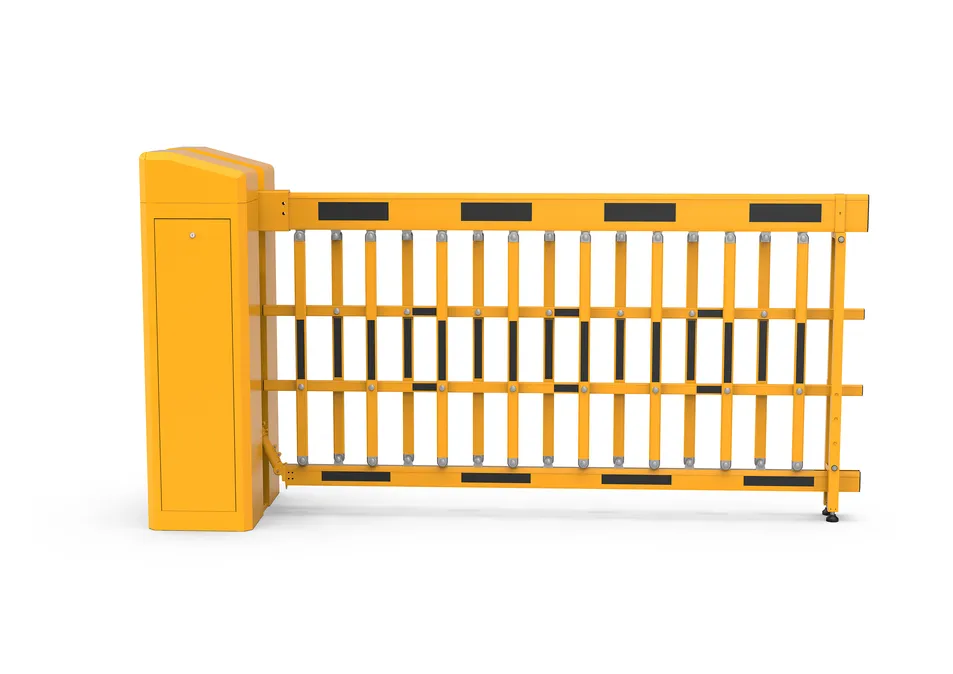

Product Overview

Key Features

  • Movement installed by side fixation with compact structure.
  • Aluminum alloy die-casting body for high strength and fast heat dissipation.
  • Helical gear reduction transmission for high efficiency and stability.
  • DC brushless movement ensuring low heat generation and large output torque.
  • Safe 24V DC motor voltage with speed regulation and buffer deceleration.
General Technical Conditions
  • Insulation Resistance: ≥100MΩ
  • Electrical Strength: 700V/S without breakdown
  • Motor Temperature Rise: ≤75K
  • Motor Noise: ≤55dB
  • Operating Temp: -35℃ to 80℃
  • Humidity: ≤90% (no condensation)
Technical Specifications
Parameter Specification
Working Power SupplyAC220V ± 10% 50Hz
Working Frequency433HZ
Remote Control Distance≤ 30 meters
Motor Power24V DC 150W brushless DC motor
Lifting Time1.5S - 6S adjustable

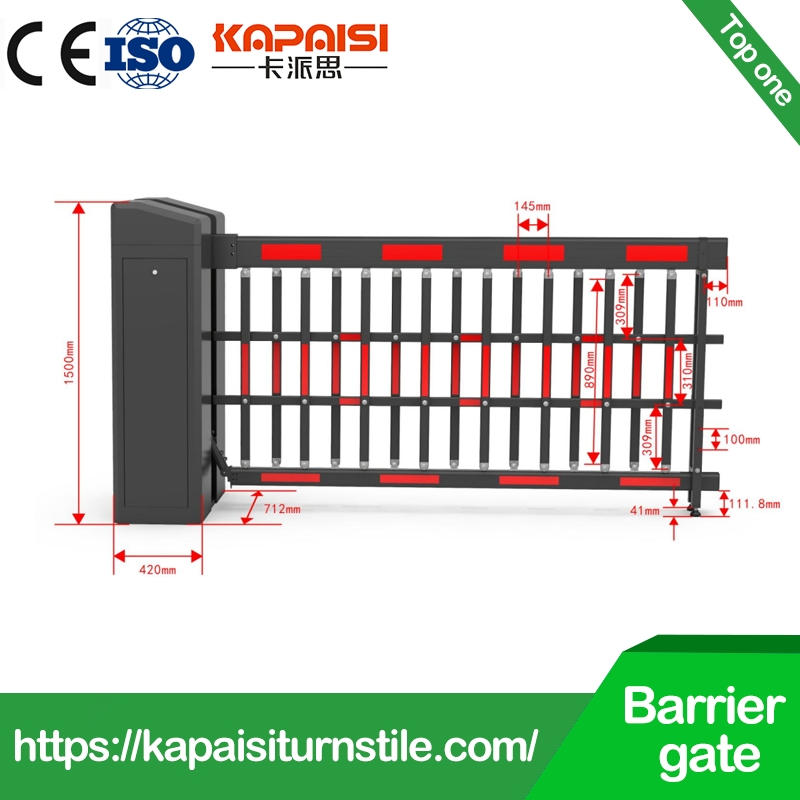

Pole Height830MM
Optional Pole Types1 - 6 meters (Straight / Barrier / Curved / Oval)

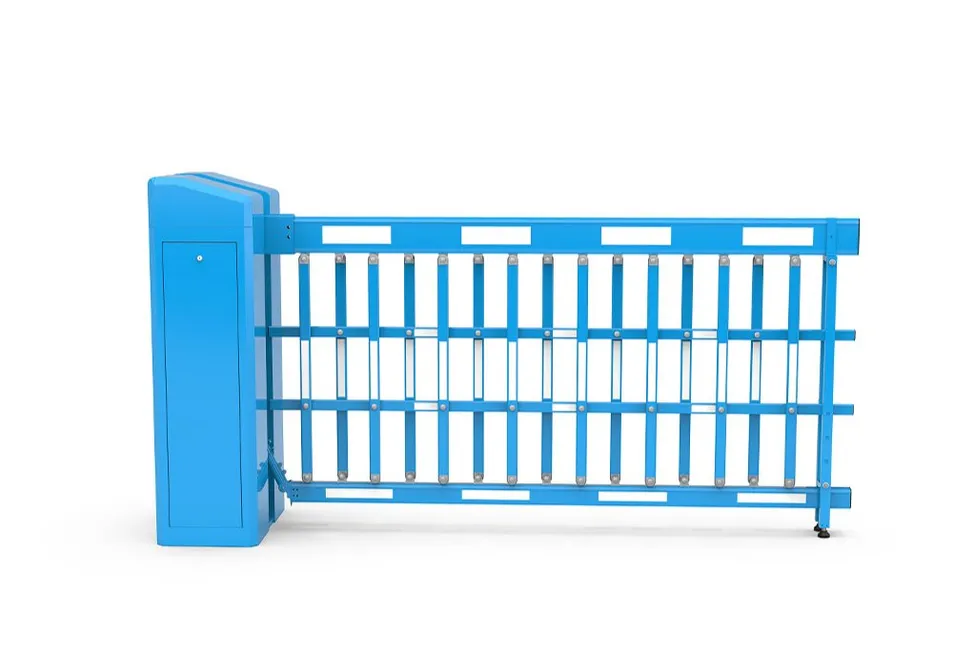

Compatible Rod Types

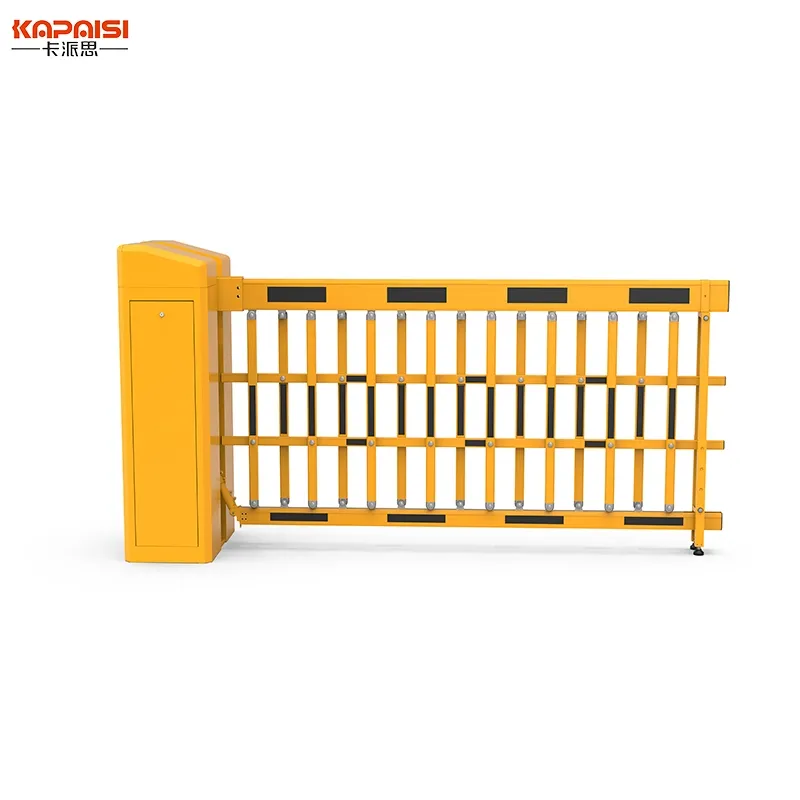

Rod Type 1

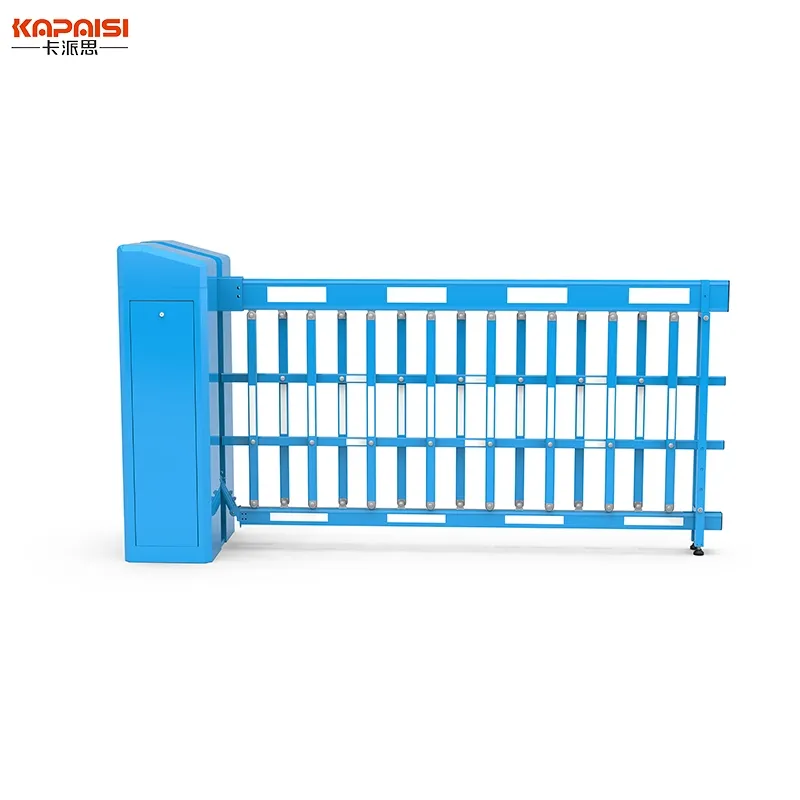

Rod Type 2

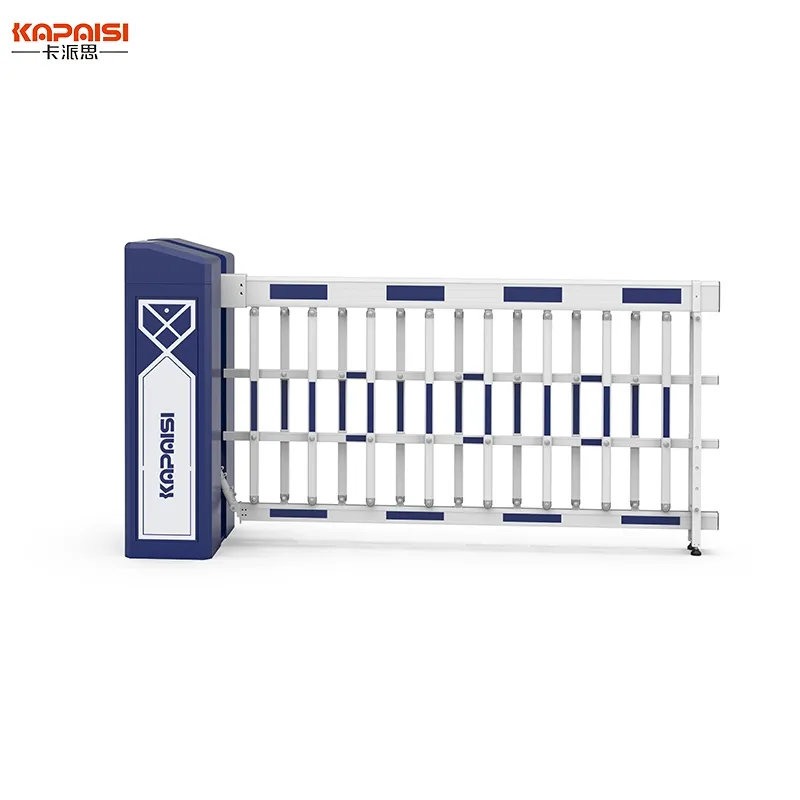

Rod Type 3
Motor Performance Data

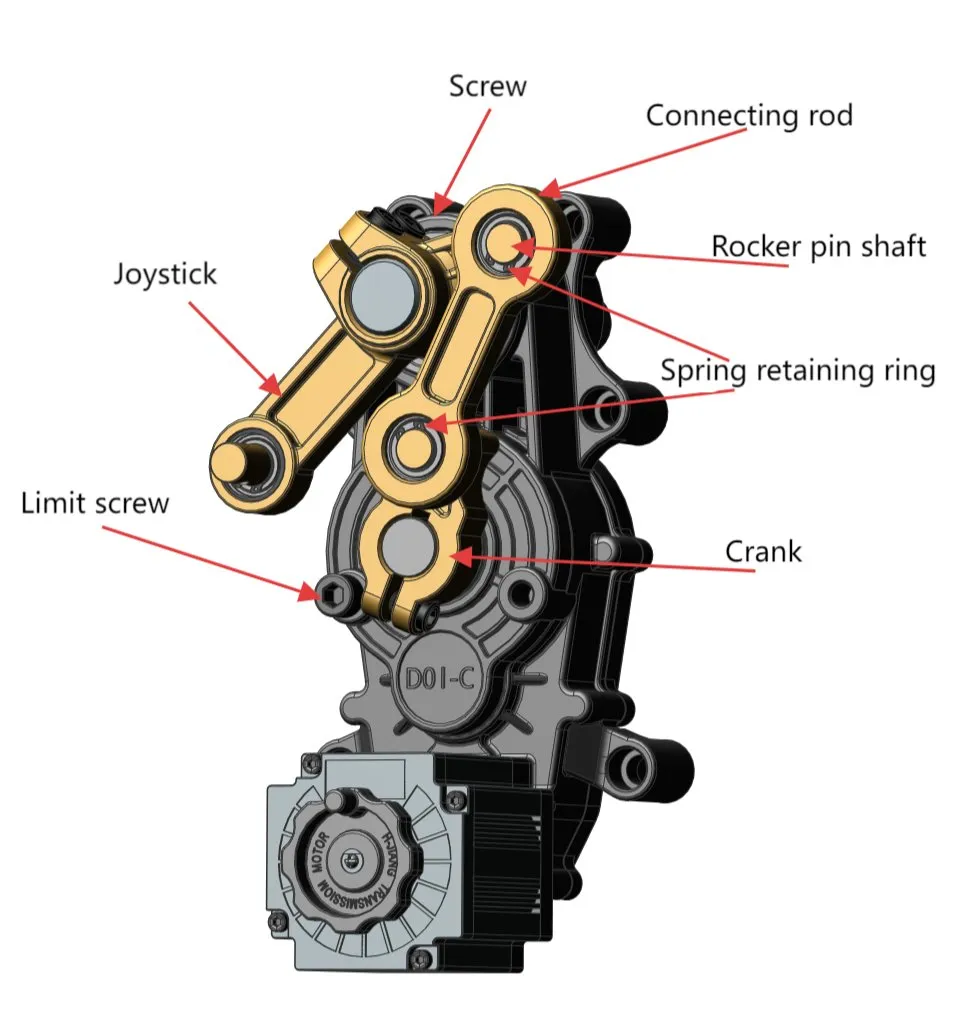

Motor Details

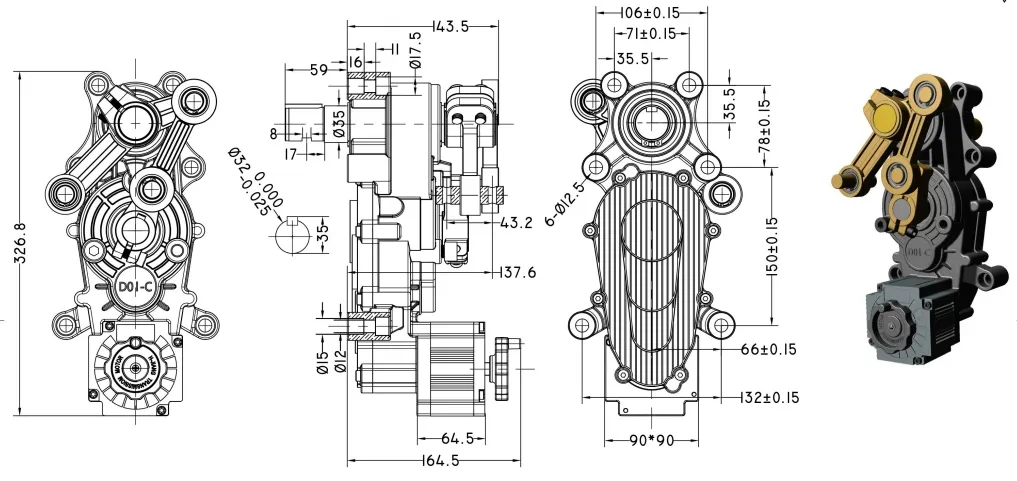

Motor Structure
Model Voltage Rated Speed Lifting Time Output Torque
D01C-0.8SDC24V1500r/min0.8s-1.5s36.4N·m
D01C-1.5SDC24V1500r/min1.5s-3.0s64.8N·m
D01C-3.0SDC24V1500r/min3.1s-7.0s129.9N·m
Production & Quality Control

Equipped with a comprehensive manufacturing facility and an ISO9001:2015 certified quality management system. Our product range covers heavy-duty barrier gates, pedestrian passage doors, hydraulic bollards, and license plate recognition systems. The facilities include advanced production lines to ensure mechanical strength and reliable performance for global standards.

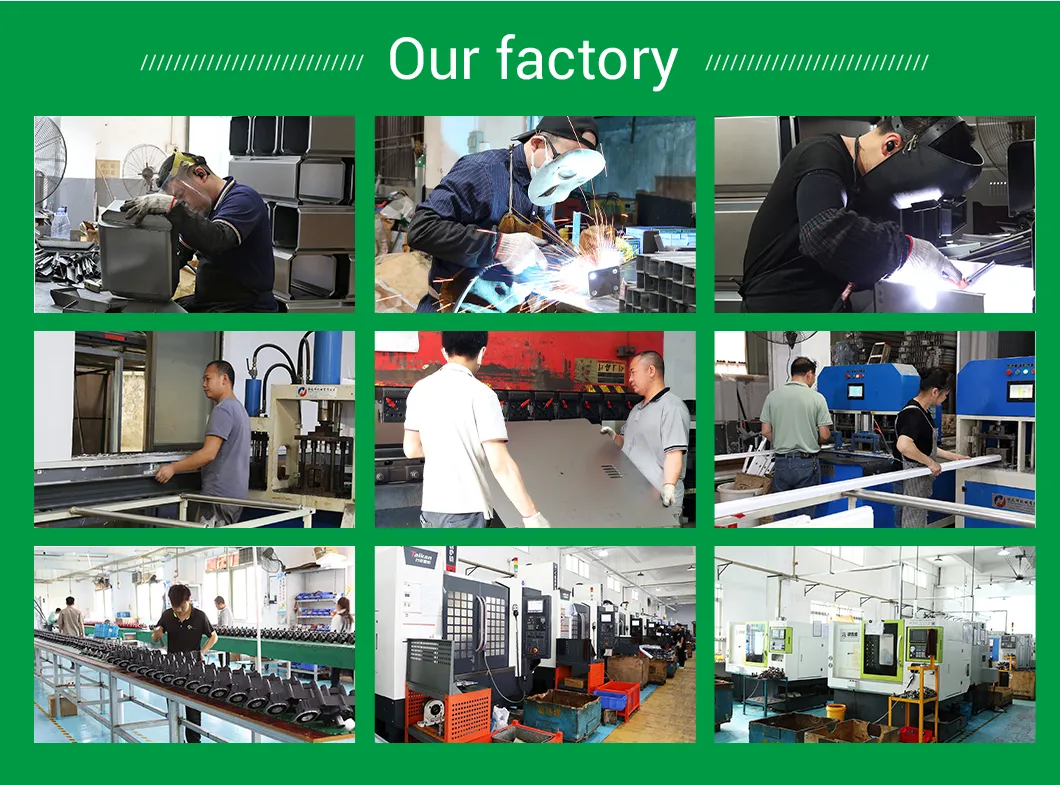

Factory View
Advantage
Certifications & Shipping
Certifications
Packaging
Frequently Asked Questions
In which scenarios are your barrier gates suitable?
They are widely used in residential/commercial entrances, parking lot systems, expressway toll stations, logistics parks, and public institutions like schools.
What triggering methods are supported?
Our systems support remote control, license plate recognition (LPR), ground induction loops, Bluetooth/WIFI mobile control, and manual buttons.
Can it operate under extreme weather?
Yes, it features IP54 protection (customizable to IP68), operates from -40℃ to +80℃, and includes lightning and overcurrent protection.
What types of barrier poles are available?
We offer straight rods (2-6m), curved rods for low spaces, fence poles for anti-climbing, advertising poles with LED, and folding rods for ultra-wide channels.
Is the motor voltage safe for public installation?
Absolutely. The motor uses a 24V DC safe voltage system, which significantly reduces electrical risks compared to traditional AC motors.
How is the lifting speed managed?
The DC brushless driver allows for adjustable speed regulation (1.5s to 6s) and provides buffer deceleration to ensure smooth and stable operation.
