Vero Door
Vero Door

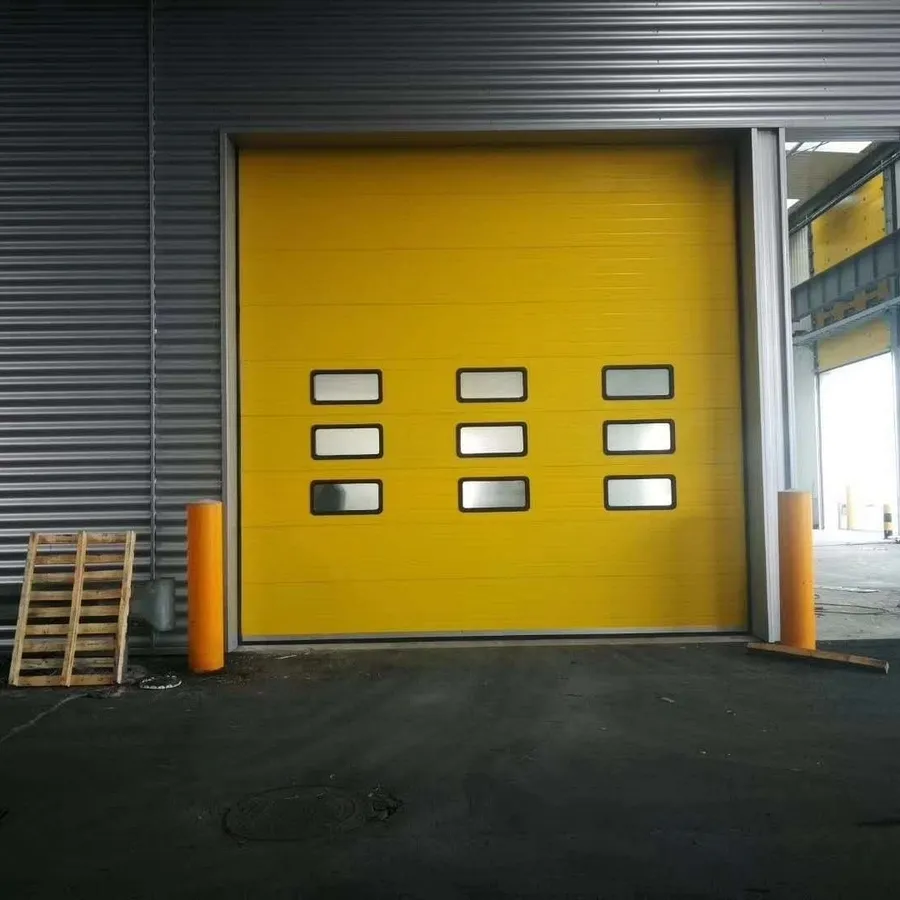

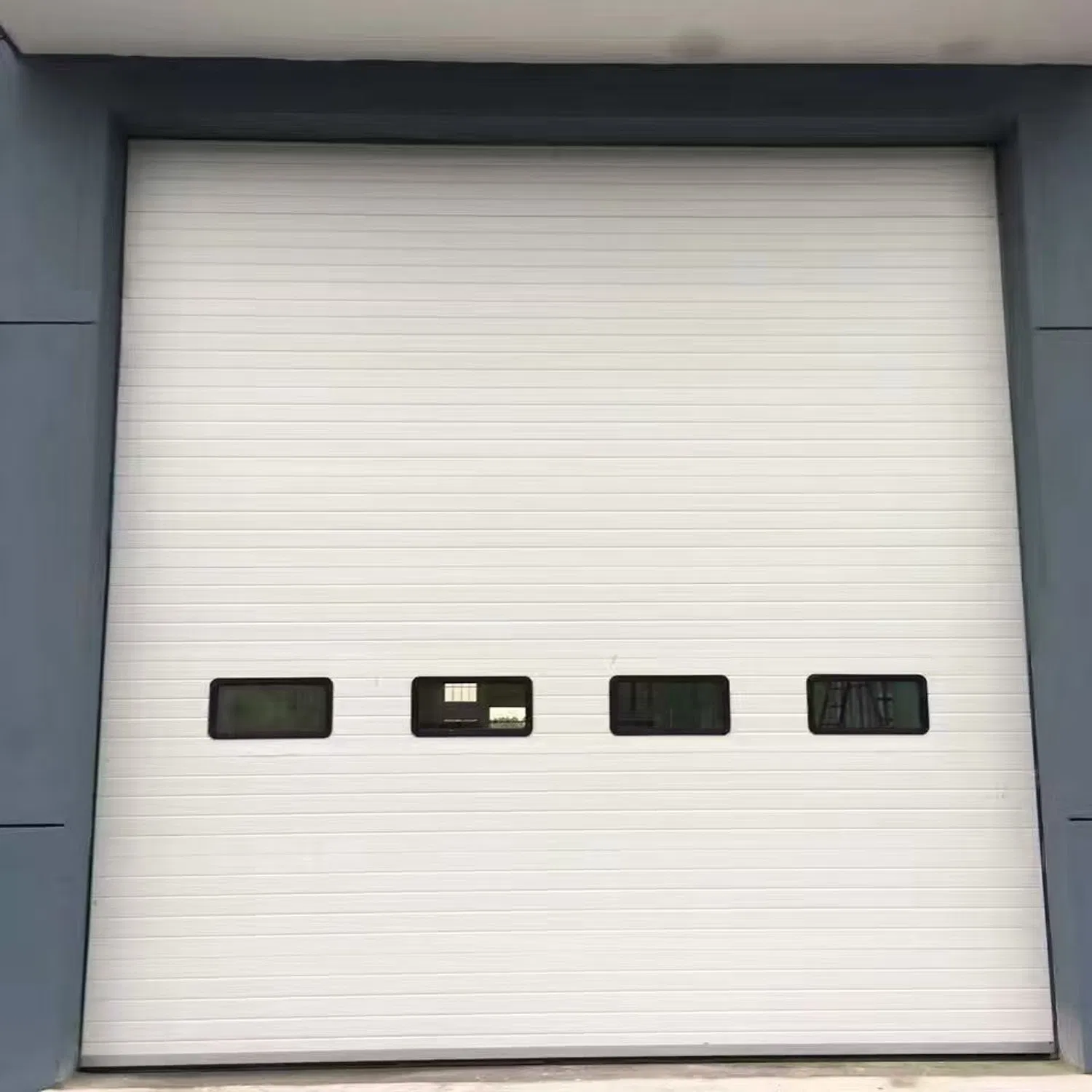

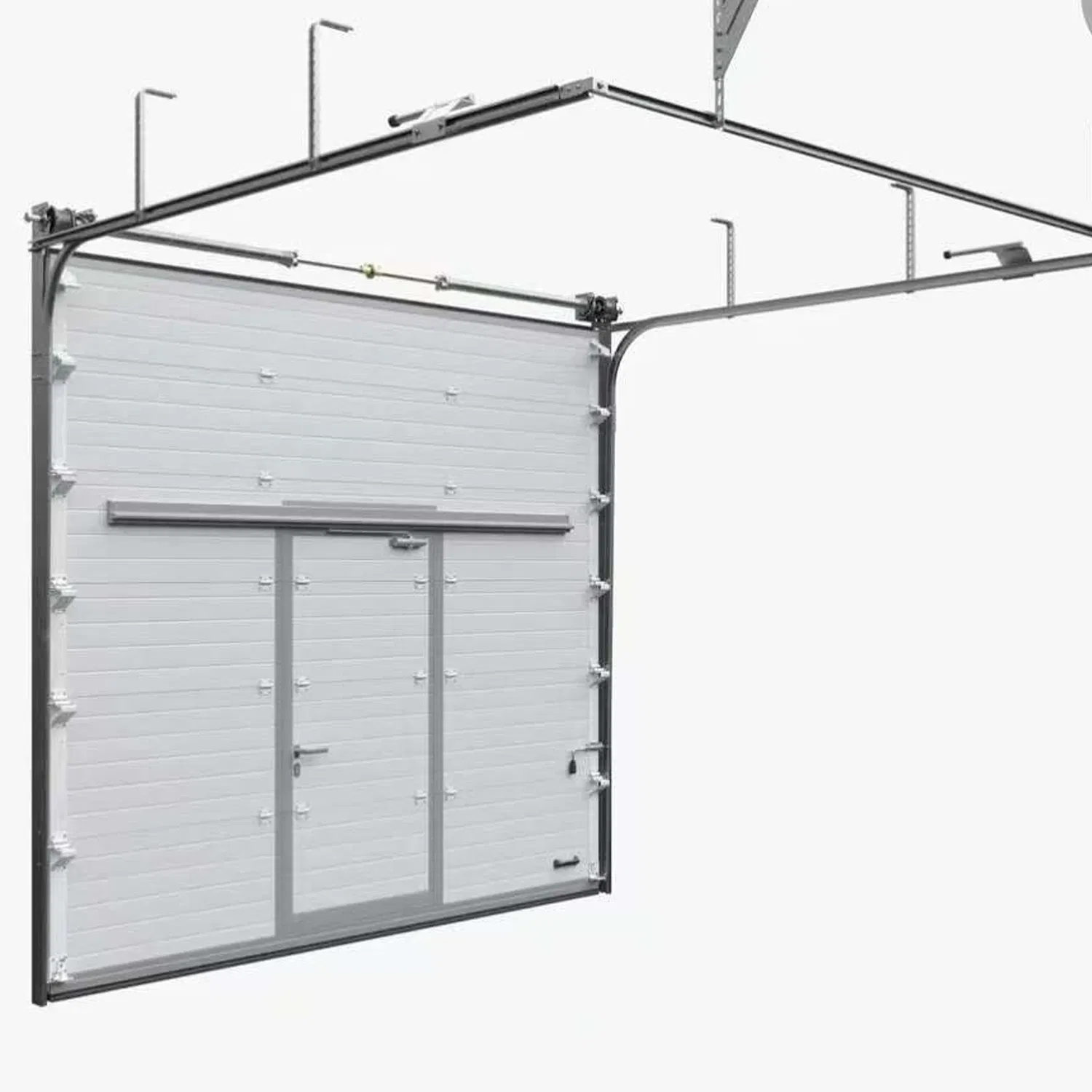

Industrial lifting door is a professional industrial exterior door designed to meet high standards for insulation, sealing, high-frequency switching, and safe use. It is increasingly adopted by various industrial and logistics projects worldwide.
The lifting methods are categorized into three types based on space requirements:

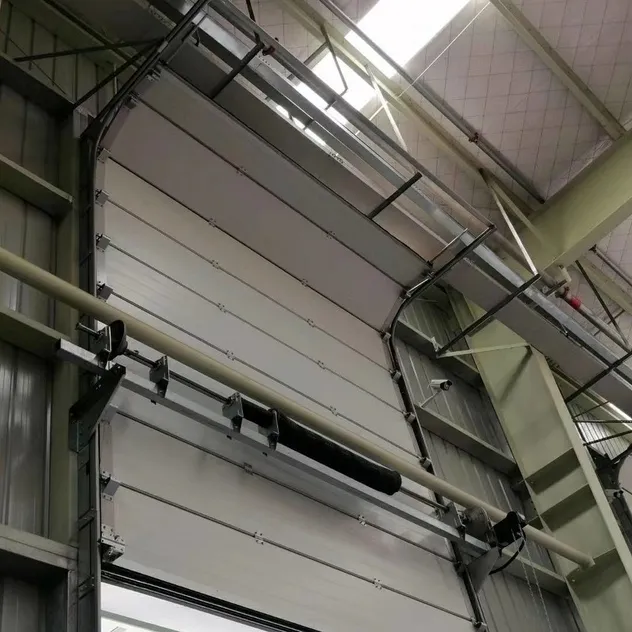

These systems are composed of door bodies, balance systems, advanced drive and control systems, safety devices, tracks, and high-quality seals.

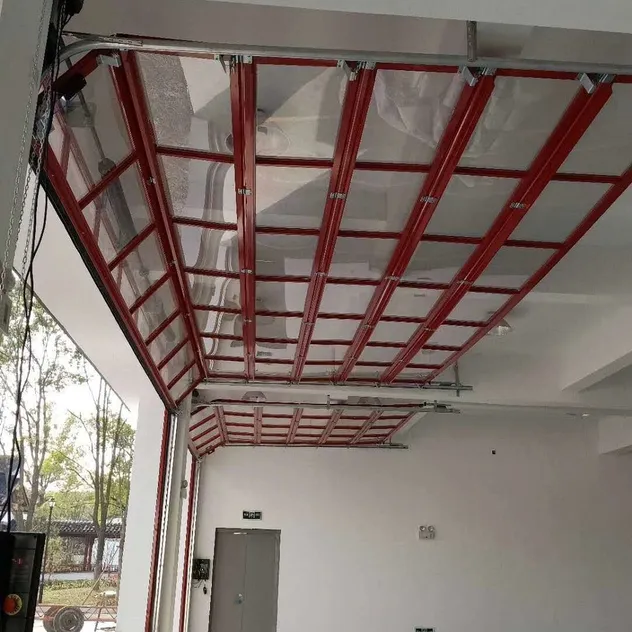

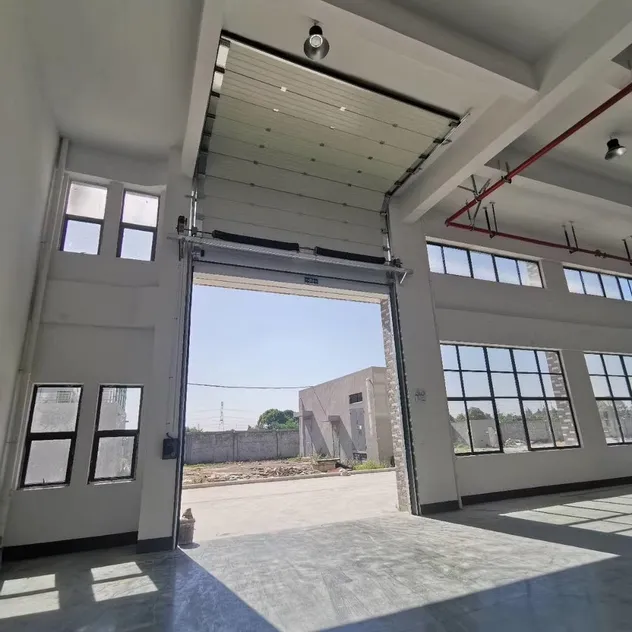

Opens vertically upwards and hangs flat on the inner side of the wall above the opening, saving valuable indoor space.
Multiple control methods available. Manual operation is fast and convenient due to the balanced system state.

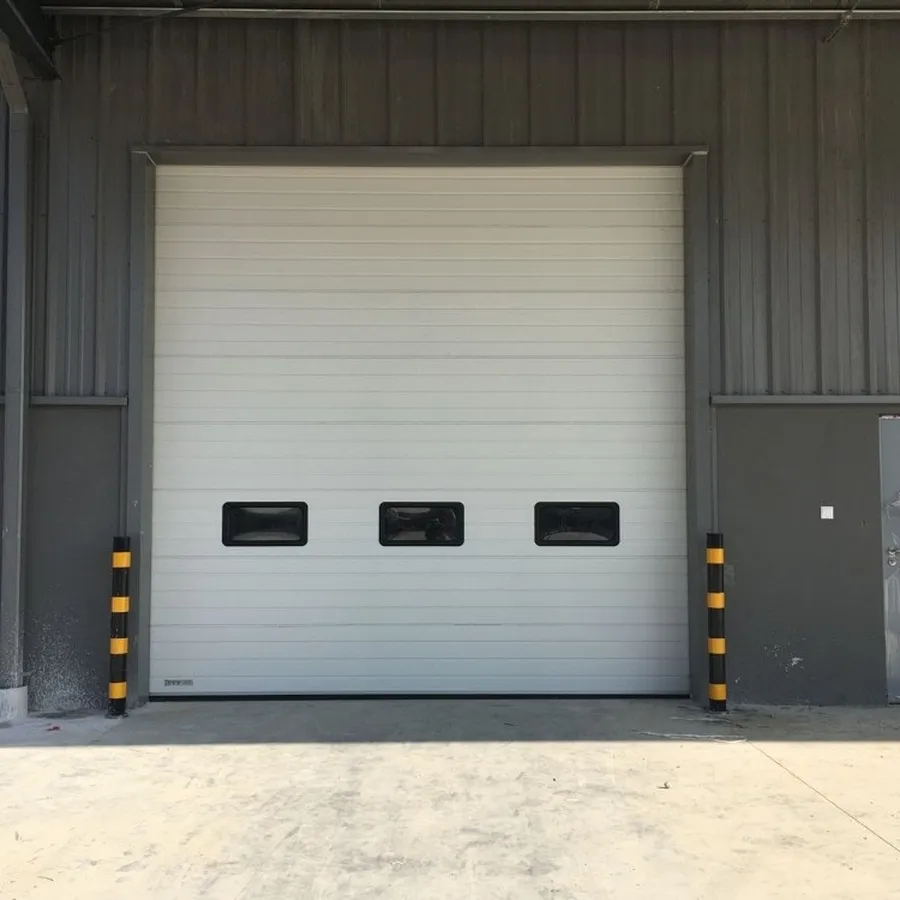

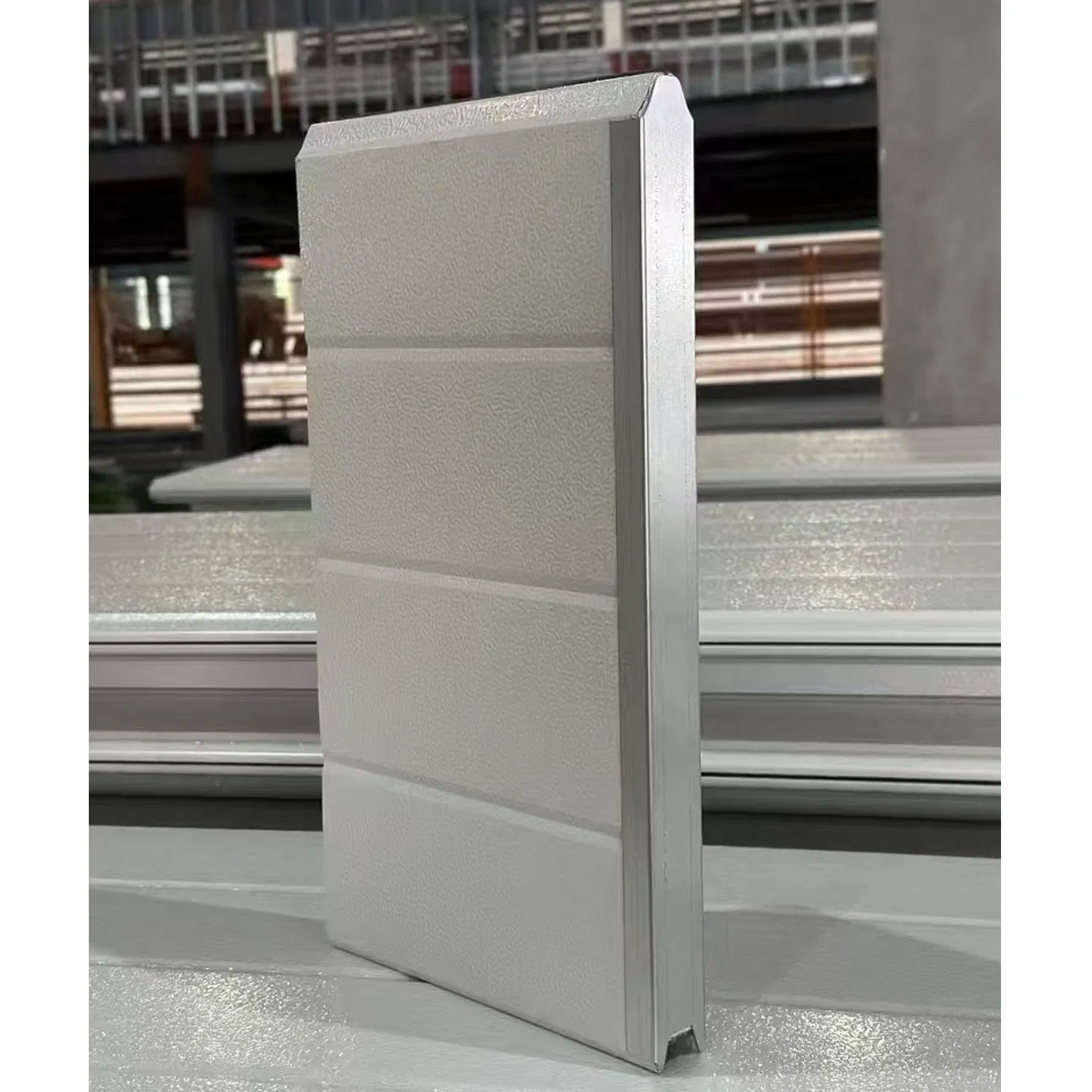

Double-layer galvanized steel with an embossed surface. Durable, easy to clean, and enhances the corporate image.
High-density polyurethane insulation layer sandwiched between steel plates reduces energy loss significantly.

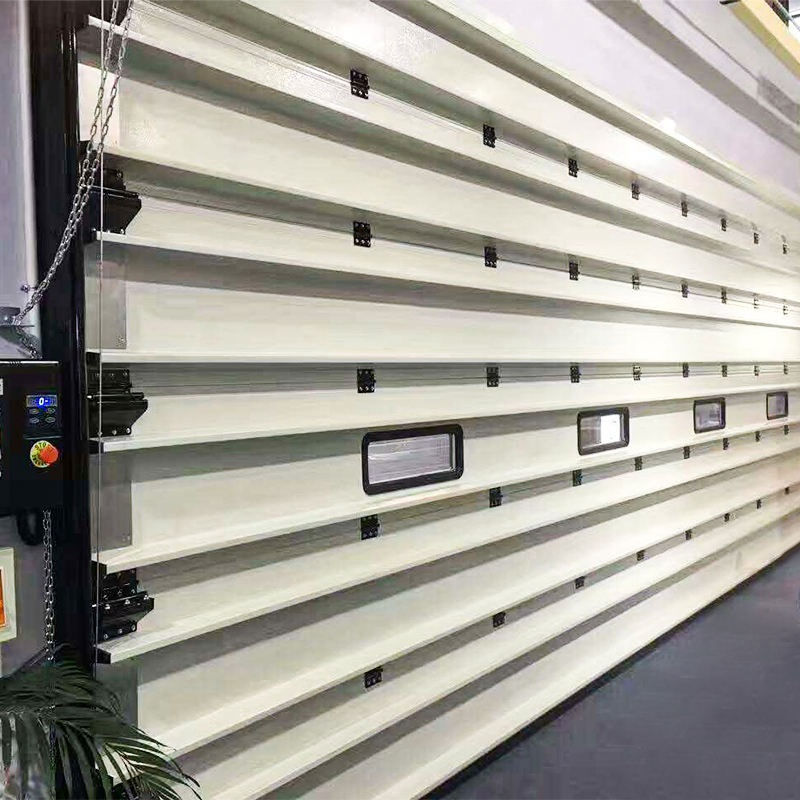

Equipped with adjustable ball bearings and wear-resistant rubber wheels to ensure silent opening and closing.
Reinforced with external ribs to resist instantaneous level 10 wind forces, tested to European standards.
| Parameter Item | Specifications |
|---|---|
| Door Panel Thickness | 40mm |
| Standard Wind Pressure | 450N/m2 - 480N/m2 |
| Foaming Density | 48Kg/m3 +/-2 Kg/m3 |
| U Value (Insulation) | 0.84W/m2ºC |
| Torsion Spring Material | 82b Treated Steel (with anti-break device) |
| Shaft Specification | 25.4mm Diameter 45# Steel |
| Wire Rope | Flexible Steel Rope ∮3.8mm |
| Guide Rail | 2mm Thick Galvanized Steel Plate |
| Safety Features | Bottom Airbags, Spring Anti-Break, Obstacle Sensors |
| Windows | 2-10 Plexiglass Windows (optional) |

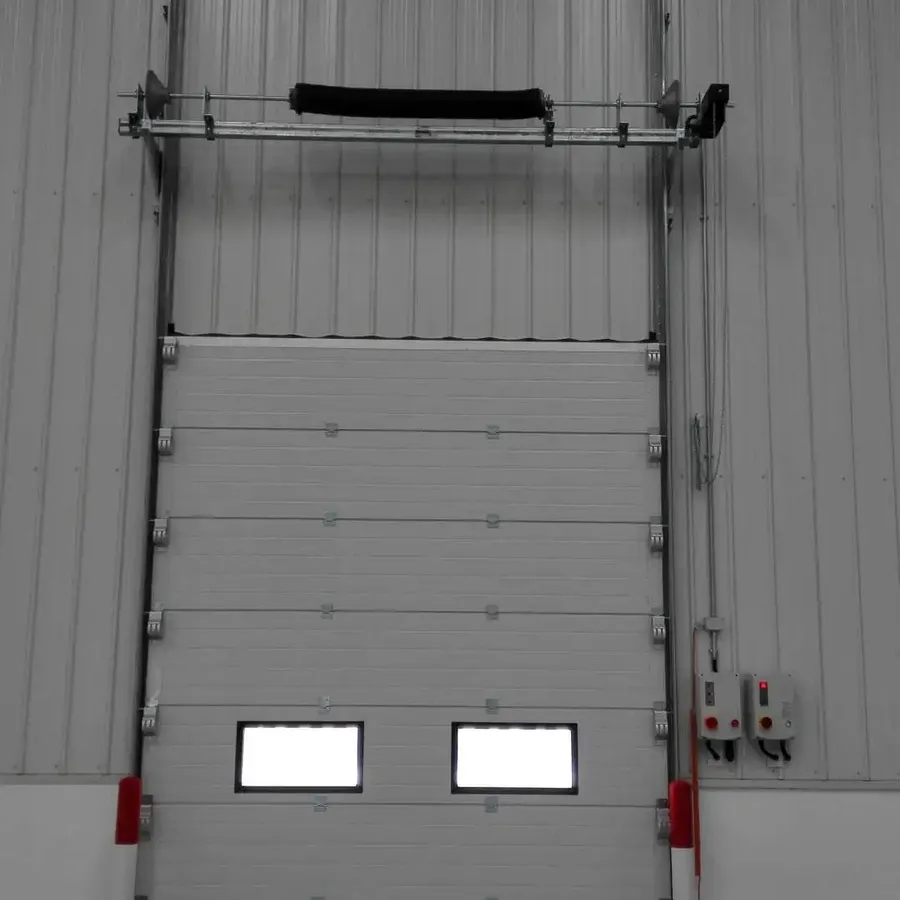

Standard control button switches installed on both sides of the door.
Convenient for operators to open doors without leaving their vehicle.
Wireless "one-to-many" or "many-to-one" control configurations.
Sensors detect metal objects (vehicles) to automate opening for logistics.
Automatic detection of moving objects or beam blocking for high-efficiency entry.
