Vero Door
Vero Door
| Model NO. | TS series | Communication Interface | Standard RS232/RS485, TCP/IP |
|---|---|---|---|
| Cabinet Material | SUS304 Stainless Steel | LED Indicator | Supported |
| Lid/Barrier Material | SUS304 Stainless Steel | Specification | 1200 * 280 * 980 ( mm ) |
| Production Capacity | 20,000 pieces Per Month | Origin | China |

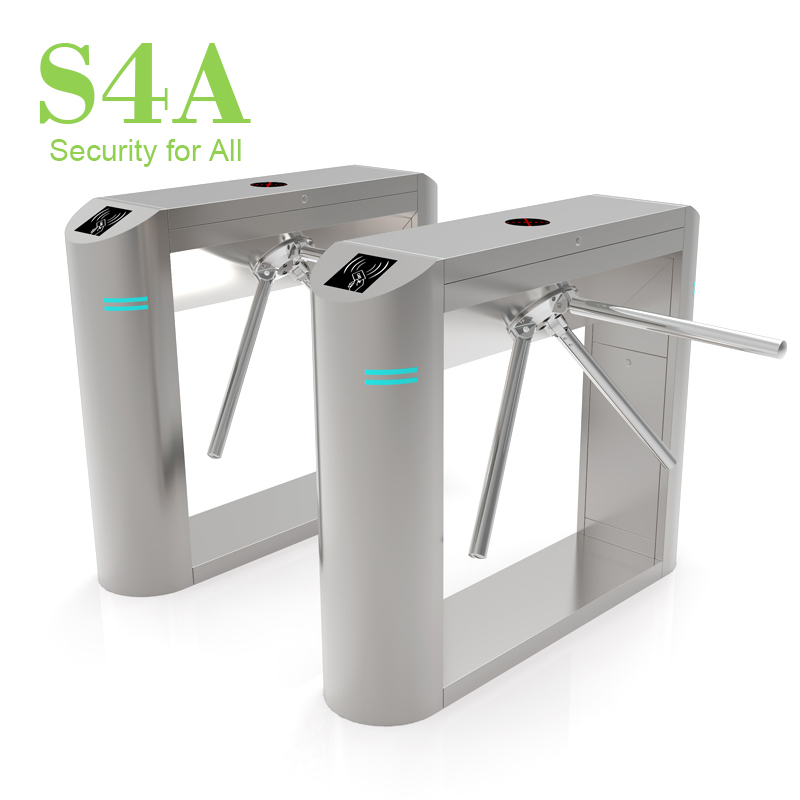

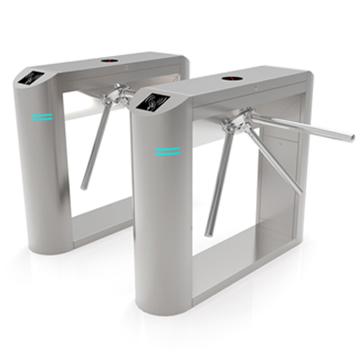

Tripod Turnstile is a type of physical access control device commonly used in various environments such as subways, office buildings, stadiums, amusement parks, and public facilities. It consists of three rotating horizontal arms that create a barrier, allowing only one person to pass through at a time.
The TS series tripod turnstiles represent a classic and safe way to protect your premises. They are widely used in various indoor environment applications, fitting perfectly as an economical option for office buildings and related commercial spaces.
| Product Parameter | Description |
|---|---|
| Product Name | Tripod Turnstile Barrier Gate |
| Power Requirements | AC220 ±10% V/50 ±10% Hz |
| Power Consumption | Running: 18W; Standby: 6W |
| Working Temperature | -20 °C - 60 °C |
| Working Humidity | Less than 90% (Non-condensing) |
| Throughput Speed | RFID: Max 30/min; Fingerprint: Max 25/min |
| Lane Width | 550 mm |
| Net Weight | 36 kg |
| MCBF | 1 million cycles |
| Emergency Mode | Supports arm drop function |
| Security Level | Medium |

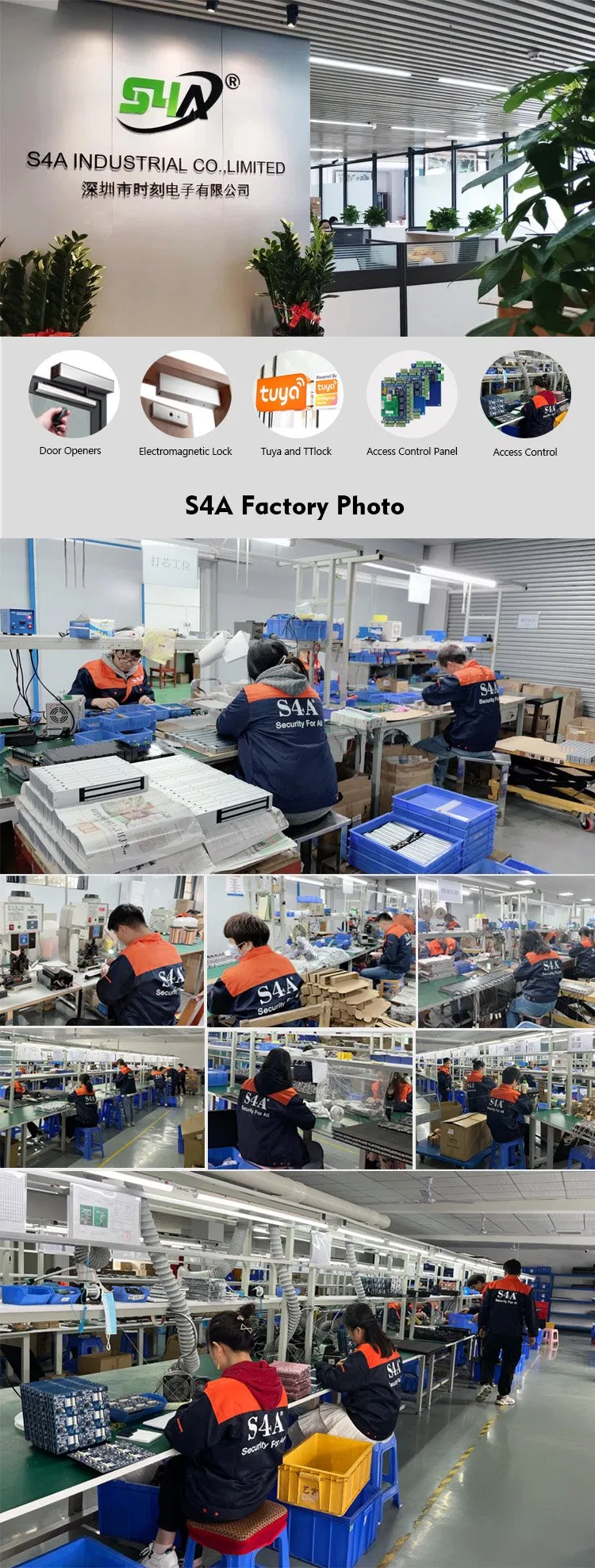

Dedicated in access control production R&D and sales for over 10 years. With extensive industry experience, our products are exported to various countries and regions globally. High customer satisfaction is reflected in our strong base of repeat cooperative clients and recommendations.
