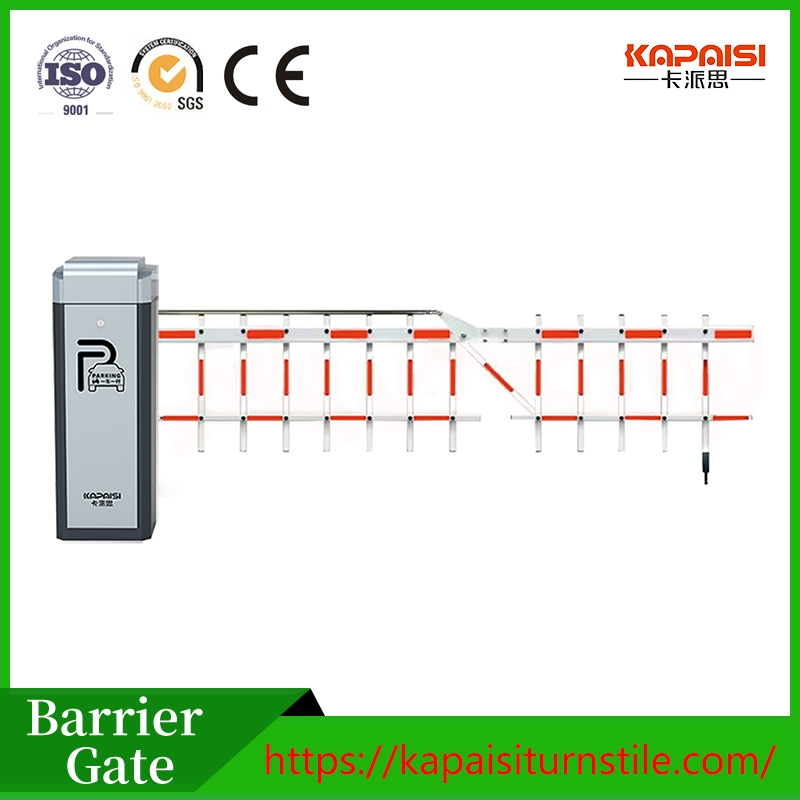

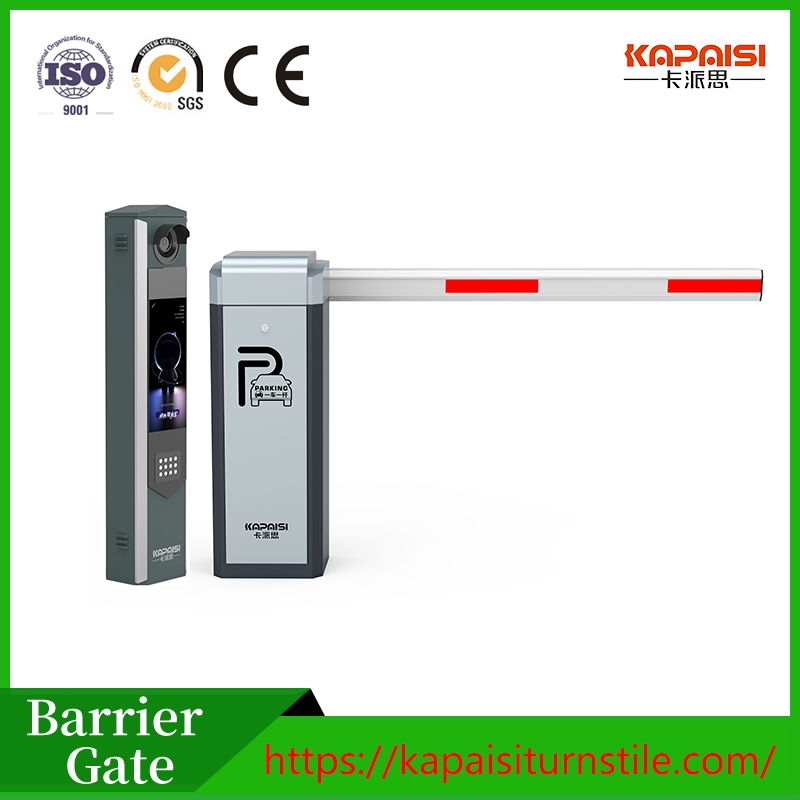

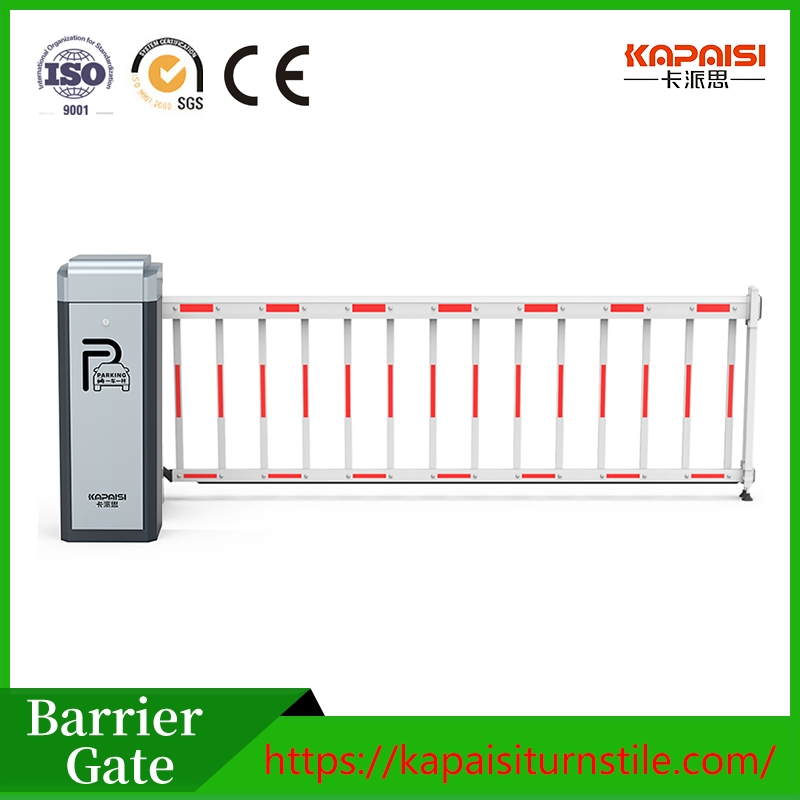

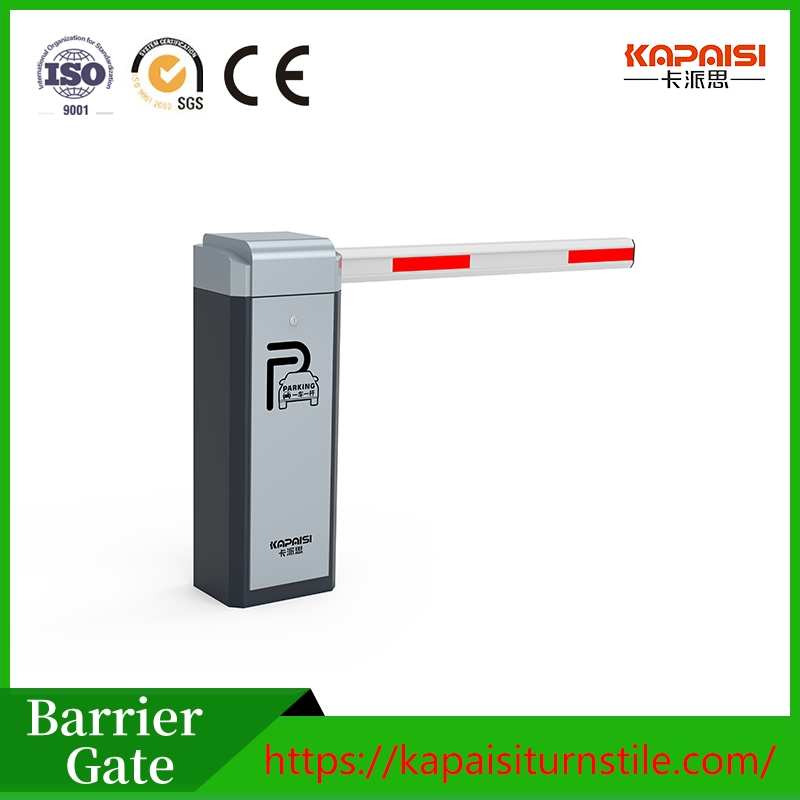

AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
1 / 5
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate
AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate

AC Motor-Driven Automatic Remote-Controlled Security Parking Barrier Gate

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Info
Model NO.
KPS-DZ-8017
Authentication
Biometric, Proximity Detection, CE
Installation Method
Pole Mount
Material
Aluminum Alloy
Power Supply
AC220V±10%50Hz
Protection Grade
IP44
Output Power
120W
Rated Motor Speed
1500r/Min
🛠️ Product Description
Automatic Parking Barrier Gate
Product Overview
Key Features
  • Side fixation movement with compact structure.
  • Aluminum alloy die-casting body for fast heat dissipation and high strength.
  • Helical gear reduction transmission for high efficiency and stability.
  • DC brushless movement with low heat generation and large output torque.
  • Safe 24V DC motor voltage for enhanced operational safety.
  • Speed regulation and buffer deceleration for smooth barrier lifting/lowering.
⚙️ Technical Specifications

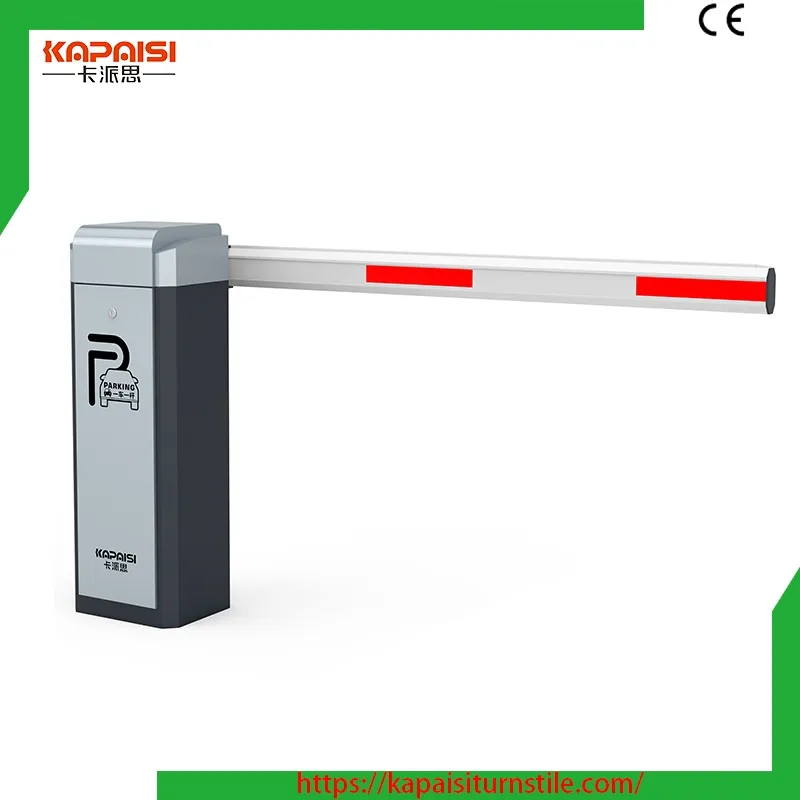

Technical Condition
Insulation Resistance
≥ 100MΩ
Electrical Strength
700V/S without breakdown
Motor Noise
≤ 55dB
Temp Range
-35℃ to 80℃
Humidity
≤ 90% (no condensation)
ParameterSpecification
Working Power SupplyAC220V ± 10% 50Hz
Motor Power24V DC 100W brushless DC motor
Lifting Time1.5S - 6S adjustable
Remote Control Distance≤ 30 meters
Optional Pole TypesStraight / Barrier / Curved / Oval (1-6 meters)
📏 Compatible Rod Types

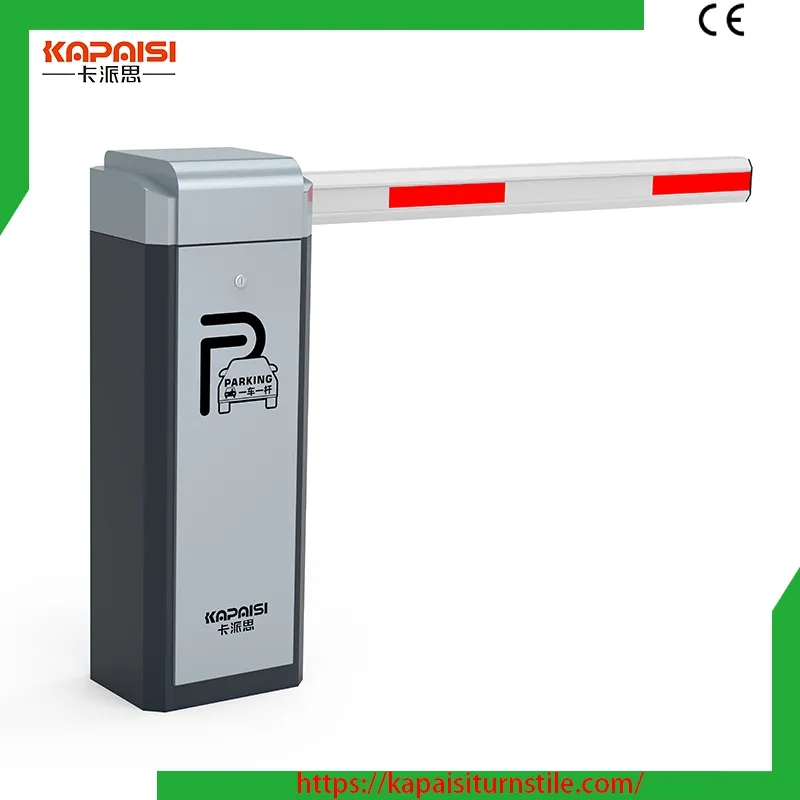

Rod Type 1

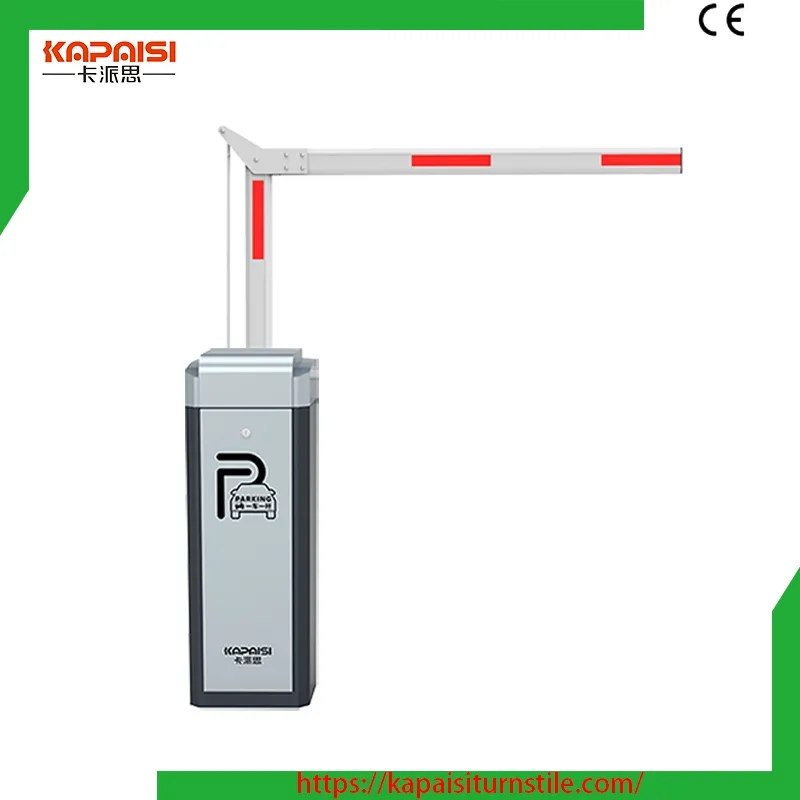

Rod Type 2

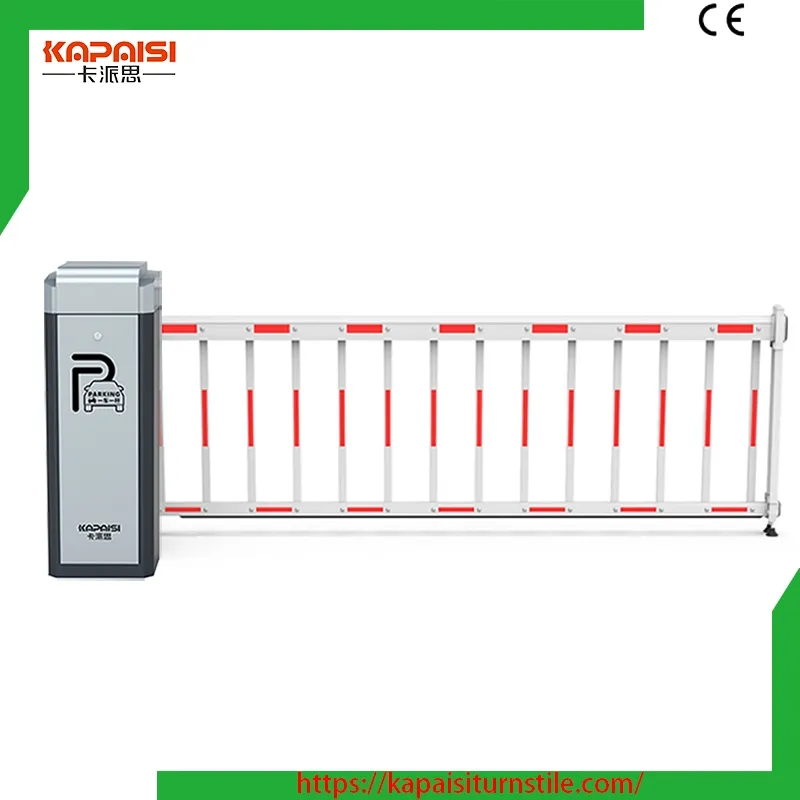

Rod Type 3

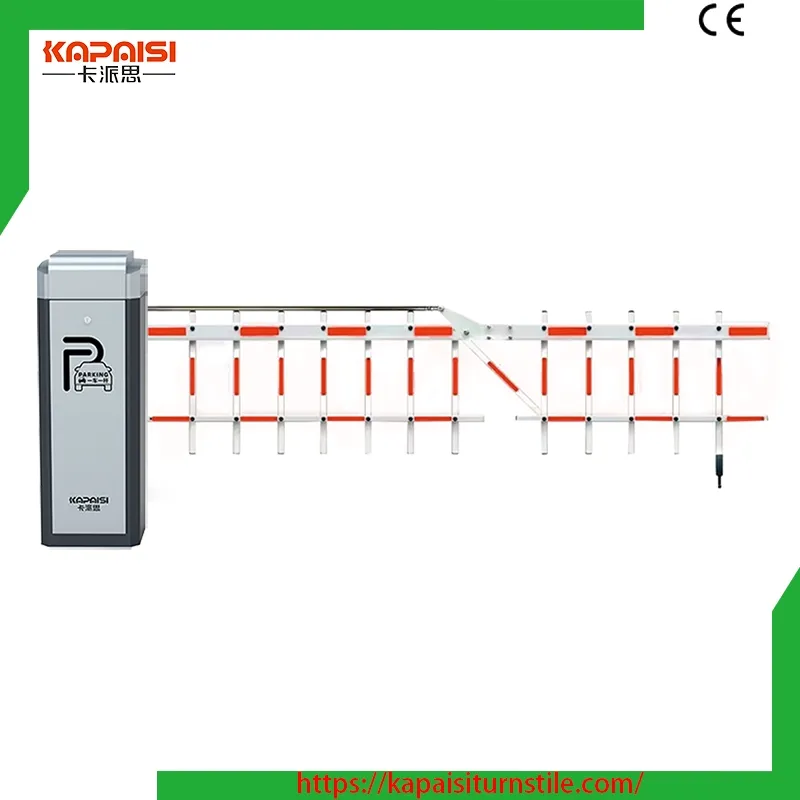

Rod Type 4
⚡ Motor Parameters

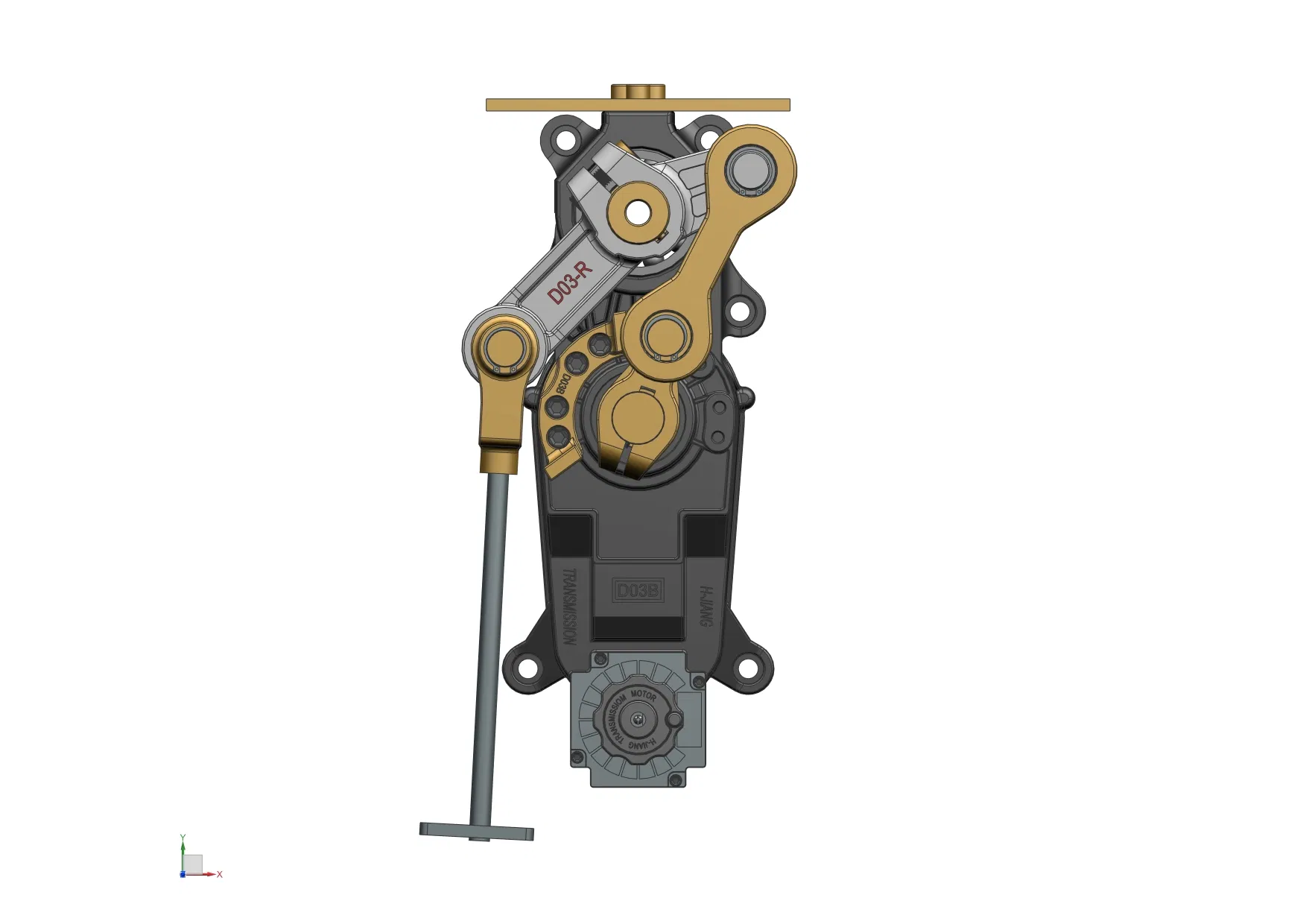

Motor Structure
Model Output Power Voltage Rated Current Lifting Time Protection
D03B-3.0S120WDC24V8A1.5S-6SIP44
D03B-5.0S120WDC24V8A1.5s-3.0sIP44
D03B-7.0S120WDC24V8A3.1s-7.0sIP44
🏢 Enterprise Overview

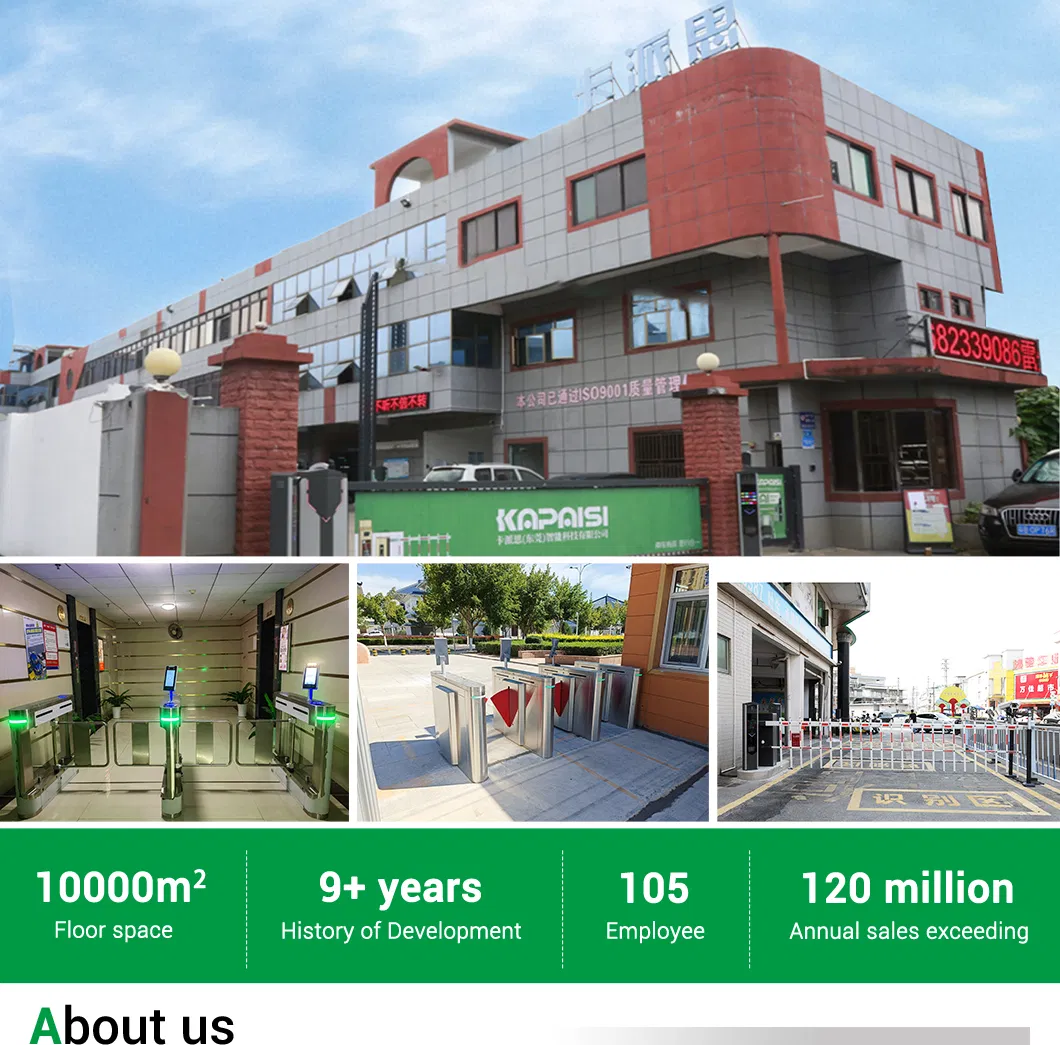

Production Facility

The enterprise is a comprehensive hardware manufacturer for channel entrances integrating R&D, production, sales and service. Having passed the ISO9001:2015 quality management system certification, the core product range includes heavy-duty barrier gates, intelligent pedestrian passage doors, speed gates, and license plate recognition systems.

Utilizing high-tech equipment and a professional management system, the products are widely applied in government agencies, airports, shopping malls, and road toll stations. We focus on "Technology as the core" to create global, high-end intelligent channel solutions.

🌟 Advantages & Certifications
Advantage
Certification
📦 Packaging & Shipping
Packaging
Package Size
104.00cm * 30.00cm * 40.00cm
Gross Weight
38.000kg
Transport Package
Strong Carton Box
Frequently Asked Questions
In which scenarios are these barrier gates suitable?
They are ideal for residential/commercial entrances, parking lot systems, expressway toll stations, and logistics parks.
What triggering methods does the system support?
It supports remote control, license plate recognition (LPR), ground induction loops, mobile App (Bluetooth/WIFI), and smart platform integration.
Can the barrier operate in extreme weather?
Yes, with a protection grade of IP44/IP54 and an operating range of -40℃ to +80℃, it includes overcurrent and lightning protection.
What types of poles can I choose from?
Options include straight rods (up to 6m), curved rods for low clearance, fence rods for security, and LED advertising rods.
Is the motor operation safe and stable?
Absolutely. The system uses a 24V DC brushless motor which ensures low heat, smooth speed regulation, and safe voltage levels compared to AC alternatives.
Does it support safety features for obstacles?
Yes, the series includes optional anti-collision rods that support rebound upon encountering obstacles.
