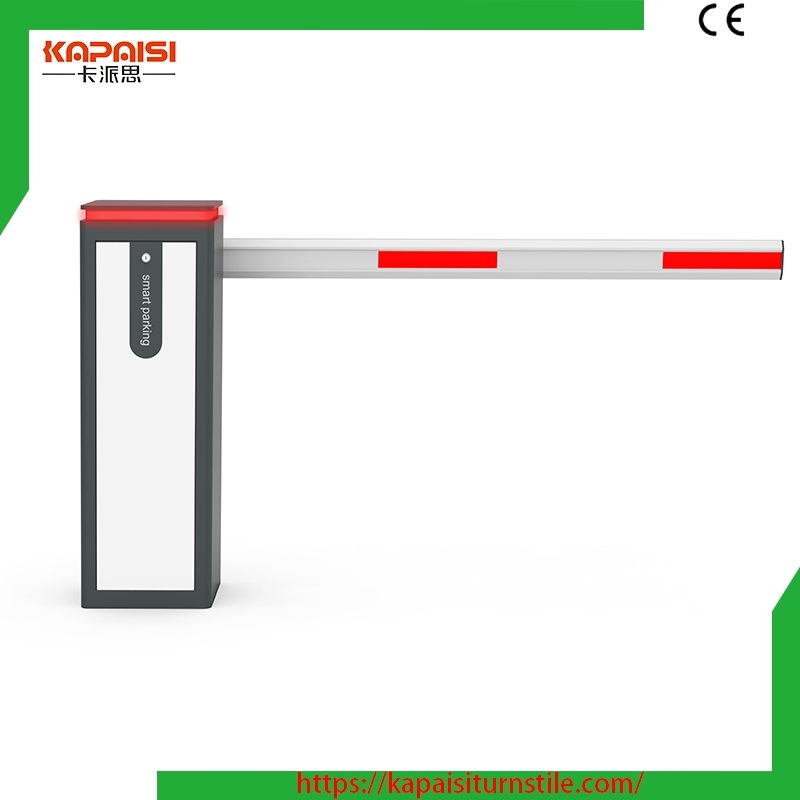

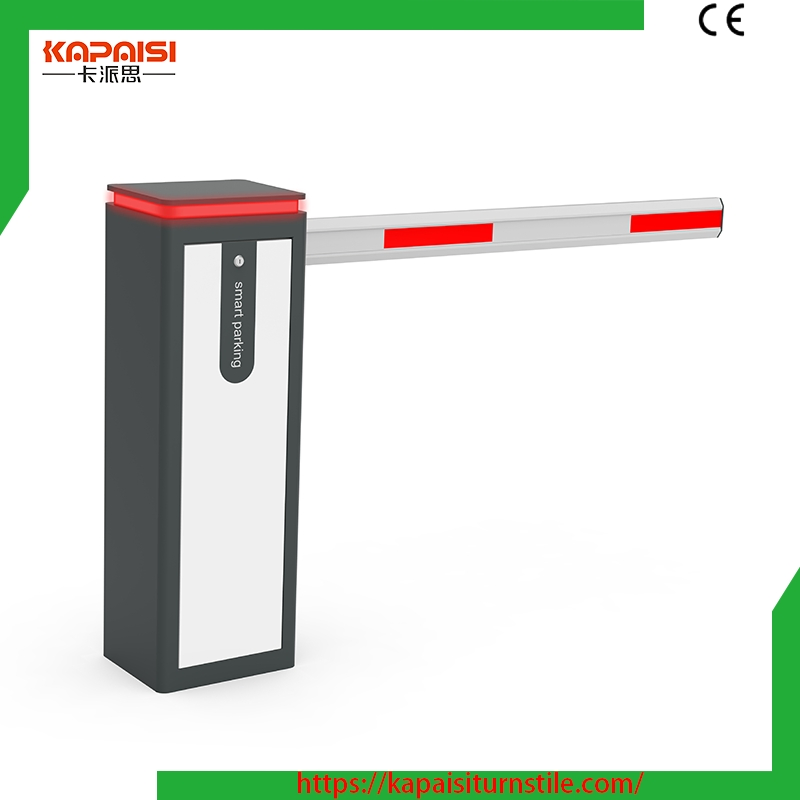

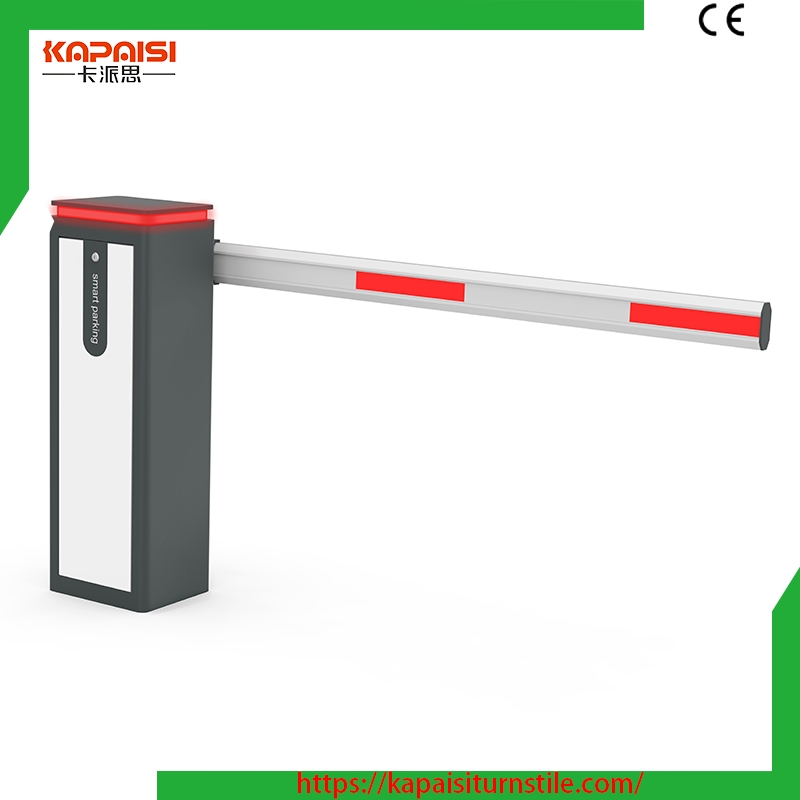

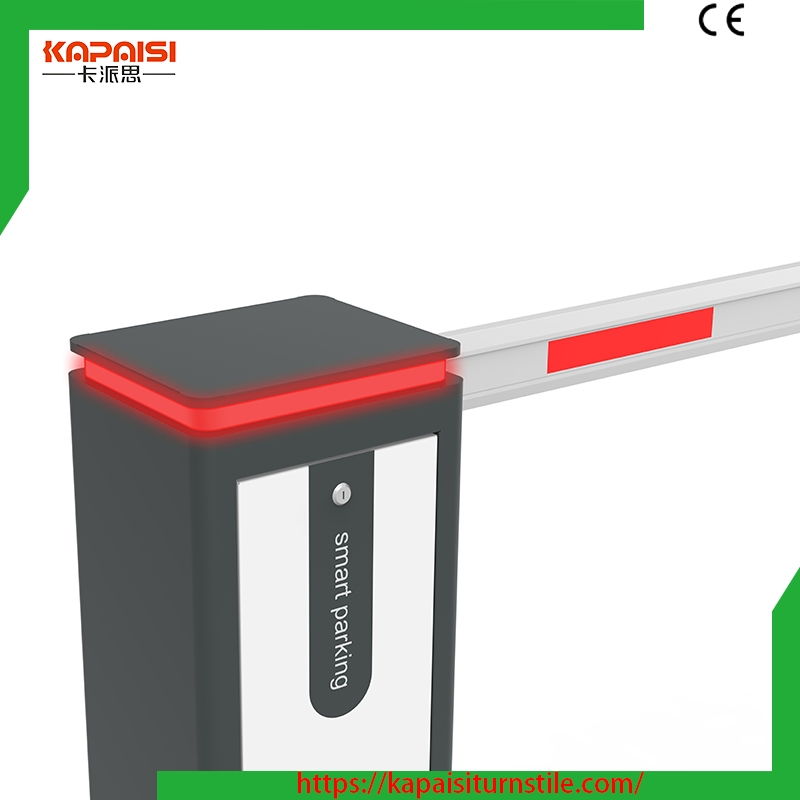

Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
1 / 5
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate
Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate

Automatic Parking Lot Access Control Security System with Swing Arm Barrier Gate

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.KPS-DZ-8006
AuthenticationBiometric, Proximity Detection, CE
InstallationPole Mount
IntegrationParking Management System
MaterialAluminum Alloy
Operating SystemAndroid / iOS
Power SupplyAC220V±10% 50Hz
TechnologyLicense Plate Recognition
Output Power120W
Protection GradeIP44
Automatic Parking Lot Access Control
🚀 Product Overview
  • Compact Structure: The movement is installed by side fixation for optimal space efficiency.
  • Integrated Die-Casting: Main body made of aluminum alloy via die-casting, ensuring mechanical strength and fast heat dissipation.
  • High Efficiency Transmission: Adopts helical gear reduction; gears undergo carburizing heat treatment and high-precision grinding for shock resistance and long life.
  • DC Brushless Technology: Low heat generation, stable transmission, and large output torque with speed regulation and buffer deceleration.
  • Safety Voltage: Utilizes 24V DC, significantly safer than traditional AC motor systems.

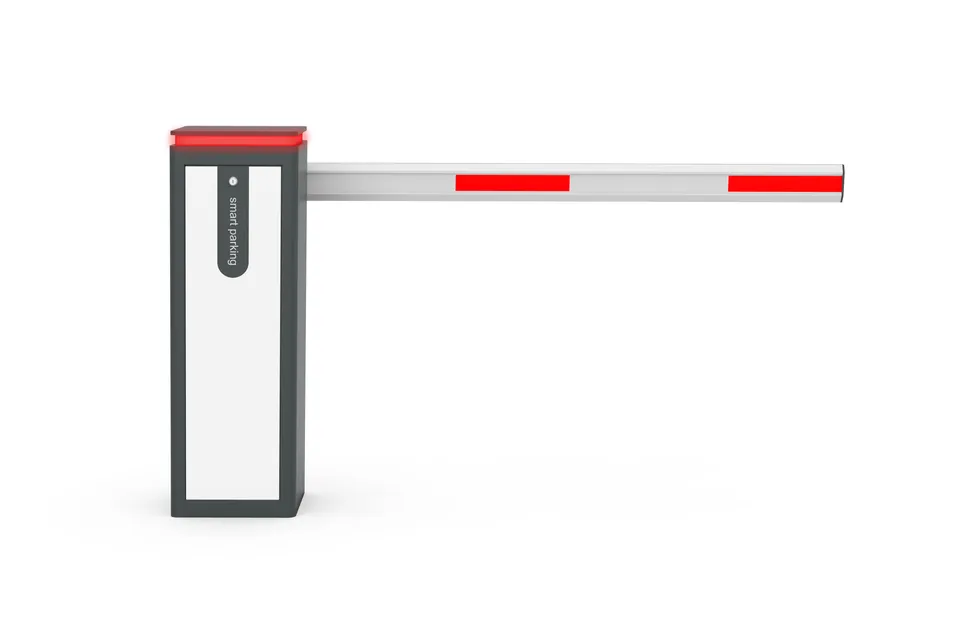

Product View 1

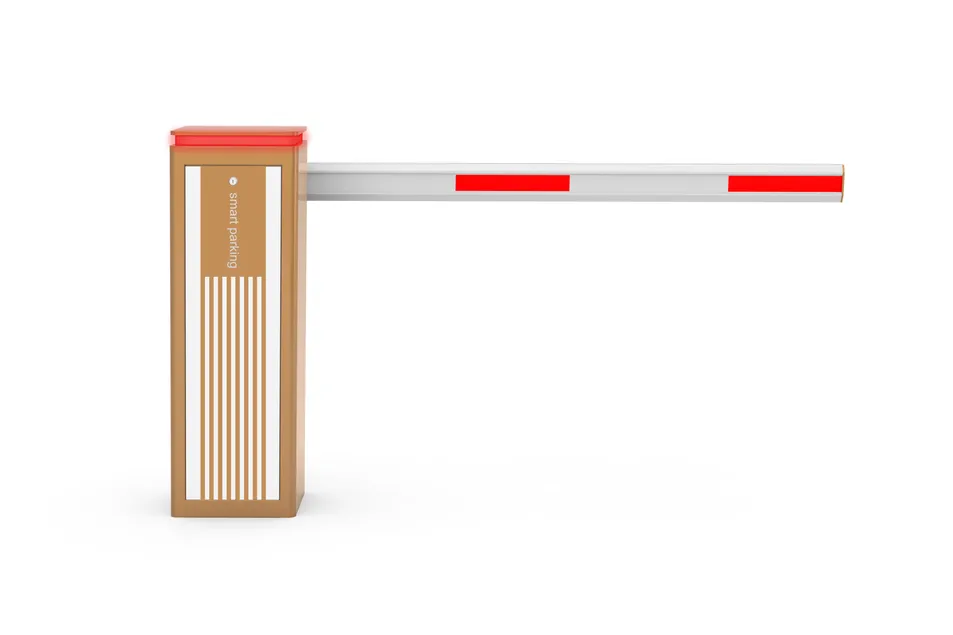

Product View 2
⚙️ General Technical Conditions
Insulation Resistance≥ 100MΩ
Electrical Strength700V/S without breakdown
Motor Noise≤ 55dB
Working Temp-35℃ to 80℃
Humidity≤ 90% (no condensation)
Lifting Time1.5S - 6S (adjustable)
📏 Compatible Rod Types

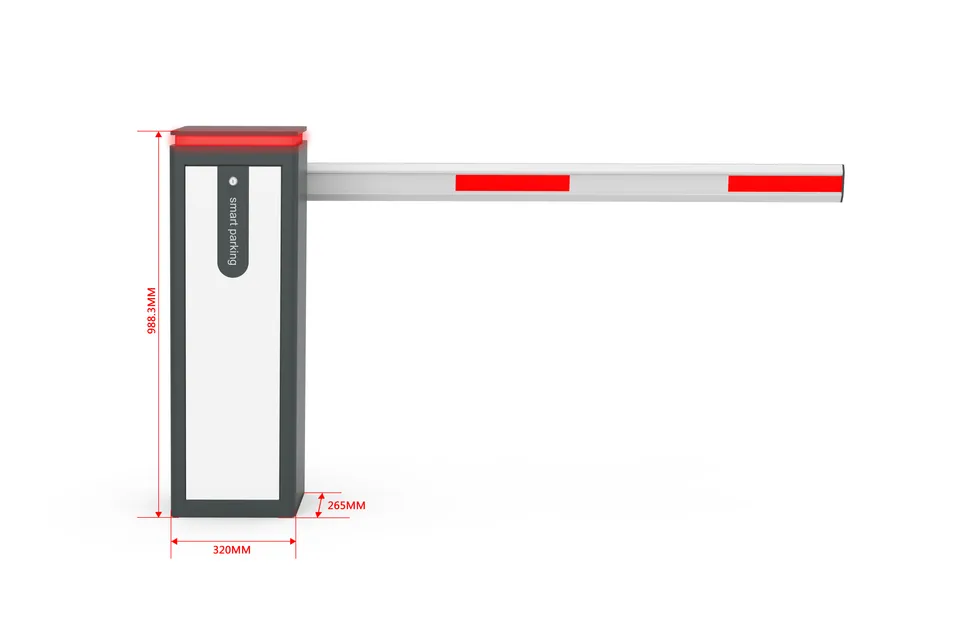

Rod Type 1

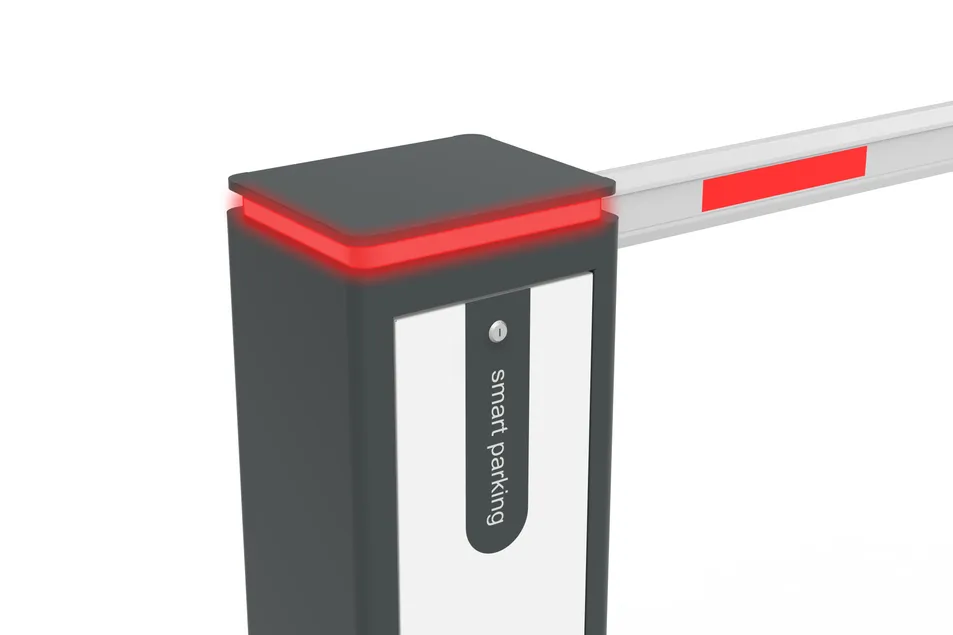

Rod Type 2

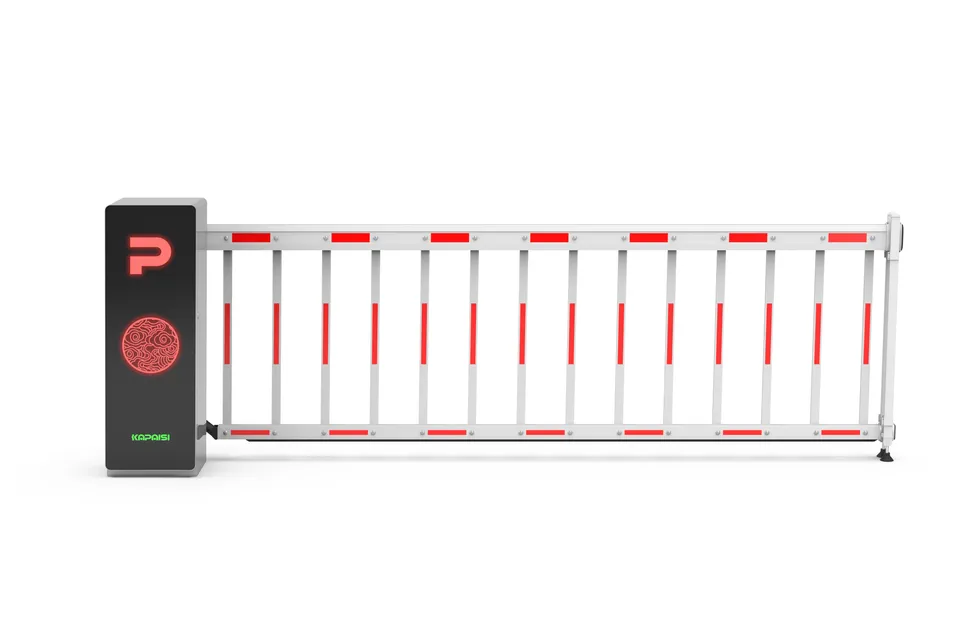

Rod Type 3

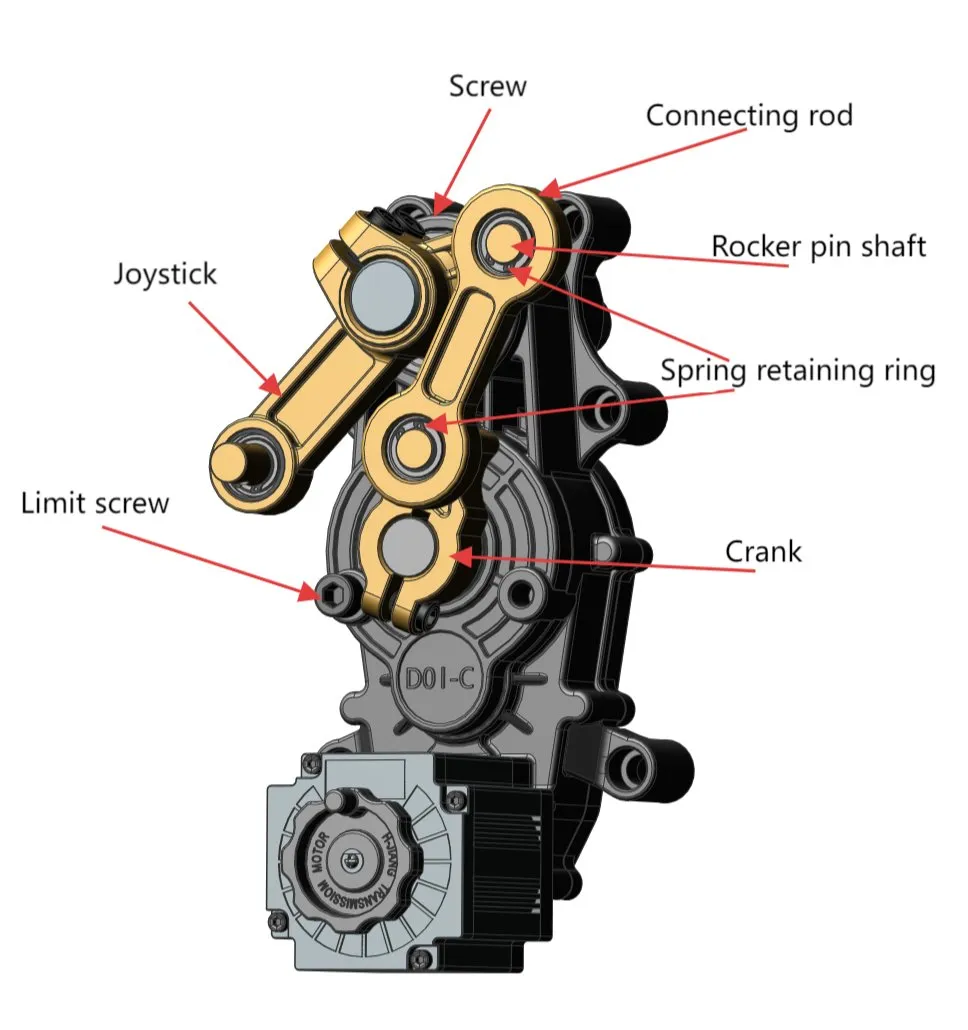

⚡ Motor Parameters
Motor Specs Diagram
Model Output Power Voltage Rated Current Speed Lifting Time
D01C-0.8S120WDC24V8A1500r/min0.8s-1.5s
D01C-1.5S120WDC24V8A1500r/min1.5s-3.0s
D01C-3.0S120WDC24V8A1500r/min3.1s-7.0s
🏢 Manufacturer Profile
We are a comprehensive hardware manufacturer for channel entrances integrating R&D, production, sales and service. The company has passed ISO9001:2015 quality management system certification. Our main products include heavy-duty airborne barrier gates, advertising barrier gates, intelligent barrier gates, pedestrian passage doors, speed gates, and hydraulic bollards.
Equipped with the most complete production facilities, we maintain a strong production and processing capacity. Our products are widely used in government agencies, airports, residential communities, shopping malls, and parking lots globally. Adhering to the business philosophy of "Technology is the core," we provide standardized high-end intelligent channel products to over 80 countries including Germany, the UK, Russia, Canada, and the UAE.

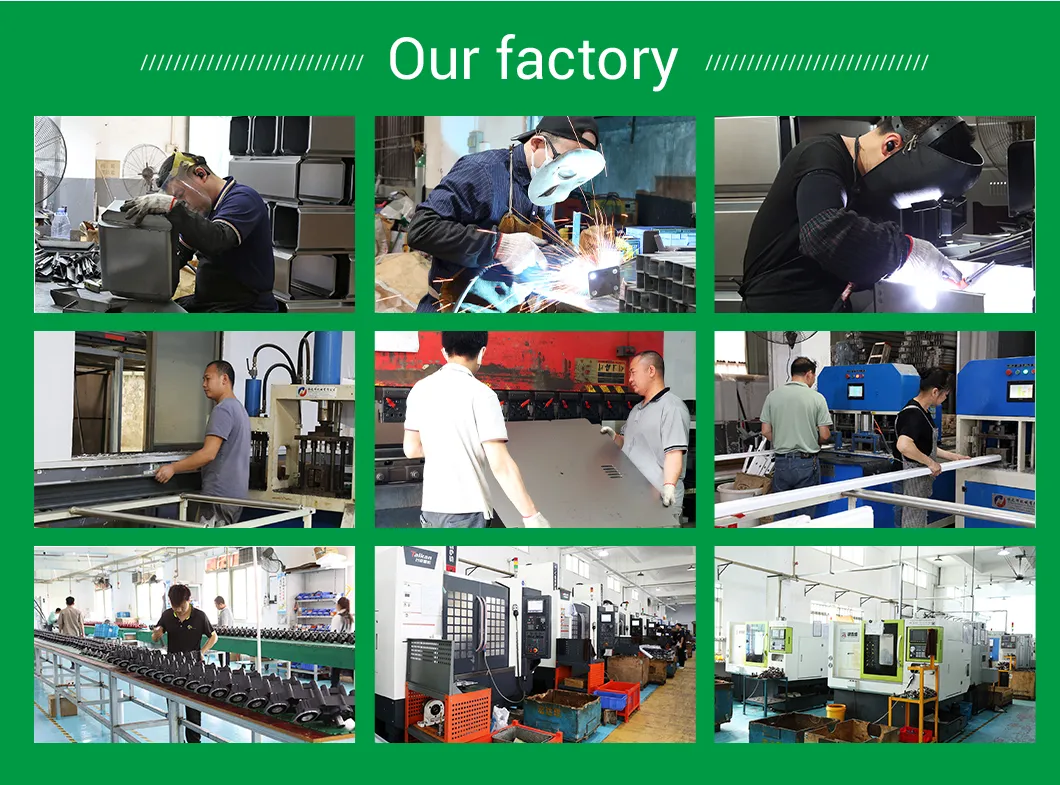

Production Facility
📜 Certifications & Logistics
Certification
Packaging
❓ Frequently Asked Questions
In which scenarios are your barrier gates suitable?
Our barrier gates are ideal for residential and commercial entrances, parking lot charging systems, expressway toll stations, and logistics parks.
What triggering methods are supported by the barrier gate?
We support multiple modes: Remote control, License Plate Recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
Can it operate normally under extreme weather conditions?
Yes, with an IP54-IP68 rating and an operating temperature range of -40℃ to +80℃, the units include built-in lightning and overheat protection.
What types of barrier poles are available for selection?
We offer six major types: straight rods (2-6m), curved rods for low ceilings, fence poles for anti-climbing, advertising poles with LED, folding rods, and anti-collision rods.
Is technical support available for installation?
We provide comprehensive online technical support to guide you through the installation and configuration of the barrier system.
What is the warranty period for the DC brushless motor?
Our DC brushless motors are designed for high durability and long service life; please refer to the specific product contract for detailed warranty terms.
