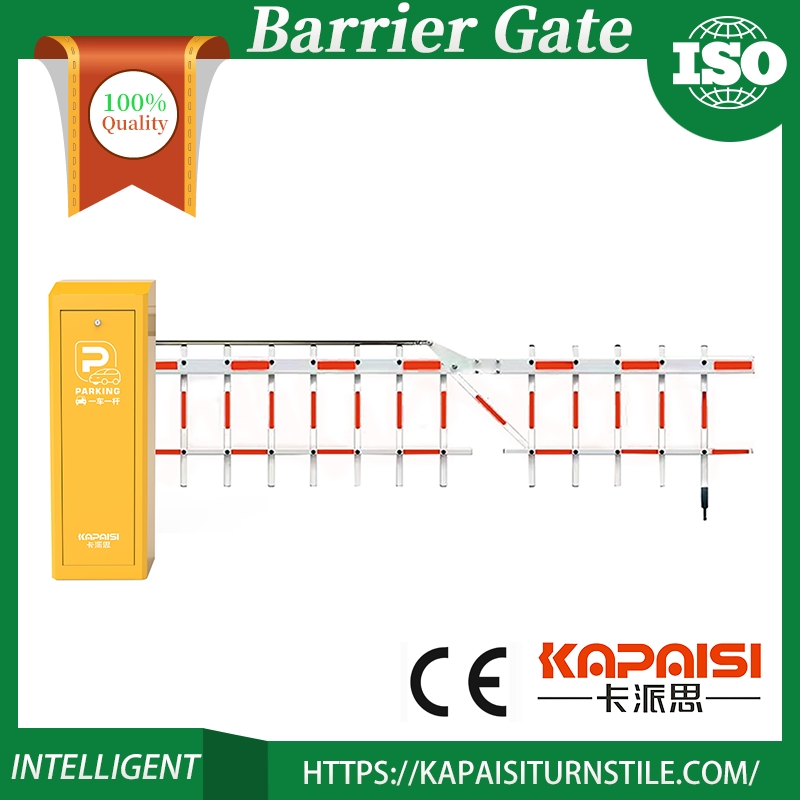

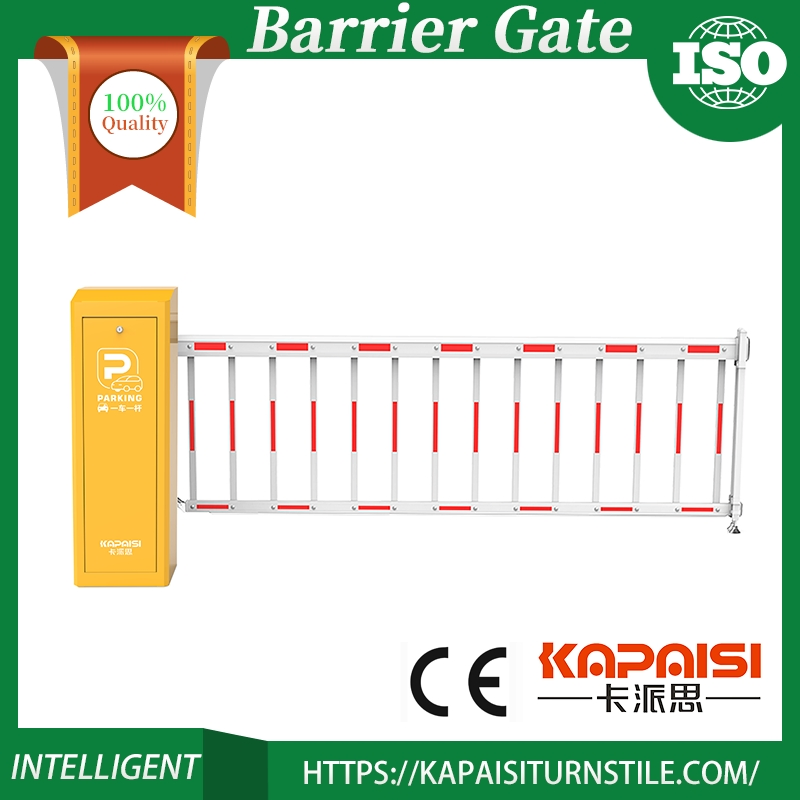

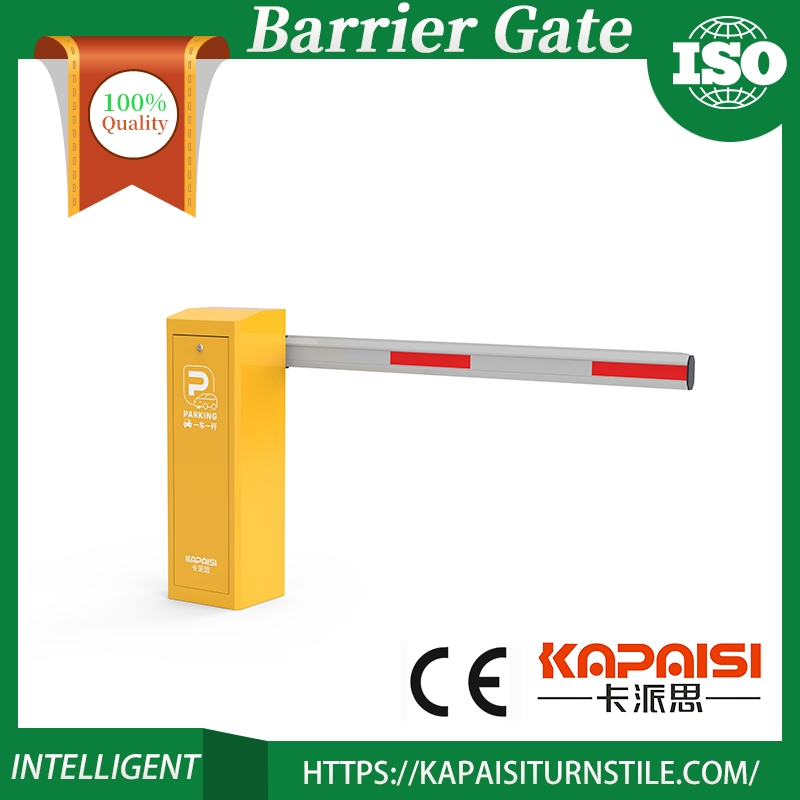

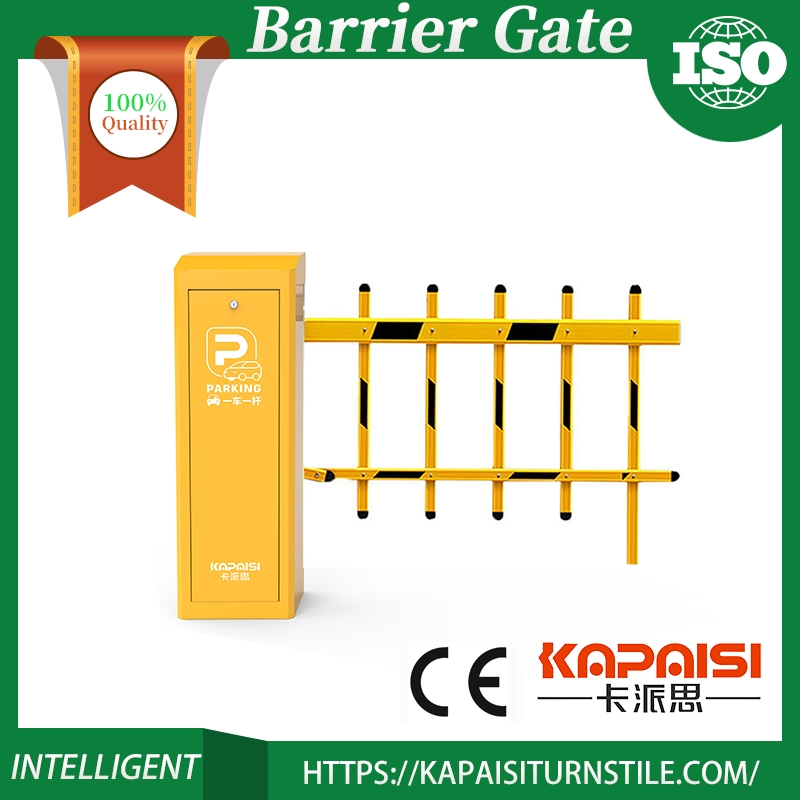

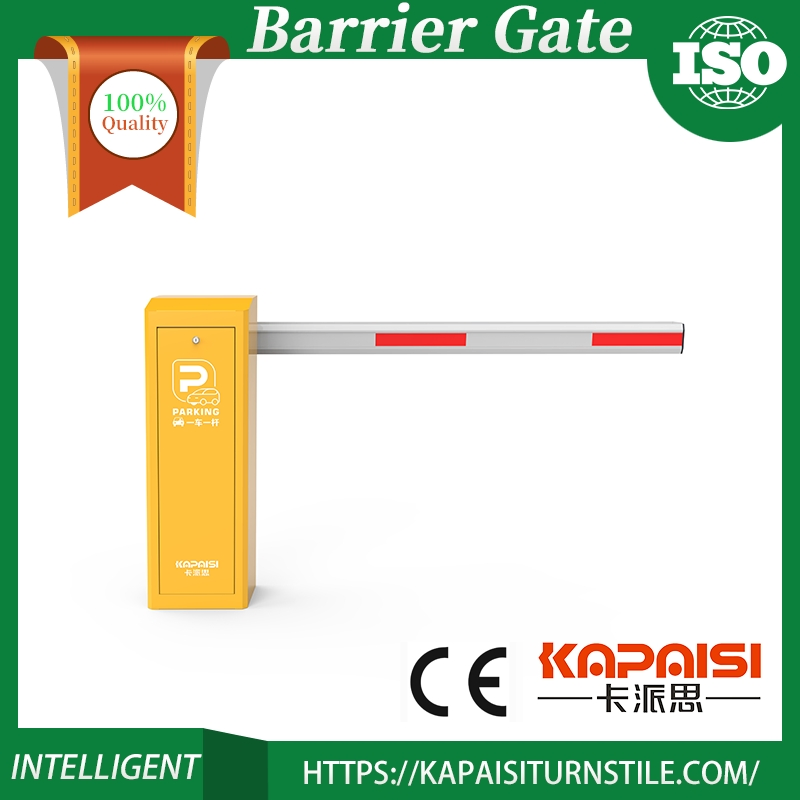

Automatic Parking Access Control Security System Fence Arm Traffic Barrier Gate

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.KPS-DZ-8014
AuthenticationBiometric, Proximity Detection, CE
Installation MethodPole Mount
IntegrationParking Management System
MaterialAluminum Alloy
Operating SystemAndroid/Ios
Power SupplyAC220V±10%50Hz
TechnologyLicense Plate Recognition
Protection GradeIP44
Specification350*280*1020mm
OriginChina
Product Description
Automatic Parking Access Control
Key Features:
  • Side-fixed movement installation with a compact, efficient structure.
  • Aluminum alloy die-casting main body for superior heat dissipation and mechanical strength.
  • Helical gear reduction transmission for high efficiency and shock resistance.
  • DC brushless movement ensuring low heat generation and stable large torque output.
  • Safe 24V DC motor voltage for enhanced operational security.
Product Overview

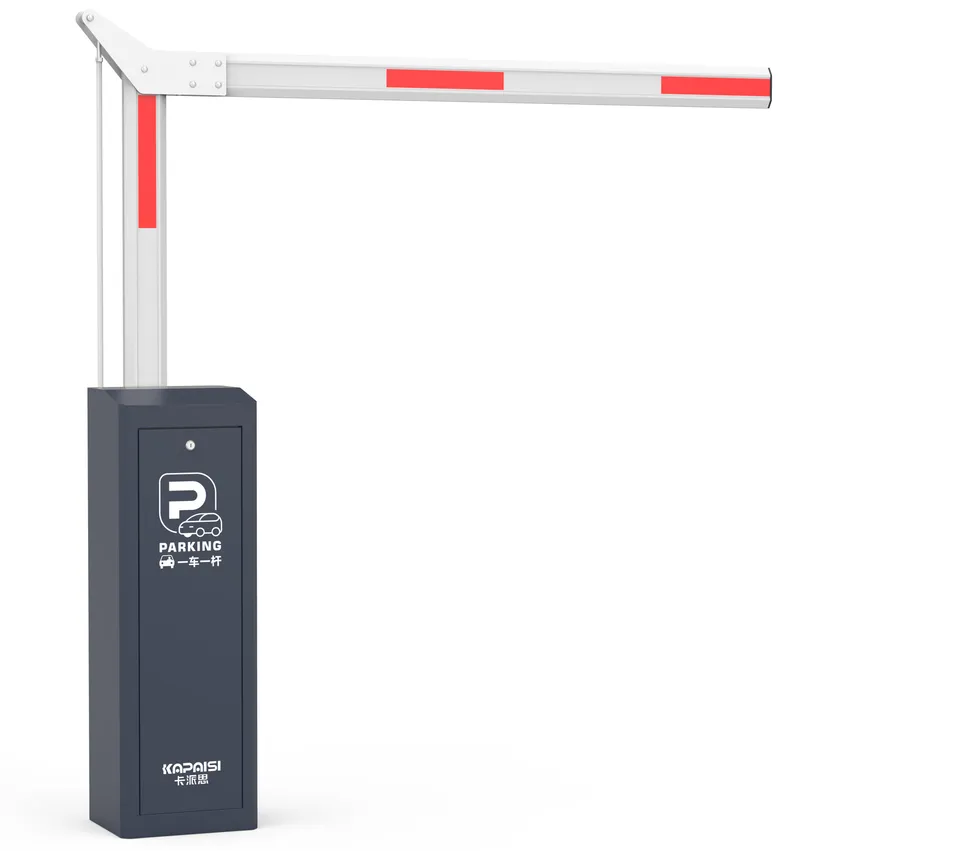

Technical Conditions
Technical Specifications
Working Power SupplyAC220V ± 10% 50Hz
Working Temperature-40°C to +85°C
Motor Power24V DC 100W brushless DC motor
Lifting Time1.5S - 6S adjustable
Remote Distance≤ 30 meters
Chassis Thickness1.5MM
Motor Noise≤55dB
Compatible Rod Types

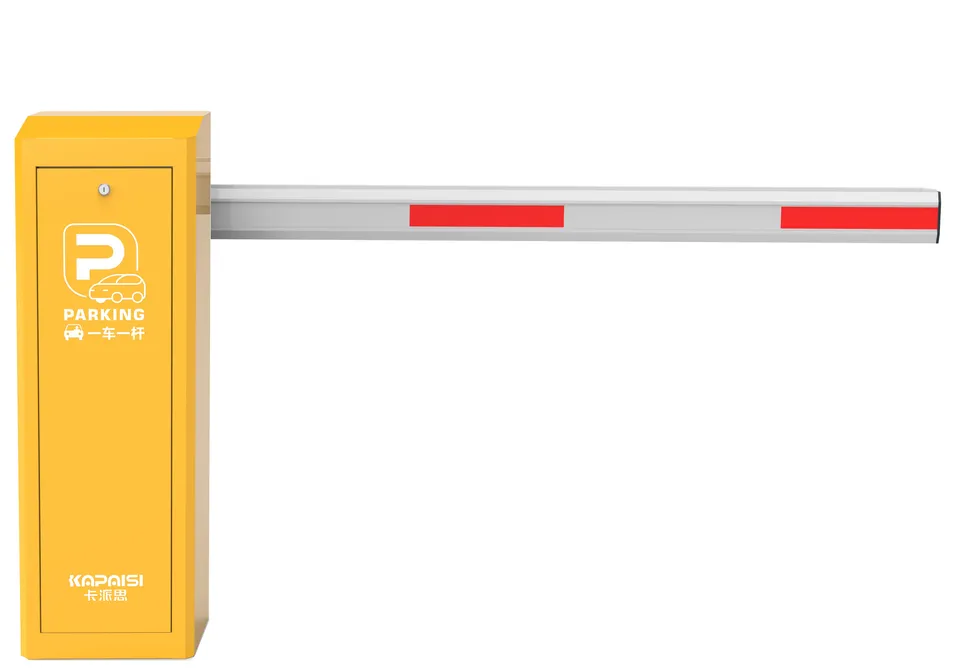

Rod Type 1

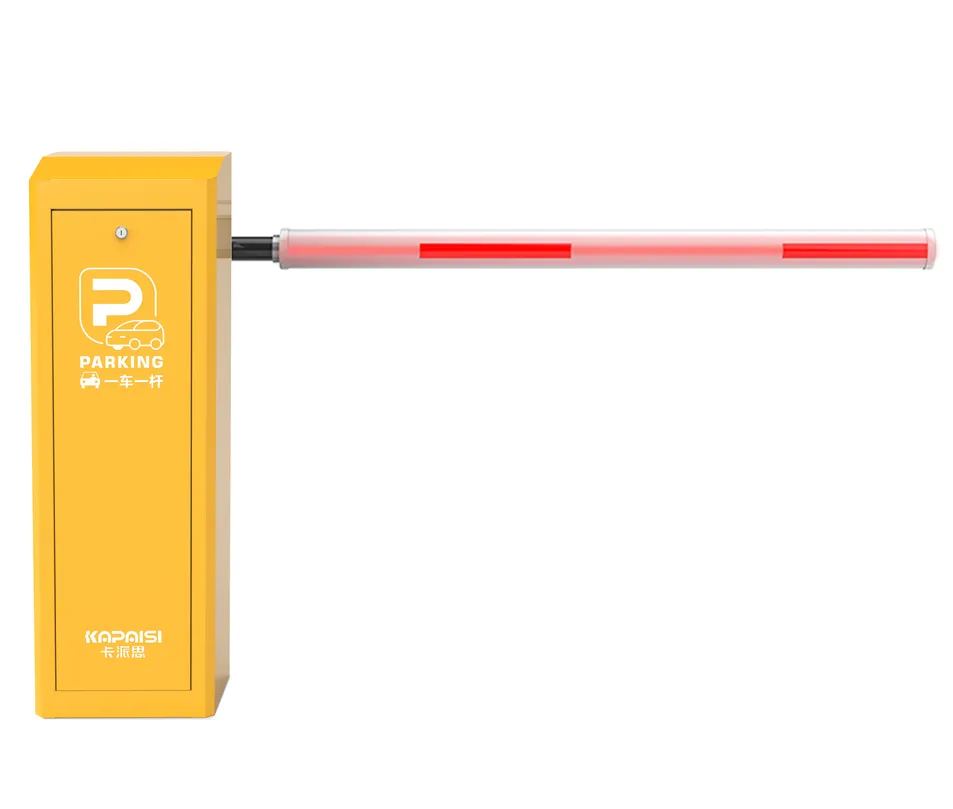

Rod Type 2

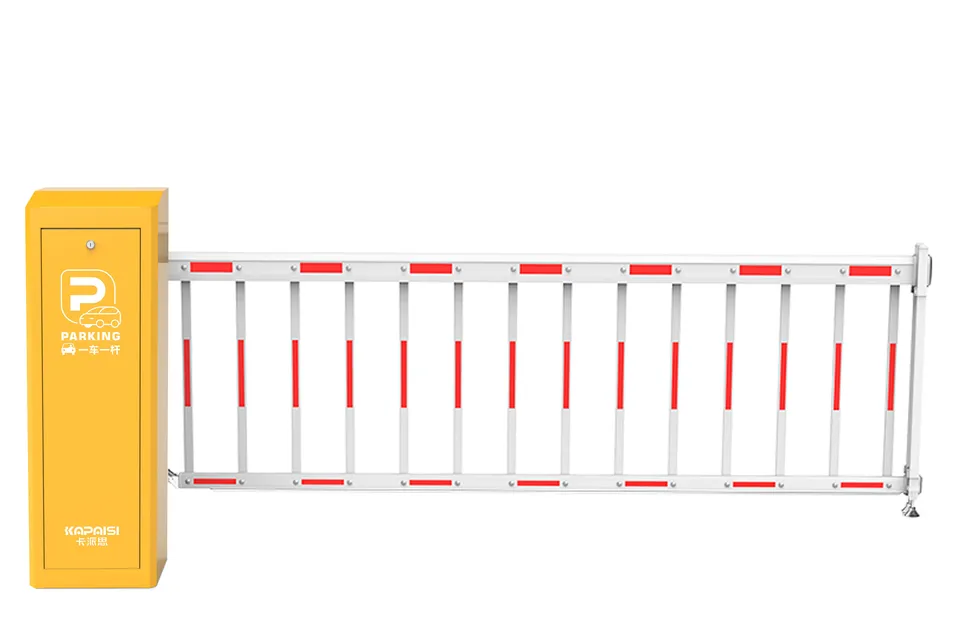

Rod Type 3

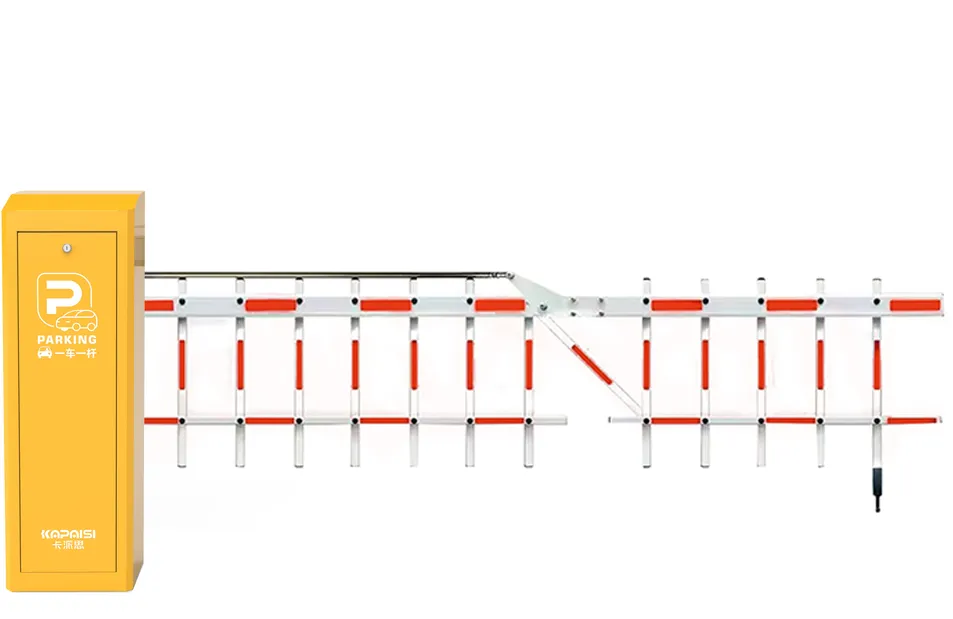

Rod Type 4
Motor Parameters

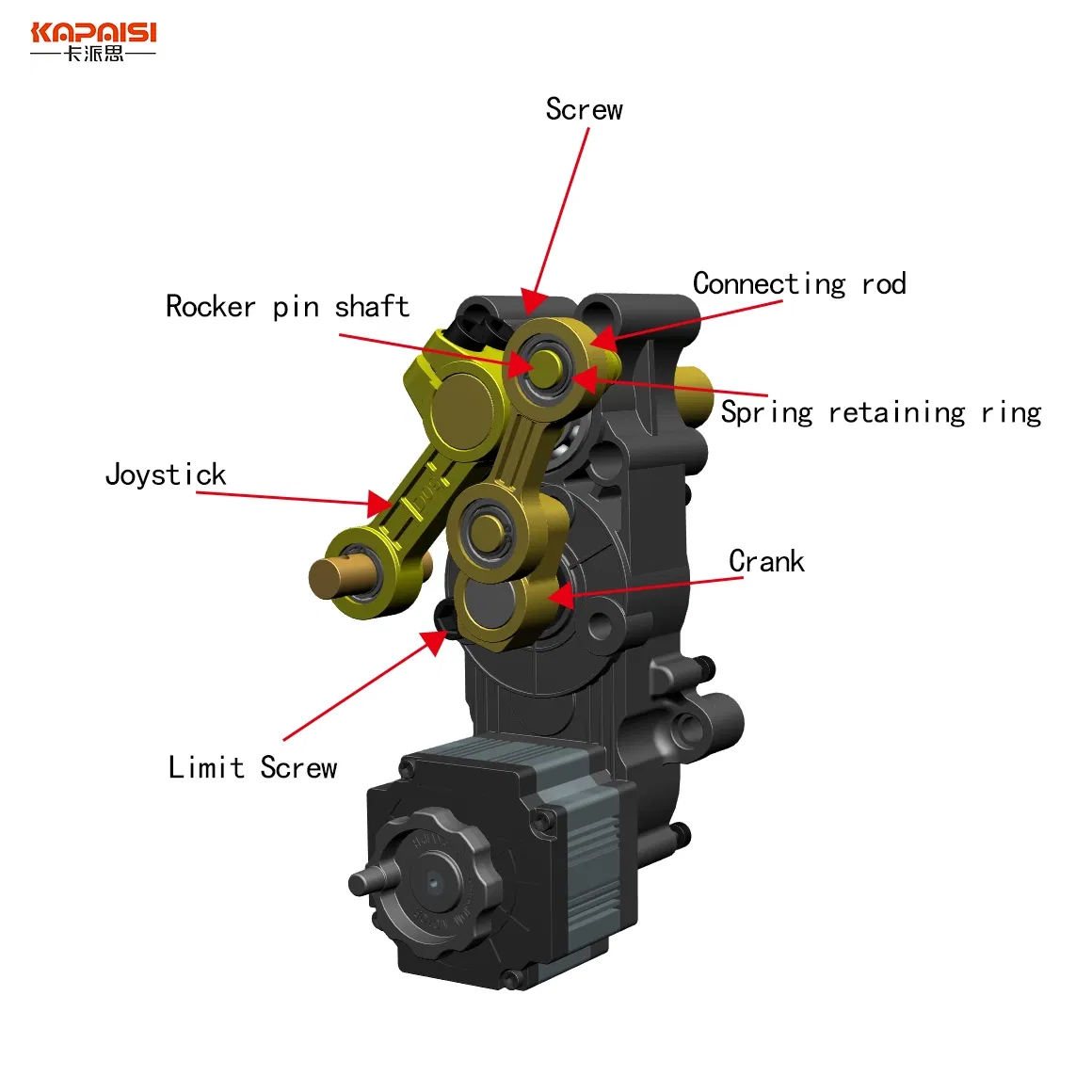

Motor Structure
Rated Torque129.9 N·m
Rated Speed10 r/min ±10%
No-load Noise<50 dB(A) at 1m
Insulation ClassB
Protection ClassIP44

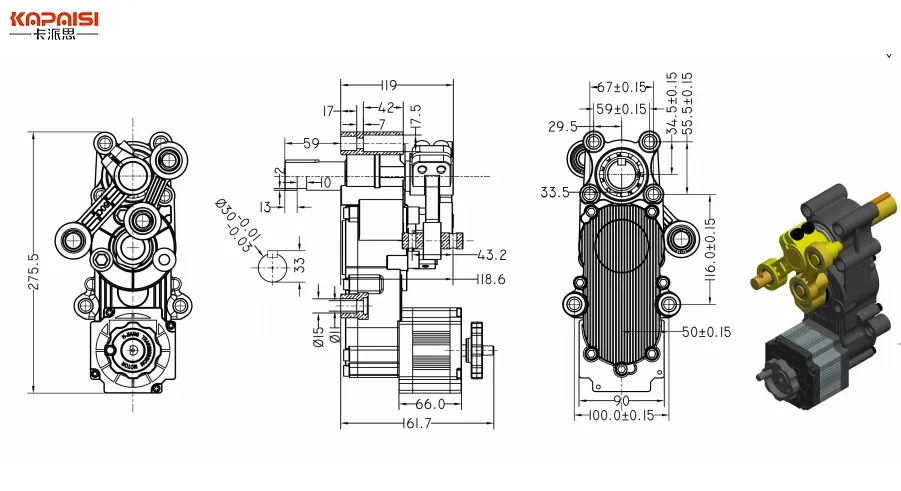

Motor Chart
Manufacturing & Quality

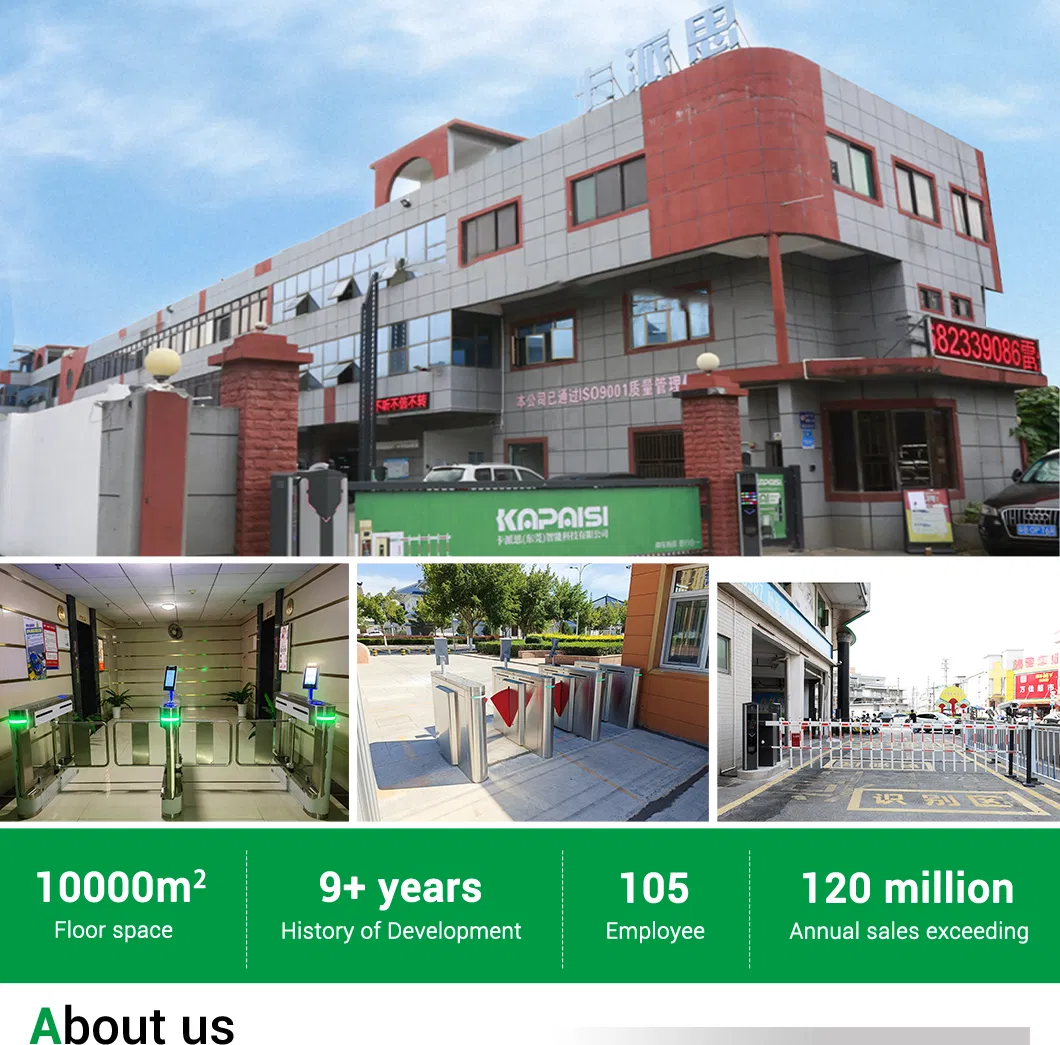

Factory Facility

Our facility is a comprehensive hardware manufacturer for channel entrances, integrating R&D, production, and service. With ISO9001:2015 quality management system certification, we specialize in heavy-duty barrier gates, intelligent passage systems, and facial recognition equipment. Our production park covers approximately 10,000 square meters, equipped with advanced facilities and managed by senior technical personnel.

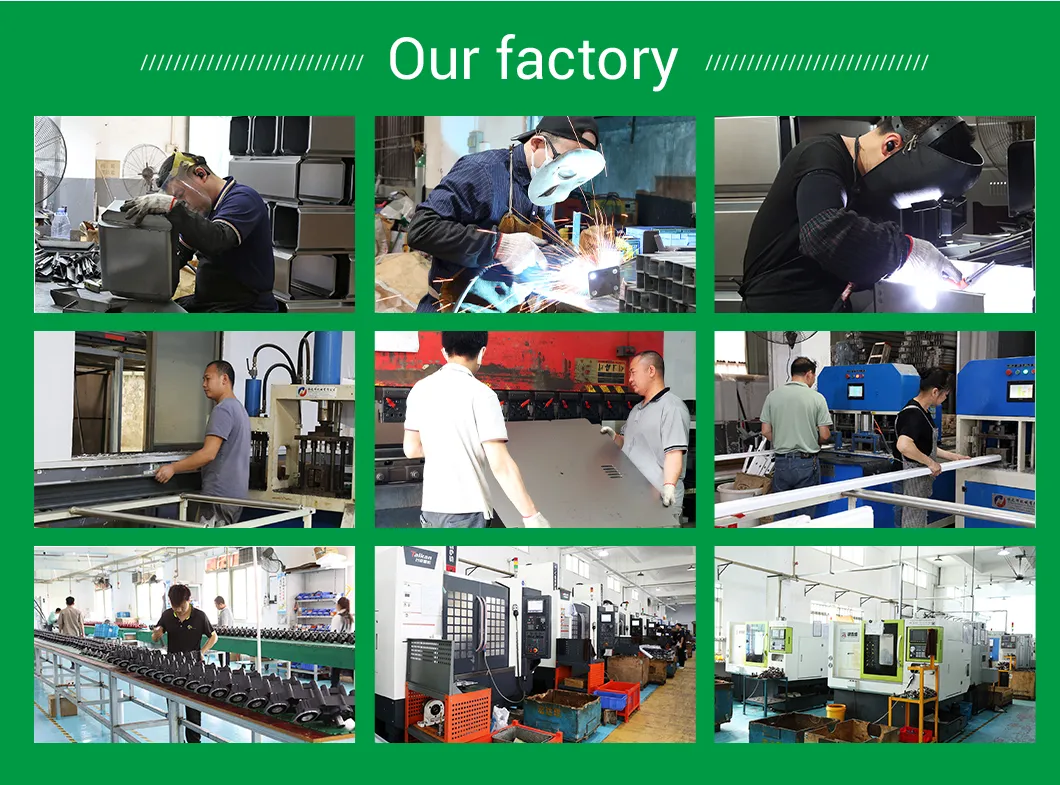

Production Line
Certification & Global Shipping
Advantage
Certifications
Packaging and Logistics
Frequently Asked Questions
In which scenarios are your barrier gates suitable?
They are ideal for residential/commercial entrances, parking charging systems, enterprise access control, expressway toll stations, and logistics parks.
What triggering methods are supported?
Supports remote control, license plate recognition (LPR), ground induction loops, mobile App control (WIFI/Bluetooth), and smart parking platform integration.
Can it operate under extreme weather conditions?
Yes, with IP54/IP68 protection, an operating range of -40℃ to +80℃, and built-in lightning and overheat protection.
What types of barrier poles can I choose from?
We offer straight rods (2-6m), curved rods for low ceilings, fence poles for anti-climbing, advertising poles, folding rods, and anti-collision rods.
Is the motor system safe for long-term use?
Absolutely. The system uses a 24V DC brushless motor which is safer than AC motors, generates less heat, and features buffer deceleration for smooth operation.
What is the expected lifting time for the arm?
The lifting time is adjustable between 1.5 and 6 seconds depending on the specific model and arm length requirements.
