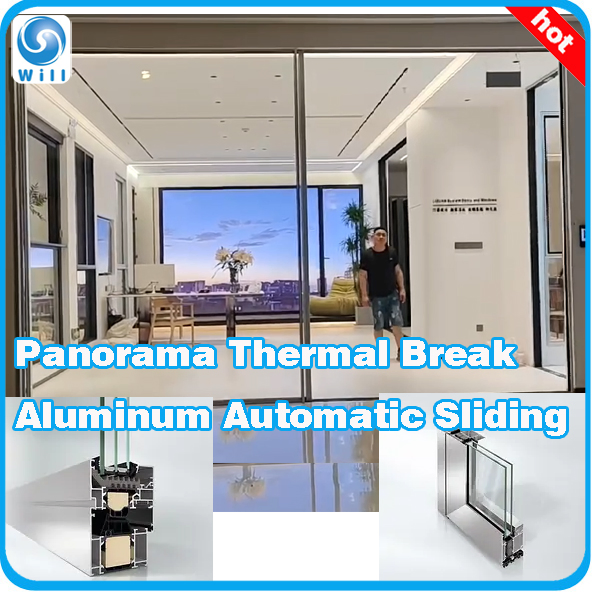

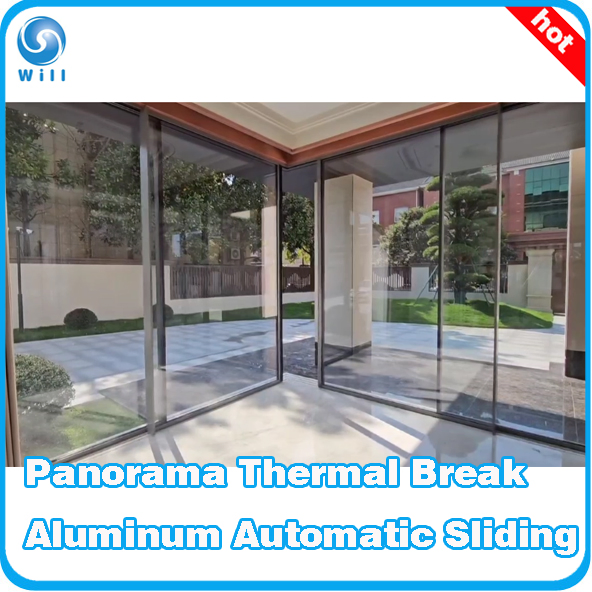

Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
1 / 5
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door

Automatic Panorama Thermal Break Aluminum Door

Customization: Available
Warranty: 36monthes
Material: Aluminum Alloy
Send Inquiry

Product Description

🔹 Basic Specifications
Model NO.
Automatic Panorama Thermal Break Aluminum Door
Type
Sliding
Open Style
Sliding
Opening Type
Induced
Special Function
Soundproof
Color
White
Certification
CCC, ISO9001
Position
Room
Surface Finishing
Finished
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Length
2000mm to 6000mm
Model
SLA60
Function
Works with Original Dorma Parts
Production Capacity
2000sets Every Month
HS Code
8537101990
📦 Packaging & Delivery
Package Size
220.00cm * 125.00cm * 10.00cm
Package Gross Weight
45.000kg
Standard System Weight
Around 45kg (4200mm)
Transport Package
Carton with Film
🖼️ Product Showcase

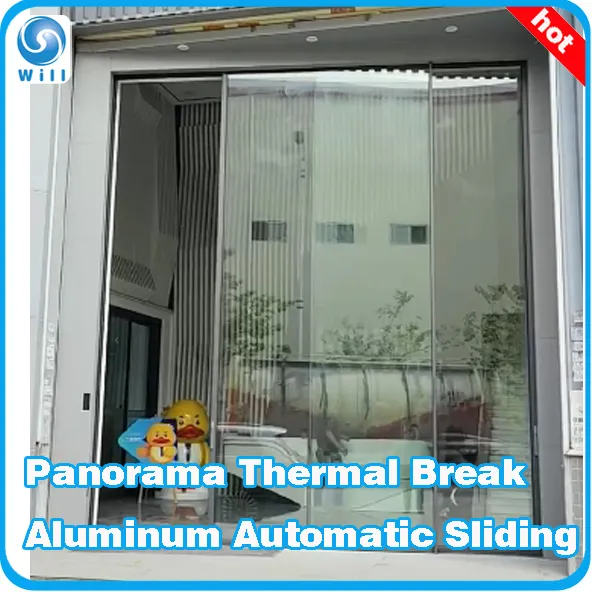

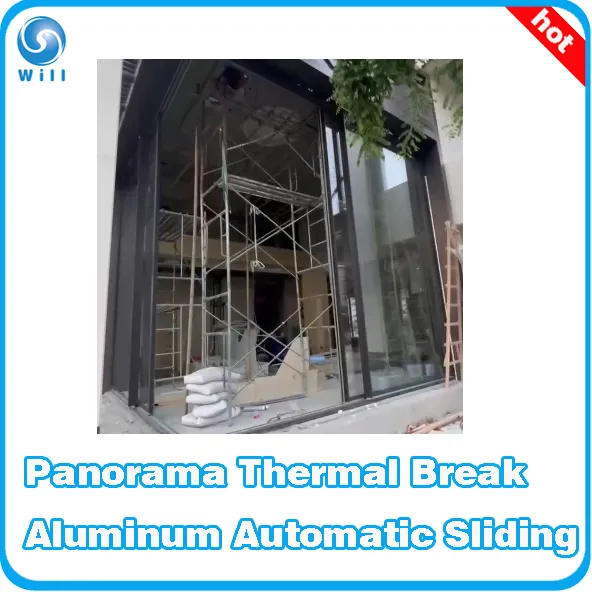

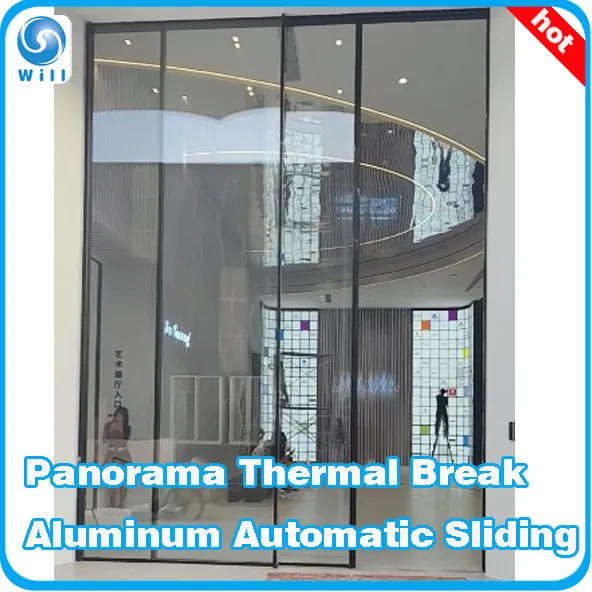

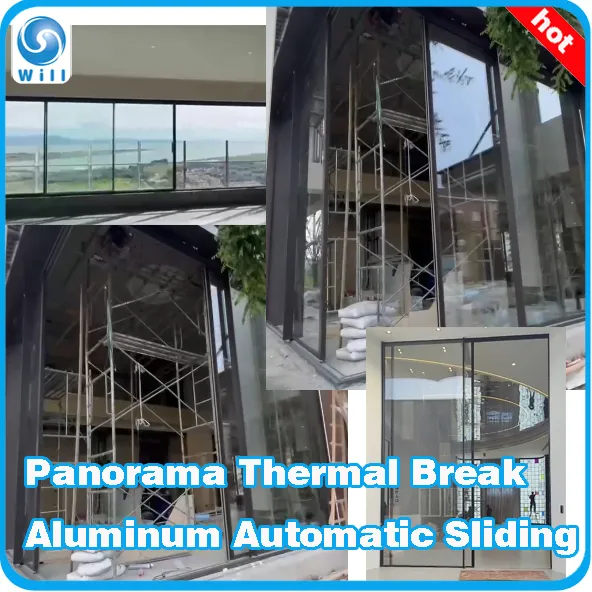

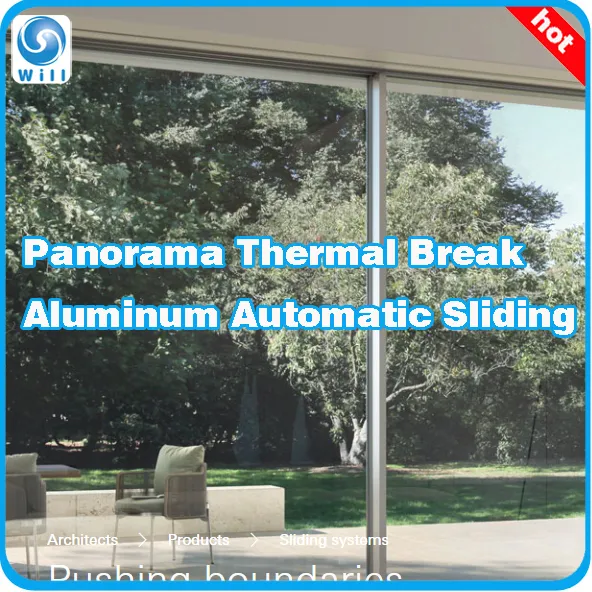

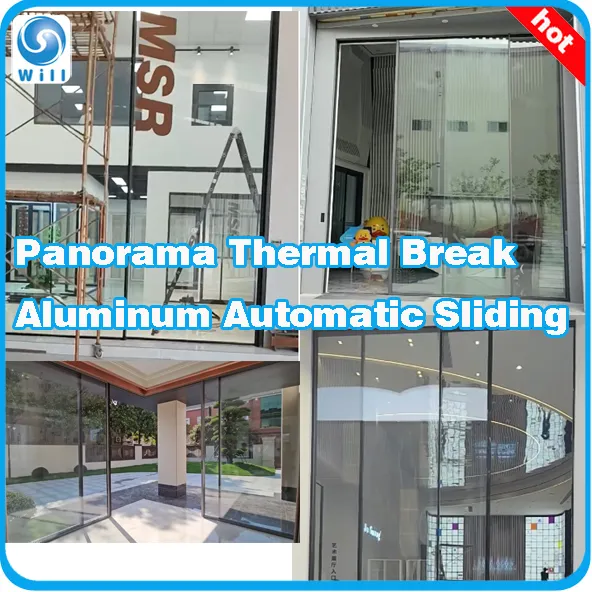

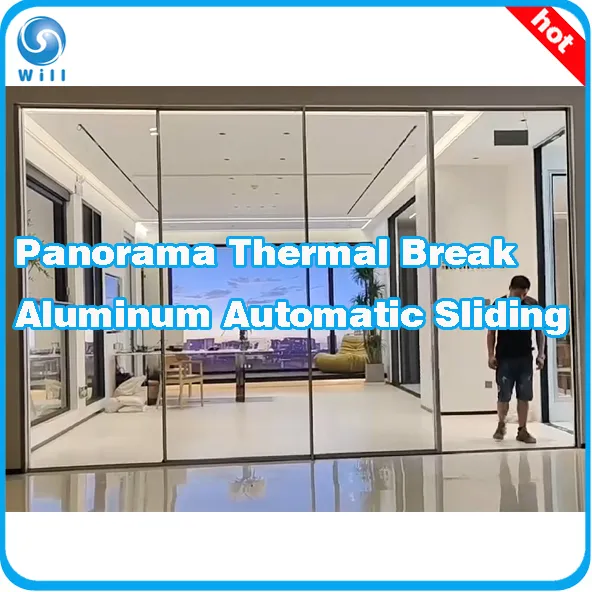

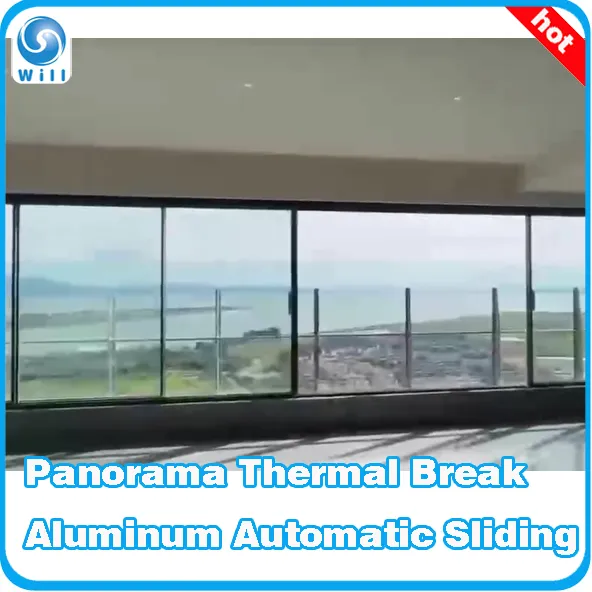

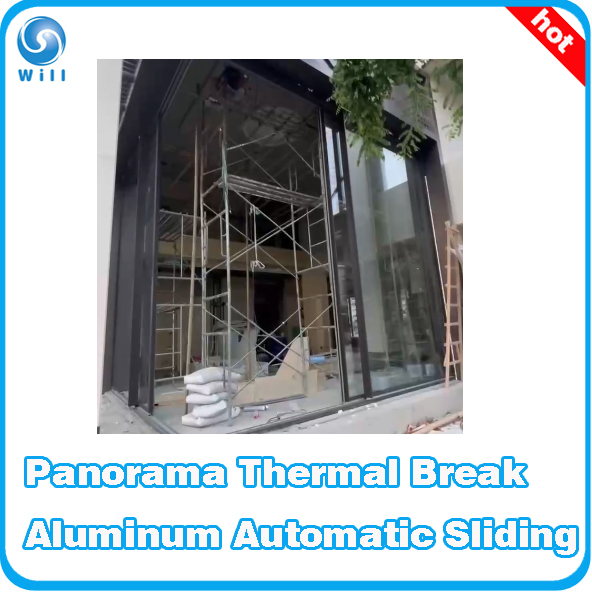

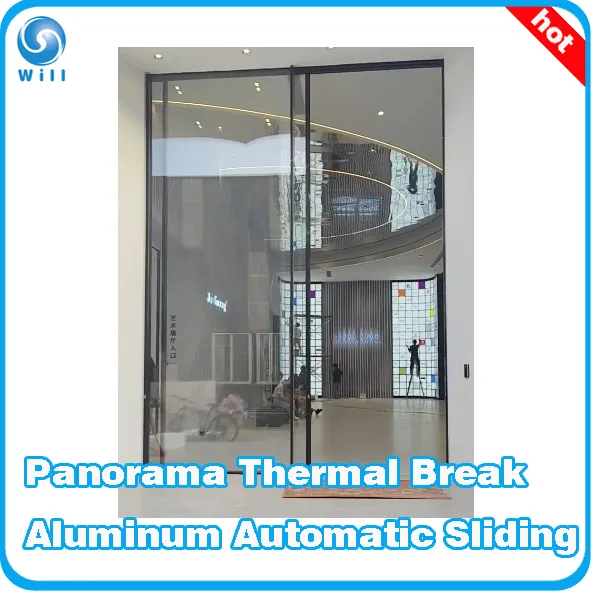

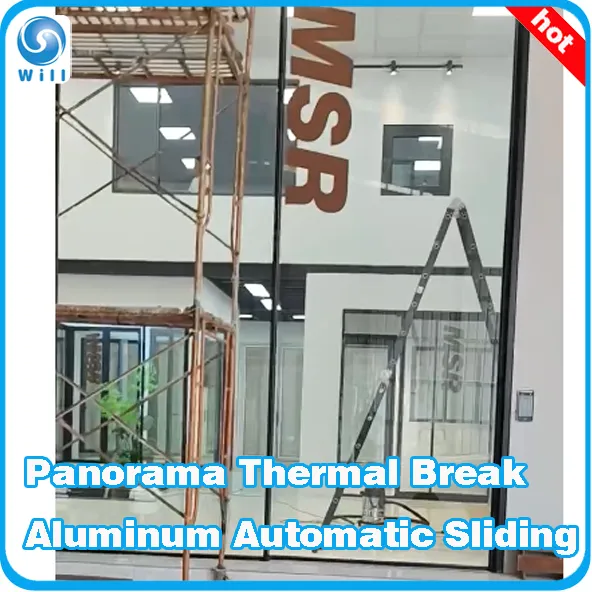

Panorama thermal break aluminum door air tight hermetical Wind Load Resistance sliding door
Automatic Door 1 Automatic Door 2 Automatic Door 3 Automatic Door 4 Automatic Door 5 Automatic Door 6 Automatic Door 7 Automatic Door 8 Automatic Door 9 Automatic Door 10 Automatic Door 11 Automatic Door 12
⭐ Key Features
✔
Function 95% similar as KABA and works with original KABA parts.
✔
Equipped with Dunker Motor 99.5W, powerful enough for 2X160KG gates.
✔
Easy installation: Drive system pre-installed before leaving the factory.
✔
Germany Dunkermotor, CE approved with 18 months warranty.
✔
Passed one million times of rigorous testing.
✔
Low noise design (<40dB) for quiet operation.
📊 Technical Specification (SLA60)
Weight of gateSingle/Bi-part 1X200KG / 2X120KG
Width of gateSingle/Bi-part 900-6100MM
Master Controller32 digital microprocessor
Motor Specs99.5W 60VDC 2A IP50 (Brush/Dunker)
Opening Speed300-700mm/s
Closing Speed300-650mm/s
Max Open Strength150N
Power SupplyAC110V-250V 50/60Hz
Temperature Range-15°C to +70°C
Protection DegreeElectronic IP23
🛡️ Emergency & Safety Functions
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction
📋 Standard & Optional Parts

Standard Configuration

  • Minidrive Unit & Transformer
  • Motor & Decoder
  • Basic control module
  • Track & Carrier
  • Return Pully & Belt connection
  • End stop & Door bracket

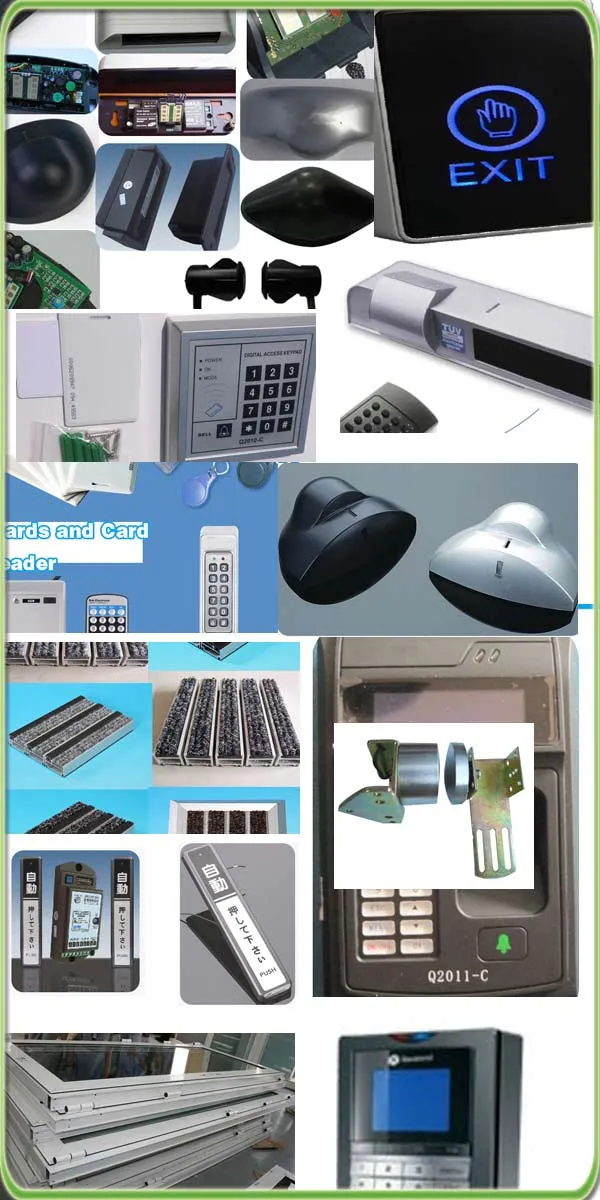

Optional Parts

  • Motion Sensor
  • Lock latch
  • Battery Backup
  • Beam safety photocell
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6 Technical Drawing 7 Technical Drawing 8

Frequently Asked Questions

What type of motor is used in the SLA60 automatic door?
The system utilizes a high-quality Germany Dunkermotor (99.5W, 60VDC) which provides powerful and reliable operation.
What is the maximum weight capacity for this sliding door?
The SLA60 can support a single gate up to 200KG or a bi-parting gate system up to 2X120KG.
How does the door handle power failures?
The door includes emergency opening functions and is designed to be fail-safe, ensuring manual operation or automatic opening during power outages.
Is the door operation noisy?
No, the SLA60 features a low-noise design with operating sounds measured at less than 40dB.
What safety mechanisms are integrated into the system?
It features obstacle detection with an automatic return mechanism, self-monitoring light barriers, and a slow-speed search mode for obstructions.
What is the warranty period for the Panorama thermal break door?
The product comes with an 18-month warranty and has passed testing for one million operational cycles.
