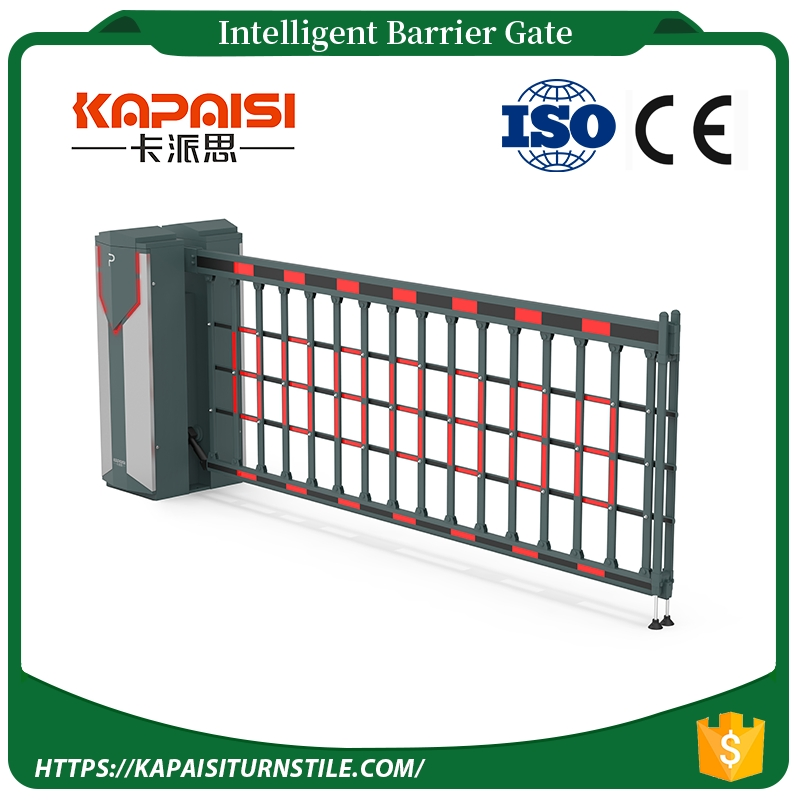

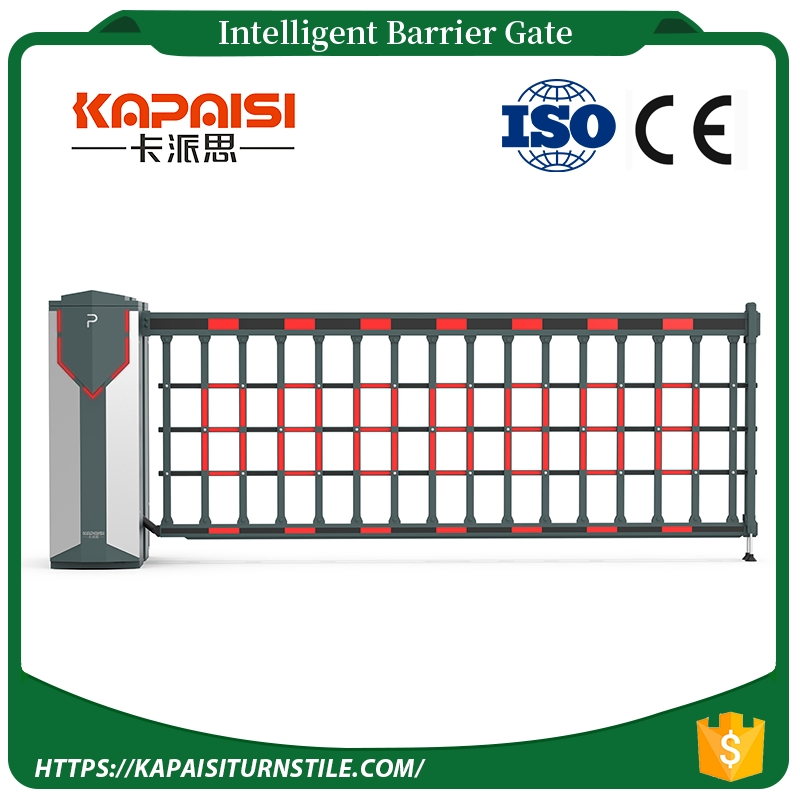

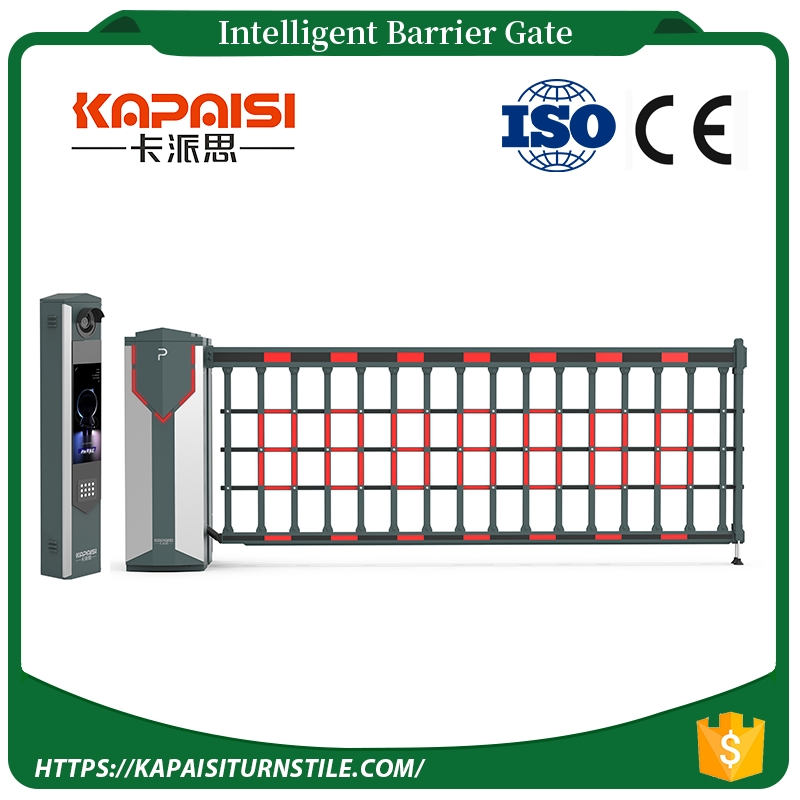

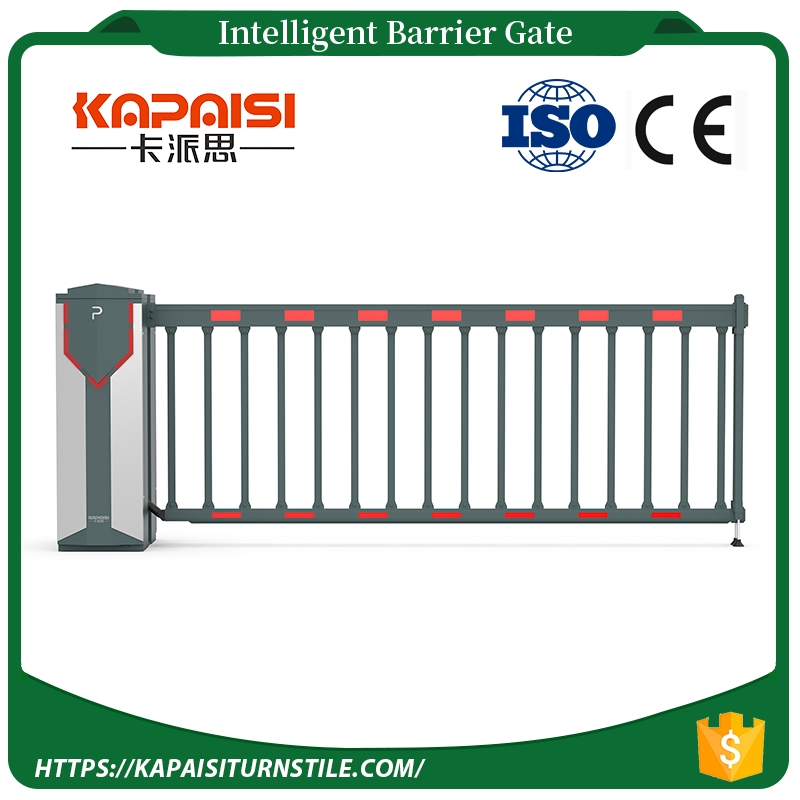

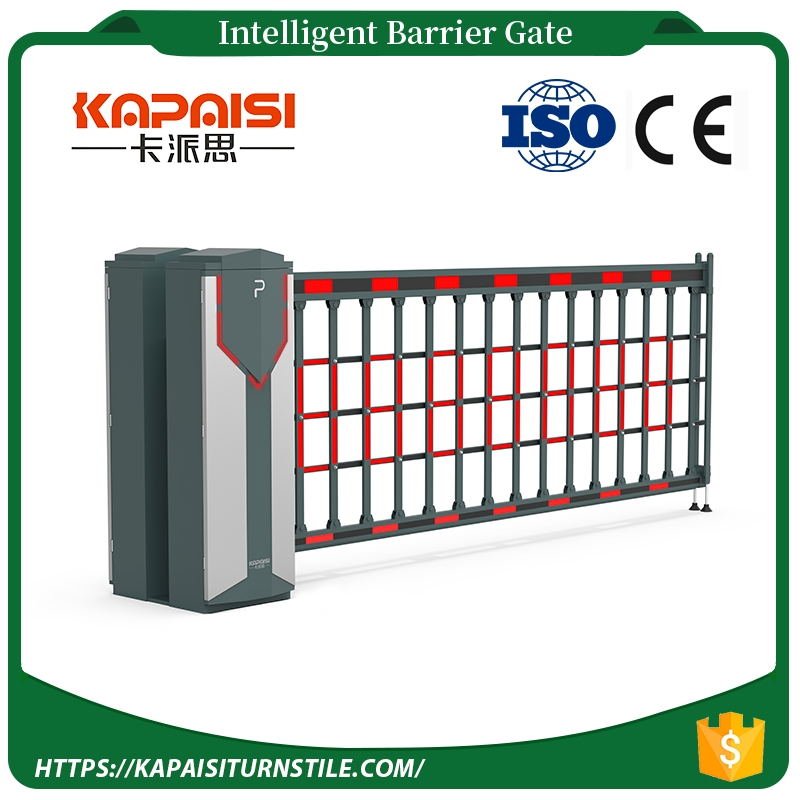

Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
1 / 5
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate
Automated Security Parking Lot Traffic Boom Barrier Gate

Automated Security Parking Lot Traffic Boom Barrier Gate

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
KPS-KJ-9001
Authentication
Biometric, Proximity Detection, CE
Installation
Pole Mount
Material
Aluminum Alloy
Operating System
Android/Ios
Power Supply
AC 220V±10% 50/60Hz DC24V 15A
Technology
License Plate Recognition
Output Power
280W
Protection Grade
IP44
Service Life
≥ 1 Million Times
Product Description & Features
Security Parking Lot Traffic Boom Barrier Gate

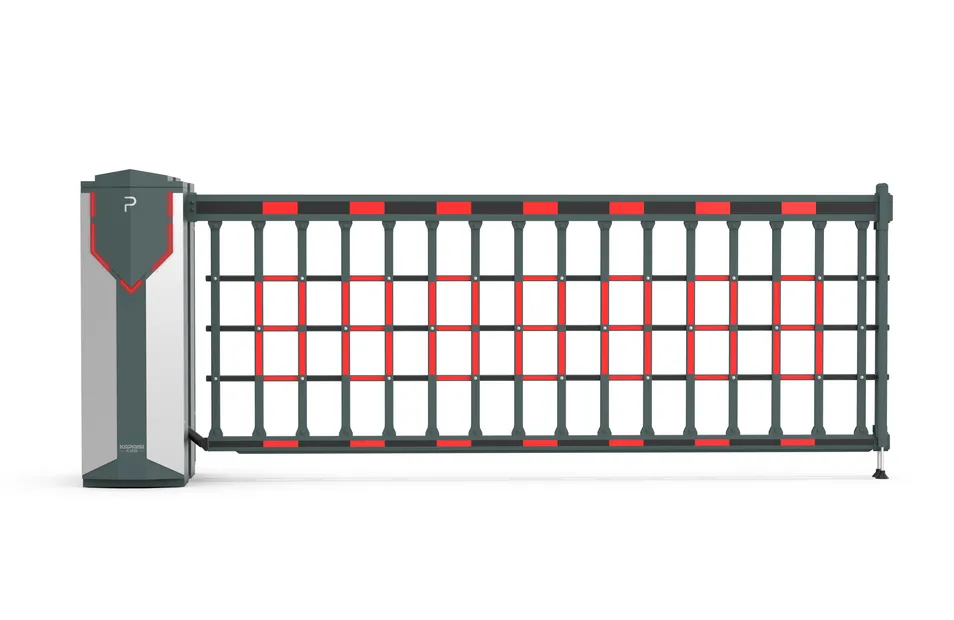

Automated Barrier Gate Detail
  • Compact Movement: Installed by side fixation, featuring a highly integrated and reliable mechanical structure.
  • Aluminum Alloy Body: Die-casted for superior mechanical strength and fast heat dissipation.
  • High Efficiency Transmission: Adopts helical gear reduction, carburizing heat treatment, and precision grinding for shock resistance and long life.
  • DC Brushless Technology: Low heat generation, stable transmission, and large output torque with adjustable speed regulation.
  • Enhanced Safety: Powered by 24V DC voltage, providing a safer operation compared to traditional AC motors.
General Technical Conditions
Insulation Resistance
≥ 100MΩ
Electrical Strength
700V/S without breakdown
Motor Noise
≤55dB
Working Temp
-35℃ to 80℃
Humidity
≤90% (no condensation)
Parameter Specification
Working Power SupplyAC 220V±10% 50/60HZ; DC24V, 15A
Remote Control Distance≤ 30 meters
Lifting Time1.5S - 6S adjustable
Motor Power24V DC 150W Brushless
Chassis Thickness1.5MM
Optional Pole TypesStraight, Middle, and Small rod options
Compatible Rod Types

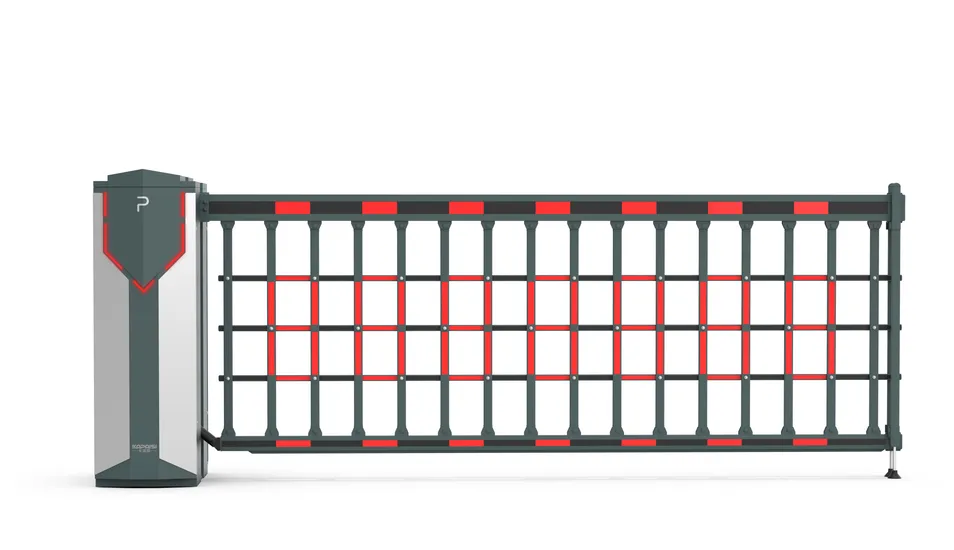

Rod Type A

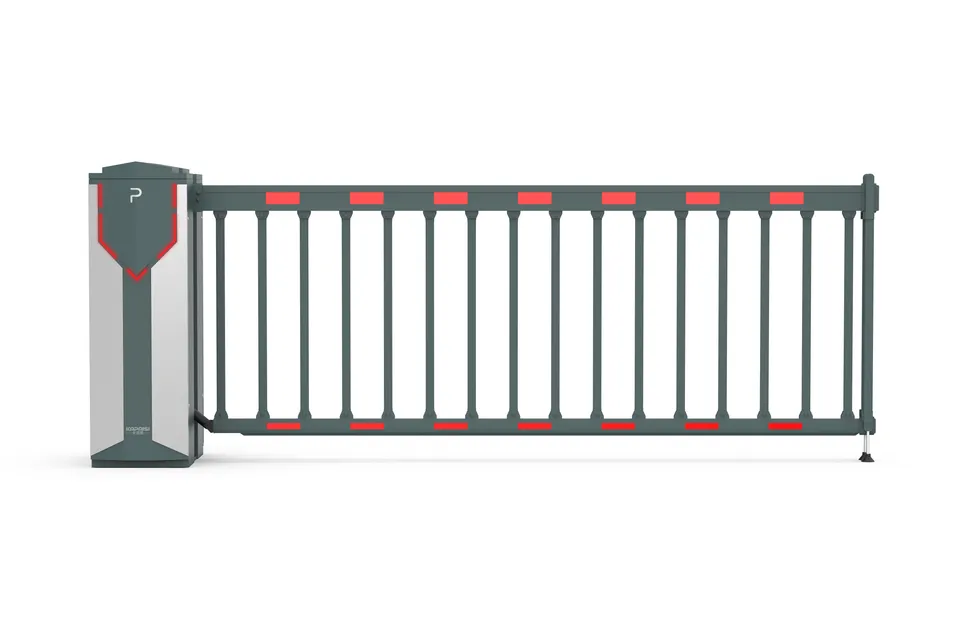

Rod Type B

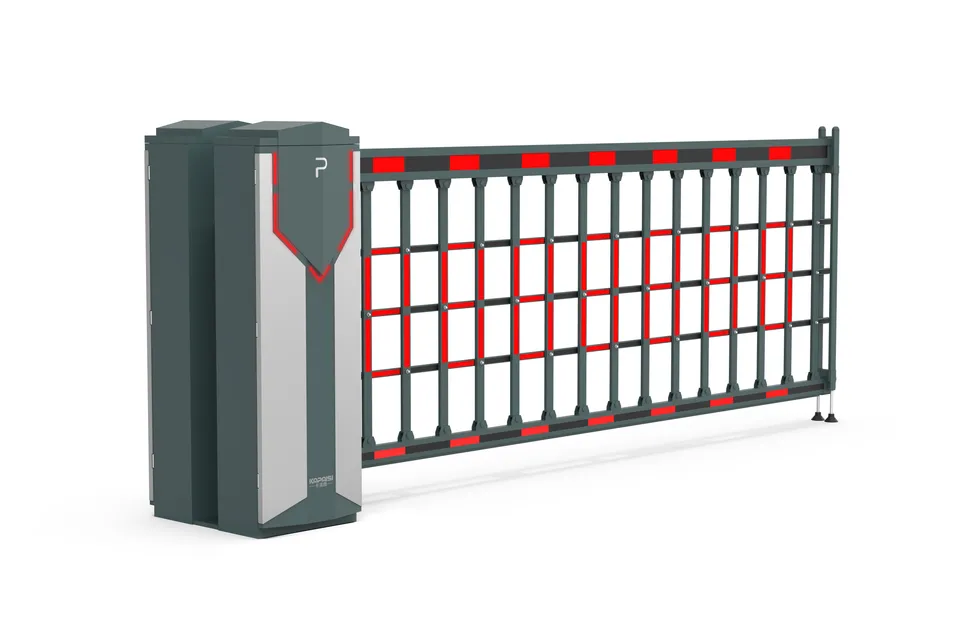

Rod Type C
Motor Parameters

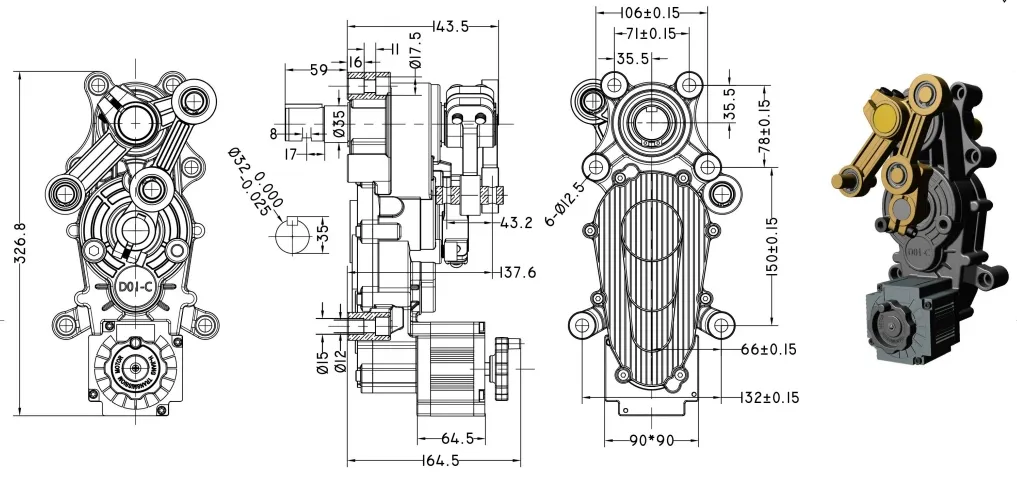

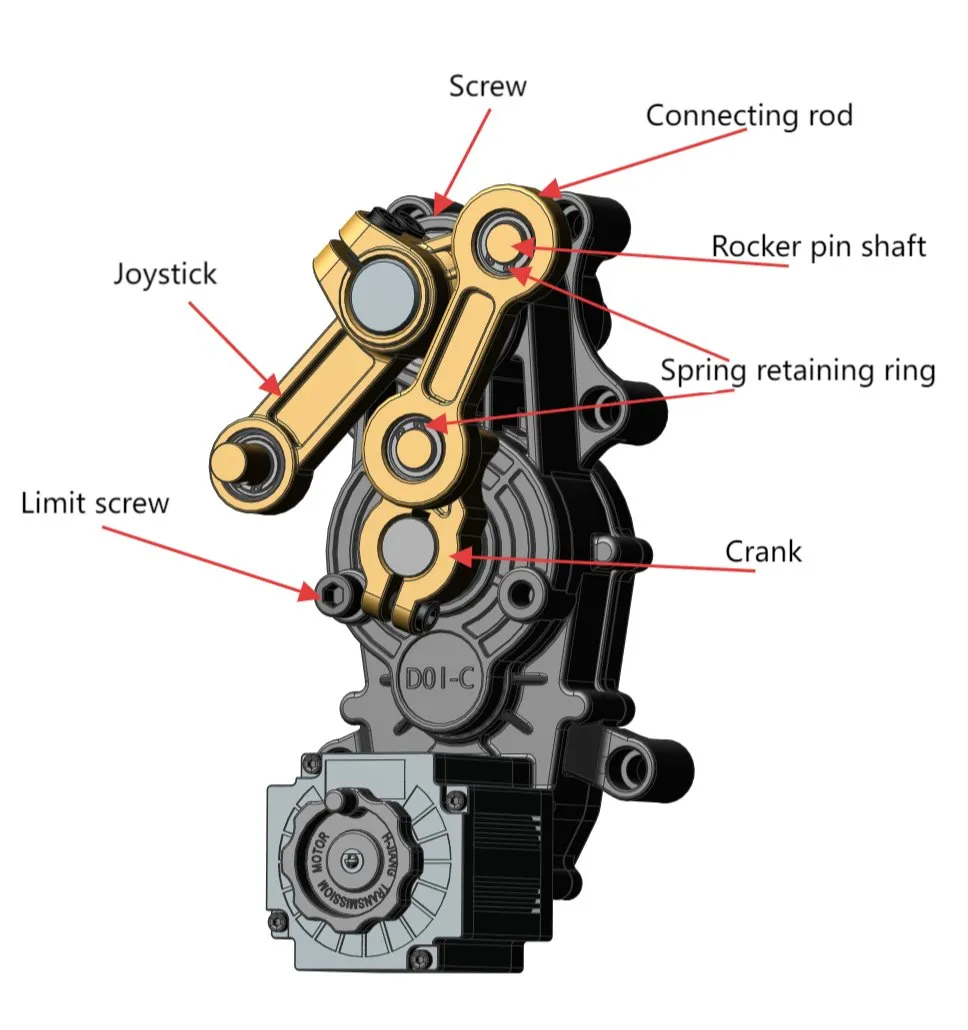

Motor Structure
Motor Chart
Model Output Power Rated Torque Rated Speed Protection
D01C-0.8S120W36.4N·m1500r/minIP44
D01C-1.5S120W64.8N·m1500r/minIP44
D01C-3.0S120W129.9N·m1500r/minIP44
Manufacturing Excellence

We are a comprehensive hardware manufacturer for channel entrances integrating R&D, production, sales, and service. Certified under the ISO9001:2015 quality management system, we produce high-end intelligent channel opening products including heavy-duty barrier gates, pedestrian passage doors, speed gates, and hydraulic bollards.

Production Facility
Storage and Logistics
Quality Control
Certifications & Shipping
Product Certifications
Packaging Standard
Frequently Asked Questions
In which scenarios are these barrier gates suitable?
They are ideal for residential and commercial entrances, parking lot systems, expressway toll stations, logistics parks, schools, and tourist attractions.
What triggering methods are supported?
The series supports remote control, license plate recognition (LPR), ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
Can it operate under extreme weather?
Yes, with IP44/IP54 protection and an operating range of -40℃ to +80℃, it includes built-in lightning and overheat protection.
What types of poles are available?
Options include standard straight rods (2-6m), curved rods for low-ceiling spaces, fence poles for anti-climbing, and advertising poles with LED space.
What is the expected service life of the movement?
The high-precision mechanical movement is designed for a service life of ≥ 1 million opening and closing cycles.
Is technical support available for installation?
We provide comprehensive online technical support to ensure smooth installation and operation of all barrier systems.
