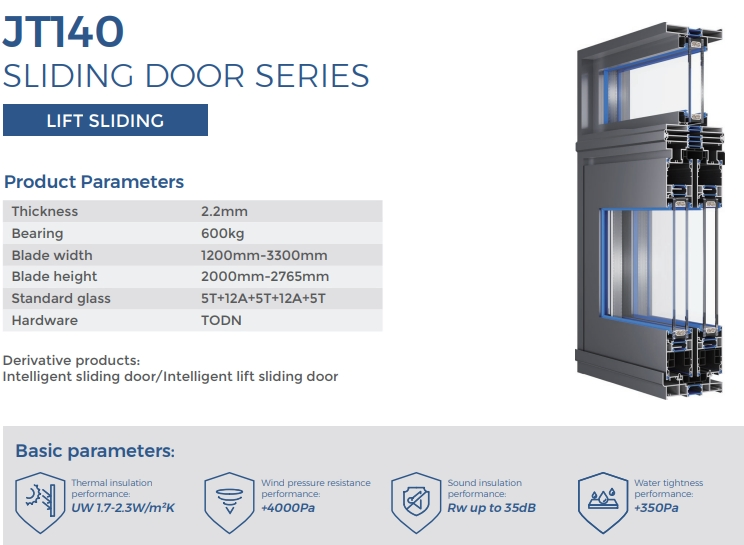

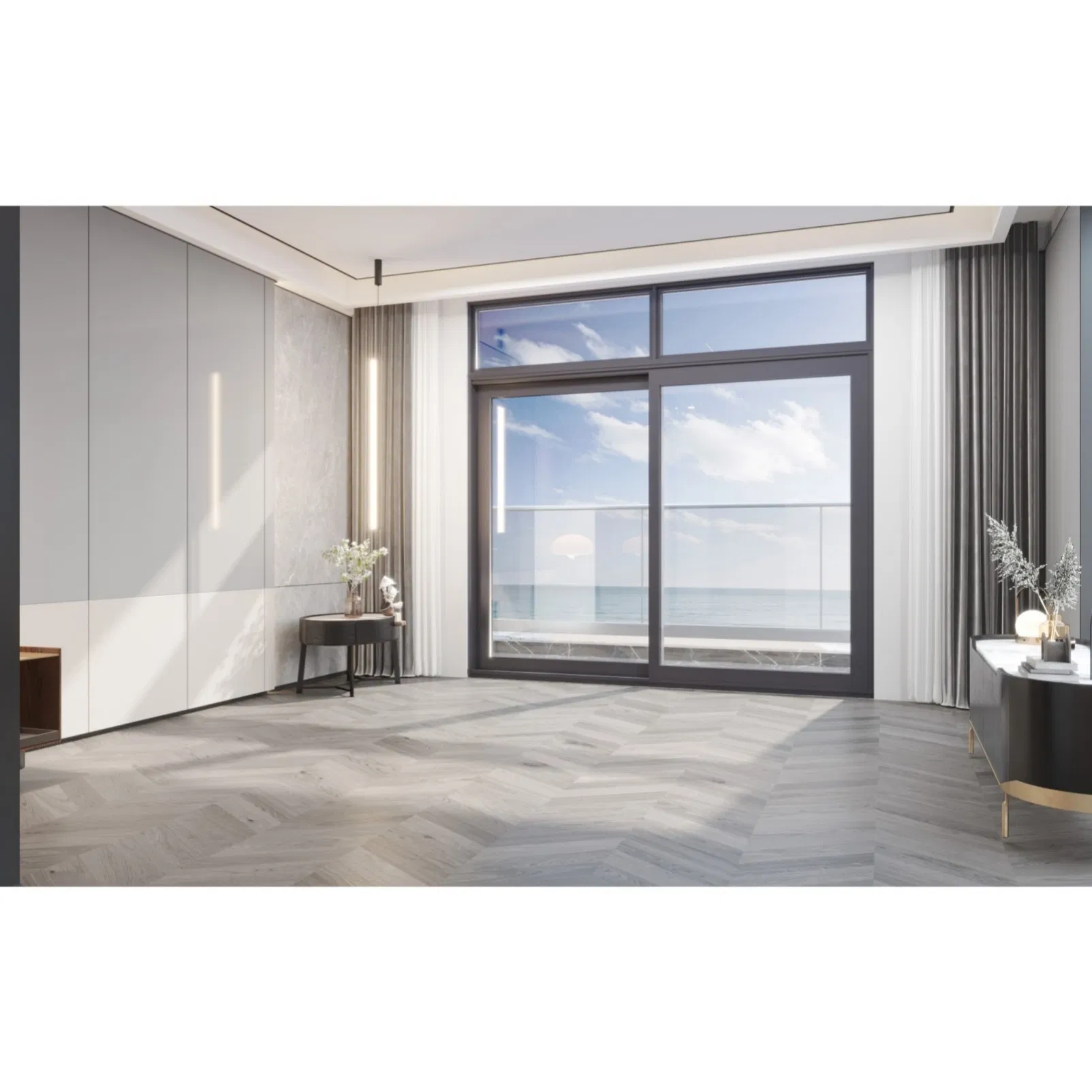

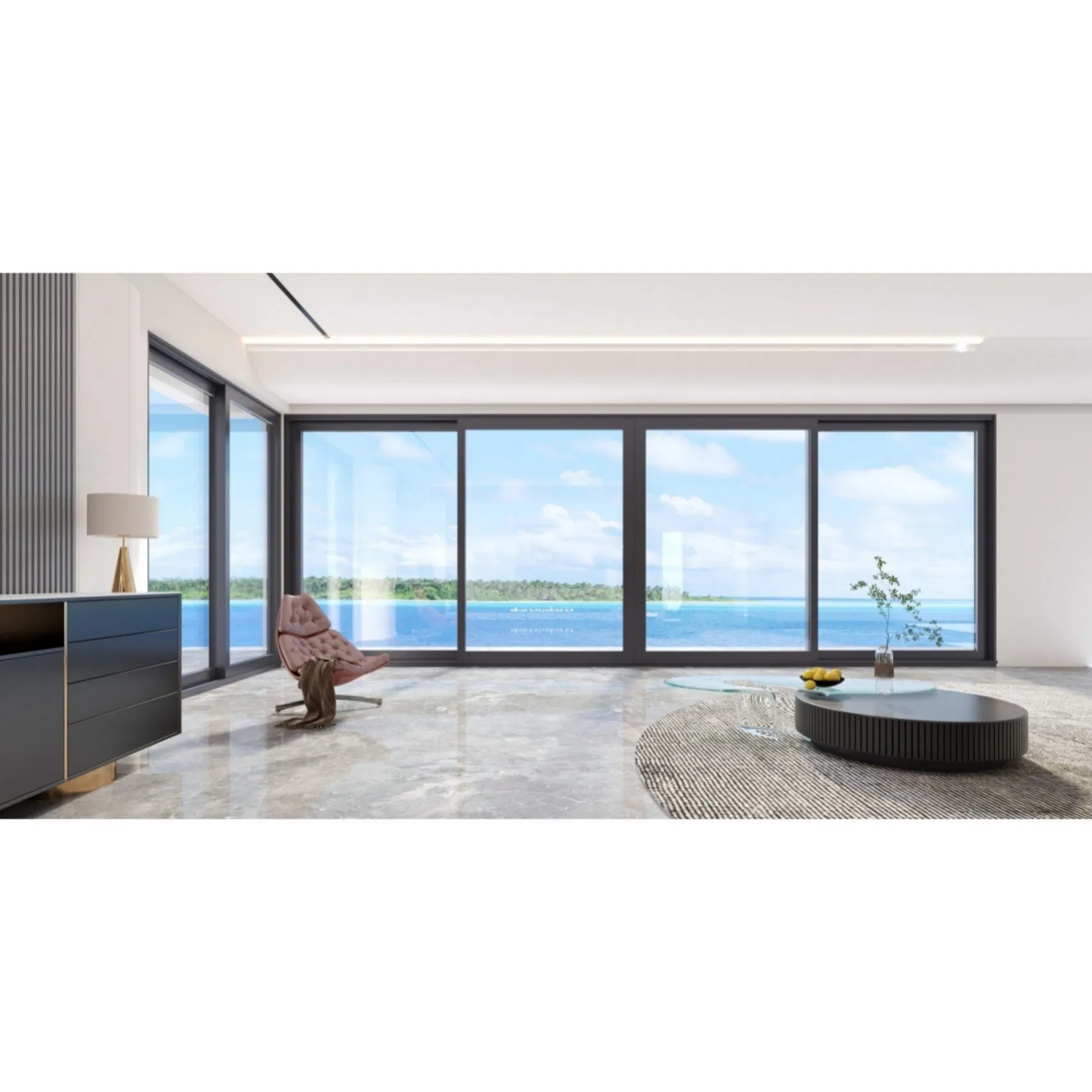

35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
1 / 5
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance
35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance

35dB Soundproof Aluminum Sliding Door with Enhanced Acoustic Performance

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
JT140 LIFT SLIDING
Material
Aluminum Alloy
Style
Modern
Open Style
Inward Opening and Inward Tilting
Sound Insulation
40dB
Screen Netting
Stainless Steel/HD Nylon Screen
Security Rating
A
Thickness
2.2mm
Bearing
600kg
Standard Glass
5t+12A+5t+12A+5t
Hardware
Todn
Origin
China
Product Description
Aluminum Sliding Door Features
  • The profile adopts a high load-bearing structure, which effectively shares the weight of the glass with the wall structure and prevents the profile insulation strip from breaking.
  • The standard configuration uses nylon transmission rods for transmission, which can reduce unnecessary noise generated by a large amount of hardware and provide a smooth feel.
  • Adopting a three-layer sealing structure with EPDM sponge composite sealing strips, the multiple sealing layers enhance the window's air tightness and water tightness.
Sliding Door Detail 1 Sliding Door Detail 2
JT140 Series Product Parameters
Parameter Title
Technical Specifications
Water Tightness △P≥450Pa Window Frame 72mm
Air Tightness q1≤0.5, q2≤1.5 Insulation Strip 24mm
Wind Resistance 3.5kpa≤P3<4.0kpa Glass Thickness ≤49mm
Thermal Insulation 1.7w/(m²·k)≤UW<2.3w/(m²·k) U-Value 1.4 - 2.0W/(m²·K)
Sound Insulation 35db≤Rw<40db Bearing Capacity 240kg

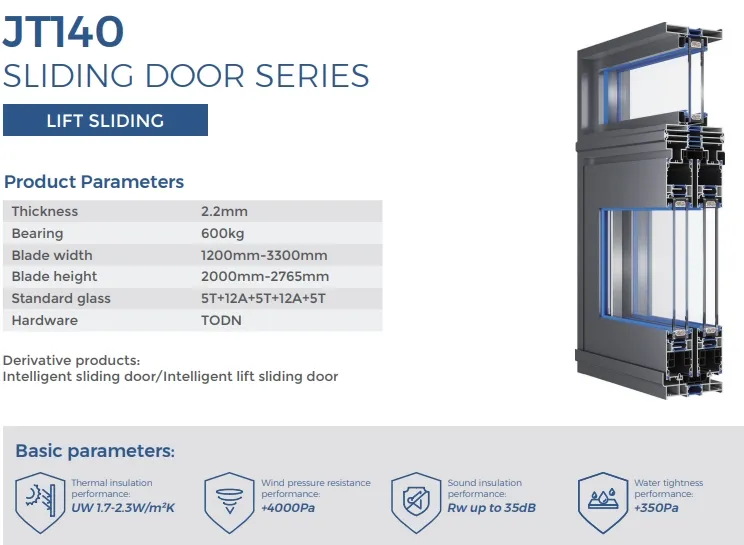

Structure Drawing
Key Components & Processes
Hardware Title

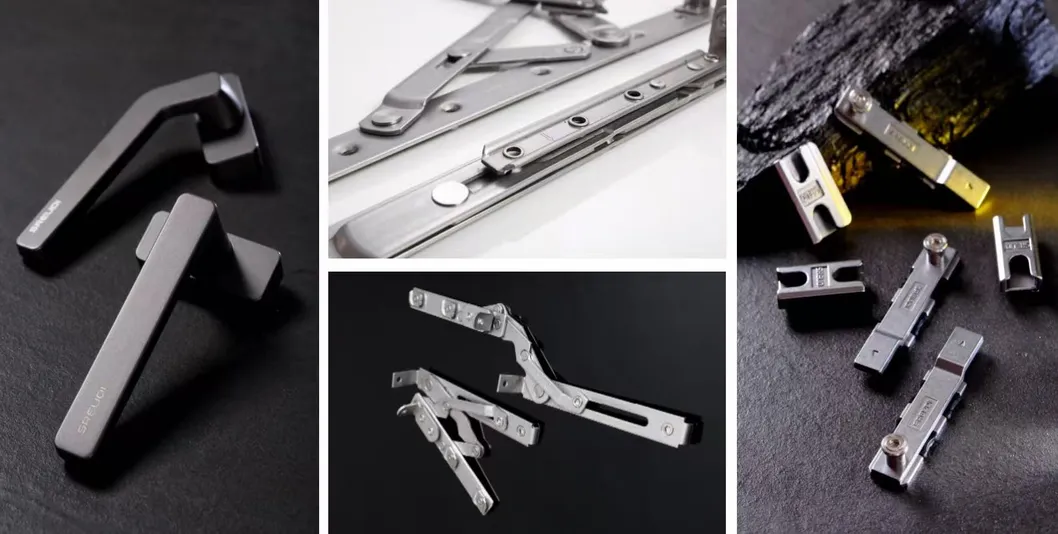

A. Hardware

Equipped with high-quality brands to enhance performance and user experience.

Hardware Showcase
Profiles Title

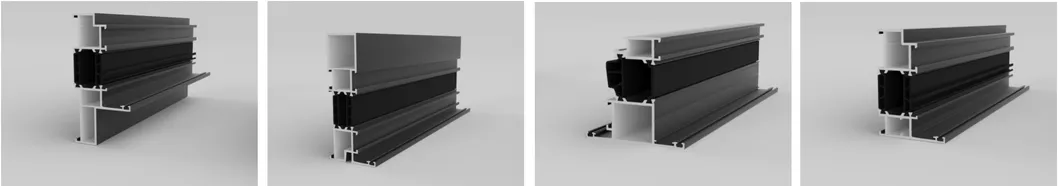

B. Profiles

Thermal break aluminum alloy profiles offering excellent insulation, corrosion resistance, and high strength.

Profiles Showcase
Glass Title

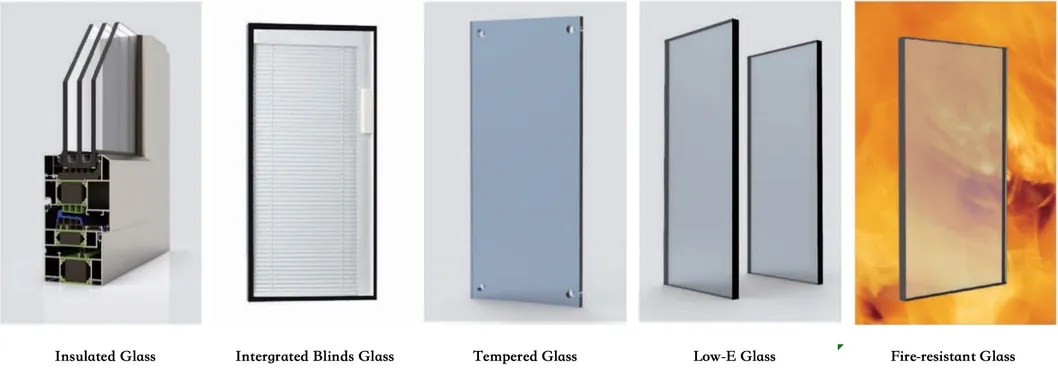

C. Glass Options

Customizable options including insulated, tempered, laminated, fire-resistant, and smart glass.

Glass Showcase

D. Manufacturing & Packaging

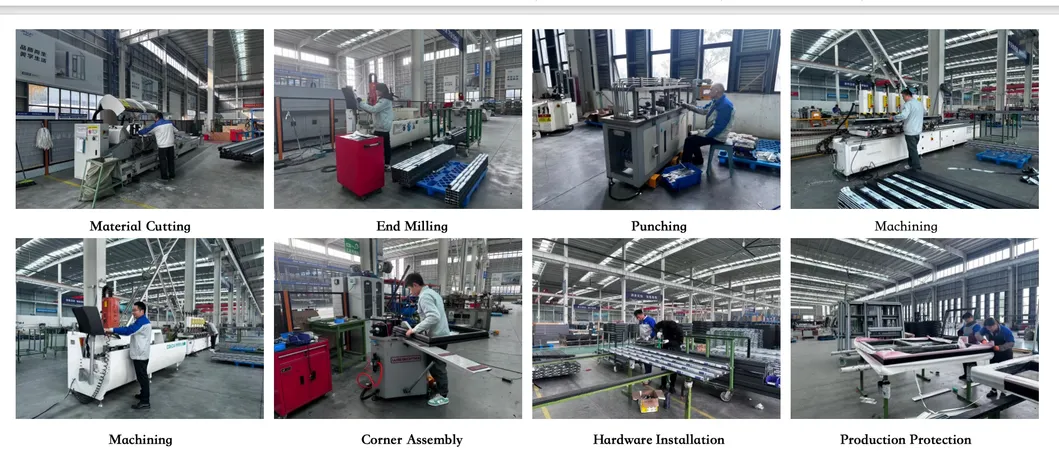

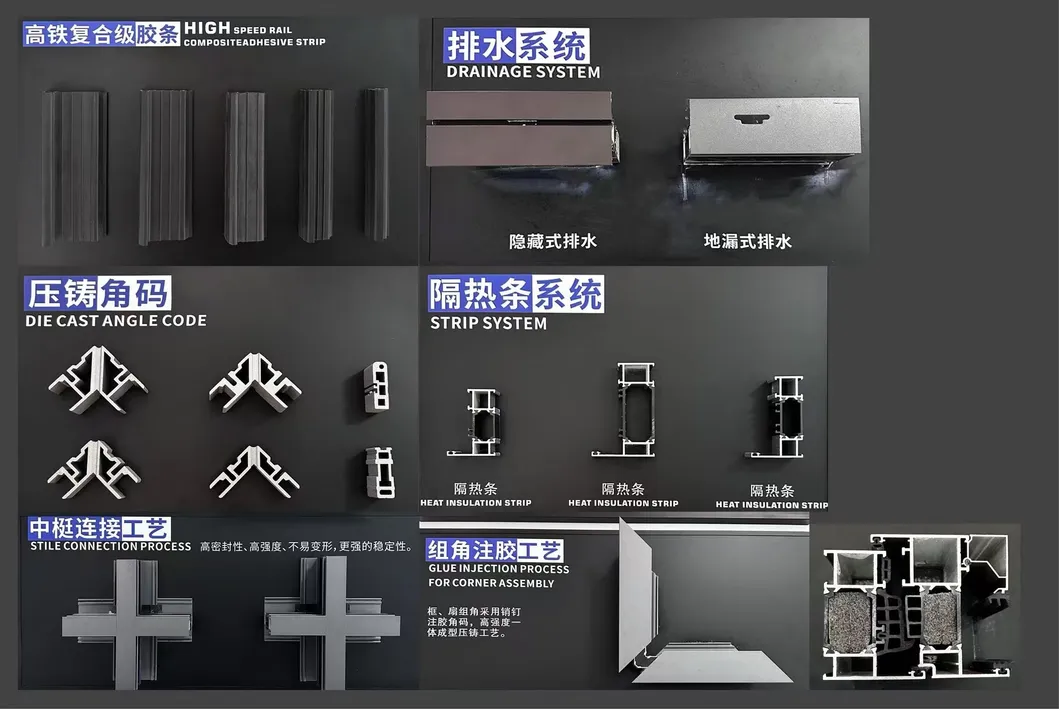

Process 1 Process 2

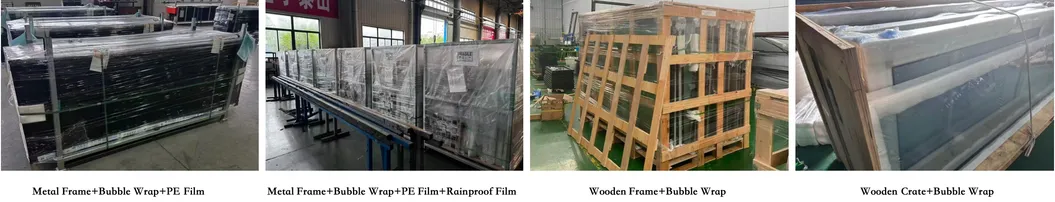

Packaging
Manufacturing Capacity

Established in 1993, we specialize in high-performance aluminum alloy and plastic doors and windows. With four manufacturing facilities and nearly 1,000 employees, we achieve an annual production capacity of 3 million square meters.

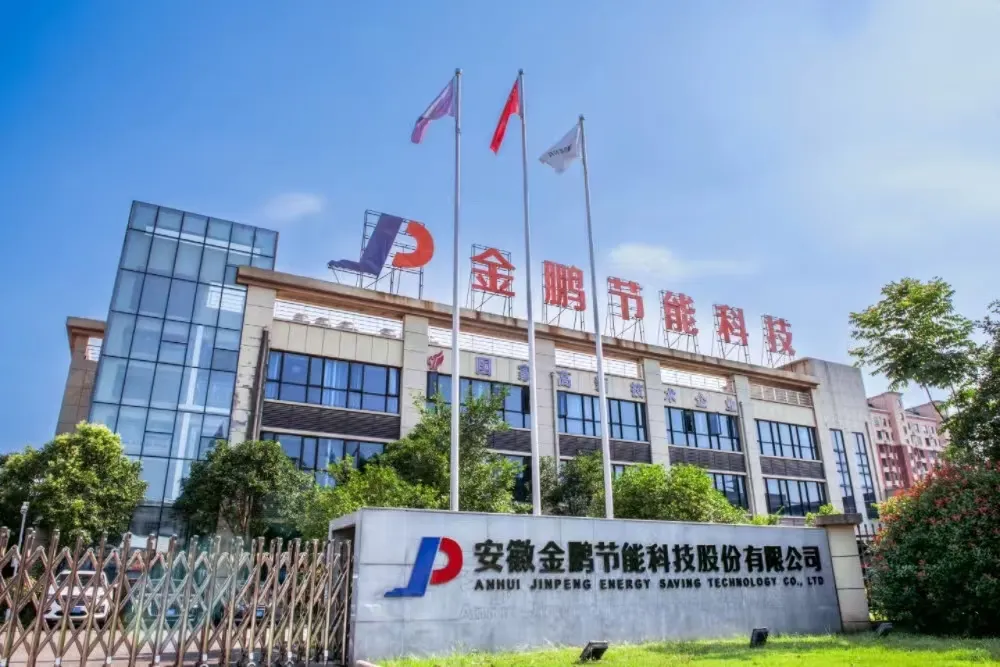

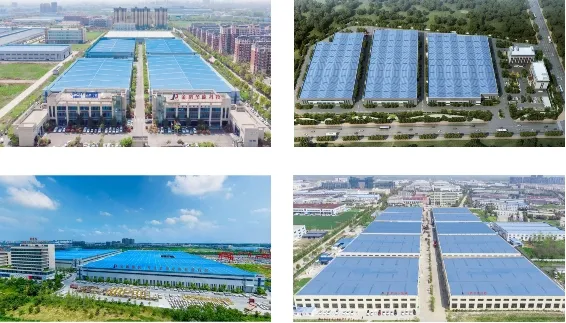

Facility 1 Facility 2

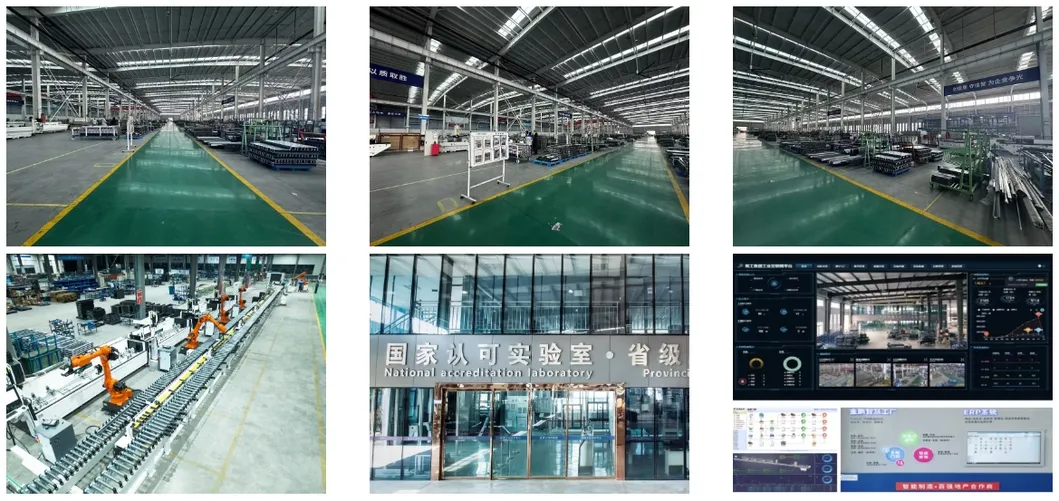

Advanced Production Certifications
  • One-stop service from design to after-sales.
  • Annual capacity of 3 million square meters for timely delivery.
  • R&D team of 30+ members meeting global certification standards.
  • Mature supply chain for cost-effective, high-quality solutions.
Frequently Asked Questions
What is the sound insulation performance of the JT140 sliding door?
The JT140 series offers excellent acoustic performance, with sound insulation ratings typically ranging between 35dB and 40dB.
What materials are used for the profiles?
We use high-strength thermal break aluminum alloy profiles, which provide superior thermal insulation and energy efficiency.
Can the glass be customized?
Yes, we offer various glass options including double/triple glazed, tempered, laminated, fire-resistant, and smart glass based on your requirements.
What is the maximum weight capacity for these doors?
The JT140 model is designed for high load-bearing, supporting up to 600kg depending on the specific configuration.
What kind of sealing does the door use?
It features a three-layer sealing structure utilizing EPDM sponge composite sealing strips for maximum air and water tightness.
Are these products certified for international markets?
Yes, our R&D team ensures products meet various regional certification requirements, and we operate a national-level CNAS-certified laboratory for quality control.
