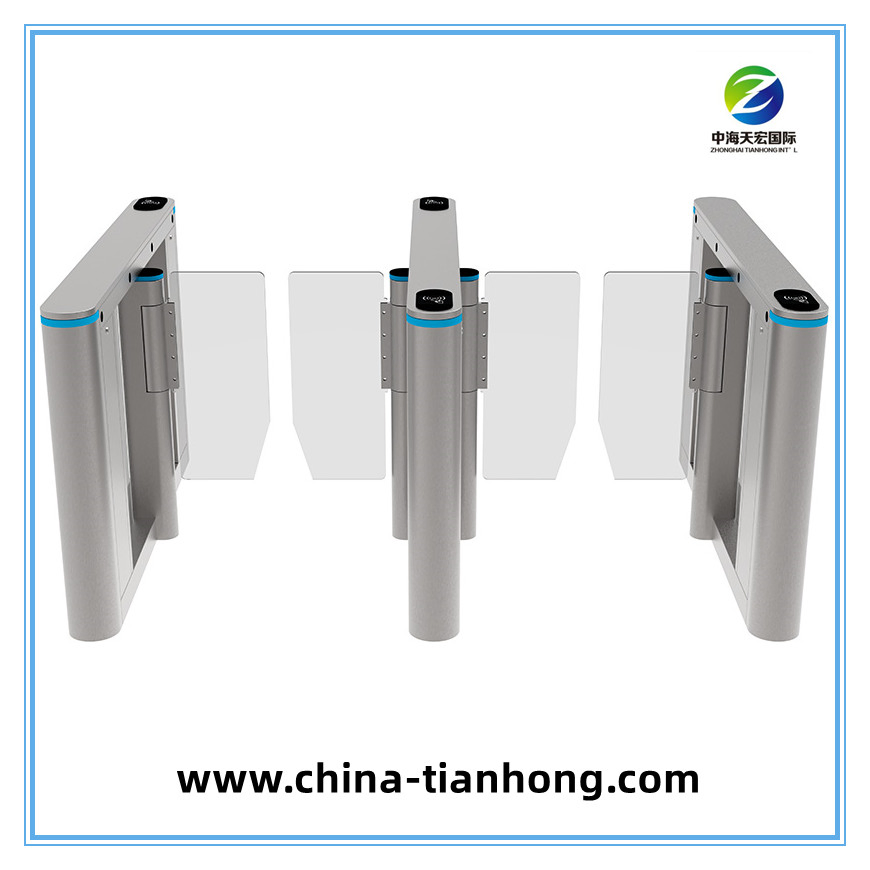

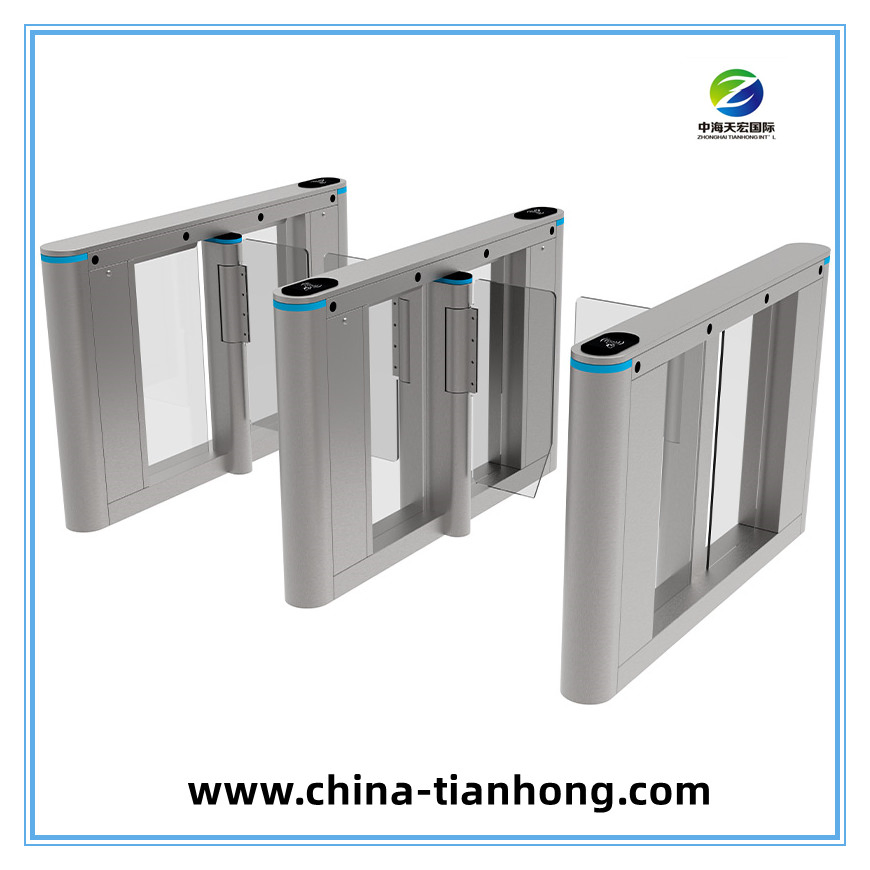

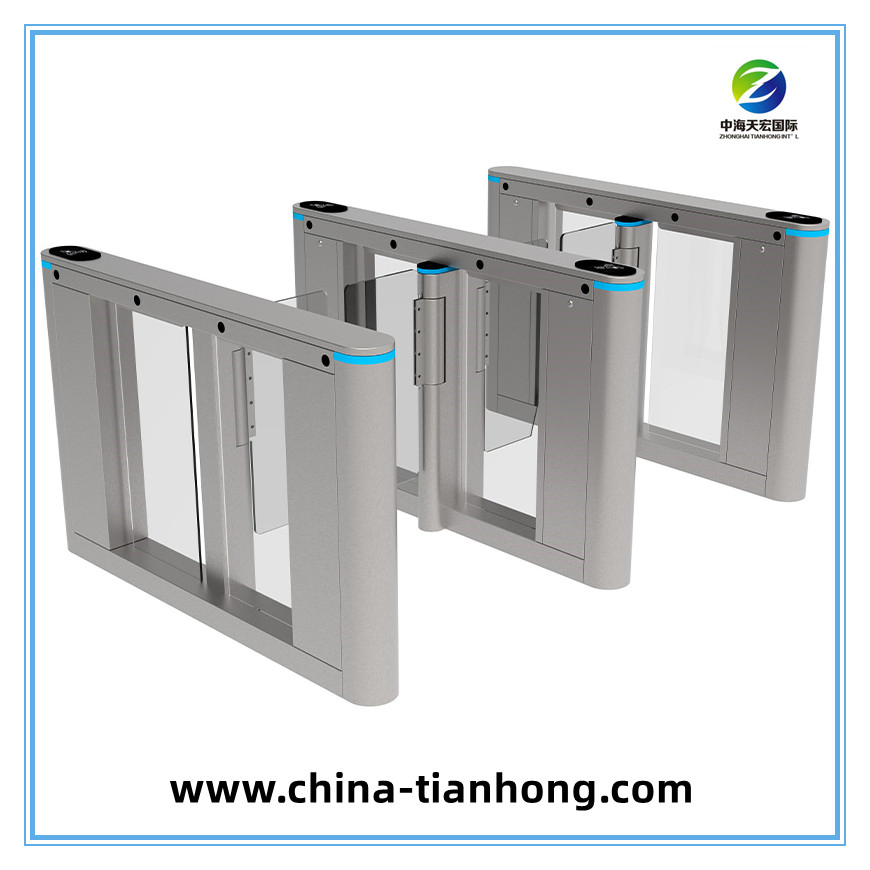

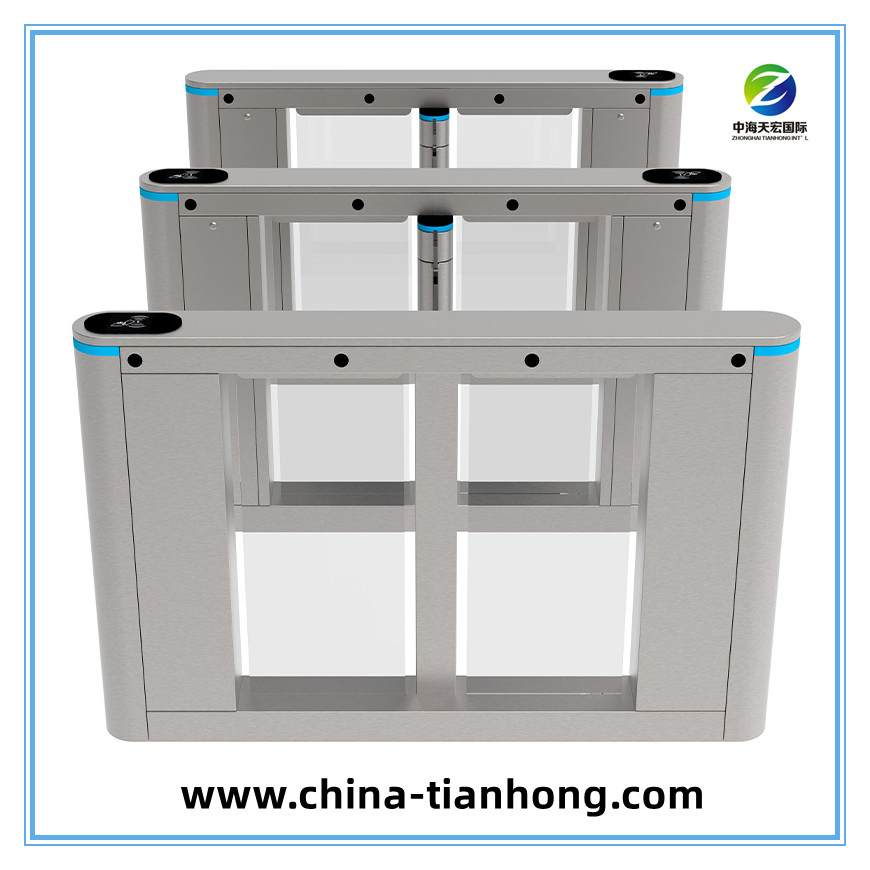

2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
1 / 5
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate
2024 Biometric Full Automatic Security Speed Gate Turnstile Gate

2024 Biometric Full Automatic Security Speed Gate Turnstile Gate

Customization: Available
Sensing Method: Slot Reader
Application: Access Control System
Send Inquiry

Product Description

Basic Specifications
Model NO.
TH-SG305
Movement
Single Movement
Type
Swing Gate
Control Mode
Automatic
Communication
TCP/IP
Package
Wooden Case
Dimension
1500L x 185W x 1020H (mm)
HS Code
85308000
Capacity
800 PCS/Month
Product Description

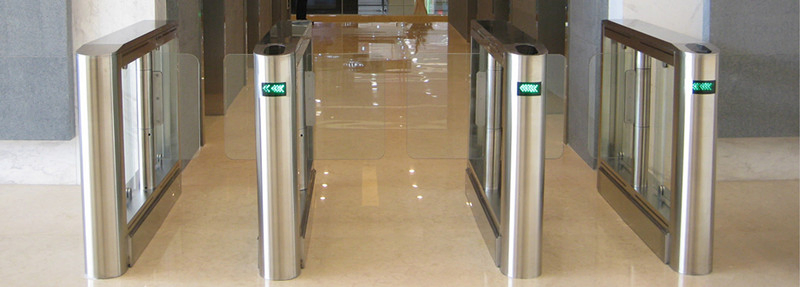

Speed Gate SG317 features a simple-designed body harmonized with any architectural space. The exterior, finished with glossy and beautiful hairline stainless steel, provides a smart, elegant, and sophisticated appearance.

Each side of the body is uniquely designed to fit any floor and building. Utilizing acrylic flap-panels, it creates an open and modern atmosphere without looking exaggerated.

🛡️
Universal Safety Design
With optional lower sensors and urethane flap-panels, children can pass safely. Access indications use LED lights visible to those with partial color blindness.
⚙️
Highly Reliable Quality
This series is globally recognized for its excellent performance and reliable working quality across various international markets.

SG305 supports extensive customization with OEM and ODM services. The system can be integrated with various biometric devices, including IC/ID card readers, fingerprint scanners, QR code scanners, and face recognition cameras.

Technical Parameters
1Configuration: Mechanism, Housing, Control board, Power supply
2Power Consumption: Static: 60W; Dynamic: 160W
3Power Input: AC220V±10%, 50HZ
4Output: DC5V, DC12V, AC24V
5Drive Mode: DC electric motor
6Interface: One Rs 232, two card reader signals (passive), one fire alarm interface
7Overall Dimension: 1500L x 185W x 1020H (mm)
8Following Speed: 35-50 people/minute (Normal to Fast mode)
9Service Life: Five million continuous rotations
10Operation Direction: Single/bi-directional
11Working Environment: Indoor
12Lane Width: 500mm-550mm
13Opening Angle: 90±5°
14Noise: ≤50dB
15Opening/Closing Time: 1 second
16Net Weight: Single core 70 KGS; Double cores 100 KGS
Project Gallery

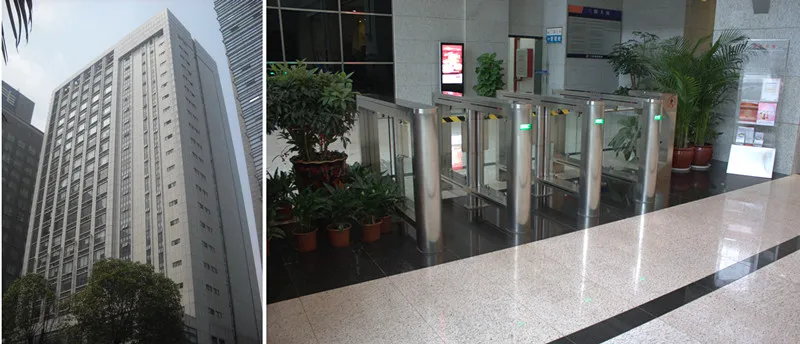

Security Speed Gate Turnstile Project
Frequently Asked Questions
What is the standard lane width for the SG305 speed gate?
The standard lane width for this model is designed between 500mm and 550mm, optimized for comfortable pedestrian passage.
Does the system support bidirectional access?
Yes, the SG305 can be configured for either single-directional or bi-directional operation depending on your security requirements.
What types of biometric devices can be integrated?
The gate is compatible with a wide range of devices including IC/ID card readers, fingerprint scanners, QR code scanners, and face recognition cameras.
How many people can pass through the gate per minute?
In normal mode, the gate allows 35 people per minute, which can increase to 50 people per minute in fast mode.
What is the expected lifespan of the mechanism?
The high-quality DC motor and mechanism are designed for a service life of up to five million continuous rotations.
Is the speed gate suitable for outdoor installation?
The SG305 is specifically designed for indoor environments to ensure optimal performance and longevity of its electronic components.
